Craftsman
Power Sander

Model # 351215080 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 351215080 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |

Bolt 05284.00
#28

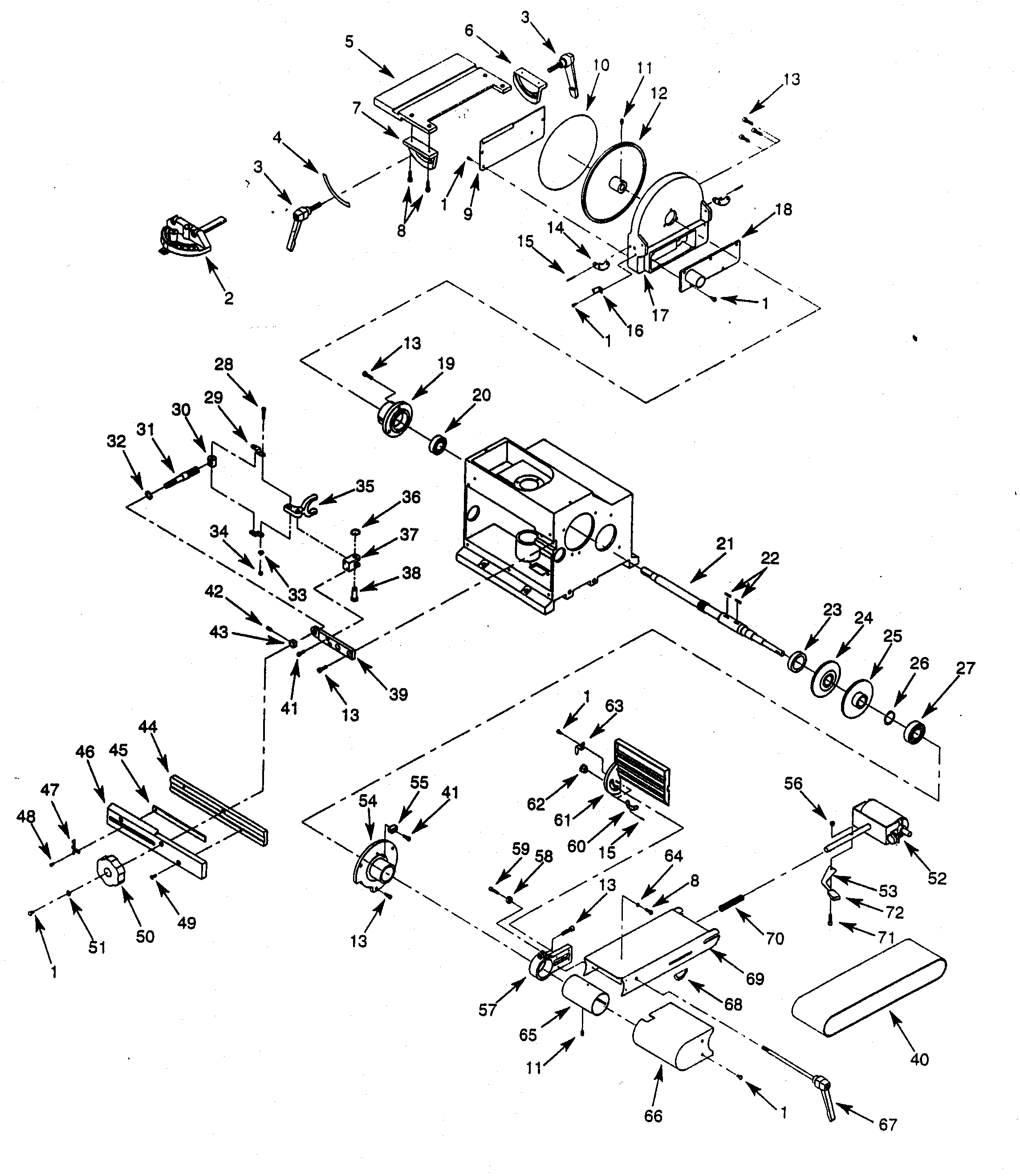

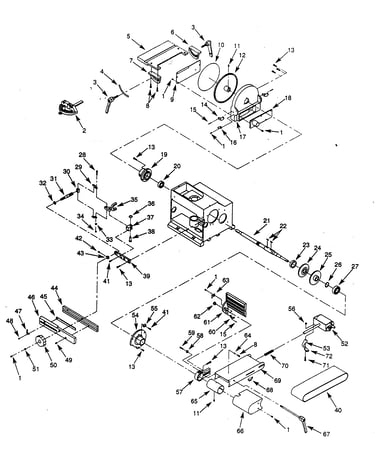

Belt/disc assy diagram

Bolt

Part #05284.00

The manufacturer no longer makes this part, and there's no substitute part

Head Bolt 01775.00
#59

Belt/disc assy diagram

Head bolt

Part #01775.00

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 05153.00
#56

Belt/disc assy diagram

Hex nut

Part #05153.00

The manufacturer no longer makes this part, and there's no substitute part

Cam 20653.00
#19

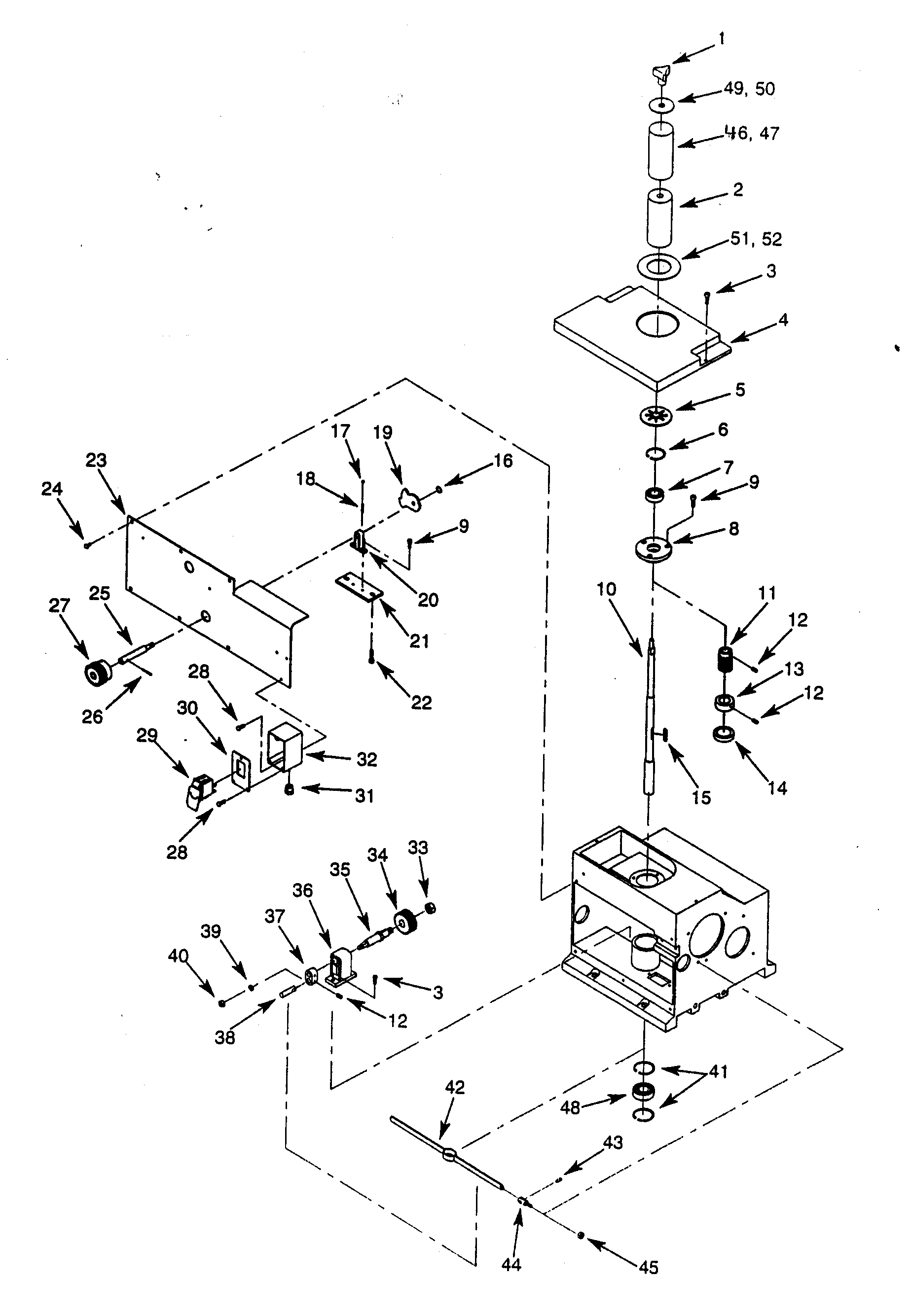

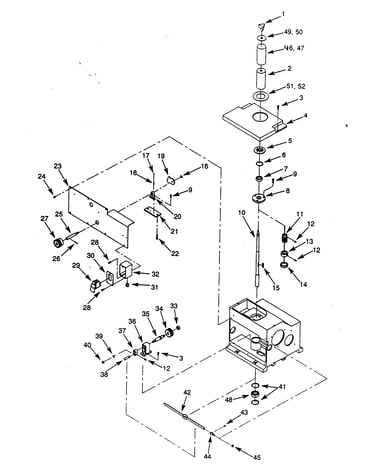

Spindle assy diagram

Cam

Part #20653.00

The manufacturer no longer makes this part, and there's no substitute part

Dust Chute 20555.00
#28

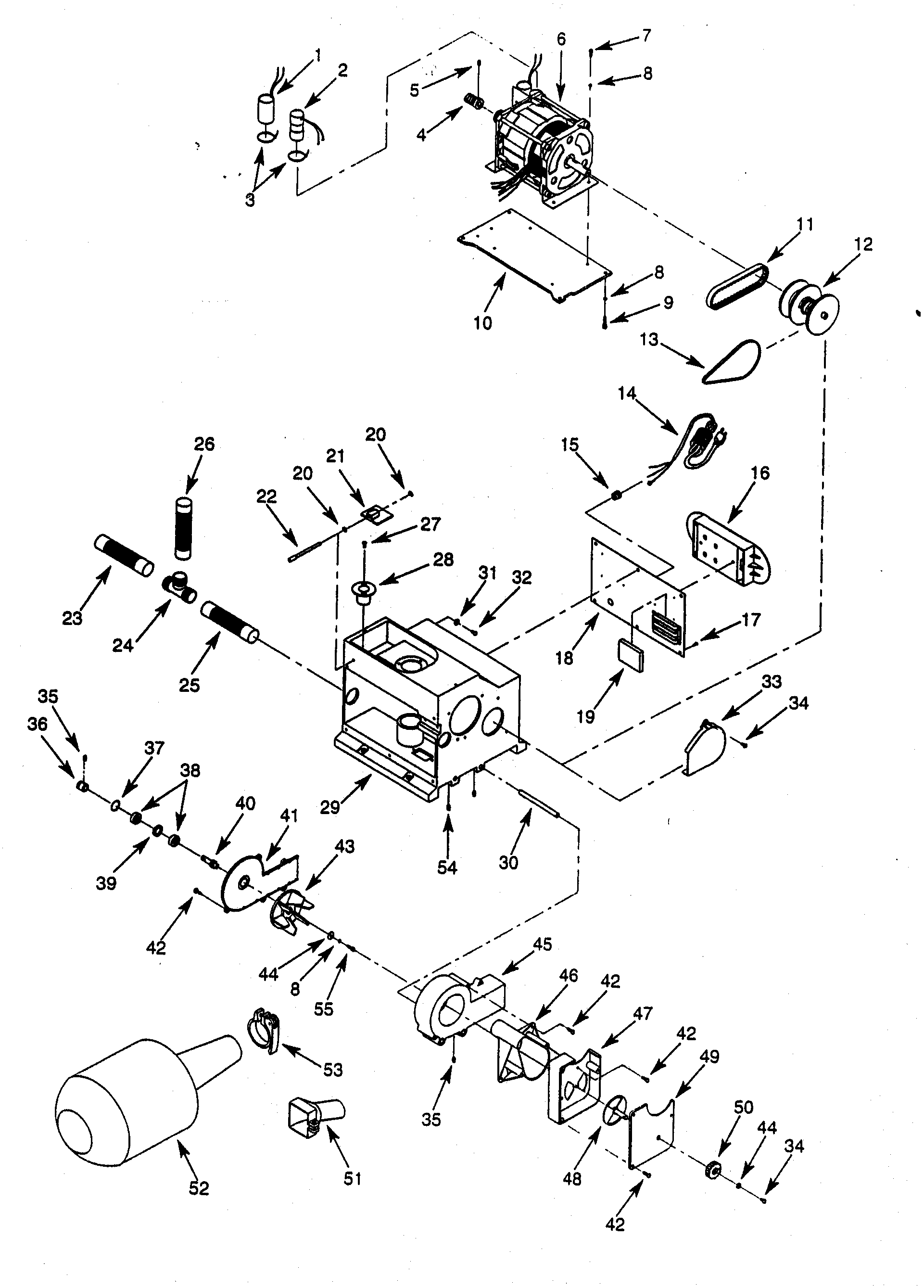

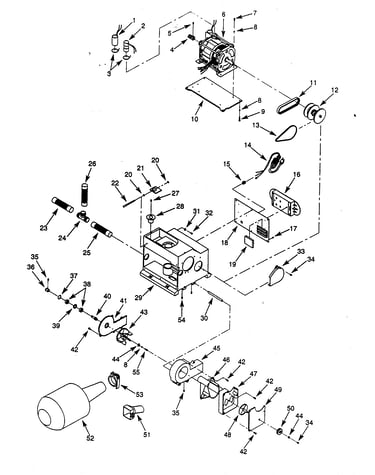

Dust collection/motor diagram

Dust chute

Part #20555.00

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 20561.00
#1

Dust collection/motor diagram

Capacitor

Part #20561.00

The manufacturer no longer makes this part, and there's no substitute part

Disc Guard 20595.00
#17

Belt/disc assy diagram

Disc guard

Part #20595.00

The manufacturer no longer makes this part, and there's no substitute part

Spacer 20616.00
#39

Dust collection/motor diagram

Spacer

Part #20616.00

The manufacturer no longer makes this part, and there's no substitute part

Platen 20608.00
#69

Belt/disc assy diagram

Platen

Part #20608.00

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing STD315225
#7

Spindle assy diagram

Ball bearing

Part #STD315225

The manufacturer no longer makes this part, and there's no substitute part
