Countertop Microwave

Model # CEB1590SS2SS Official GE microwave

Here are the diagrams and repair parts for Official GE CEB1590SS2SS microwave, as well as links to manuals and error code tables, if available.

By Schematic

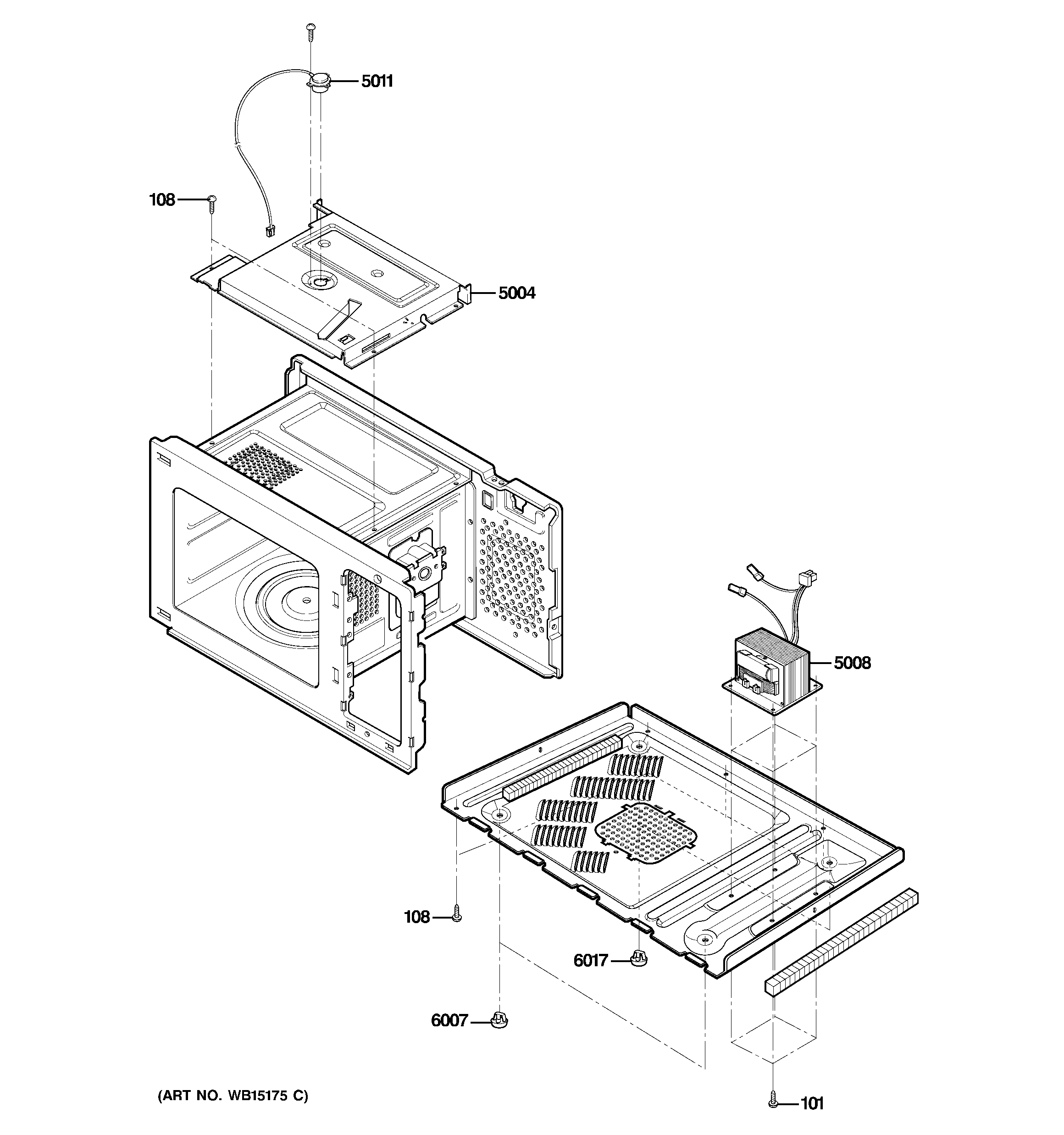

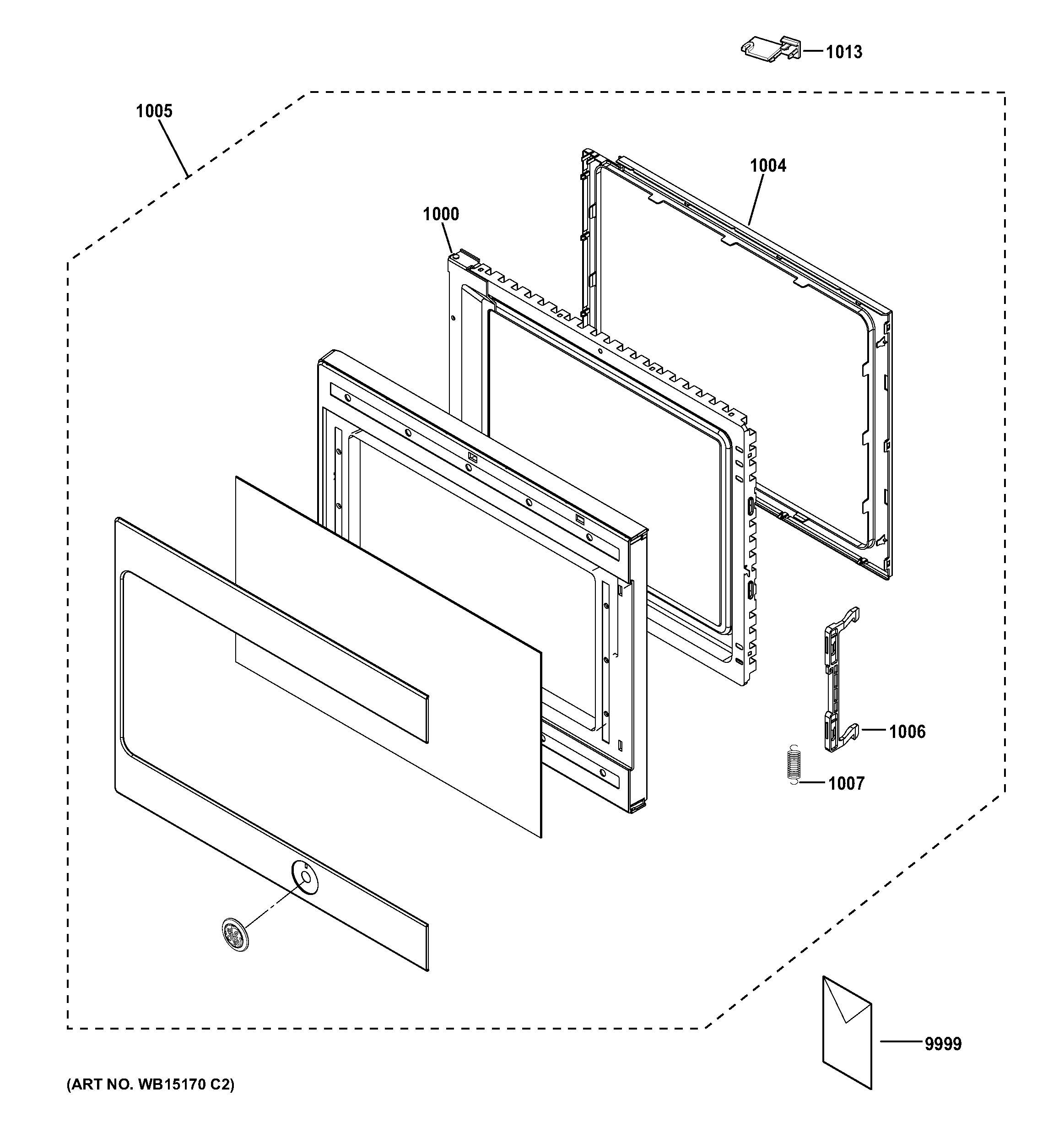

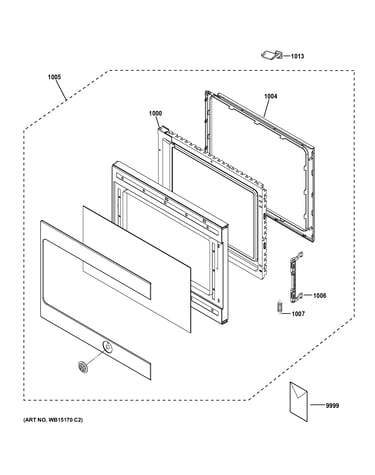

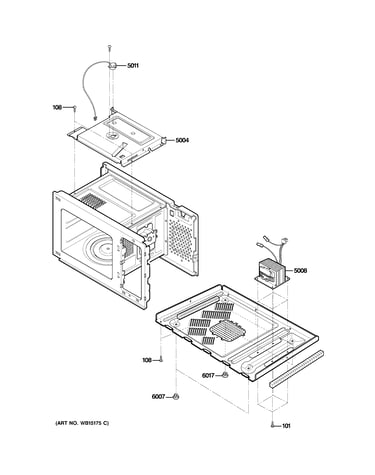

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
CEB1590SS2SS Microwaves
Microwave Magnetron WB27X10305
#5009

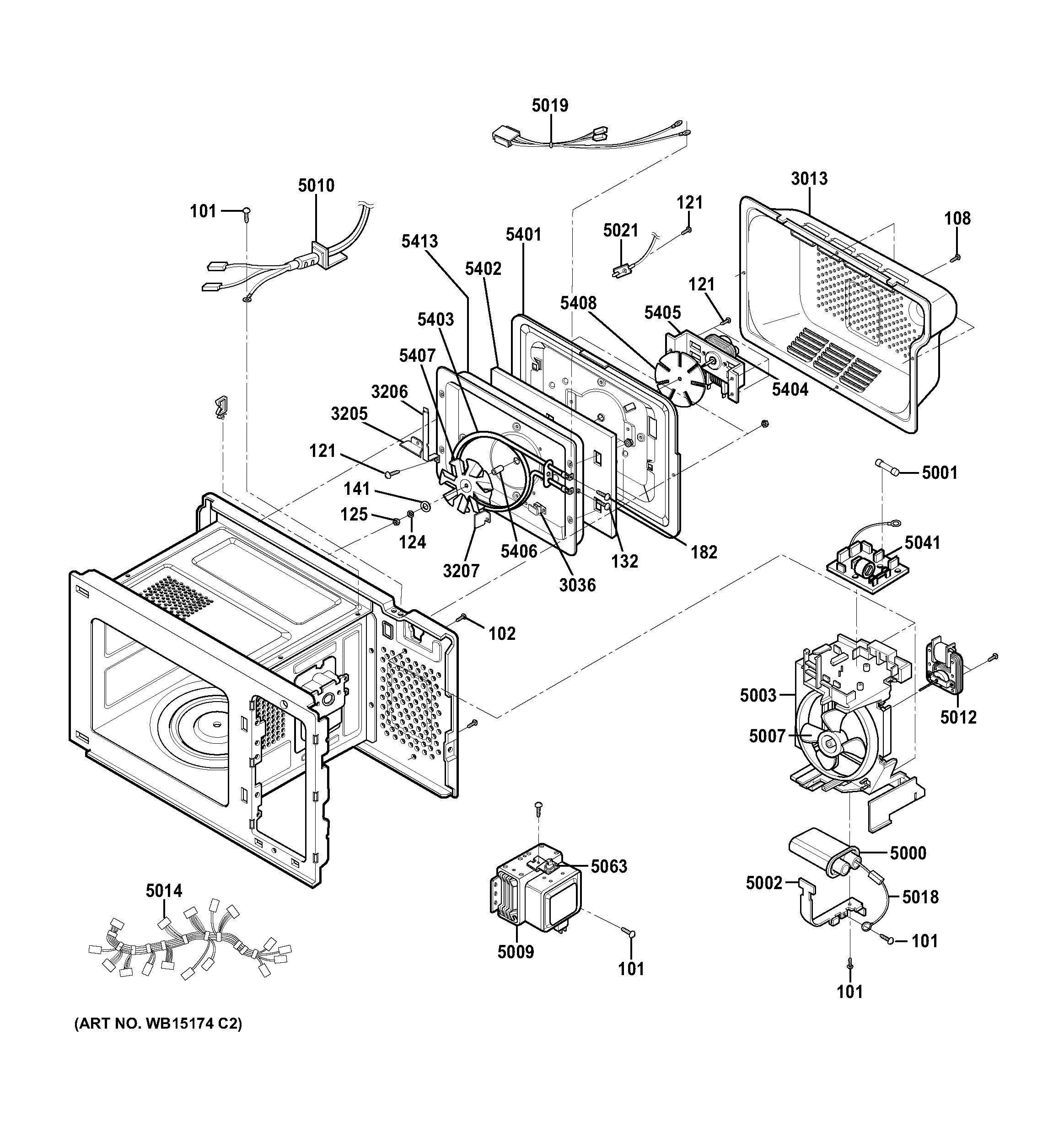

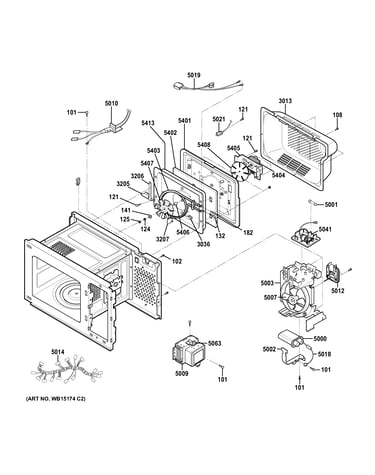

Interior parts diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Primary Switch WB24X0815
Primary switch

Part #WB24X0815

Replaced by #WB24X10047

?
Manufacturer substitution
This part replaces WB24X0815. Substitute parts can look different from the original.
BEST SELLER
$30.84 |
16% OFF Phone Price : $36.84
In Stock
Microwave High-voltage Capacitor (replaces Wb27x10701, Wb27x10747, Wb27x10805) WB27X11033
#5000

Interior parts diagram

Microwave high-voltage capacitor (replaces wb27x10701, wb27x10747, wb27x10805)

Part #WB27X11033

BEST SELLER
$41.91 |
13% OFF Phone Price : $47.91
In Stock
Cable WB18X10286
#5018

Interior parts diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

?
Manufacturer substitution
This part replaces WB18X10286. Substitute parts can look different from the original.
BEST SELLER
$25.62 |
19% OFF Phone Price : $31.62
In Stock
Monitor Switch WB24X0817
#4003

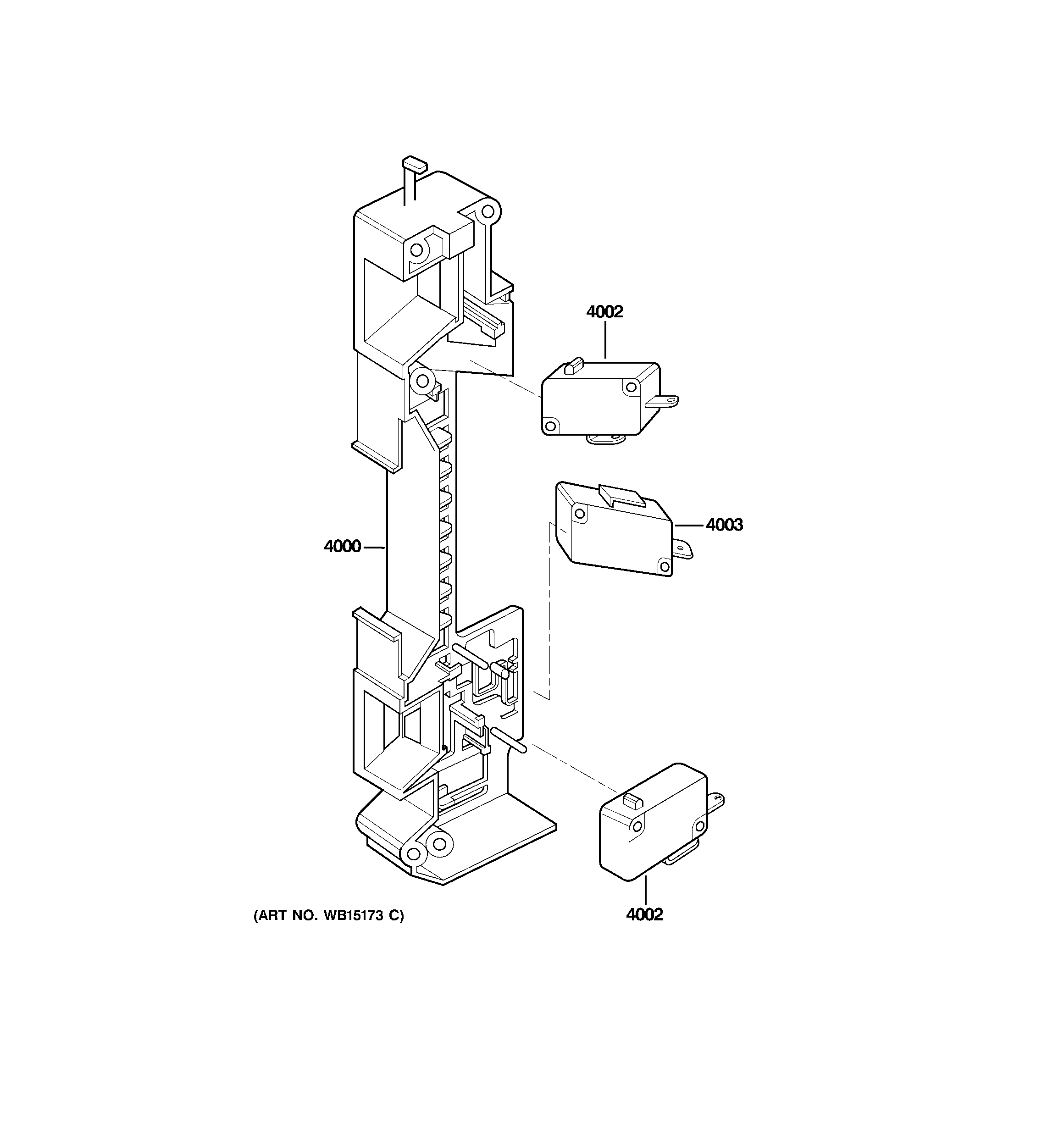

Latch board parts diagram

Monitor switch

Part #WB24X0817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X0817. Substitute parts can look different from the original.
BEST SELLER
$28.49 |
17% OFF Phone Price : $34.49
In Stock
Glass Tray WB49X10074
#3002

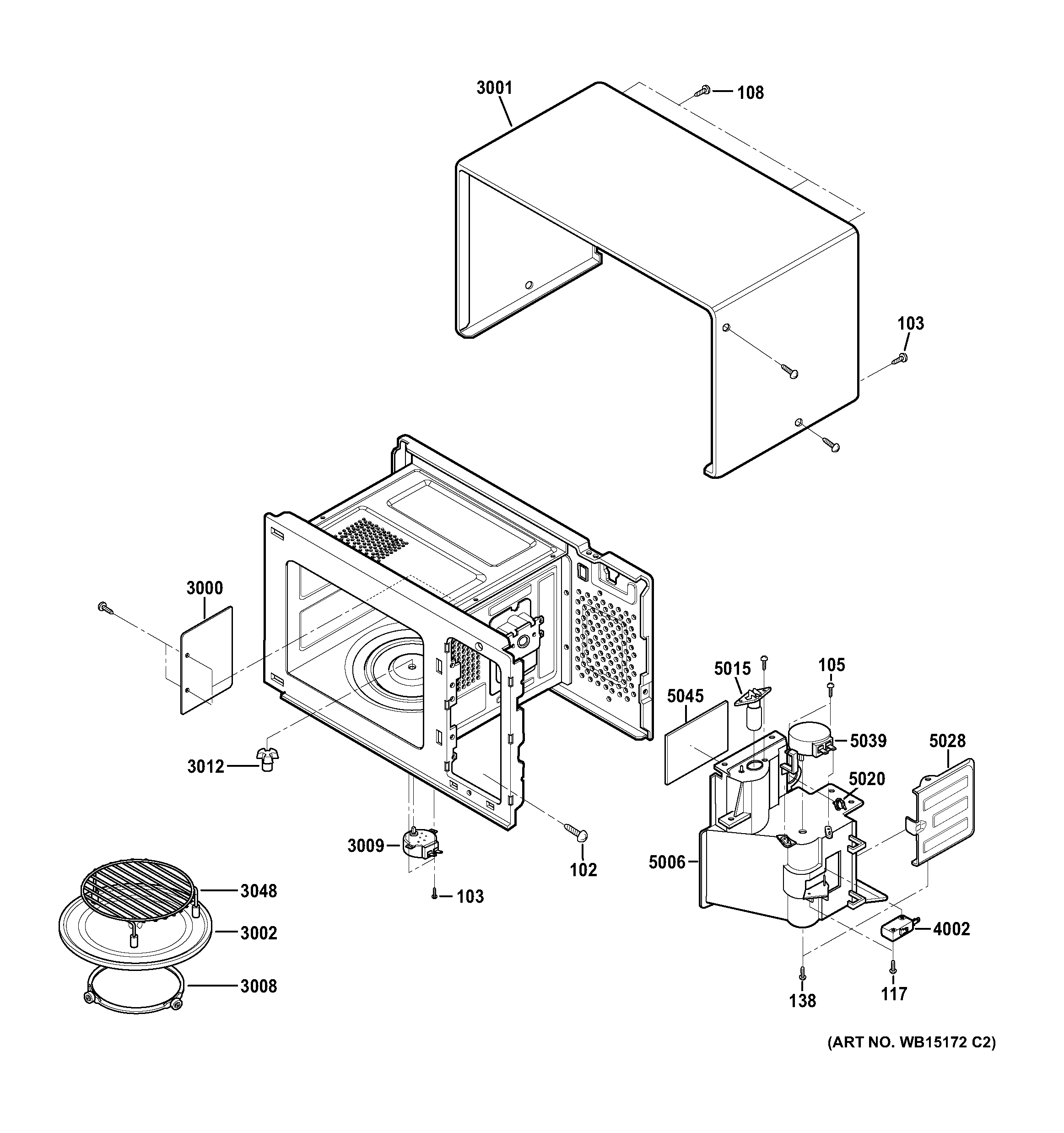

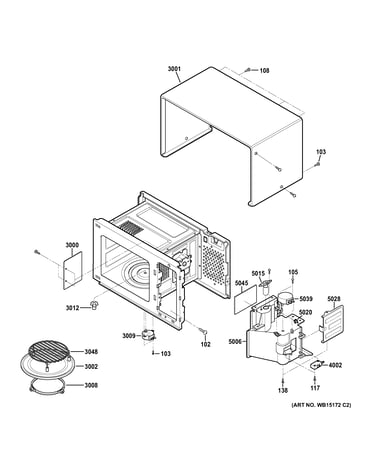

Oven cavity parts diagram

Glass tray

Part #WB49X10074

Replaced by #WB49X10129

?
Manufacturer substitution
This part replaces WB49X10074. Substitute parts can look different from the original.
$78.33 |
7% OFF Phone Price : $84.33
In Stock
Microwave Electronic Control Board WB27X10791
#2006

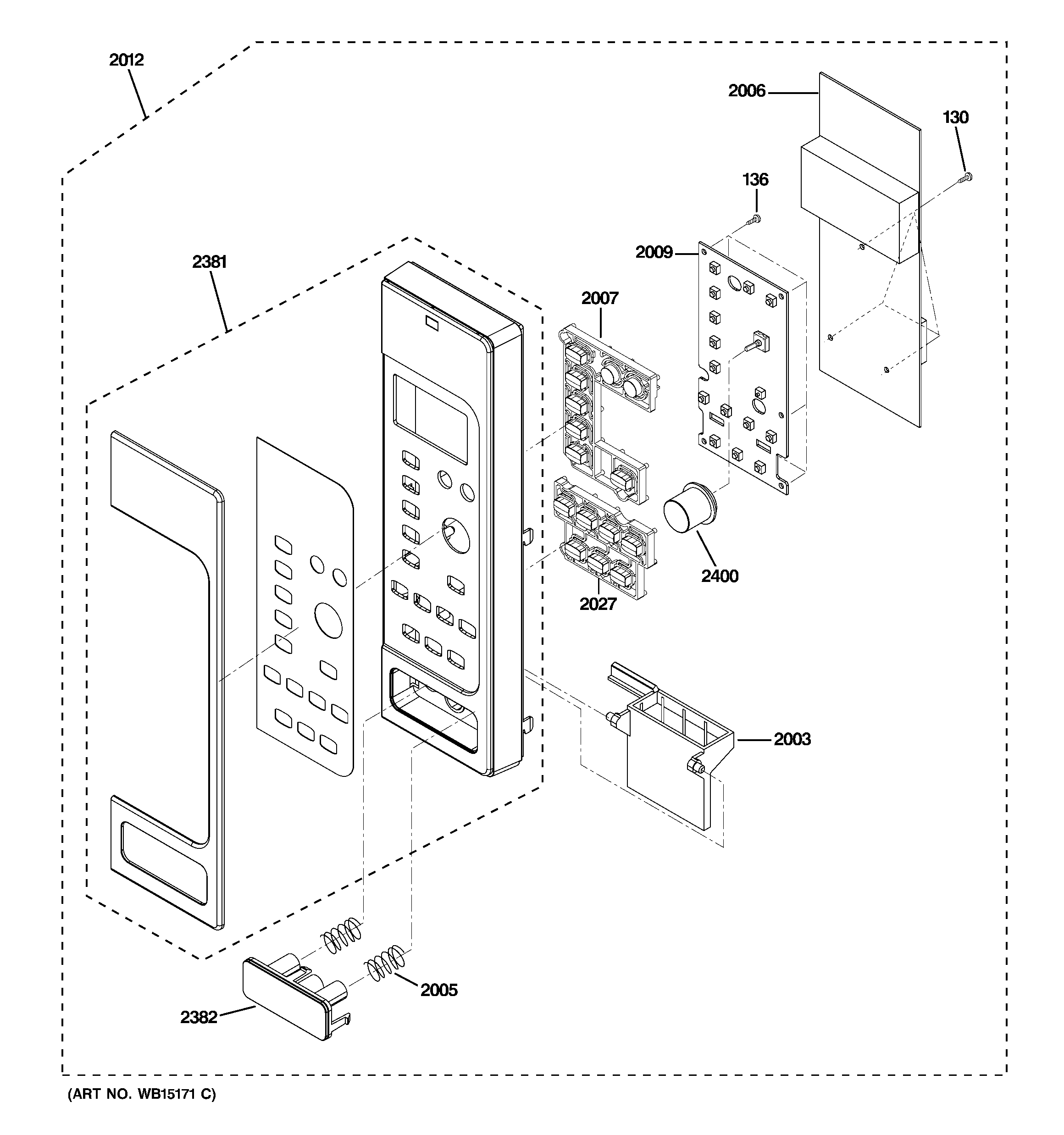

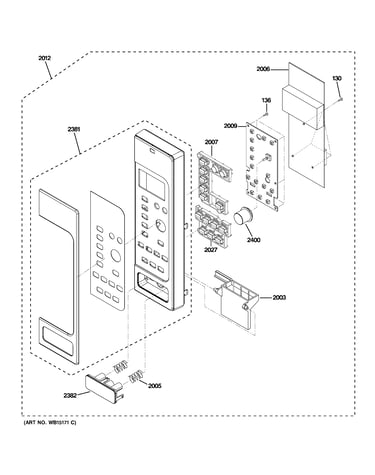

Control parts diagram

Microwave electronic control board

Part #WB27X10791

Replaced by #WB27X25300

?
Manufacturer substitution
This part replaces WB27X10791. Substitute parts can look different from the original.
$200.01 |
6% OFF Phone Price : $212.01
In Stock
Microwave Waveguide Cover WB06X10254
#3000

Oven cavity parts diagram

Microwave waveguide cover

Part #WB06X10254

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Microwave Cooling Fan Blade WB38X10005
#5007

Interior parts diagram

Microwave cooling fan blade

Part #WB38X10005

This item is not returnable
$6.78 |
13% OFF Phone Price : $7.78
In Stock
Motor WB26X10248
#5039

Oven cavity parts diagram

Motor

Part #WB26X10248

$65.56
In Stock
