Model # MDH15TF1 Official Frigidaire dehumidifier - 5995254009

Here are the diagrams and repair parts for Official Frigidaire MDH15TF1 dehumidifier - 5995254009, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Room Air Conditioner Screw 5303015427
#4

Cabinet front and wrapper diagram

Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Kelvinator Room Air Conditioner Lock Nut 08007481
#14

Unit parts diagram

Kelvinator room air conditioner lock nut

Part #08007481

This item is not returnable
$5.74
In Stock
Cover Relay 3003005
#38

Unit parts diagram

Cover relay

Part #3003005

The manufacturer no longer makes this part, and there's no substitute part

Screw 5303304774
#8

Unit parts diagram

Screw

Part #5303304774

The manufacturer no longer makes this part, and there's no substitute part

Screw 5303271346
#9

Cabinet front and wrapper diagram

Screw

Part #5303271346

The manufacturer no longer makes this part, and there's no substitute part

Knob 5303017300
#7

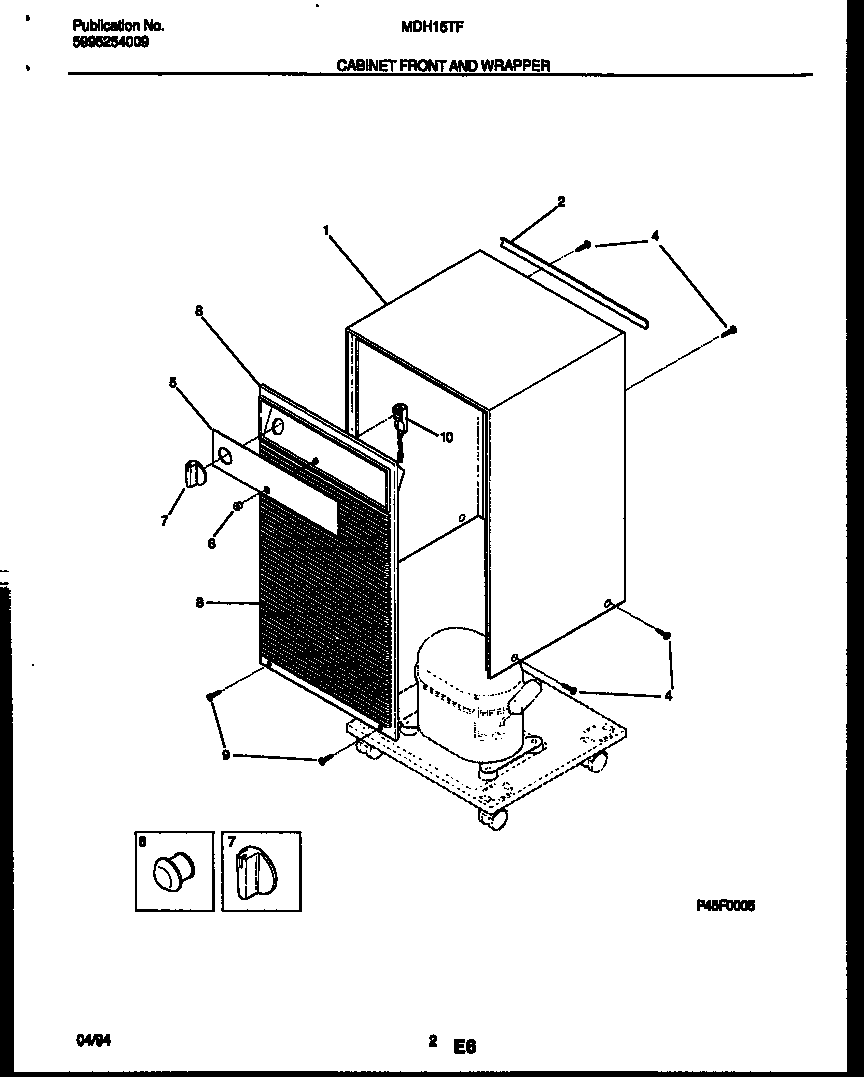

Cabinet front and wrapper diagram

Knob

Part #5303017300

The manufacturer no longer makes this part, and there's no substitute part

Compressor 5303017491
#34

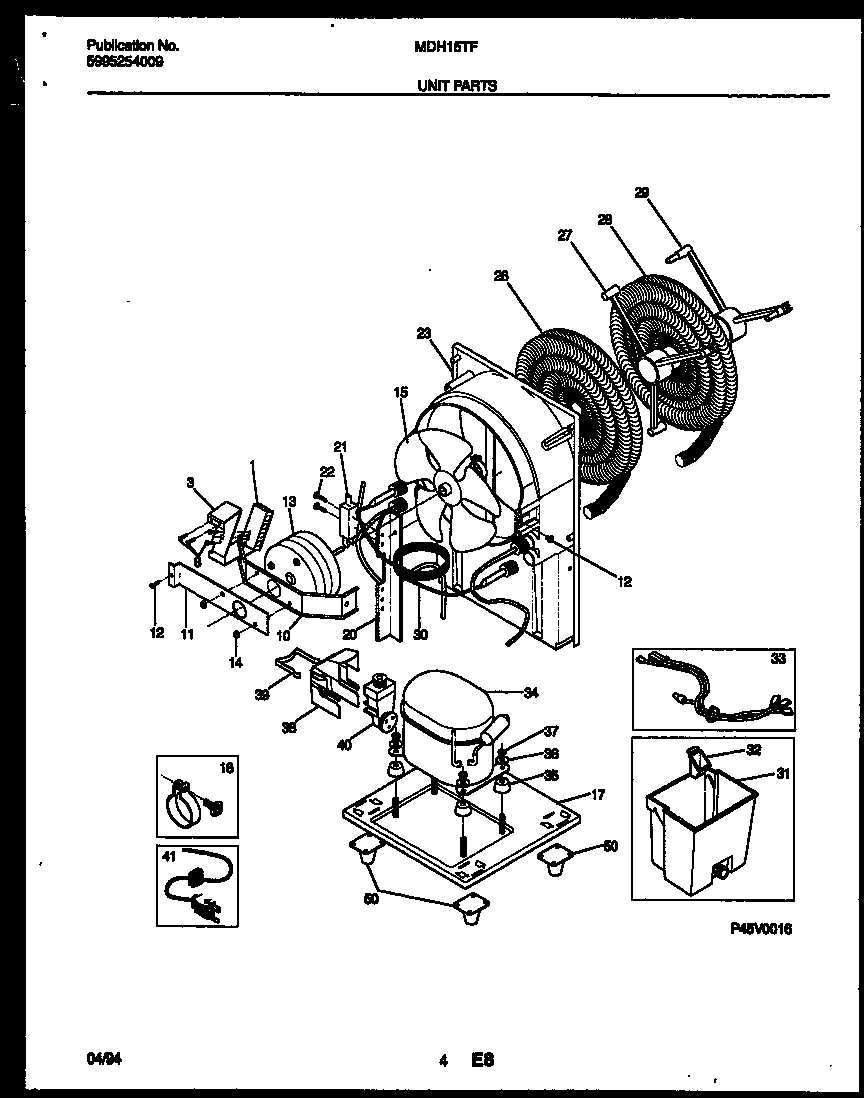

Unit parts diagram

Compressor

Part #5303017491

The manufacturer no longer makes this part, and there's no substitute part

Base 3015382
#17

Unit parts diagram

Base

Part #3015382

The manufacturer no longer makes this part, and there's no substitute part

Bracket 5303296828
#10

Unit parts diagram

Bracket

Part #5303296828

The manufacturer no longer makes this part, and there's no substitute part

Screw 5303286239
#24

Unit parts diagram

Screw

Part #5303286239

The manufacturer no longer makes this part, and there's no substitute part
