Model # 39025200 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 39025200 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 34 parts |

#16

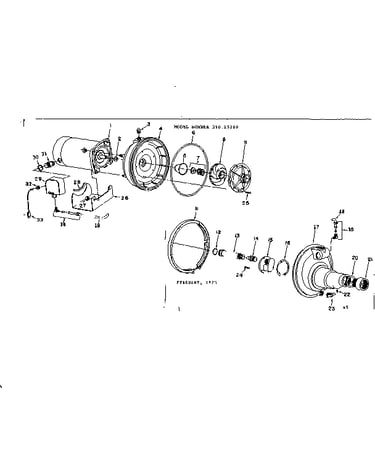

2 hp shallow well jet pump diagram

Pump body gasket

Part #J20-18

Replaced by #J20-18C

This item is not returnable

$9.99 |

9% OFF Phone Price : $10.99

Back Order

Qty

2 hp shallow well jet pump diagram

Shaft seal

Part #U9-93SS

Replaced by #U109-6B

$106.69 |

10% OFF Phone Price : $118.69

Back Order

Qty

2 hp shallow well jet pump diagram

Slinger

Part #N69-1

Replaced by #17351-0009

This item is not returnable

$8.89 |

10% OFF Phone Price : $9.89

Back Order

Qty

#18

2 hp shallow well jet pump diagram

Tube

Part #U37-211P

Replaced by #U37-673P

This item is not returnable

$19.98 |

9% OFF Phone Price : $21.98

Back Order

Qty

#14

2 hp shallow well jet pump diagram

Pump nozzle

Part #N34P-17

$28.33

In Stock

Qty

#19

2 hp shallow well jet pump diagram

Complete fitting

Part #U111-86

Replaced by #U111-212T

This item is not returnable

$27.69 |

18% OFF Phone Price : $33.69

Back Order

Qty

2 hp shallow well jet pump diagram

Pump impeller

Part #J105-42PT

$151.89 |

7% OFF Phone Price : $163.89

In Stock

Qty

2 hp shallow well jet pump diagram

Pump diffuser

Part #J1-39P

$145.81 |

8% OFF Phone Price : $157.81

In Stock

Qty

#25

2 hp shallow well jet pump diagram

Pump screw, #8-32 x 7/8-in

Part #U30-542SS

This item is not returnable

$5.03

In Stock

Qty

#15

2 hp shallow well jet pump diagram

Pump body jet insert

Part #N76-29P

$71.79 |

8% OFF Phone Price : $77.79

Back Order

Qty
