Model # UXT5530AAS2 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool UXT5530AAS2 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Filter W10870878
#5

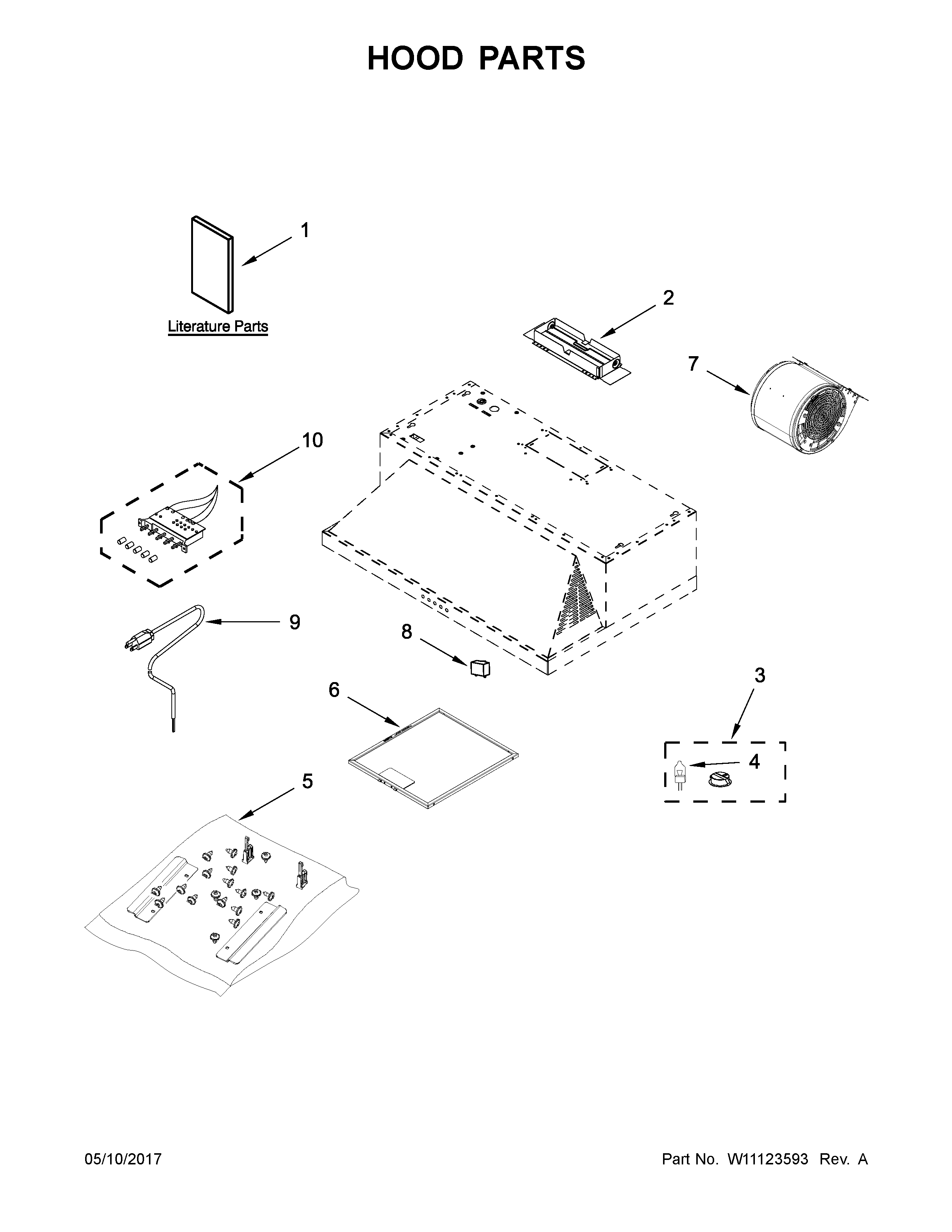

Hood parts diagram

Filter

Part #W10870878

Replaced by #W10169961A

?
Manufacturer substitution
This part replaces W10870878. Substitute parts can look different from the original.
$29.60 |
17% OFF Phone Price : $35.60
In Stock
Range Hood Fan Motor Assembly W10291577
#7

Hood parts diagram

Range hood fan motor assembly

Part #W10291577

Replaced by #WPW10291577

?
Manufacturer substitution
This part replaces W10291577. Substitute parts can look different from the original.
$381.54 |
$12.00 OFF Phone Price : $393.54
In Stock
Air Kit W10446914
#NI

Hood parts diagram

Air kit

Part #W10446914

$457.36 |
$12.00 OFF Phone Price : $469.36
In Stock
Range Hood Charcoal Filter Kit W10272068
#NI

Hood parts diagram

Range hood charcoal filter kit

Part #W10272068

$39.52 |
13% OFF Phone Price : $45.52
In Stock
Capacitor W10735734
#8

Hood parts diagram

Capacitor

Part #W10735734

Replaced by #W11328673

?
Manufacturer substitution
This part replaces W10735734. Substitute parts can look different from the original.
$37.33 |
14% OFF Phone Price : $43.33
In Stock
Hardware W10648475
#5

Hood parts diagram

Hardware

Part #W10648475

Replaced by #W11123666

?
Manufacturer substitution
This part replaces W10648475. Substitute parts can look different from the original.
$83.20
In Stock
Power Cord W10291574
#9

Hood parts diagram

Power cord

Part #W10291574

Replaced by #W11609489

?
Manufacturer substitution
This part replaces W10291574. Substitute parts can look different from the original.
$61.11
In Stock
Range Hood Damper W10291572
#2

Hood parts diagram

Range hood damper

Part #W10291572

Replaced by #WPW10291572

?
Manufacturer substitution
This part replaces W10291572. Substitute parts can look different from the original.
$87.20 |
10% OFF Was : $96.89
In Stock
Range Hood Light Bulb W10562734
#3

Hood parts diagram

Range hood light bulb

Part #W10562734

Replaced by #WPW10562734

?
Manufacturer substitution
This part replaces W10562734. Substitute parts can look different from the original.
$60.17 |
9% OFF Phone Price : $66.17
In Stock
Range Hood Light Bulb W10571723
#4

Hood parts diagram

Range hood light bulb

Part #W10571723

Replaced by #WPW10571723

?
Manufacturer substitution
This part replaces W10571723. Substitute parts can look different from the original.
$28.60 |
17% OFF Phone Price : $34.60
In Stock
