Frigidaire
Dryer

Model # DGDMH5 Official Frigidaire dual-fuel dryer - lf31687010

Here are the diagrams and repair parts for Official Frigidaire DGDMH5 dual-fuel dryer - lf31687010, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Washer Block 6563359
#5

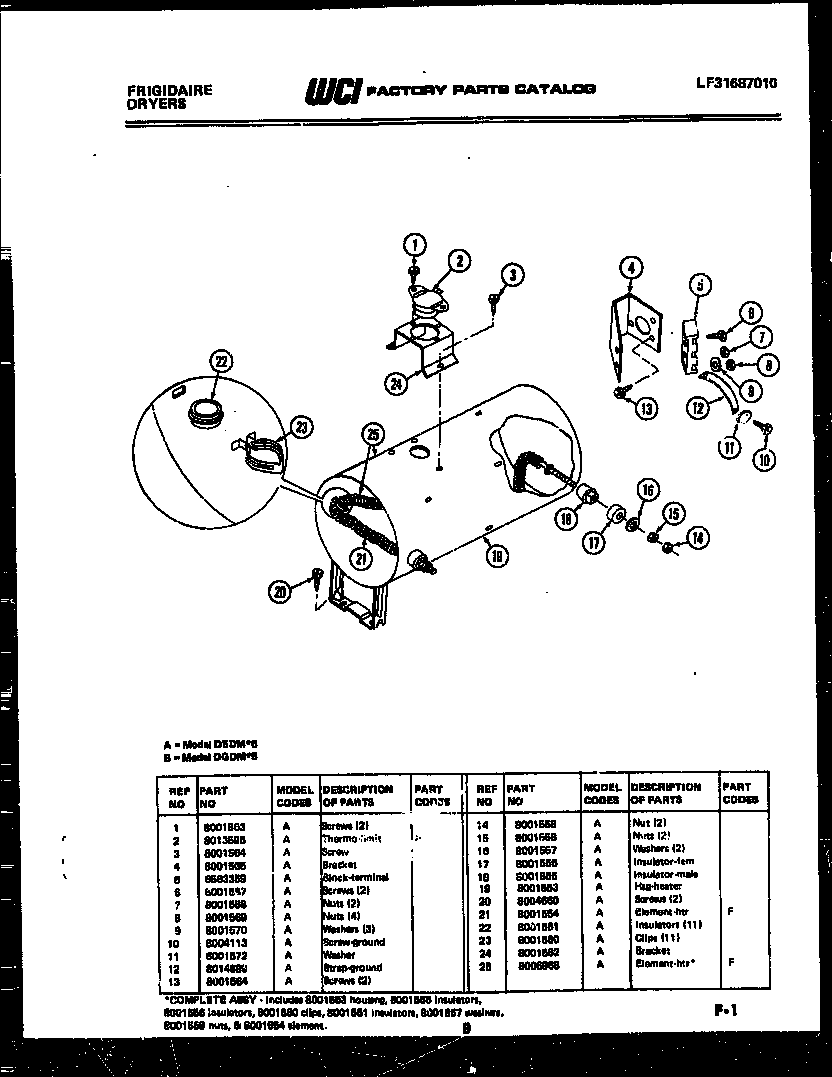

Element and housing parts diagram

Washer block

Part #6563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 6563359. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Igniter 8010845
#5

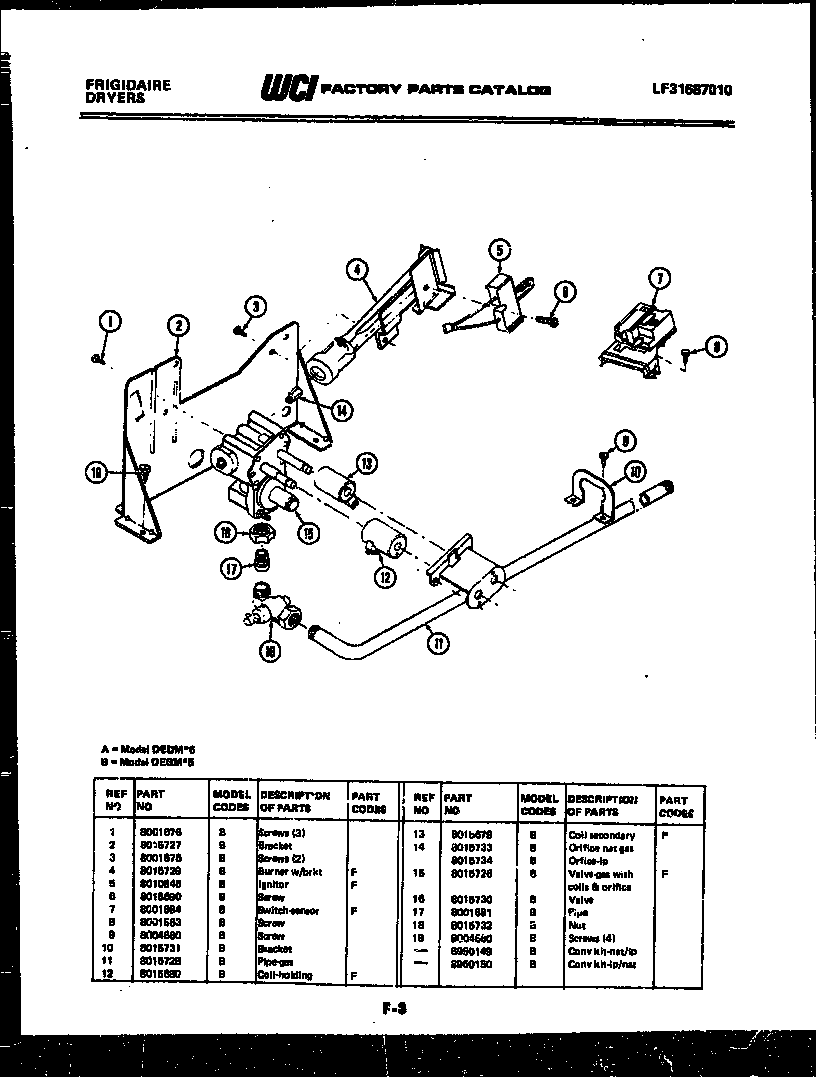

Combustion chamber diagram

Igniter

Part #8010845

Replaced by #5303937186

?
Manufacturer substitution
This part replaces 8010845. Substitute parts can look different from the original.
$61.19 |
9% OFF Phone Price : $67.19
In Stock
Nut 8001569
#8

Element and housing parts diagram

Nut

Part #8001569

Replaced by #5303015673

?
Manufacturer substitution
This part replaces 8001569. Substitute parts can look different from the original.
This item is not returnable
$2.19
In Stock
Thermostat 8008891
#2

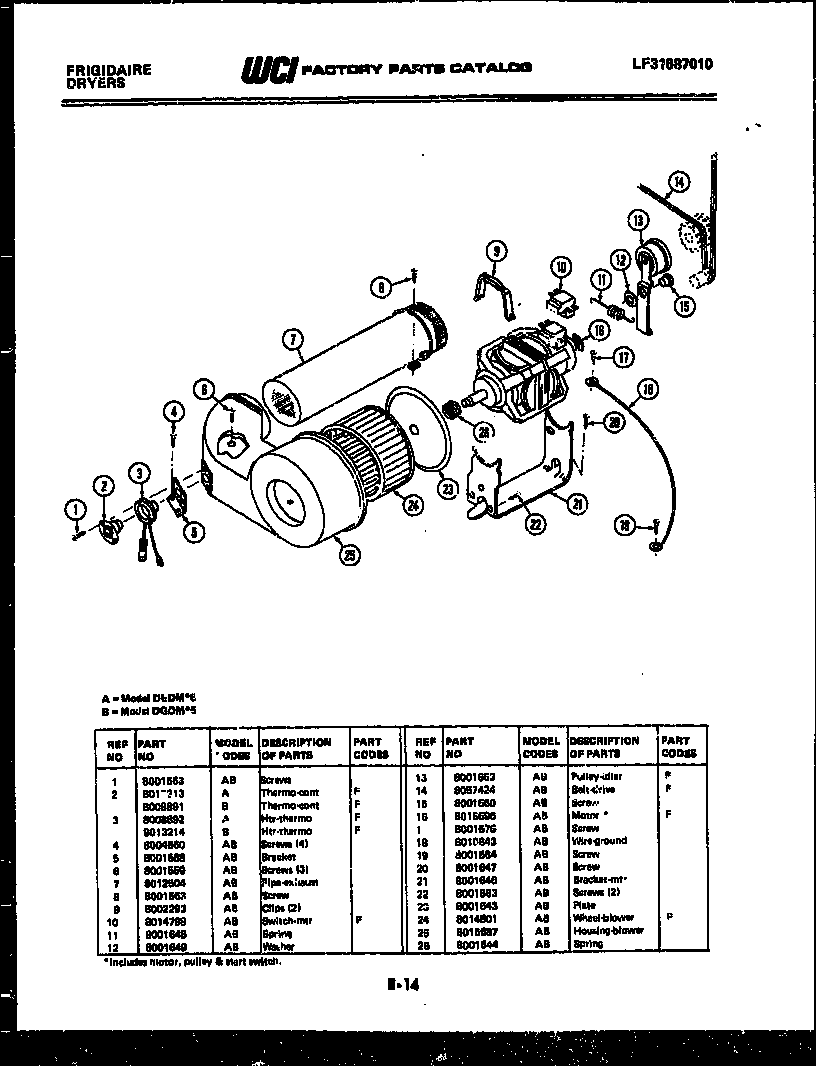

Blower and drive parts diagram

Thermostat

Part #8008891

The manufacturer no longer makes this part, and there's no substitute part

Coil Secondary 8015679
#13

Combustion chamber diagram

Coil secondary

Part #8015679

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack 8010789
#9

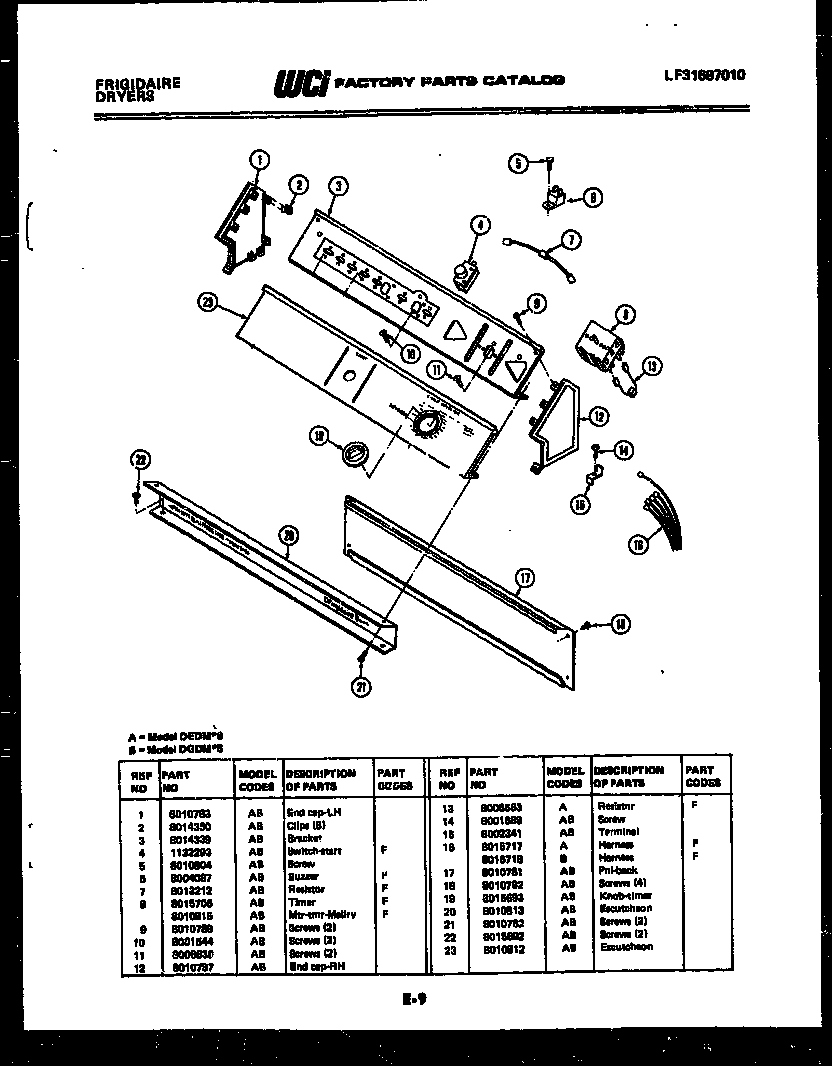

Console and control parts diagram

Screw, 2-pack

Part #8010789

The manufacturer no longer makes this part, and there's no substitute part

Pnl-top-almd 8010761
#7

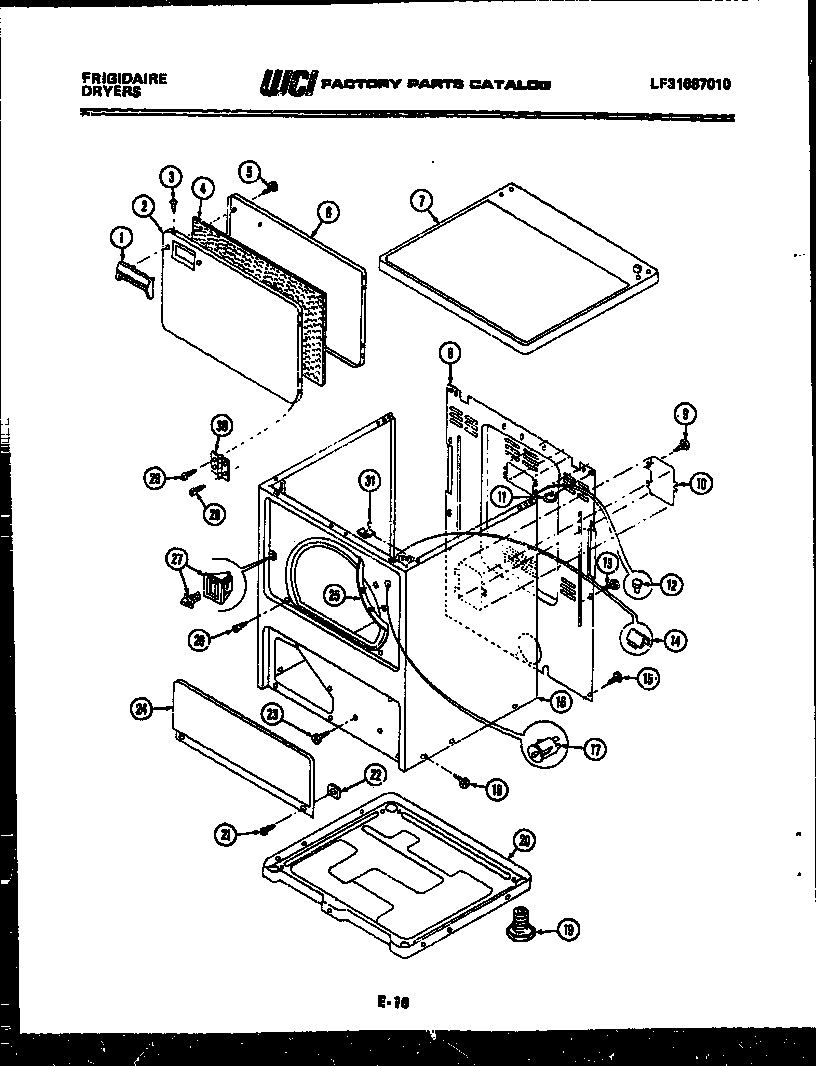

Door, top and cabinet parts diagram

Pnl-top-almd

Part #8010761

The manufacturer no longer makes this part, and there's no substitute part

Screw (3) 8010782
Screw (3)

Part #8010782

The manufacturer no longer makes this part, and there's no substitute part

Door Switch 8001614
#17

Door, top and cabinet parts diagram

Door switch

Part #8001614

The manufacturer no longer makes this part, and there's no substitute part

Screw 8001579
Screw

Part #8001579

The manufacturer no longer makes this part, and there's no substitute part
