Model # JES1450DB0 Official Jenn-Air electric range
Here are the diagrams and repair parts for Official Jenn-Air JES1450DB0 electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

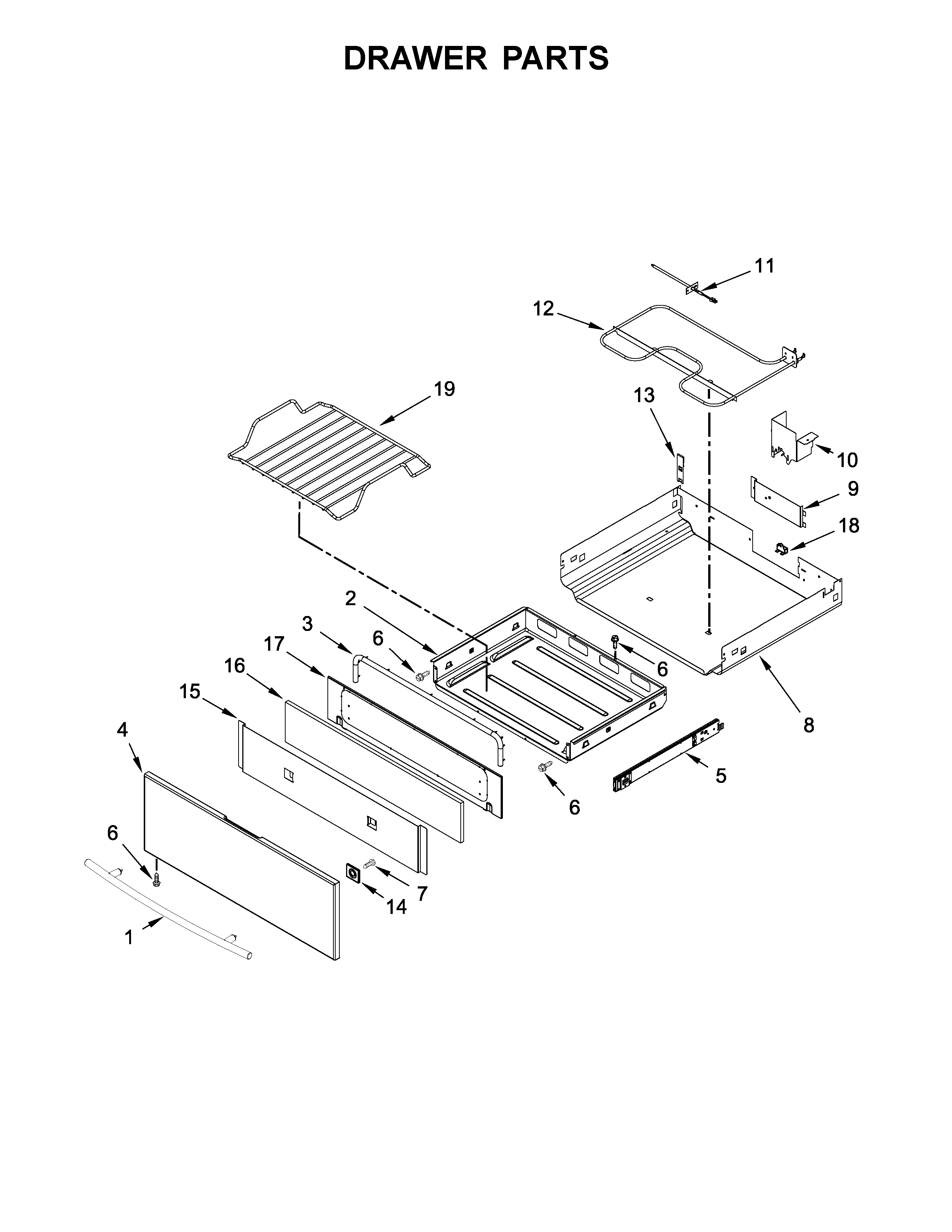

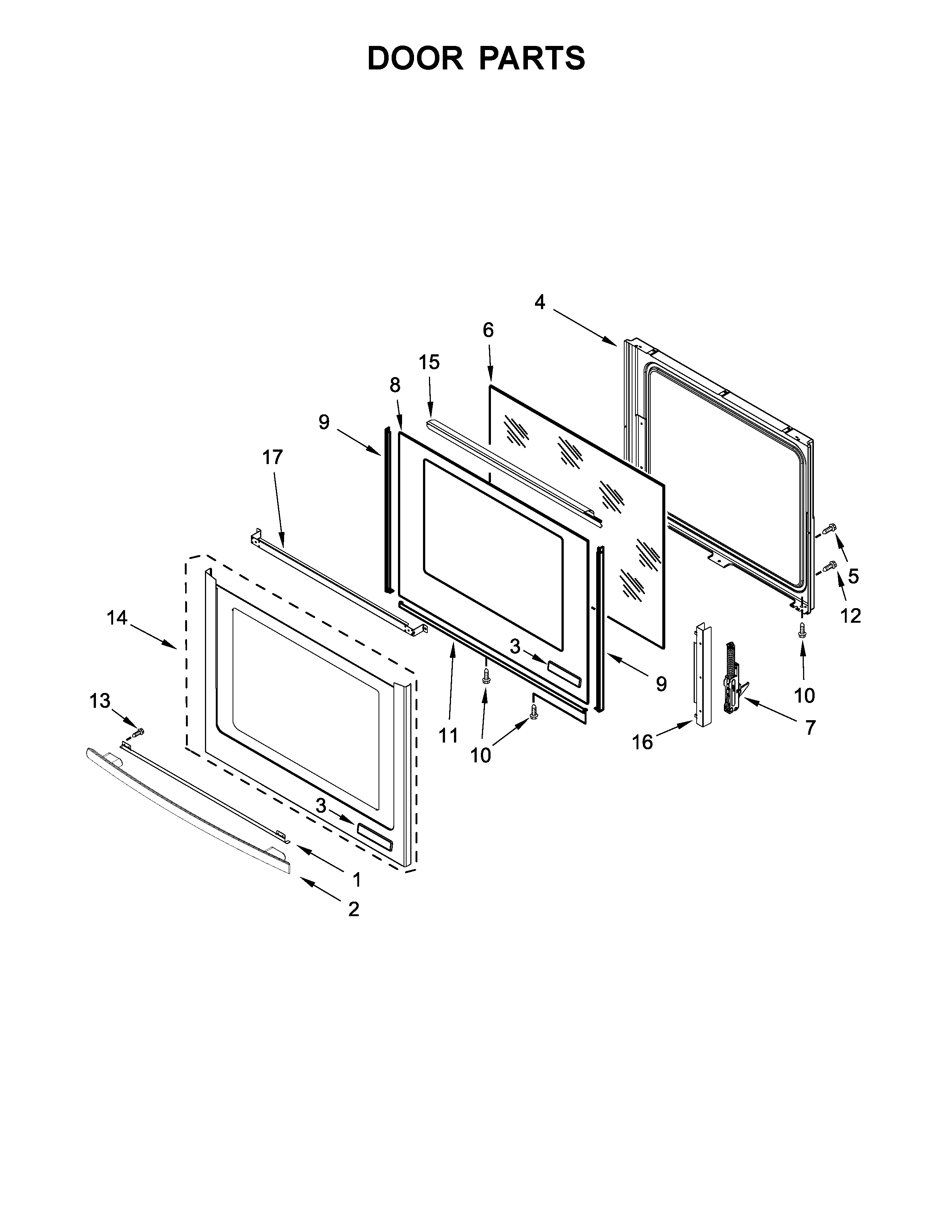

SELECT DIAGRAM
Browse Parts forJES1450DB0 Ranges
- #27
Chassis parts diagram
Oven sensorPart #W10586204
Replaced by #W10833885
?Manufacturer substitutionThis part replaces W10586204. Substitute parts can look different from the original.$85.35 |7% OFF Phone Price : $91.35In Stock - #21
Chassis parts diagram
Range terminal blockPart #W10245259
Replaced by #WPW10245259
?Manufacturer substitutionThis part replaces W10245259. Substitute parts can look different from the original.$24.63 |24% OFF Was : $32.40In Stock - #17B

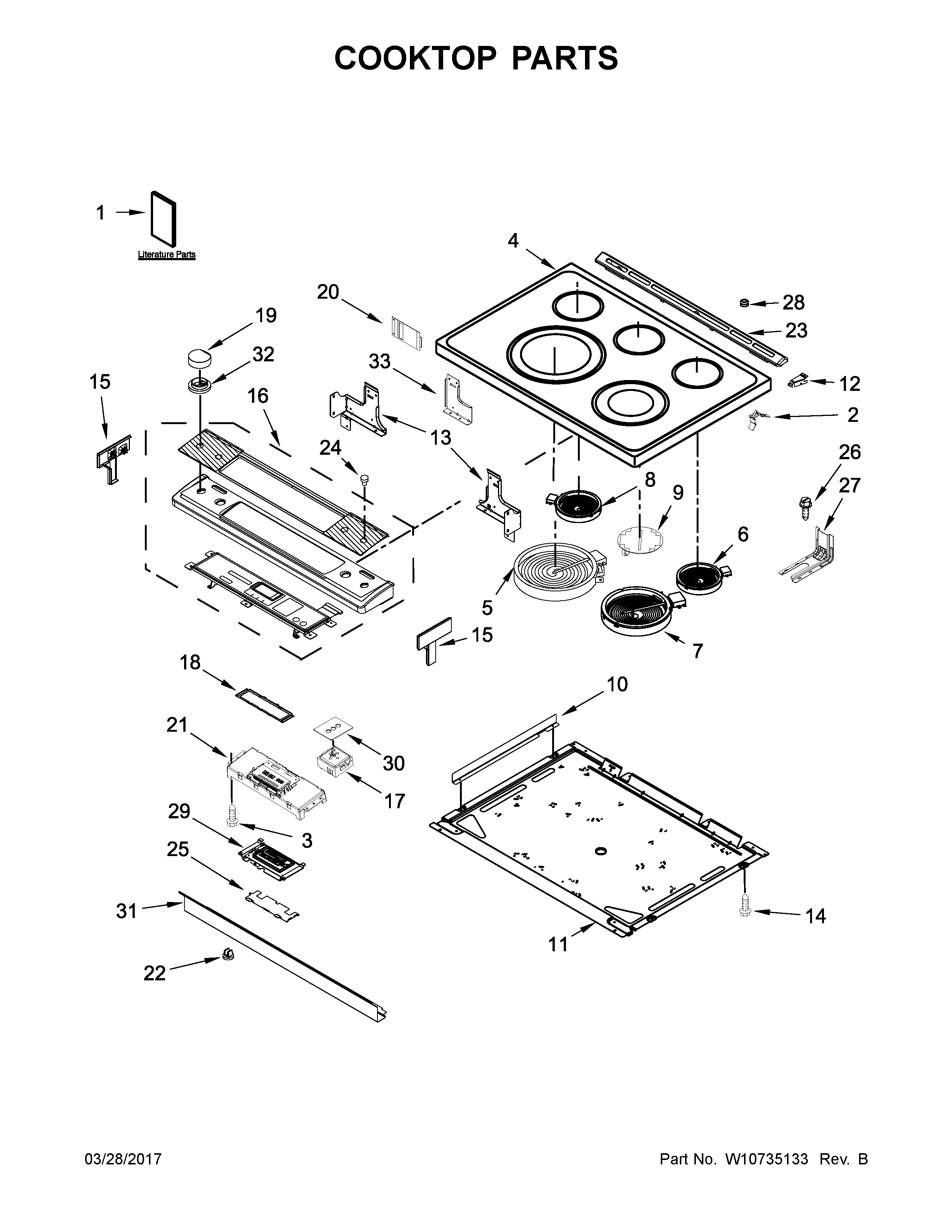

Cooktop parts diagram
Range infinite switchPart #W10437094
Replaced by #W10917724
?Manufacturer substitutionThis part replaces W10437094. Substitute parts can look different from the original.$64.77 |8% OFF Phone Price : $70.77In Stock - #17
Cooktop parts diagram
Infinite switchPart #W10437097
Replaced by #W11129442
?Manufacturer substitutionThis part replaces W10437097. Substitute parts can look different from the original.$66.40 |8% OFF Phone Price : $72.40In Stock - #17
Chassis parts diagram
Range safety thermostatPart #3196548
Replaced by #WP3196548
?Manufacturer substitutionThis part replaces 3196548. Substitute parts can look different from the original.$23.07 |21% OFF Phone Price : $29.07In Stock - #17A
Cooktop parts diagram
Range surface element control switchPart #W10578768
Replaced by #W10911303
?Manufacturer substitutionThis part replaces W10578768. Substitute parts can look different from the original.$72.63 |8% OFF Phone Price : $78.63In Stock - #NI
Cooktop parts diagram
KeypadPart #W10575120
Replaced by #W11025616
?Manufacturer substitutionThis part replaces W10575120. Substitute parts can look different from the original.$37.26 |14% OFF Phone Price : $43.26In Stock - #37
Chassis parts diagram
Convection aPart #W10874472
Replaced by #W11414552
?Manufacturer substitutionThis part replaces W10874472. Substitute parts can look different from the original.$131.03 |8% OFF Phone Price : $143.03In Stock - Screw
Part #3196178
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 3196178. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - Screw
Part #W10362924
Replaced by #W11233072
?Manufacturer substitutionThis part replaces W10362924. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock
