Model # 316792491 Official Craftsman hedge trimmer attachment

Here are the diagrams and repair parts for Official Craftsman 316792491 hedge trimmer attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 13 parts  |

Line Trimmer Hedge Trimmer Attachment Blade Bar Cam 753-08004
#6

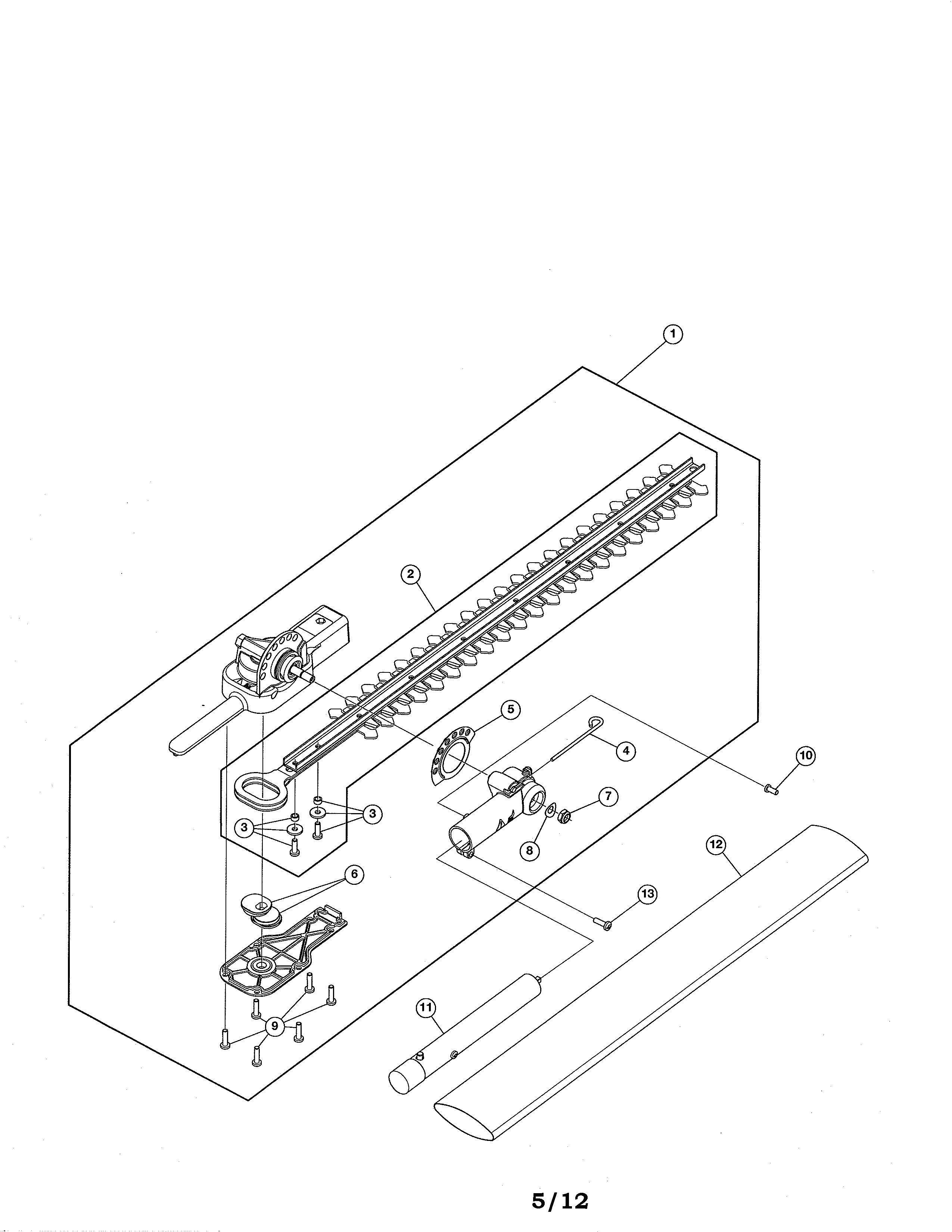

Universal hedge trimmer attachment diagram

Line trimmer hedge trimmer attachment blade bar cam

Part #753-08004

This item is not returnable
$5.64
15% OFF Phone Price : $6.64
In Stock
Line Trimmer Hedge Trimmer Attachment Extension Boom (replaces 753-05616) 753-08007
#11

Universal hedge trimmer attachment diagram

Line trimmer hedge trimmer attachment extension boom (replaces 753-05616)

Part #753-08007

This item is not returnable
$18.87
10% OFF Phone Price : $20.87
In Stock
Hedge Trimmer Blade Mounting Hardware 753-08001
#3

Universal hedge trimmer attachment diagram

Hedge trimmer blade mounting hardware

Part #753-08001

This item is not returnable

Get free shipping with Automatic Reorder

In Stock
Plate 753-08003
#5

Universal hedge trimmer attachment diagram

Plate

Part #753-08003

This item is not returnable
In Stock
Line Trimmer Gearbox 753-08000
#1

Universal hedge trimmer attachment diagram

Line trimmer gearbox

Part #753-08000

In Stock
Hedge Trimmer Blade Cover 753-08006
#12

Universal hedge trimmer attachment diagram

Hedge trimmer blade cover

Part #753-08006

In Stock
Pin 753-08002
#4

Universal hedge trimmer attachment diagram

Pin

Part #753-08002

This item is not returnable
$5.01
17% OFF Phone Price : $6.01
In Stock
Nut 753-08005
#7

Universal hedge trimmer attachment diagram

Nut

Part #753-08005

This item is not returnable
In Stock
Washer 791-180226
#8

Universal hedge trimmer attachment diagram

Washer

Part #791-180226

Replaced by #936-0271

?
Manufacturer substitution
This part replaces 791-180226. Substitute parts can look different from the original.
In Stock
Screen Housing 791-181020
#13

Universal hedge trimmer attachment diagram

Screen housing

Part #791-181020

Replaced by #9054

?
Manufacturer substitution
This part replaces 791-181020. Substitute parts can look different from the original.
This item is not returnable
In Stock
