Model # 143161202 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143161202 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

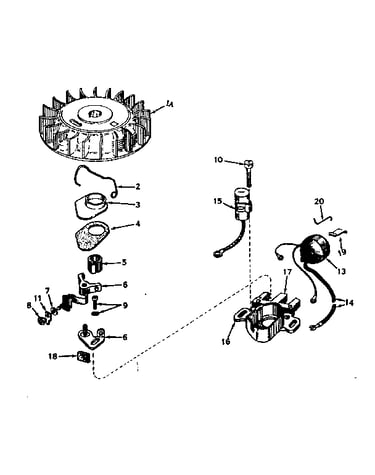

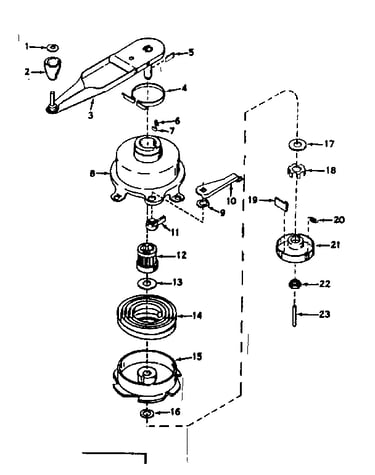

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#124

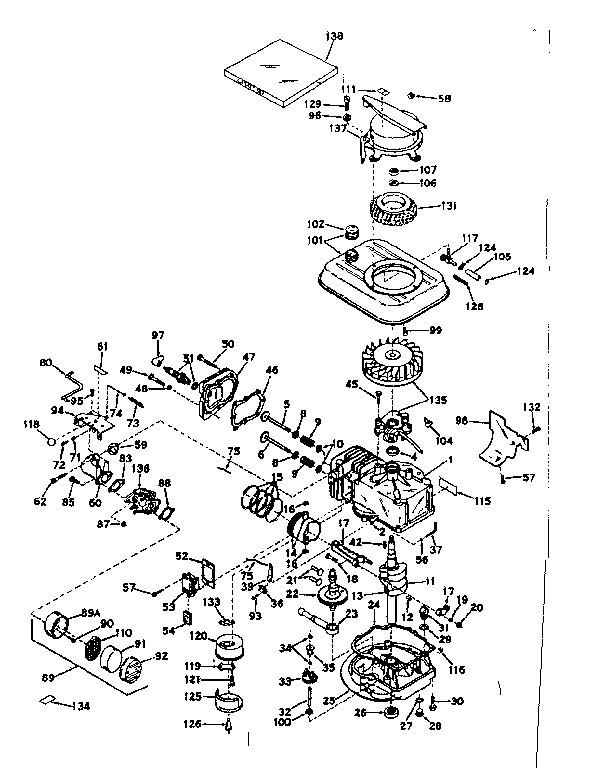

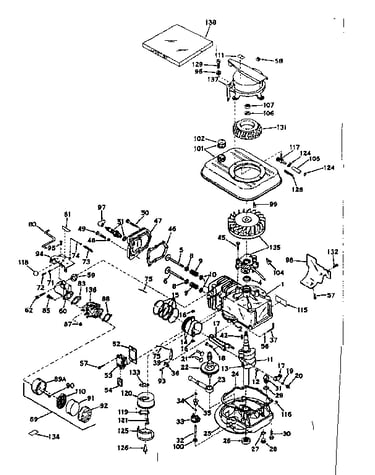

Basic engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Plug Cover 27276
#97

Basic engine diagram

Plug cover

Part #27276

Replaced by #610118

?
Manufacturer substitution
This part replaces 27276. Substitute parts can look different from the original.
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Plug 30572
#28

Basic engine diagram

Plug

Part #30572

Replaced by #36083

?
Manufacturer substitution
This part replaces 30572. Substitute parts can look different from the original.
This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Fitting 631034
#16

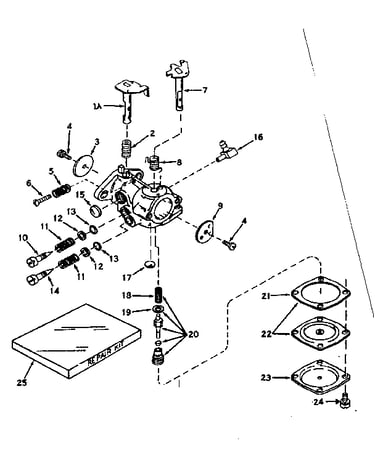

Carburetor no. 631018 diagram

Fitting

Part #631034

Replaced by #632527

?
Manufacturer substitution
This part replaces 631034. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Generac Lawn & Garden Equipment Engine Breather Filter 31410
#54

Basic engine diagram

Generac lawn & garden equipment engine breather filter

Part #31410

This item is not returnable
$2.16
In Stock
Breather Gasket 27272
#88

Basic engine diagram

Breather gasket

Part #27272

Replaced by #27272A

?
Manufacturer substitution
This part replaces 27272. Substitute parts can look different from the original.
This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Spring Retainer 630731
#2

Carburetor no. 631018 diagram

Spring retainer

Part #630731

Replaced by #631767

?
Manufacturer substitution
This part replaces 630731. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Governor Gear Assembly 30591
#33

Basic engine diagram

Generac lawn & garden equipment engine governor gear assembly

Part #30591

$15.69 |
11% OFF Phone Price : $17.69
In Stock
Lawn & Garden Equipment Engine Carburetor O-ring 630740
#13

Carburetor no. 631018 diagram

Lawn & garden equipment engine carburetor o-ring

Part #630740

This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Cook Top Side Trim Kit Lawn & Garden Equipment Engine Governor Spool 30588A
#35

Basic engine diagram

Cook top side trim kit lawn & garden equipment engine governor spool

Part #30588A

This item is not returnable
$2.16
In Stock
