Model # 316790111 Official Craftsman brush wacker

Here are the diagrams and repair parts for Official Craftsman 316790111 brush wacker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Craftsman Line Trimmer Cutting Line, 0.095-in (replaces 71-85614, 85779) 85614

#(NI)

All parts diagram

Craftsman line trimmer cutting line, 0.095-in (replaces 71-85614, 85779)

Part #85614

Get free shipping with Automatic Reorder

$15.49 |
11% OFF Phone Price : $17.49
In Stock
Bolt 147575
#50

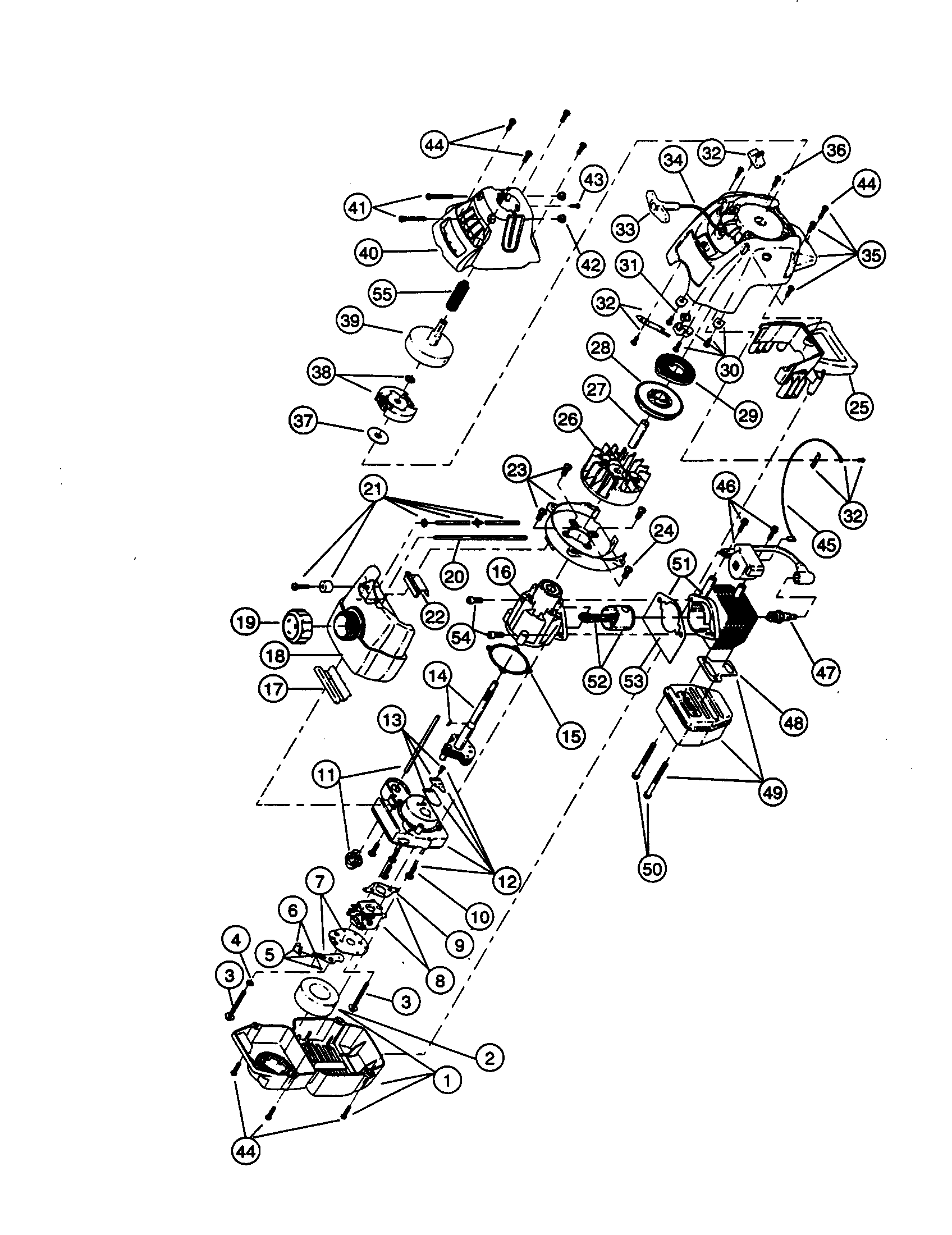

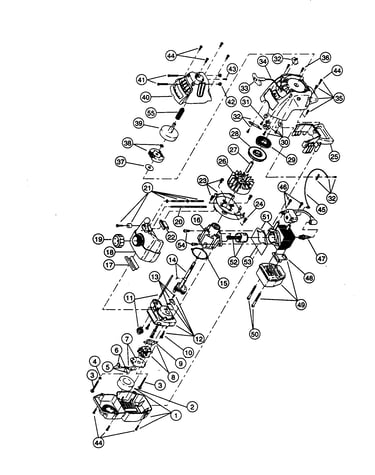

Engine diagram

Bolt

Part #147575

The manufacturer no longer makes this part, and there's no substitute part

Gearbox 147488
#28

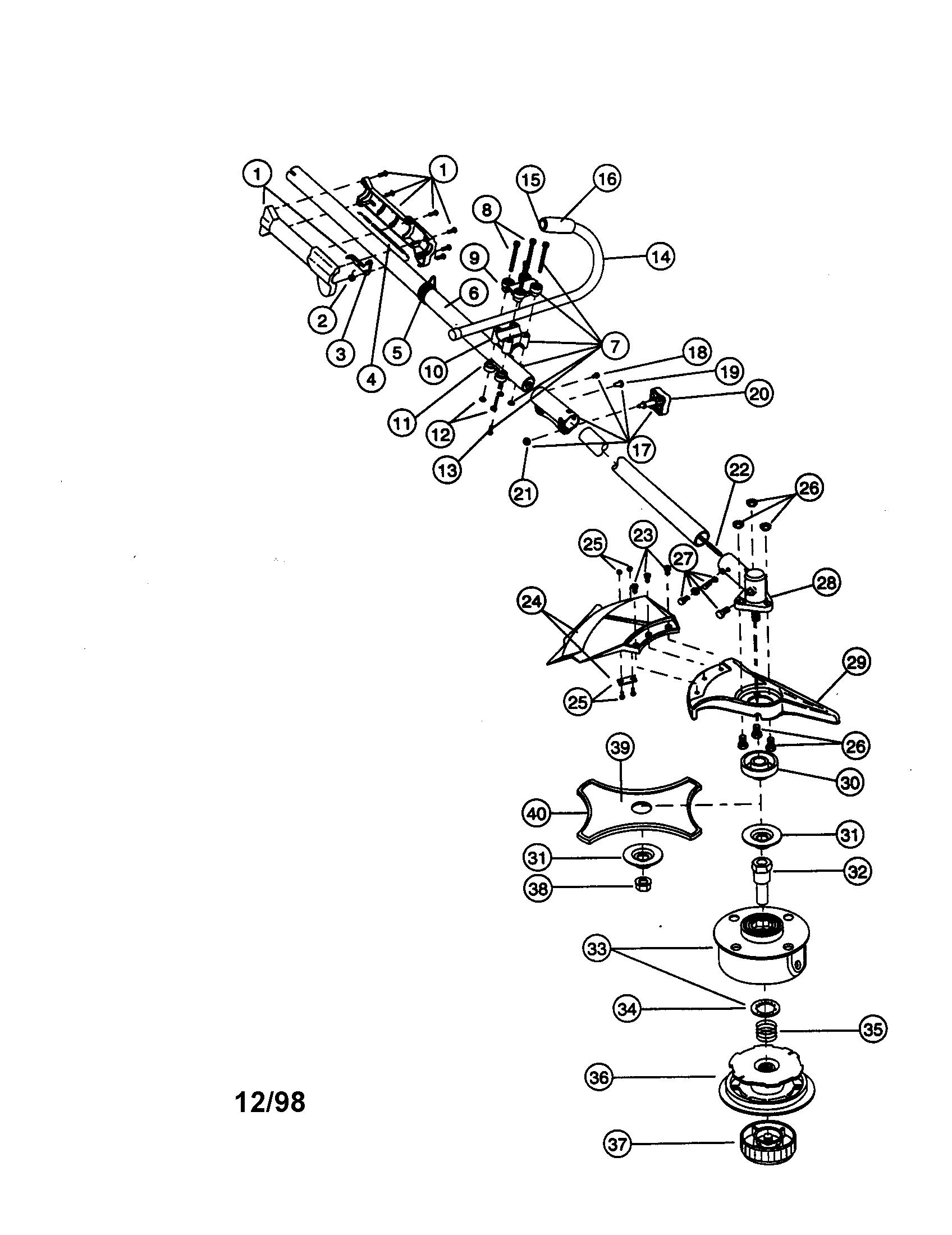

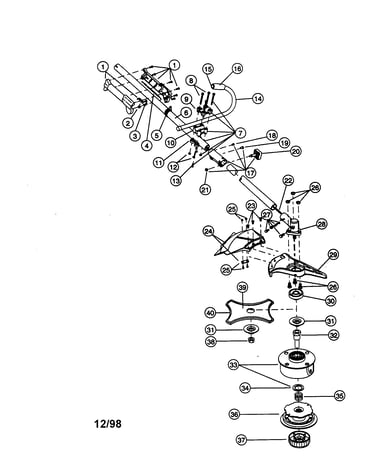

Main frame diagram

Gearbox

Part #147488

The manufacturer no longer makes this part, and there's no substitute part

Housing 181979
#6

Main frame diagram

Housing

Part #181979

The manufacturer no longer makes this part, and there's no substitute part

Spring 181599

#NI

All parts diagram

Spring

Part #181599

The manufacturer no longer makes this part, and there's no substitute part

3.2-ounce Bottle Of 2-cycle Oil 36549

#(NI)

All parts diagram

3.2-ounce bottle of 2-cycle oil

Part #36549

The manufacturer no longer makes this part, and there's no substitute part

Screw 181860
#10

Engine diagram

Screw

Part #181860

The manufacturer no longer makes this part, and there's no substitute part

Flywheel 180929
#26

Engine diagram

Flywheel

Part #180929

The manufacturer no longer makes this part, and there's no substitute part

Shaft 612483
#32

Main frame diagram

Shaft

Part #612483

The manufacturer no longer makes this part, and there's no substitute part

Housing 182163
#1

Main frame diagram

Housing

Part #182163

The manufacturer no longer makes this part, and there's no substitute part
