Model # GDT580SGF5BB Official GE dishwasher

Here are the diagrams and repair parts for Official GE GDT580SGF5BB dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

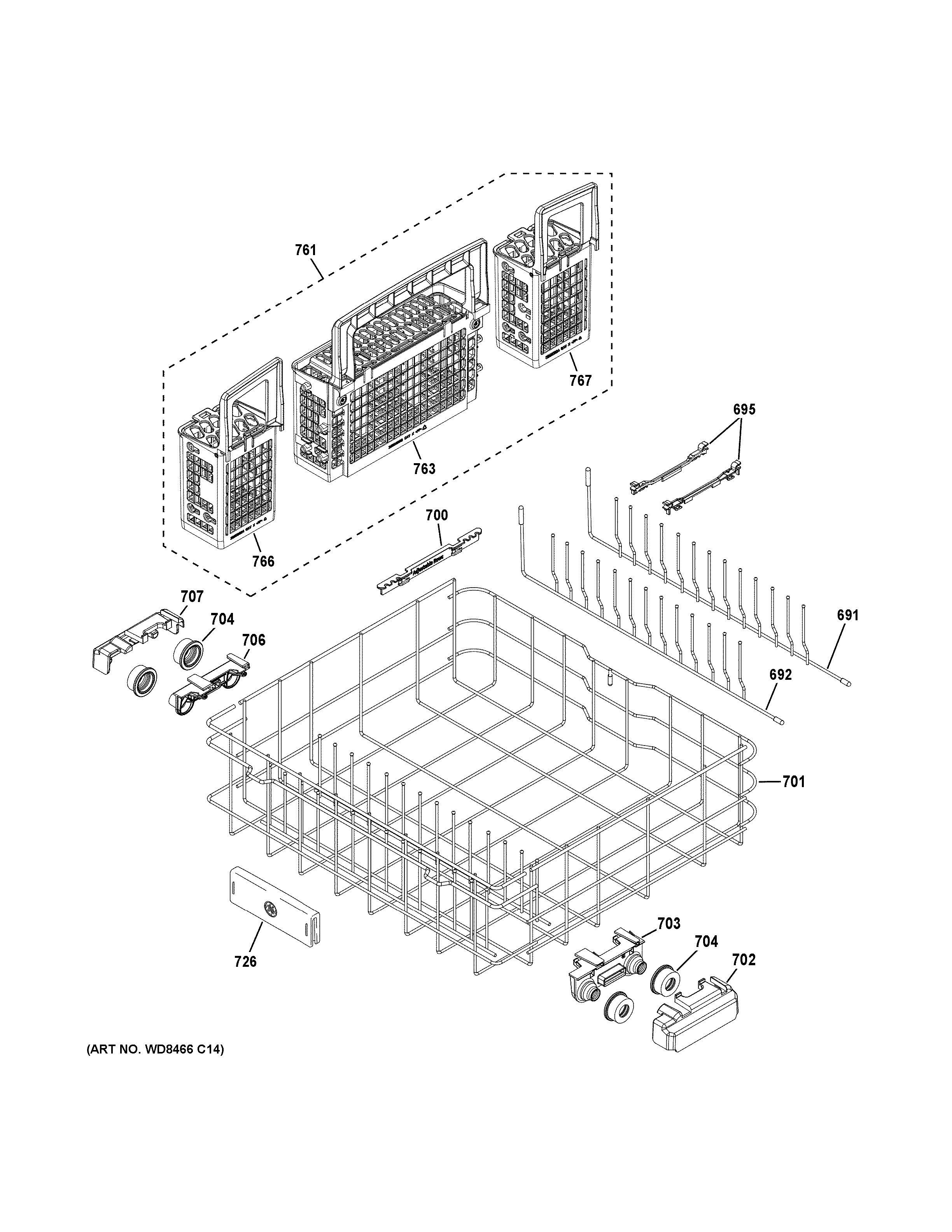

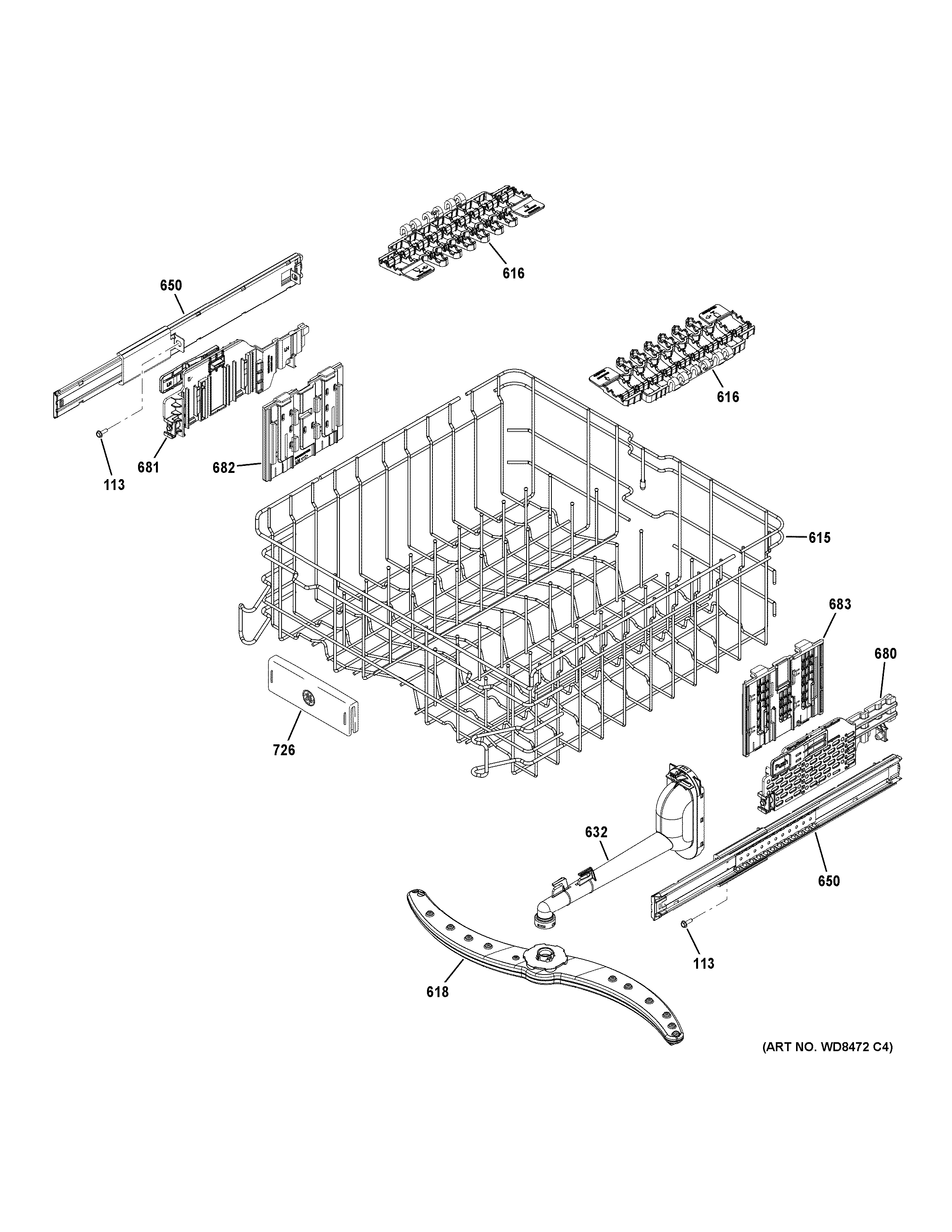

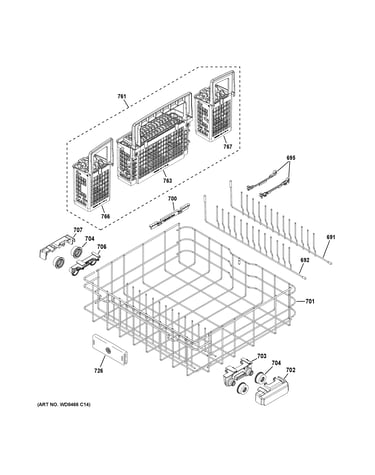

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Dishwasher Spray Arm, Lower WD22X10091
#501

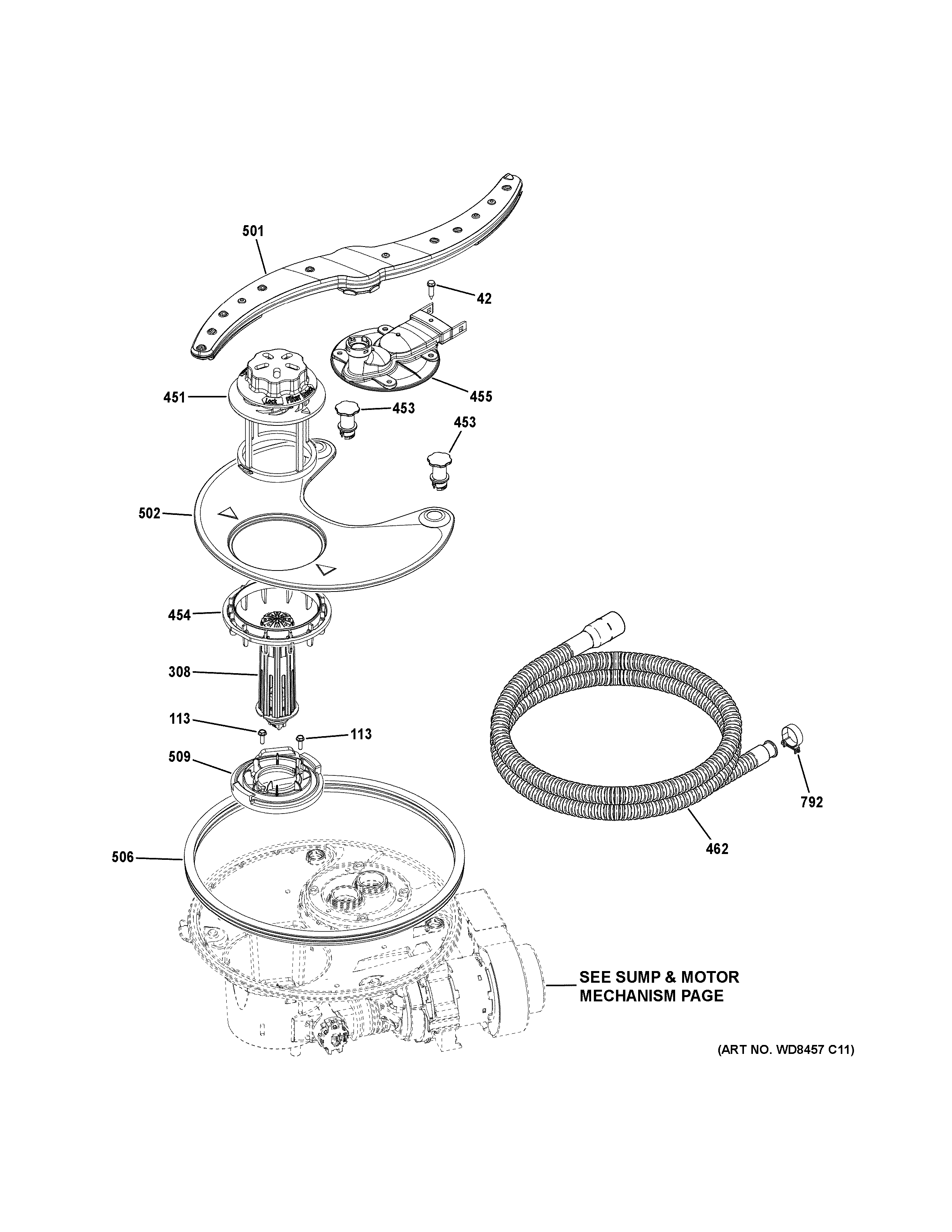

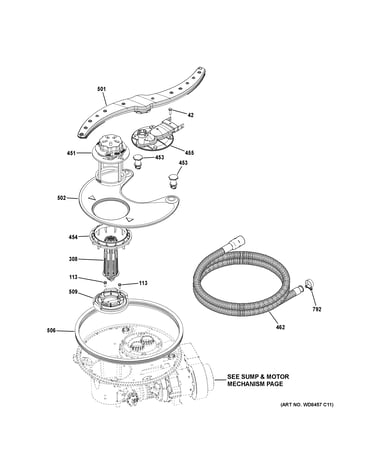

Sump & filter assembly diagram

Dishwasher spray arm, lower

Part #WD22X10091

Replaced by #WD22X27724

?
Manufacturer substitution
This part replaces WD22X10091. Substitute parts can look different from the original.
BEST SELLER
$21.27 |
22% OFF Phone Price : $27.27
In Stock
Dishwasher Door Latch Lock WD21X10490
#803

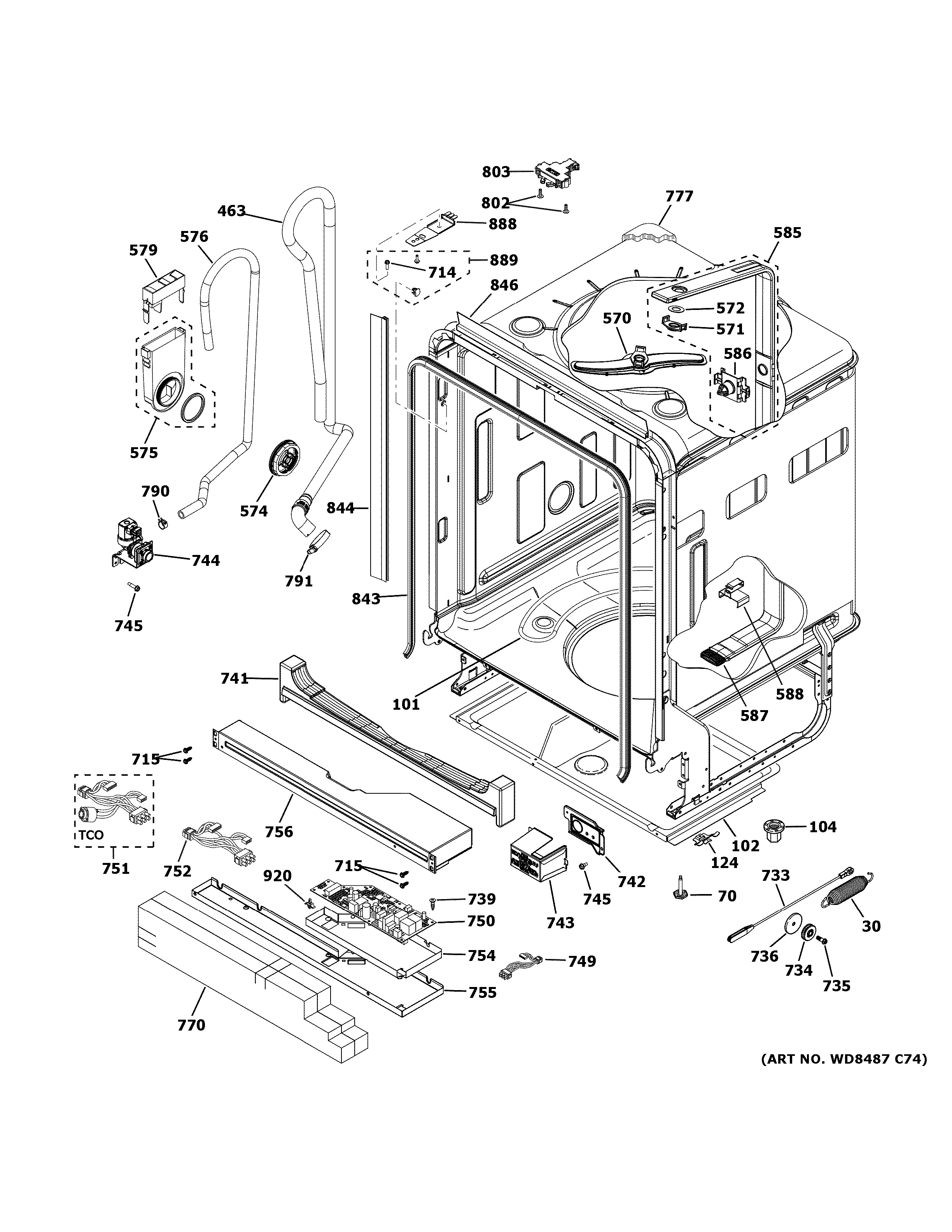

Body parts diagram

Dishwasher door latch lock

Part #WD21X10490

BEST SELLER
$28.66 |
17% OFF Phone Price : $34.66
In Stock
Kit - Piranh WD01X10572
#335

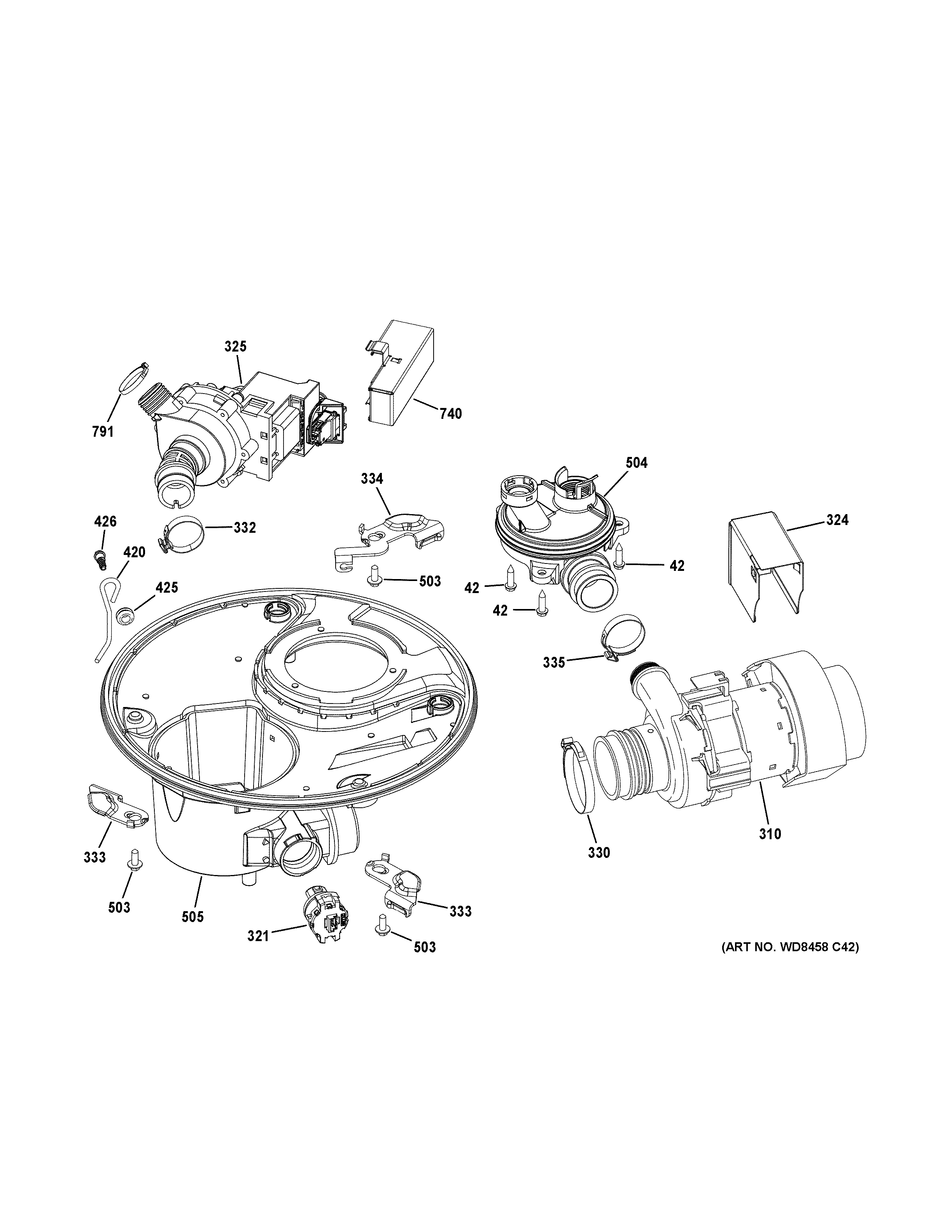

Sump & motor mechanism diagram

Kit - piranh

Part #WD01X10572

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X10572. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Kit - Piranh WD01X10573
#332

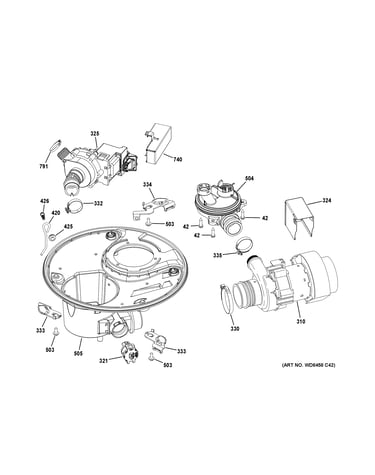

Sump & motor mechanism diagram

Kit - piranh

Part #WD01X10573

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X10573. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Clamp WD01X20302
#330

Sump & motor mechanism diagram

Clamp

Part #WD01X20302

Replaced by #WD35X10382

?
Manufacturer substitution
This part replaces WD01X20302. Substitute parts can look different from the original.
BEST SELLER
$36.75 |
14% OFF Phone Price : $42.75
In Stock
Dishwasher Tub Gasket (replaces Wd08x20675) WD08X22095
#843

Body parts diagram

Dishwasher tub gasket (replaces wd08x20675)

Part #WD08X22095

BEST SELLER
$15.67 |
11% OFF Phone Price : $17.67
In Stock
Dishwasher Heating Element WD05X21294
#101

Body parts diagram

Dishwasher heating element

Part #WD05X21294

Replaced by #WD05X30818

?
Manufacturer substitution
This part replaces WD05X21294. Substitute parts can look different from the original.
BEST SELLER
$47.32 |
11% OFF Phone Price : $53.32
In Stock
Dishwasher Drain Pump WD35X20878
#325

Sump & motor mechanism diagram

Dishwasher drain pump

Part #WD35X20878

Replaced by #WD19X25187

?
Manufacturer substitution
This part replaces WD35X20878. Substitute parts can look different from the original.
BEST SELLER
$96.88 |
11% OFF Phone Price : $108.88
In Stock
User Interface Assembly Kit WD21X10536
#718

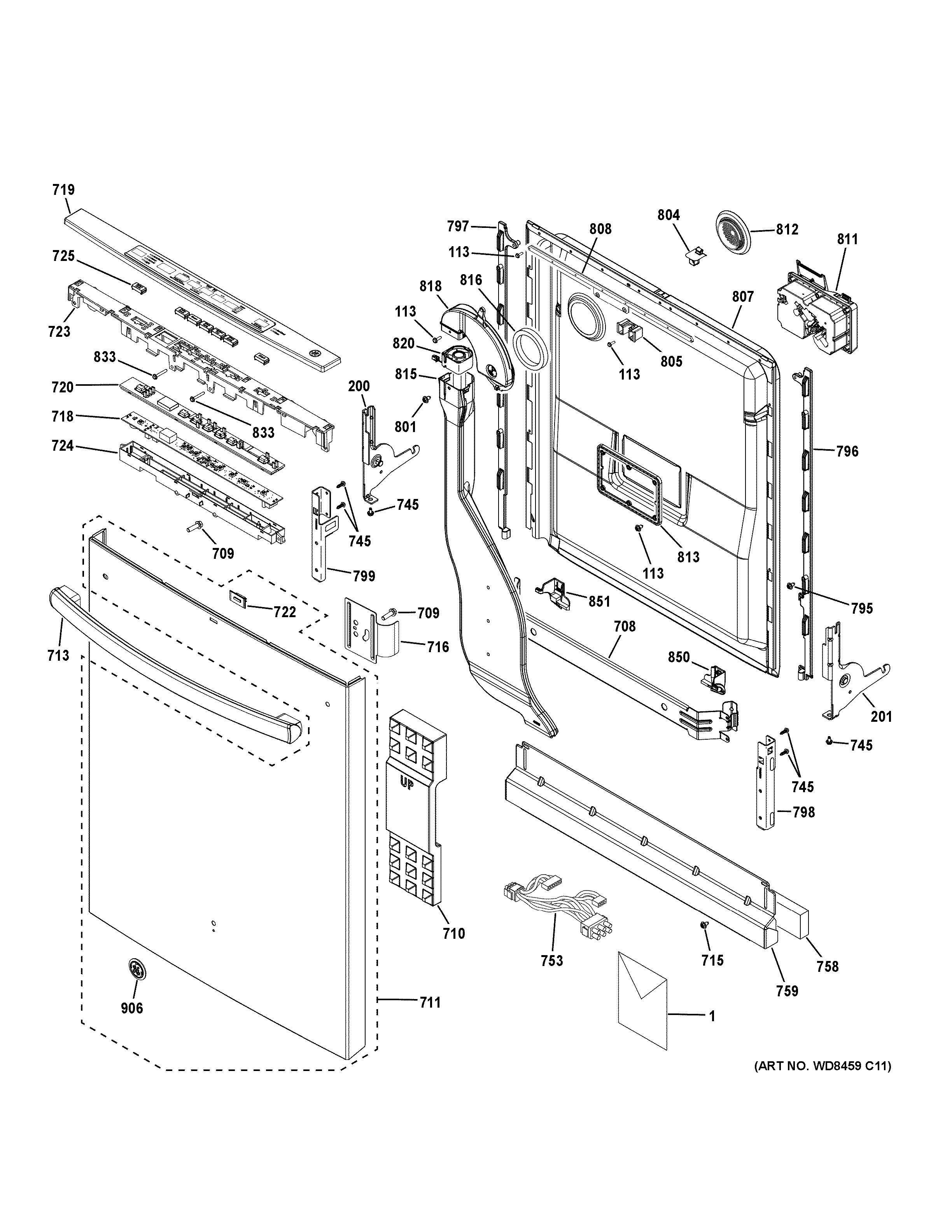

Escutcheon & door assembly diagram

User interface assembly kit

Part #WD21X10536

Replaced by #WD21X31910

?
Manufacturer substitution
This part replaces WD21X10536. Substitute parts can look different from the original.
BEST SELLER
$145.36 |
8% OFF Phone Price : $157.36
In Stock
Detergent Module WD12X21054
#811

Escutcheon & door assembly diagram

Detergent module

Part #WD12X21054

Replaced by #WD12X32798

?
Manufacturer substitution
This part replaces WD12X21054. Substitute parts can look different from the original.
BEST SELLER
$38.62
In Stock
