KitchenAid
Blender

Model # KSB3WH0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid KSB3WH0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Foot 115792
#11

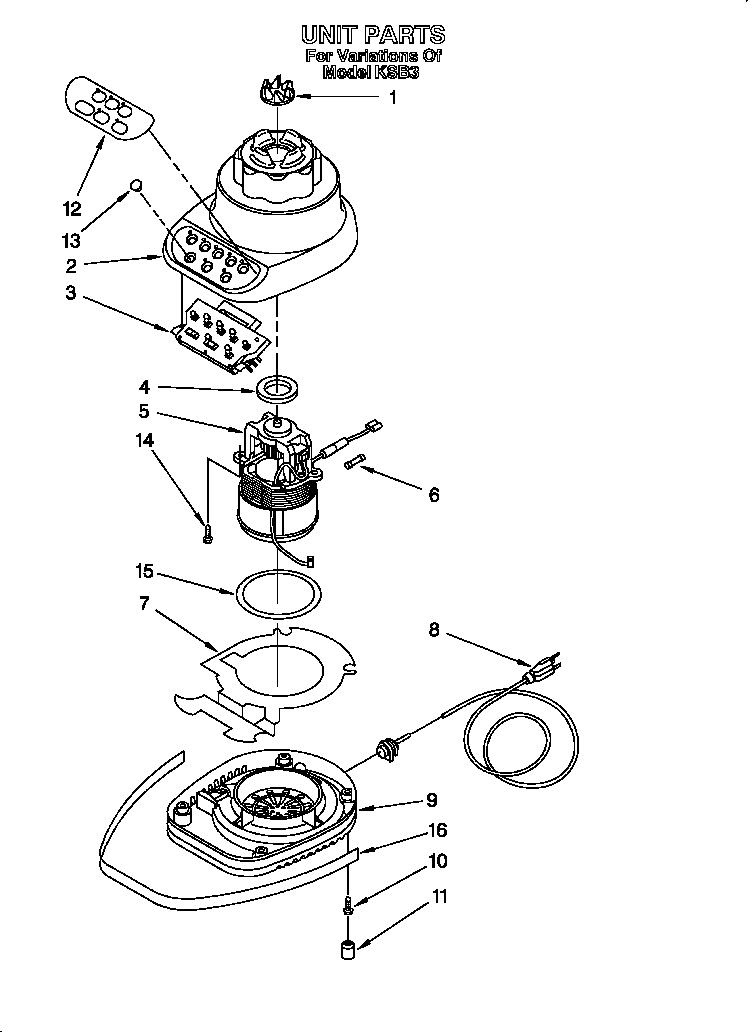

Unit diagram

Foot

Part #115792

Replaced by #WP9709707

?
Manufacturer substitution
This part replaces 115792. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 3184609
#14

Unit diagram

Screw

Part #3184609

$28.23
In Stock
Lid 4176342
#1B

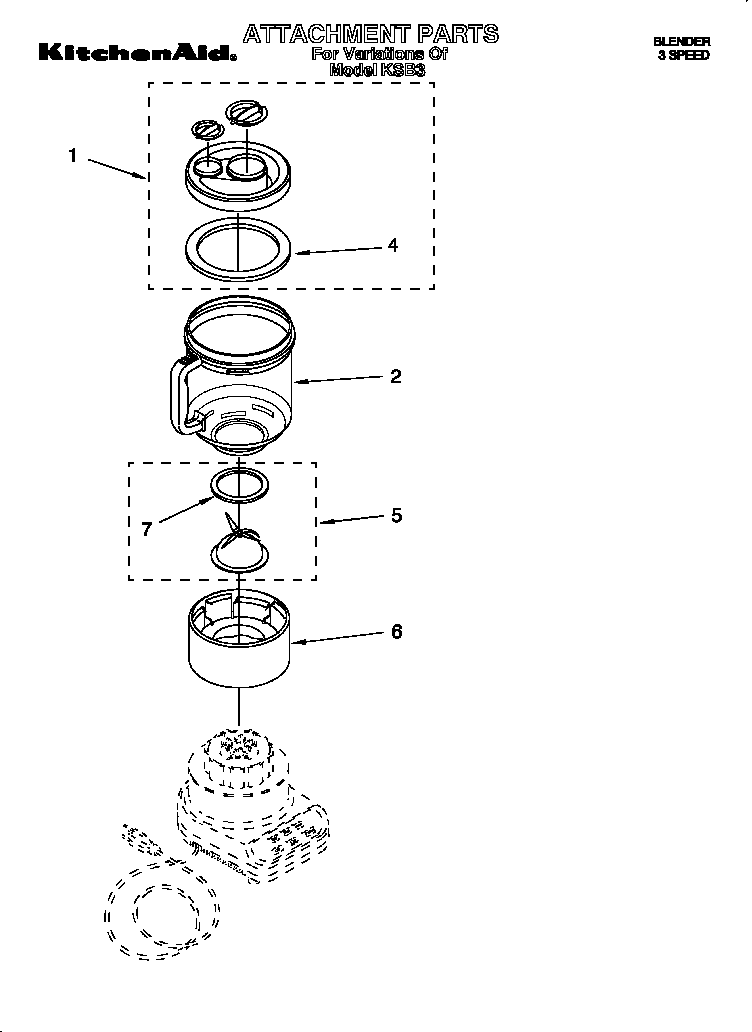

Attachment diagram

Lid

Part #4176342

Replaced by #4176530

?
Manufacturer substitution
This part replaces 4176342. Substitute parts can look different from the original.
$109.27
In Stock
Motor 9703244
#5

Unit diagram

Motor

Part #9703244

The manufacturer no longer makes this part, and there's no substitute part

Lid 4176341
#1A

Attachment diagram

Lid

Part #4176341

The manufacturer no longer makes this part, and there's no substitute part

Barrier 9701027
#7

Unit diagram

Barrier

Part #9701027

The manufacturer no longer makes this part, and there's no substitute part

Housing 3184304
#2B

Unit diagram

Housing

Part #3184304

The manufacturer no longer makes this part, and there's no substitute part

Jar 3184399
#2

Attachment diagram

Jar

Part #3184399

The manufacturer no longer makes this part, and there's no substitute part

Blade Assembly 9702184
#5

Attachment diagram

Blade assembly

Part #9702184

The manufacturer no longer makes this part, and there's no substitute part

Housing 3184302
#2A

Unit diagram

Housing

Part #3184302

The manufacturer no longer makes this part, and there's no substitute part
