Model # 10W Official Minn Kota boat motor

Here are the diagrams and repair parts for Official Minn Kota 10W boat motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Brush Plt As 401400
#11

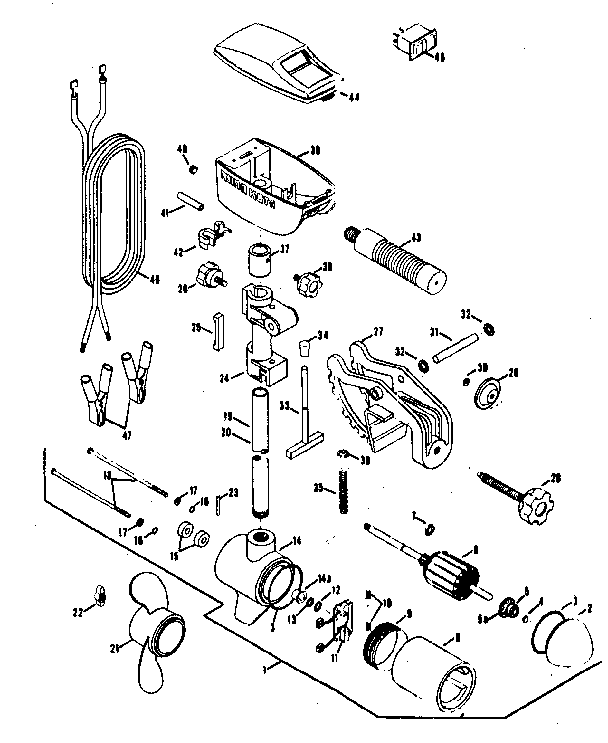

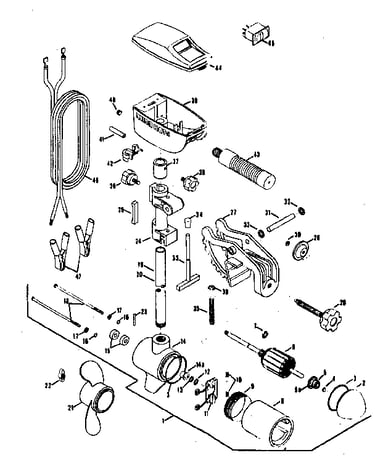

Motor assembly diagram

Brush plt as

Part #401400

The manufacturer no longer makes this part, and there's no substitute part

Decal 223660
#44B

Motor assembly diagram

Decal

Part #223660

The manufacturer no longer makes this part, and there's no substitute part

Tube 27in 201200
#19

Motor assembly diagram

Tube 27in

Part #201200

The manufacturer no longer makes this part, and there's no substitute part

Bearing Ret 405301
#5A

Motor assembly diagram

Bearing ret

Part #405301

The manufacturer no longer makes this part, and there's no substitute part

Washer 401171
#13

Motor assembly diagram

Washer

Part #401171

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 201050
#31

Motor assembly diagram

Hinge pin

Part #201050

The manufacturer no longer makes this part, and there's no substitute part

Thru Bolt 401351
#18

Motor assembly diagram

Thru bolt

Part #401351

The manufacturer no longer makes this part, and there's no substitute part

Propllr Nut 203311
#22

Motor assembly diagram

Propllr nut

Part #203311

The manufacturer no longer makes this part, and there's no substitute part

Bracket 201190
#27

Motor assembly diagram

Bracket

Part #201190

The manufacturer no longer makes this part, and there's no substitute part

Frt End Bell 401020
#2

Motor assembly diagram

Frt end bell

Part #401020

The manufacturer no longer makes this part, and there's no substitute part
