Model # JXU9130HP0 Official Jenn-Air range hood

Here are the diagrams and repair parts for Official Jenn-Air JXU9130HP0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Range Hood Grease Filter W10351892
#6A

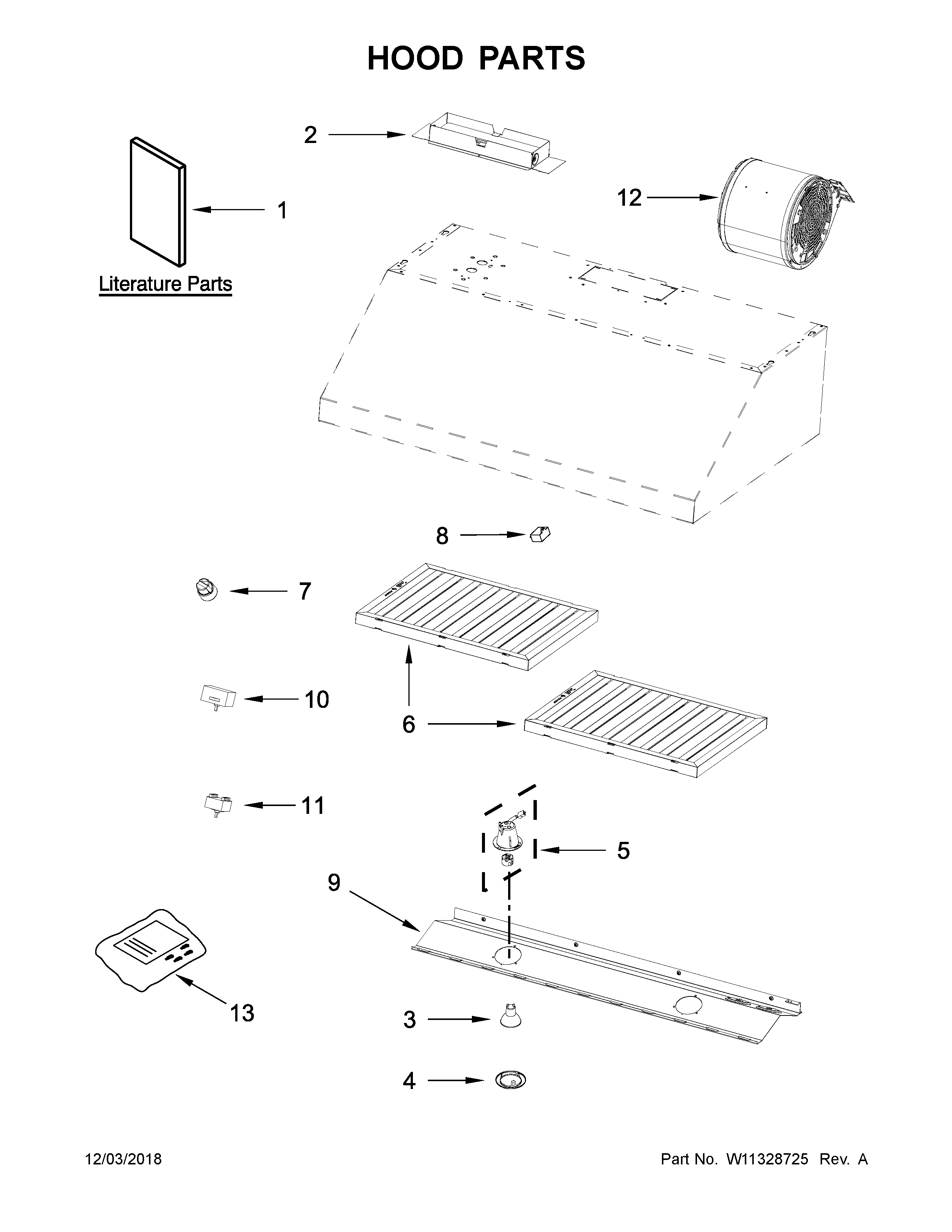

Hood parts diagram

Range hood grease filter

Part #W10351892

$165.46 |
7% OFF Phone Price : $177.46
In Stock
Range Hood Backsplash Kit, 30-in W10285447
#NI

Hood parts diagram

Range hood backsplash kit, 30-in

Part #W10285447

$599.45
In Stock
Range Hood Grease Filter W10351890
#6

Hood parts diagram

Range hood grease filter

Part #W10351890

$73.64 |
8% OFF Phone Price : $79.64
In Stock
Range Hood Blower Fan W10293969
#13

Hood parts diagram

Range hood blower fan

Part #W10293969

$49.20
In Stock
Range Hood Duct Cover, 36-in W10272080
#NI

Hood parts diagram

Range hood duct cover, 36-in

Part #W10272080

$213.03 |
5% OFF Phone Price : $225.03
In Stock
Support W10295809
#9

Hood parts diagram

Support

Part #W10295809

$217.84
In Stock
Range Backsplash Assembly W10285448
#NI

Hood parts diagram

Range backsplash assembly

Part #W10285448

$529.51
In Stock
Range Hood Light Switch W10293968
#10

Hood parts diagram

Range hood light switch

Part #W10293968

$104.67
In Stock
Range Hood Light Bulb Bezel W10351924
#4

Hood parts diagram

Range hood light bulb bezel

Part #W10351924

$114.40
In Stock
Range Hood Blower Switch W10293967
#11

Hood parts diagram

Range hood blower switch

Part #W10293967

$111.60
In Stock
