Amana
Washer

Model # NTW4750BQ0 Official Amana washer

Here are the diagrams and repair parts for Official Amana NTW4750BQ0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

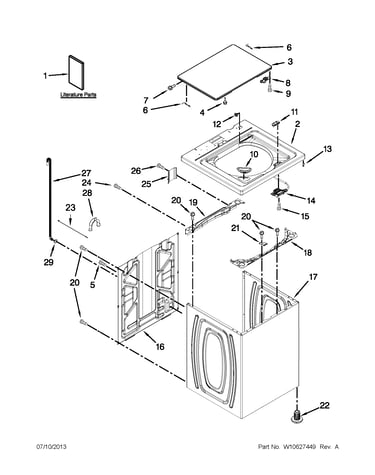

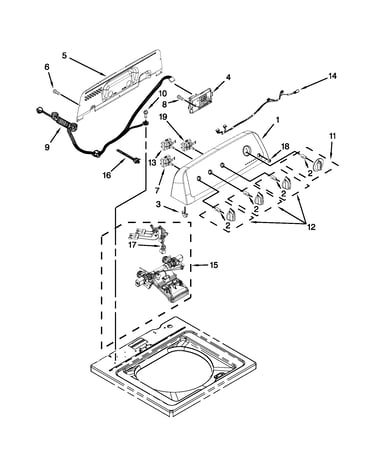

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Cam W10006353
#11

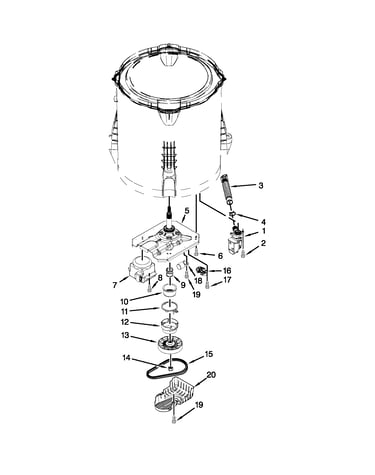

Gearcase, motor and pump parts diagram

Cam

Part #W10006353

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006353. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Spring W10006382
#9

Gearcase, motor and pump parts diagram

Spring

Part #W10006382

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006382. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Cam W10006354
#12

Gearcase, motor and pump parts diagram

Cam

Part #W10006354

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006354. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Washer Drive Pulley And Splutch Assembly W10006352
#10

Gearcase, motor and pump parts diagram

Washer drive pulley and splutch assembly

Part #W10006352

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10006352. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Washer Drive Pulley W10536113
#13

Gearcase, motor and pump parts diagram

Washer drive pulley

Part #W10536113

Replaced by #W10721967

?
Manufacturer substitution
This part replaces W10536113. Substitute parts can look different from the original.
BEST SELLER
$54.88 |
10% OFF Phone Price : $60.88
In Stock
Driveblock - W10396887
#8

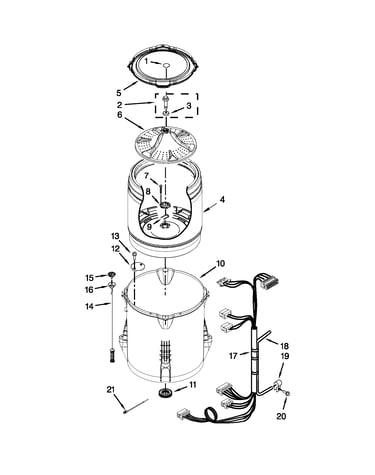

Basket and tub parts diagram

Driveblock -

Part #W10396887

Replaced by #W10528947

?
Manufacturer substitution
This part replaces W10396887. Substitute parts can look different from the original.
BEST SELLER
$33.22 |
15% OFF Phone Price : $39.22
In Stock
Washer Drive Belt W10006384
#15

Gearcase, motor and pump parts diagram

Washer drive belt

Part #W10006384

Replaced by #WPW10006384

?
Manufacturer substitution
This part replaces W10006384. Substitute parts can look different from the original.
BEST SELLER
$25.38 |
19% OFF Phone Price : $31.38
In Stock
Washer Actuator W10006355
#16

Gearcase, motor and pump parts diagram

Washer actuator

Part #W10006355

Replaced by #WPW10006355

?
Manufacturer substitution
This part replaces W10006355. Substitute parts can look different from the original.
BEST SELLER
$53.42 |
10% OFF Phone Price : $59.42
In Stock
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

Optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Washer Start/run Capacitor W10390446
#18

Gearcase, motor and pump parts diagram

Washer start/run capacitor

Part #W10390446

Replaced by #W11395618

?
Manufacturer substitution
This part replaces W10390446. Substitute parts can look different from the original.
BEST SELLER
$59.95 |
9% OFF Phone Price : $65.95
In Stock
