KitchenAid
Compact Refrigerator

Model # KURL304EBS00 Official KitchenAid compact refrigerator

Here are the diagrams and repair parts for Official KitchenAid KURL304EBS00 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

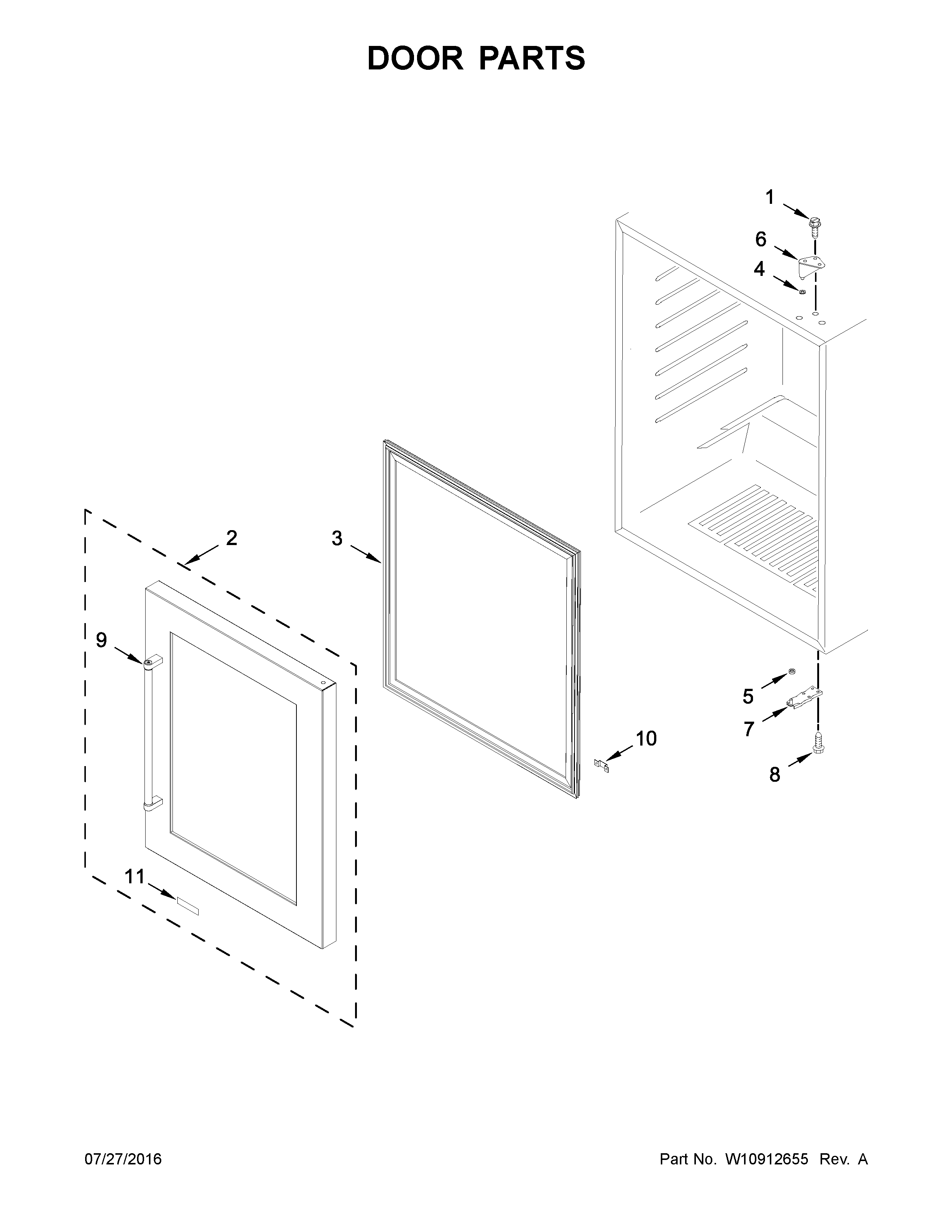

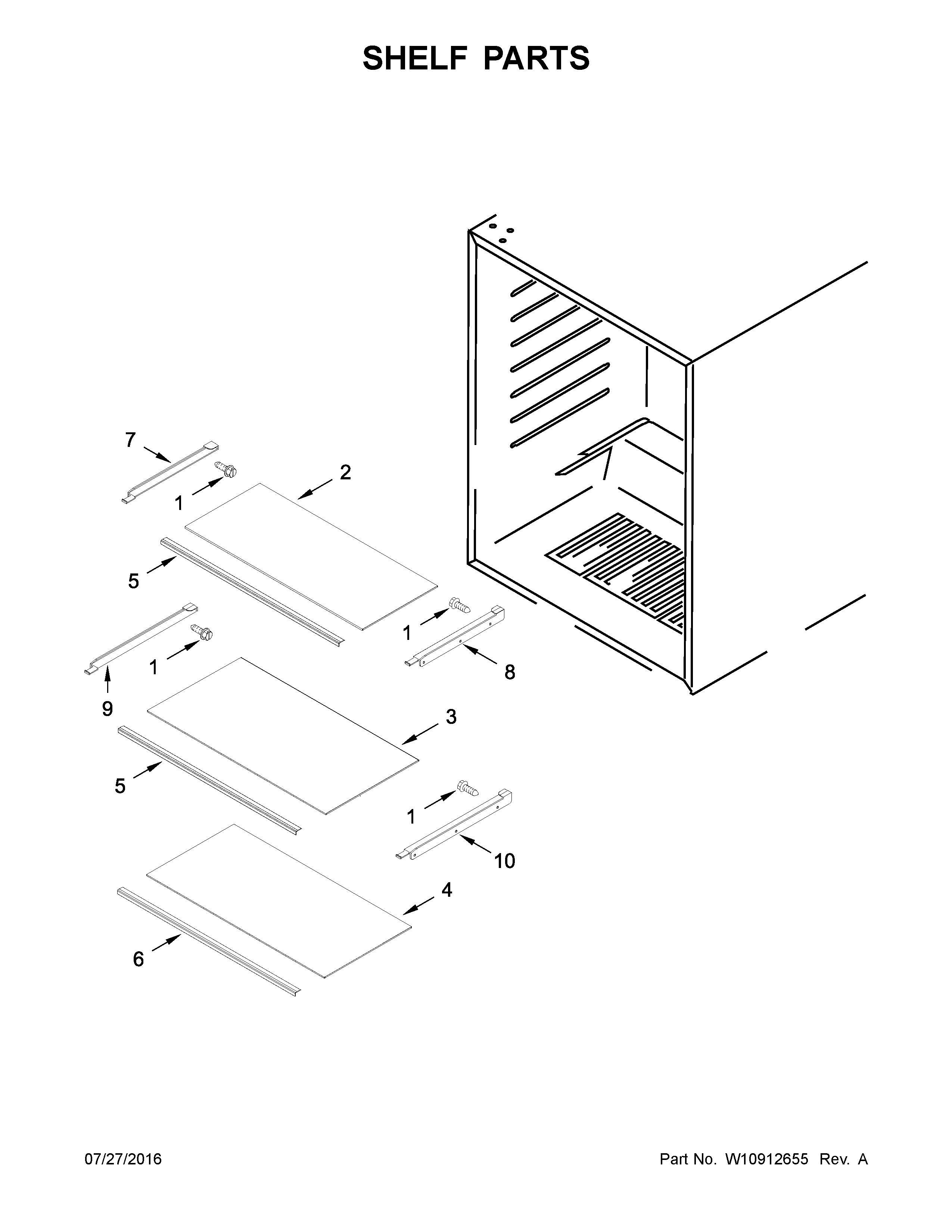

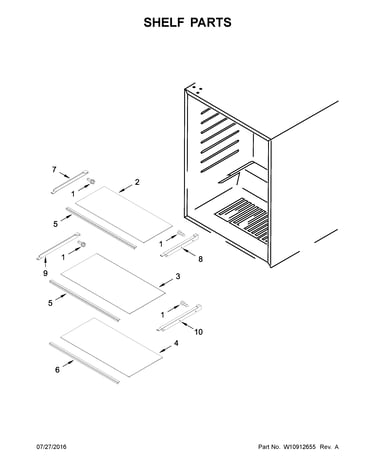

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Evaporator Motor W10204942
#40

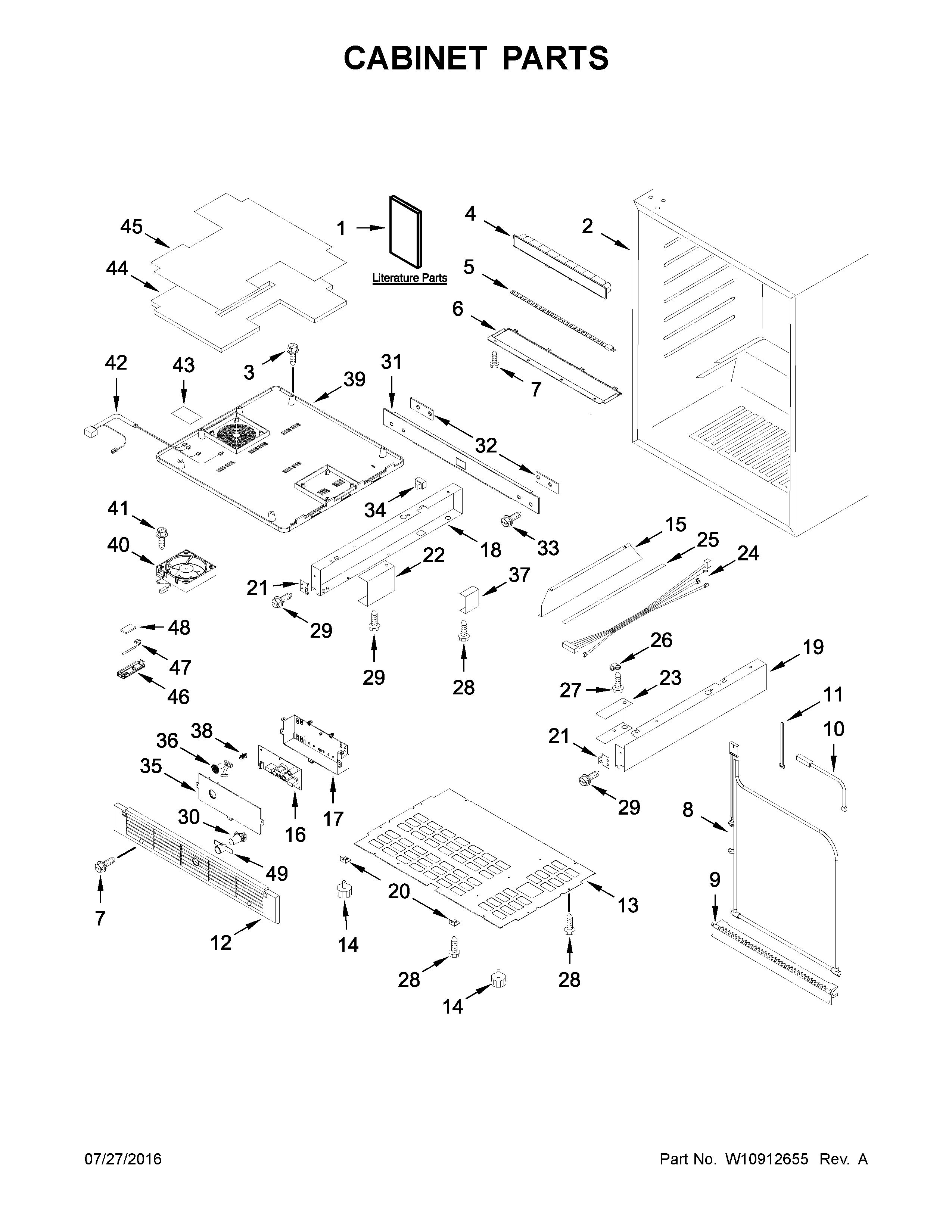

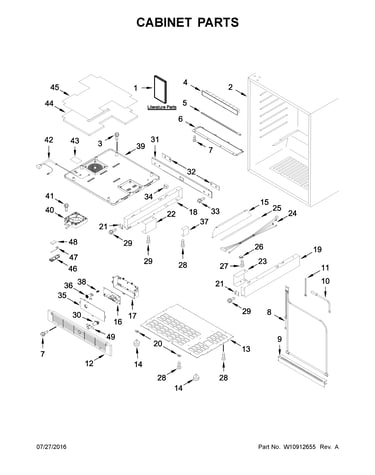

Cabinet parts diagram

Evaporator motor

Part #W10204942

Replaced by #W10854409

?
Manufacturer substitution
This part replaces W10204942. Substitute parts can look different from the original.
$147.98 |
8% OFF Phone Price : $159.98
In Stock
Wine Cooler Toe Grille W10780351
#12

Cabinet parts diagram

Wine cooler toe grille

Part #W10780351

$48.39 |
11% OFF Phone Price : $54.39
In Stock
Drier Tube W10163273
#21

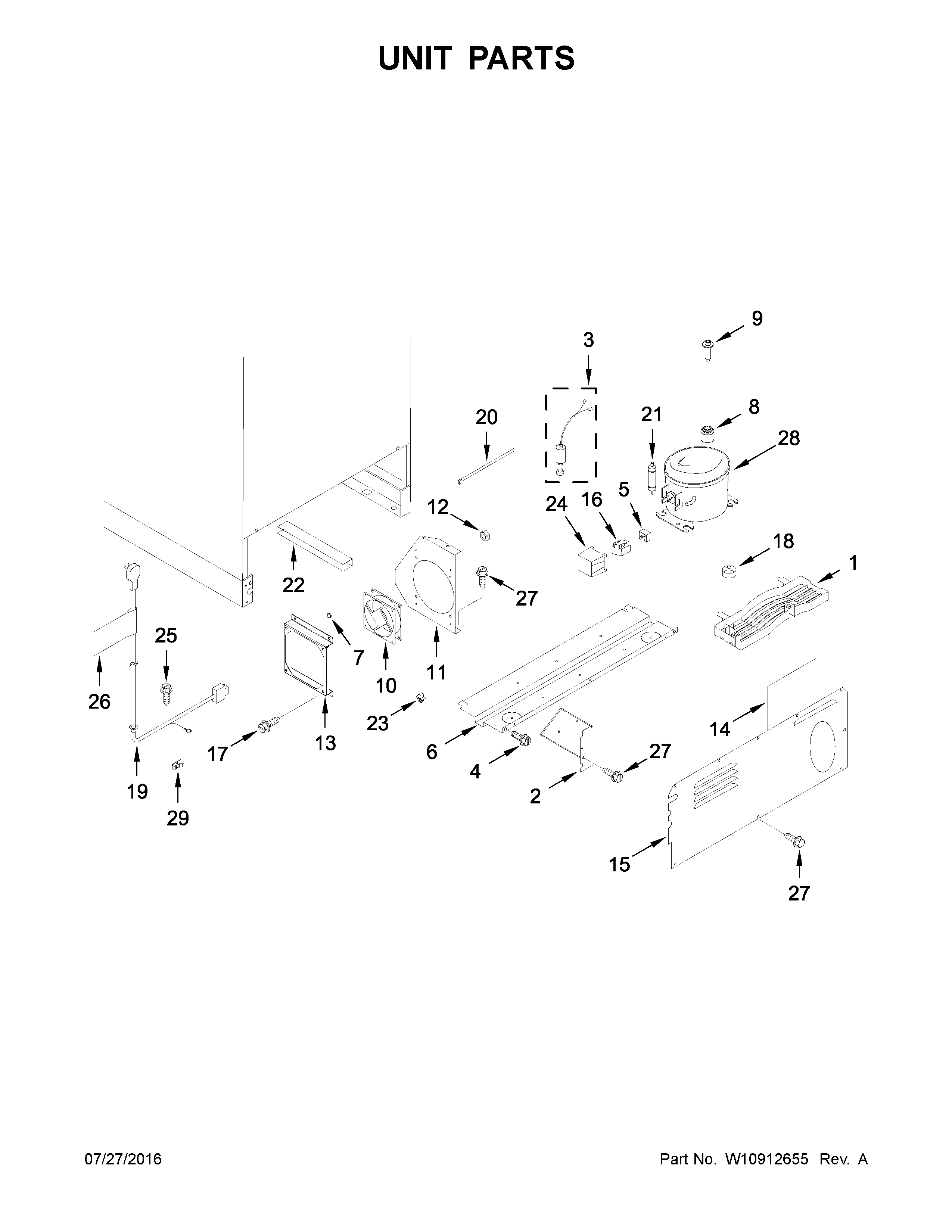

Unit parts diagram

Drier tube

Part #W10163273

$33.58
In Stock
Refrigerator Main Pcb Glass W10797387
#16

Cabinet parts diagram

Refrigerator main pcb glass

Part #W10797387

Replaced by #W10807589

?
Manufacturer substitution
This part replaces W10797387. Substitute parts can look different from the original.
$257.76 |
$12.00 OFF Phone Price : $269.76
In Stock
Cord Clamp W10270482
#26

Cabinet parts diagram

Cord clamp

Part #W10270482

$29.89
In Stock
Cold Air Stop W10772922
#14

Unit parts diagram

Cold air stop

Part #W10772922

$15.80
In Stock
Trap W10163276
#18

Unit parts diagram

Trap

Part #W10163276

$32.87
In Stock
Whirlpool Label 4344913
#26

Unit parts diagram

Whirlpool label

Part #4344913

$28.73
In Stock
Clip W10204640
#21

Cabinet parts diagram

Clip

Part #W10204640

$29.89
In Stock
Refrigerator Fan Cover W10797392
#39

Cabinet parts diagram

Refrigerator fan cover

Part #W10797392

$47.89
In Stock
