Model # JNM3163DJ1BB Official GE microwave
Here are the diagrams and repair parts for Official GE JNM3163DJ1BB microwave, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

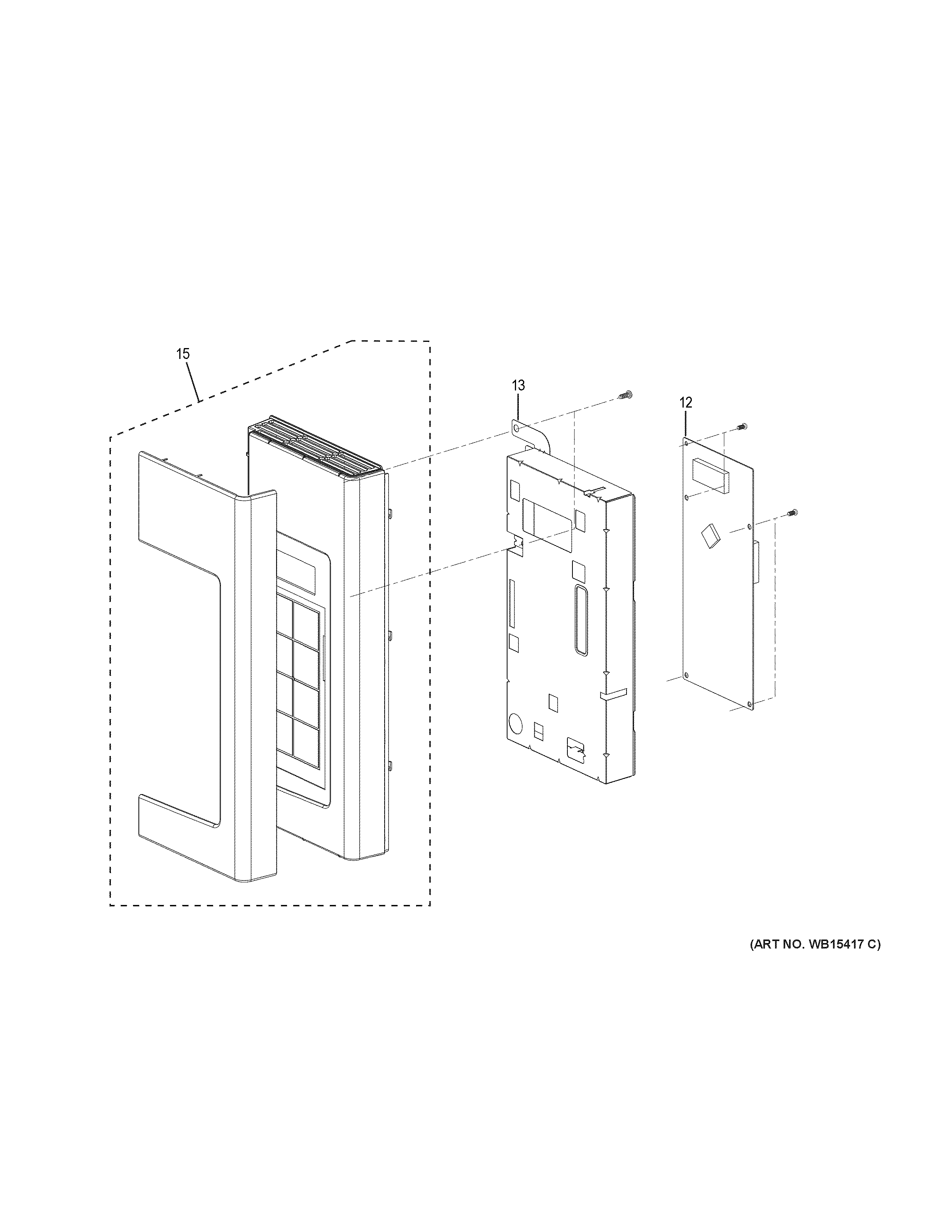

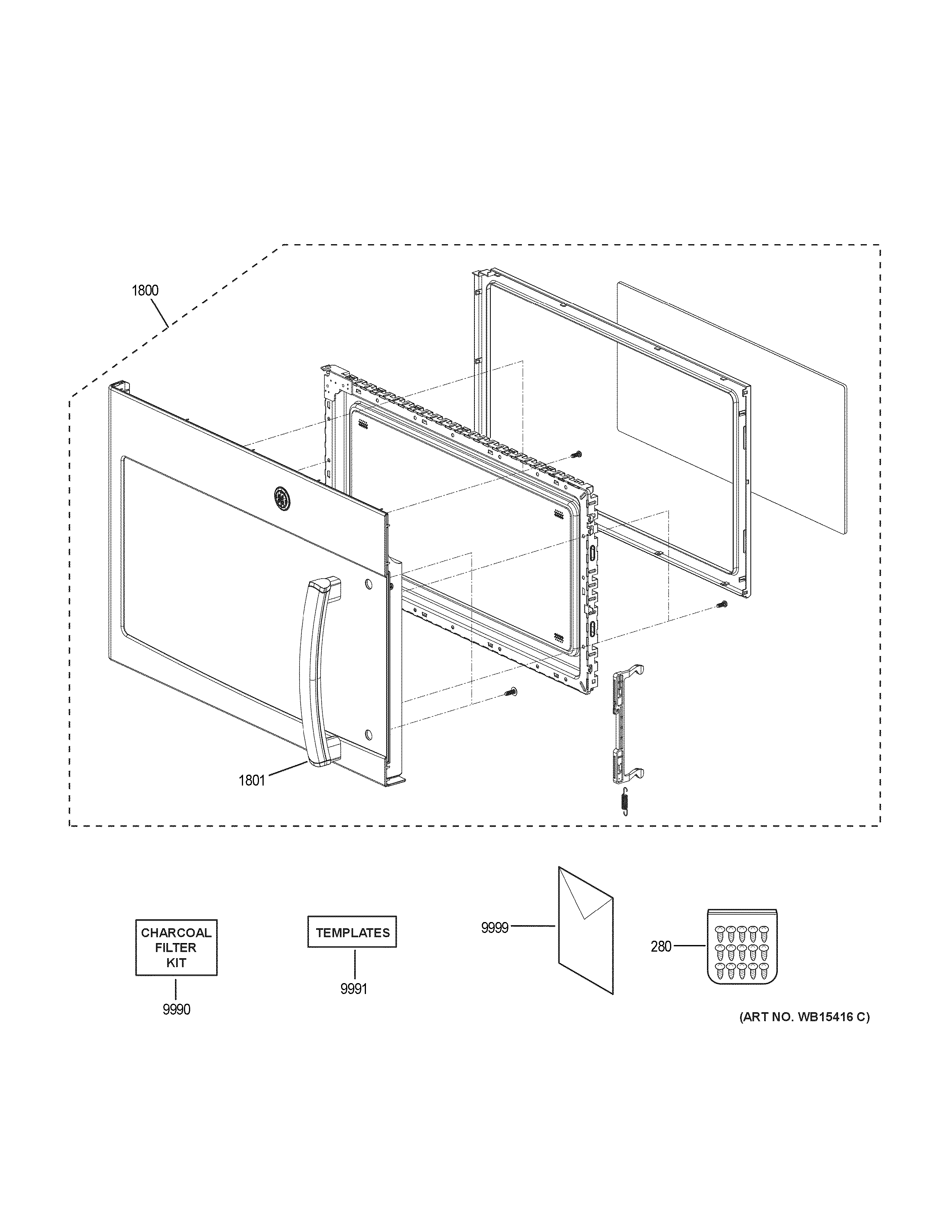

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 54 parts |
#1446

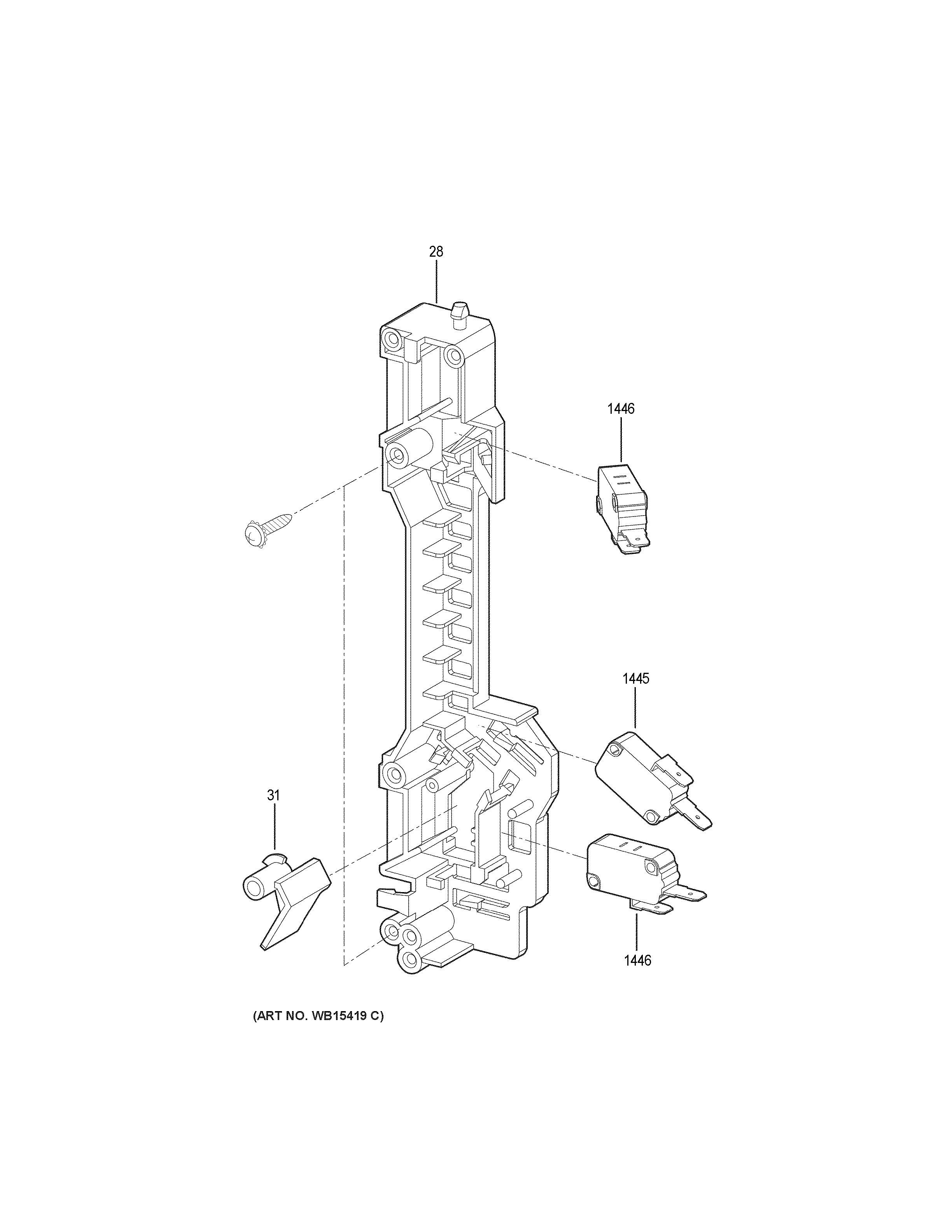

Latch board parts diagram
Microwave primary interlock switch (replaces wb24x10029, wb24x10113)
Part #WB24X10047
$28.04 |
18% OFF Phone Price : $34.04
In Stock
#50

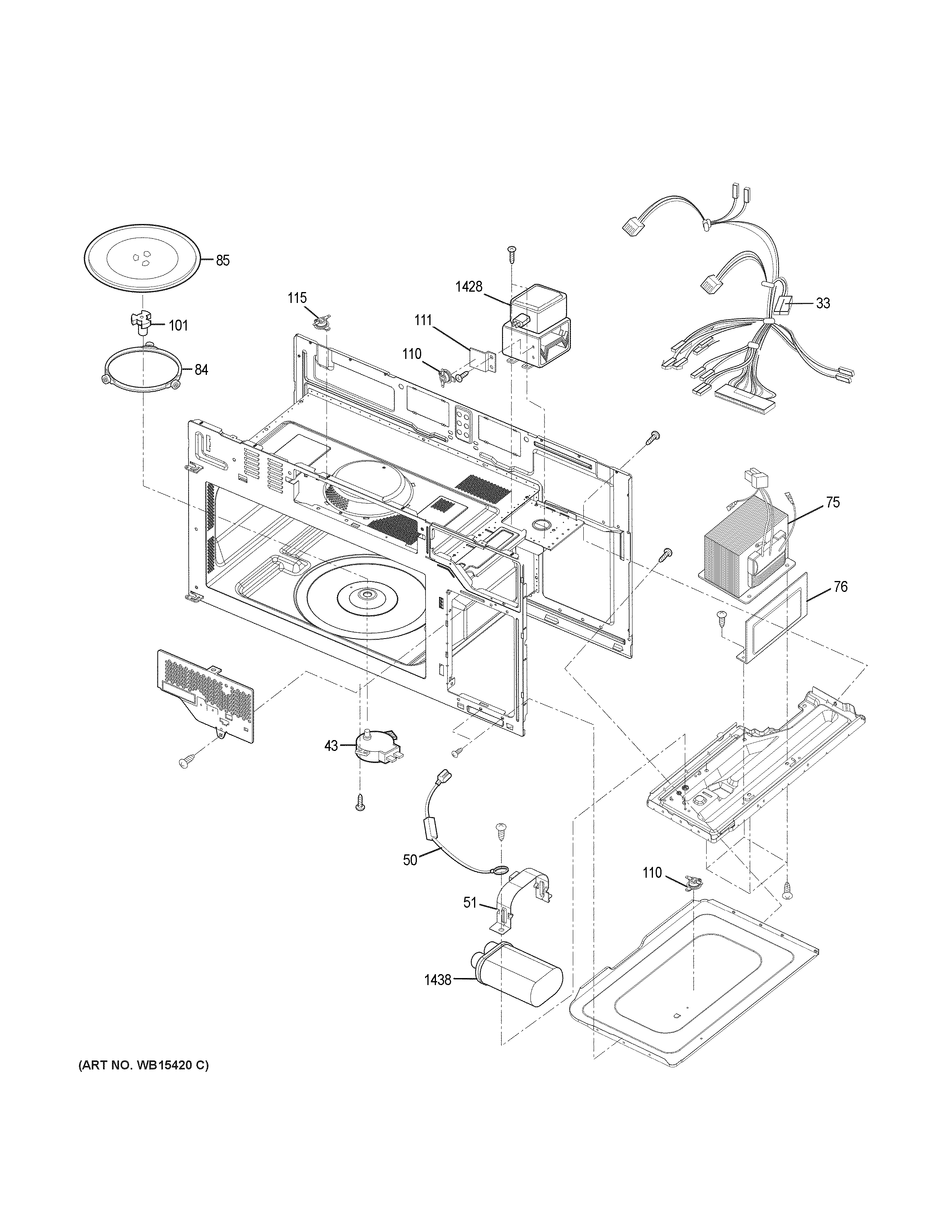

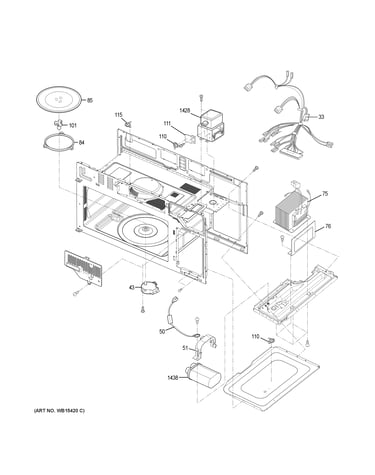

Interior parts (1) diagram
Microwave high-voltage diode
Part #WB18X10449
Replaced by #WB27X35382
?
Manufacturer substitution
This part replaces WB18X10449. Substitute parts can look different from the original.
$37.63
In Stock
#1445
Latch board parts diagram
Microwave door interlock switch (replaces wb24x817)
Part #WB24X25397
$28.49 |
17% OFF Phone Price : $34.49
In Stock
#1428
Interior parts (1) diagram
Microwave magnetron
Part #WB27X10927
$138.09 |
8% OFF Phone Price : $150.09
In Stock
#110
Interior parts (1) diagram
Microwave thermal cut-off (replaces wb27x10788)
Part #WB21X10148
$22.62 |
21% OFF Phone Price : $28.62
In Stock
#47

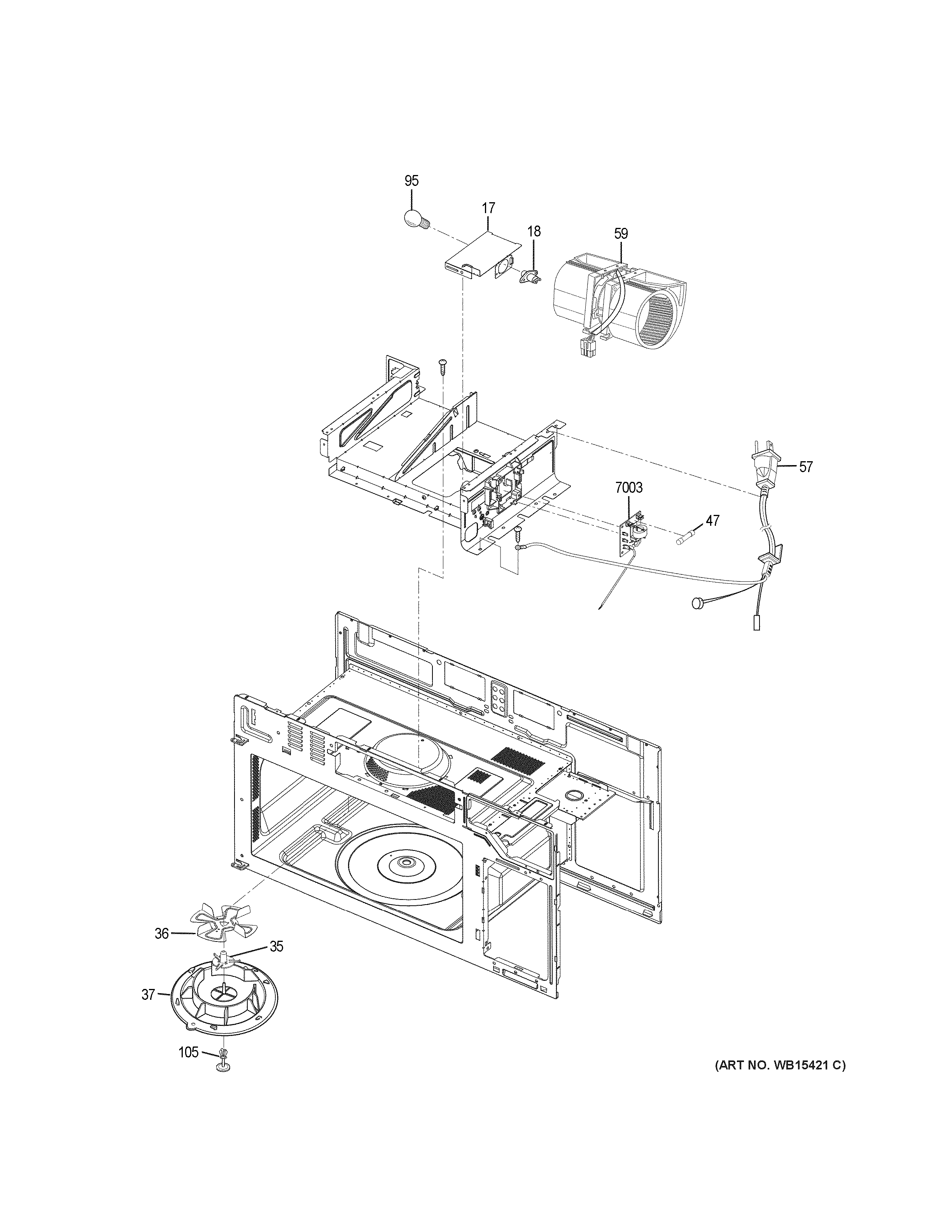

Interior parts (2) diagram
Microwave fuse
Part #WB27X25389
This item is not returnable
$6.69 |
13% OFF Phone Price : $7.69
In Stock
#19

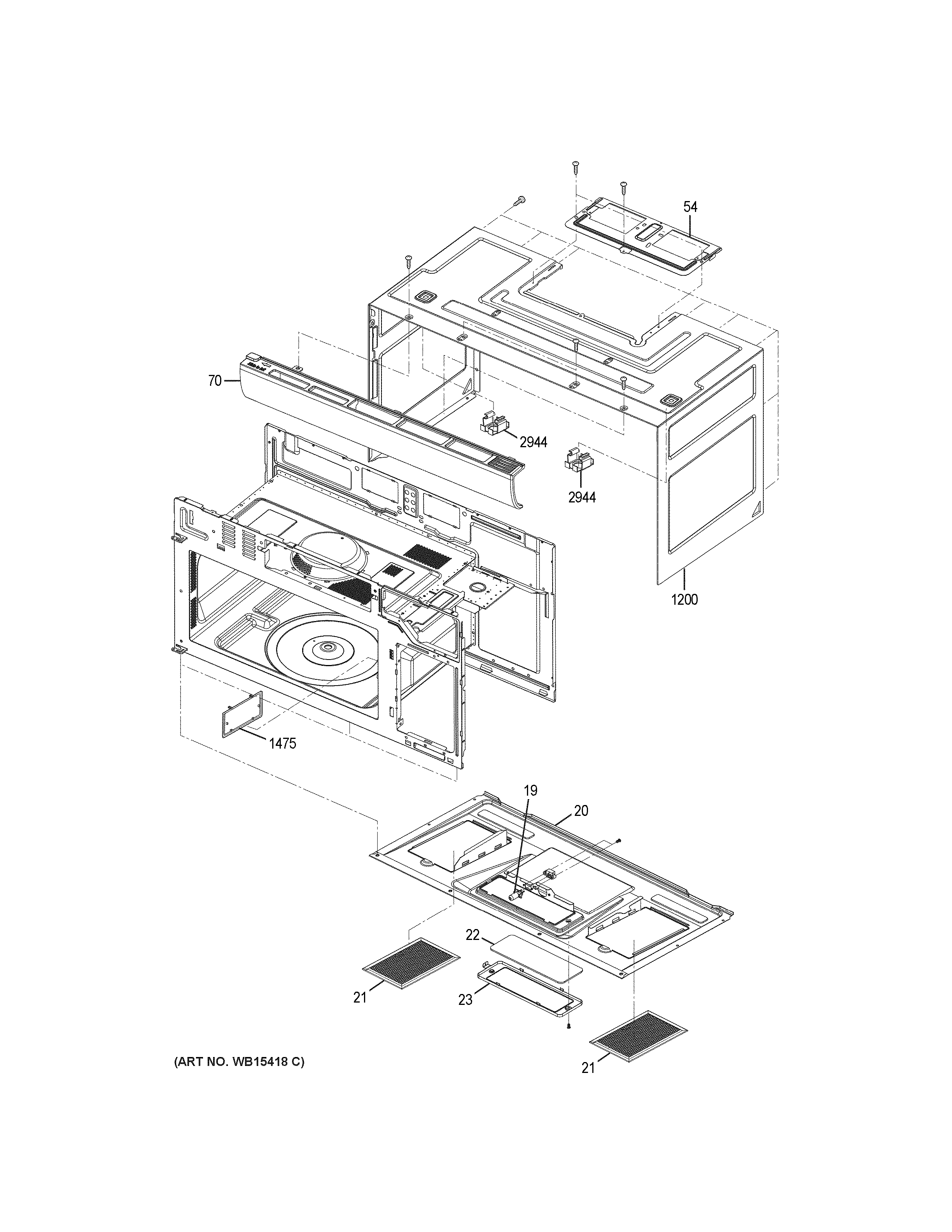

Oven cavity parts diagram
Halogen lamp
Part #WB25X25393
Replaced by #WB08X10057
?
Manufacturer substitution
This part replaces WB25X25393. Substitute parts can look different from the original.
This item is not returnable
$12.90 |
13% OFF Phone Price : $14.90
In Stock
#1438
Interior parts (1) diagram
Hi capacitor
Part #WB27X26368
$57.39 |
9% OFF Phone Price : $63.39
In Stock
#21
Oven cavity parts diagram
Microwave grease filter
Part #WB02X25388
Replaced by #WB02X32793
?
Manufacturer substitution
This part replaces WB02X25388. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
#101
Interior parts (1) diagram
Microwave turntable shaft
Part #WB06X10873
This item is not returnable
$14.98 |
12% OFF Phone Price : $16.98
In Stock
