Model # FFPA1022R12 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFPA1022R12 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

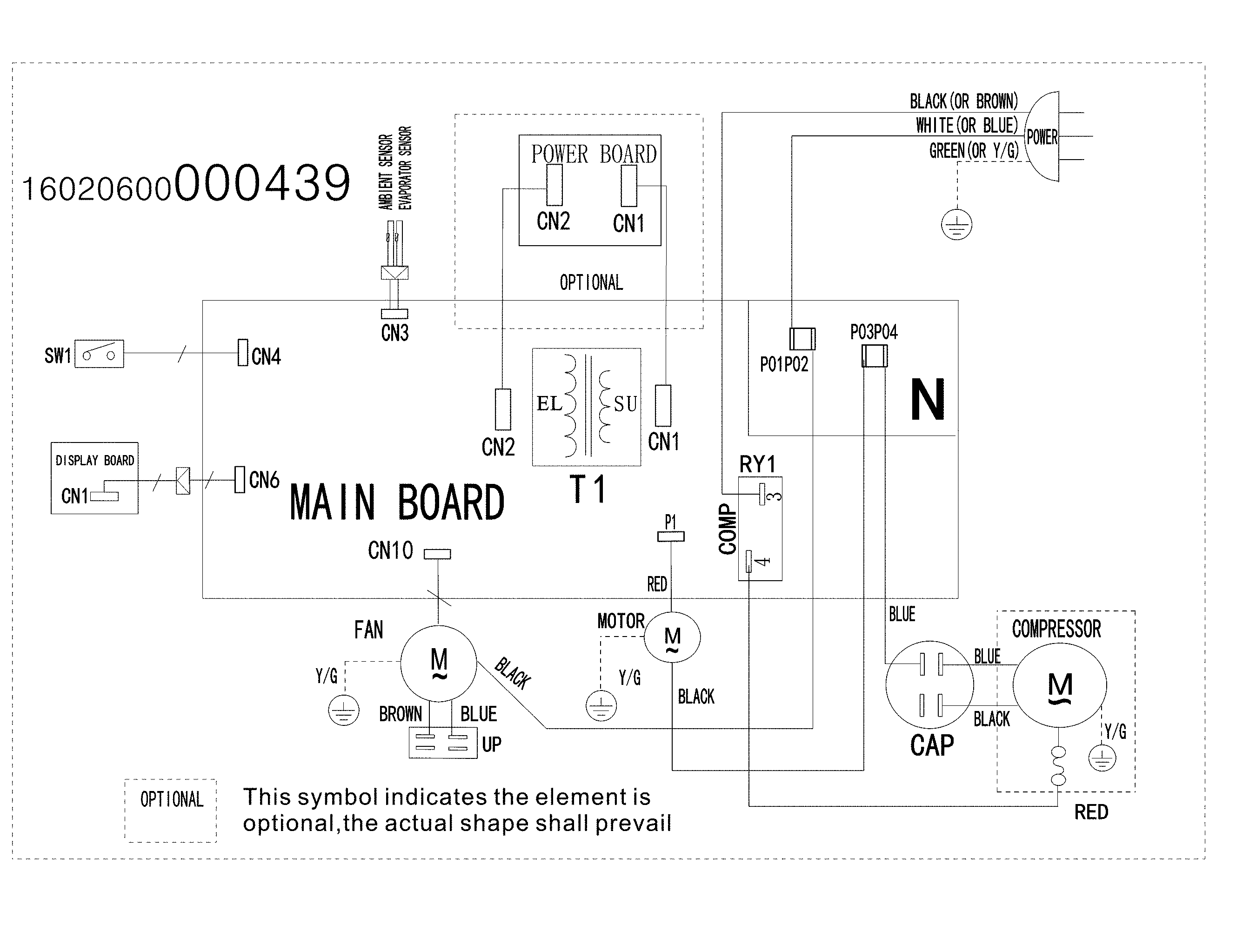

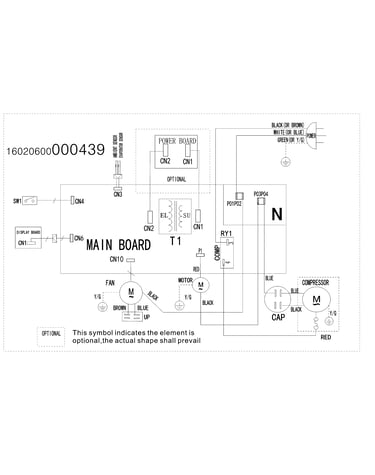

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Control-elec 5304517059
#6

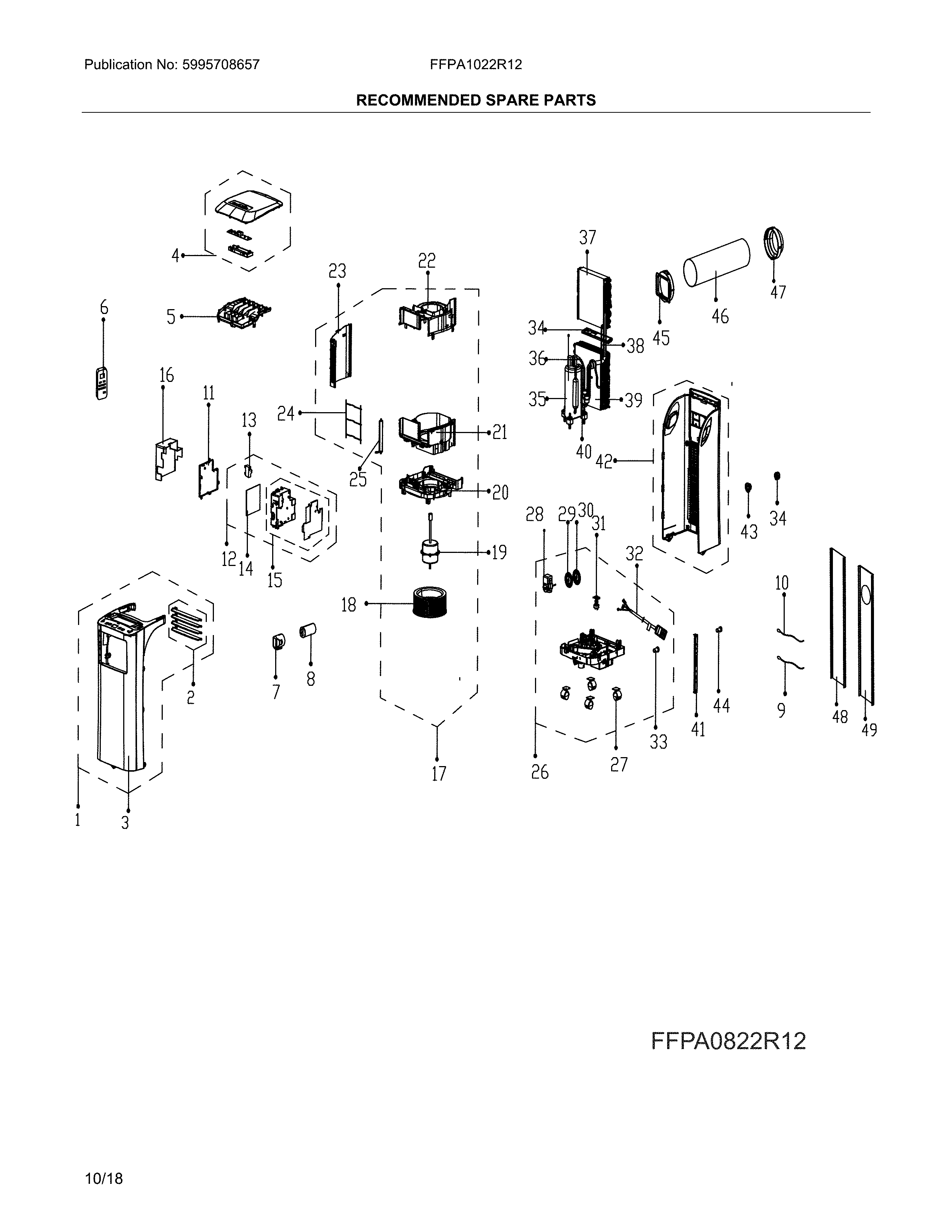

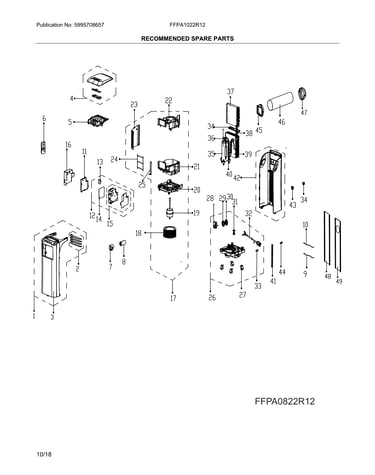

Recommended spare parts diagram

Control-elec

Part #5304517059

$98.44
In Stock
Motor 5304502027
#19

Recommended spare parts diagram

Motor

Part #5304502027

$283.75
In Stock
Cover 5304517060
#7

Recommended spare parts diagram

Cover

Part #5304517060

$22.67
In Stock
Slide 5304517055
#48

Recommended spare parts diagram

Slide

Part #5304517055

$86.00
In Stock
Frigidaire Tube 5304517076
#36

Recommended spare parts diagram

Frigidaire tube

Part #5304517076

$34.33
In Stock
Base 5304517069
#26

Recommended spare parts diagram

Base

Part #5304517069

$240.84
In Stock
Room Air Conditioner Drain Hose Connector Plug 5304502043
#33

Recommended spare parts diagram

Room air conditioner drain hose connector plug

Part #5304502043

$14.69
In Stock
Sensor 5304517062
#10

Recommended spare parts diagram

Sensor

Part #5304517062

$30.44
In Stock
Air Conditioner Blower 5304502026
#18

Recommended spare parts diagram

Air conditioner blower

Part #5304502026

$72.93
In Stock
Top 5304517058
#4

Recommended spare parts diagram

Top

Part #5304517058

$138.78
In Stock
