Kenmore Elite
Electric Wall Oven

Model # 91149004993 Official Kenmore Elite oven

Here are the diagrams and repair parts for Official Kenmore Elite 91149004993 oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Wall Oven Temperature Sensor WB23T10015
#253

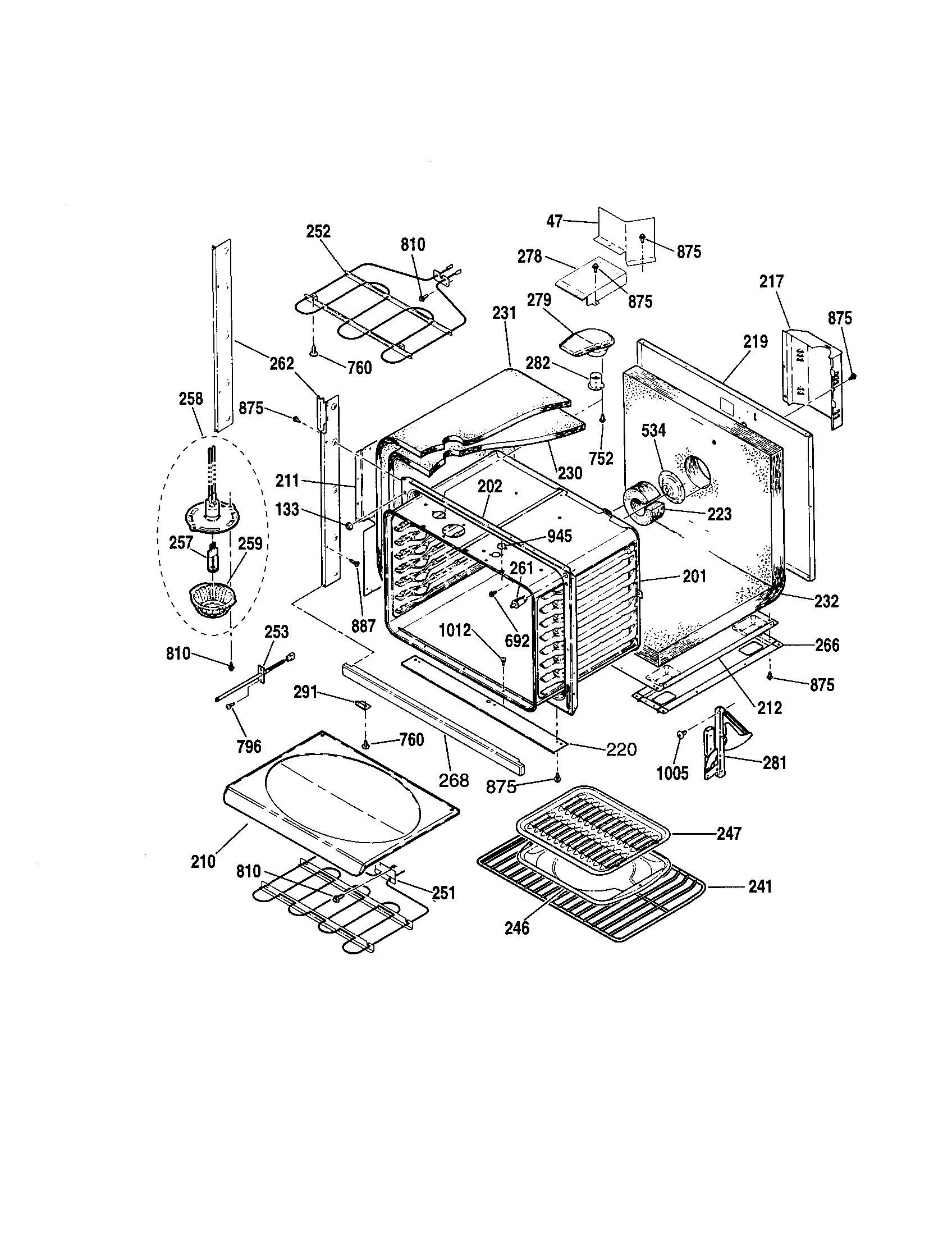

Body section diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Bake Element (replaces Wb44t10055) WB44T10021
#251

Body section diagram

Range bake element (replaces wb44t10055)

Part #WB44T10021

BEST SELLER
$49.66 |
11% OFF Phone Price : $55.66
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Conversion Element WB44T10020
#298

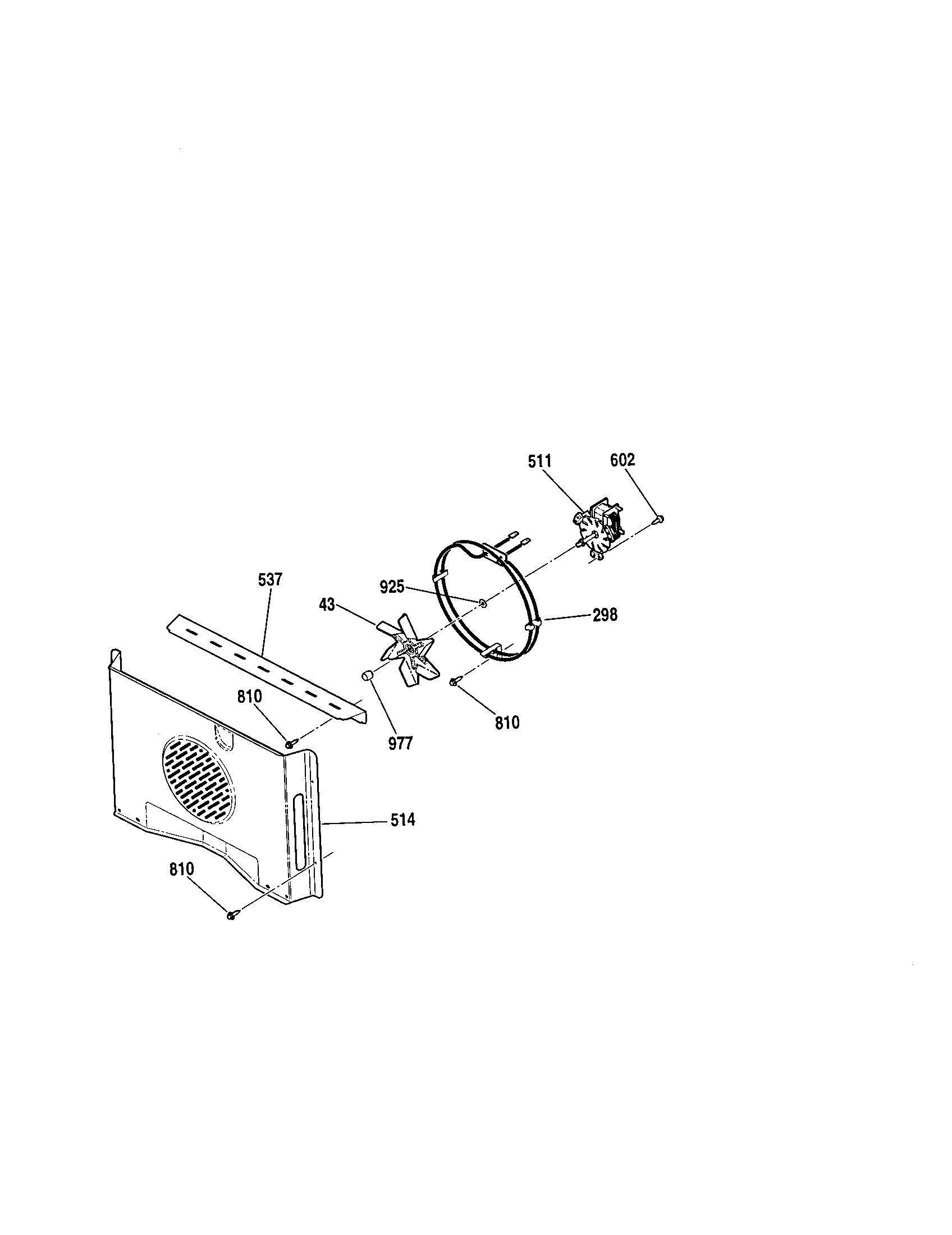

Convection fan diagram

Conversion element

Part #WB44T10020

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10020. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Light Bulb WB08T10007
#257

Body section diagram

Light bulb

Part #WB08T10007

Replaced by #WB08T10023

?
Manufacturer substitution
This part replaces WB08T10007. Substitute parts can look different from the original.
This item is not returnable
$12.78 |
14% OFF Phone Price : $14.78
In Stock
Screw WB01X1293
Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB02T10017
#977

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Fan Blade WB02T10018
#43

Convection fan diagram

Fan blade

Part #WB02T10018

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10018. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Range Oven Door Inner Glass WB57K5230
Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Range Oven Door Outer Panel Pad WB01T10026
Range oven door outer panel pad

Part #WB01T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
