Model # JV535C2CC Official GE range hood

Here are the diagrams and repair parts for Official GE JV535C2CC range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Vent Adapter WB02X10705
#1

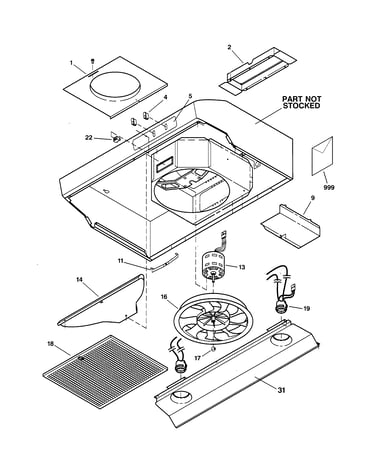

Range hood diagram

Vent adapter

Part #WB02X10705

$39.62 |
59% OFF Was : $96.39
In Stock
Light Panel WB07X10498
#31

Range hood diagram

Light panel

Part #WB07X10498

The manufacturer no longer makes this part, and there's no substitute part

Overlay Cc WB04X10018
#5

Range hood diagram

Overlay cc

Part #WB04X10018

The manufacturer no longer makes this part, and there's no substitute part

Pilot Light WB25X10005
#22

Range hood diagram

Pilot light

Part #WB25X10005

The manufacturer no longer makes this part, and there's no substitute part

Overlay Wht WB04X10017
#5

Range hood diagram

Overlay wht

Part #WB04X10017

The manufacturer no longer makes this part, and there's no substitute part

Wire Cover WB13X10007
#9

Range hood diagram

Wire cover

Part #WB13X10007

The manufacturer no longer makes this part, and there's no substitute part

Clip WB02X10747
#17

Range hood diagram

Clip

Part #WB02X10747

The manufacturer no longer makes this part, and there's no substitute part

Rocker Sw Cc WB24X10065
#4

Range hood diagram

Rocker sw cc

Part #WB24X10065

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Motor WB26X10093
#13

Range hood diagram

Range hood blower motor

Part #WB26X10093

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Filter Spring Kit WB02X10704
#11

Range hood diagram

Range hood filter spring kit

Part #WB02X10704

The manufacturer no longer makes this part, and there's no substitute part
