Model # U42YX Official ICP evaporator coil
Here are the diagrams and repair parts for Official ICP U42YX evaporator coil, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
U42YX Evaporator Coil
#2

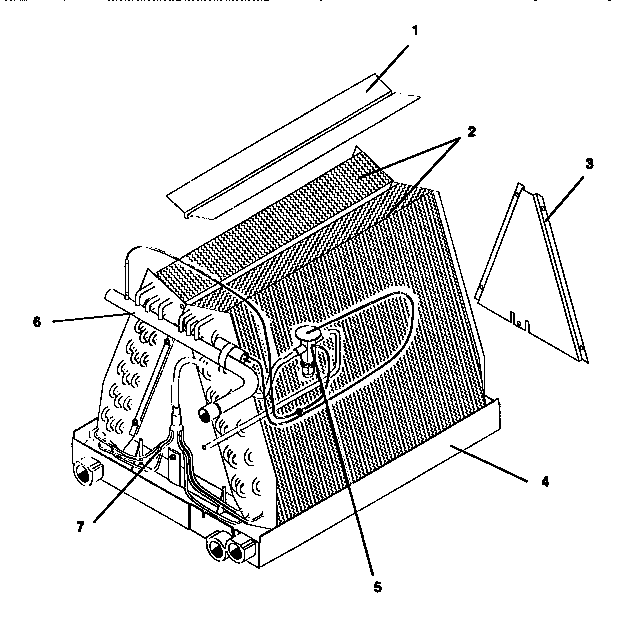

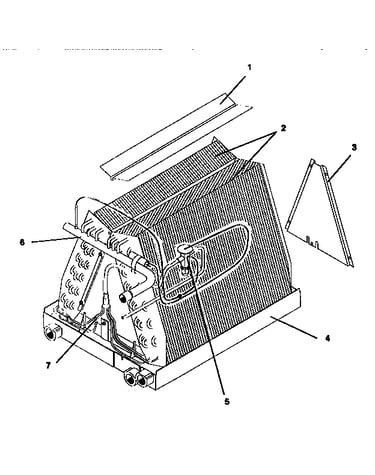

Functional replacement parts diagram
Evaporator
Part #1062524
The manufacturer no longer makes this part, and there's no substitute part
#5
Functional replacement parts diagram
Expansion valve
Part #1063220
The manufacturer no longer makes this part, and there's no substitute part
#1
Functional replacement parts diagram
Baffle coil
Part #1062505
The manufacturer no longer makes this part, and there's no substitute part
#4
Functional replacement parts diagram
Drain pan
Part #1062479
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Manual 1 and 0
Part #1069169
The manufacturer no longer makes this part, and there's no substitute part
#7
Functional replacement parts diagram
Distributor
Part #1063218
The manufacturer no longer makes this part, and there's no substitute part
#3
Functional replacement parts diagram
Plate galv
Part #1062509
The manufacturer no longer makes this part, and there's no substitute part
#6
Functional replacement parts diagram
Manifold a
Part #1064656
The manufacturer no longer makes this part, and there's no substitute part
