Garbage Disposal

Model # 6KCDB250T1 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid 6KCDB250T1 garbage disposal, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
6KCDB250T1 Garbage Disposal
Bolt, Thru 4211518
#14

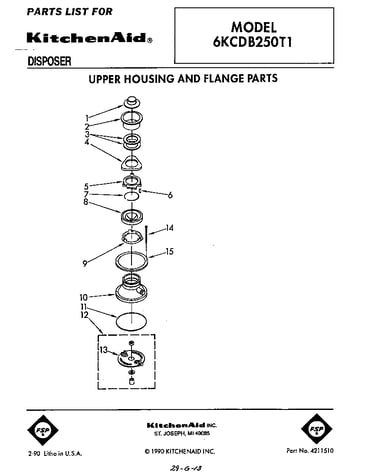

Upper housing and flange diagram

Bolt, thru

Part #4211518

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 4211328
#17

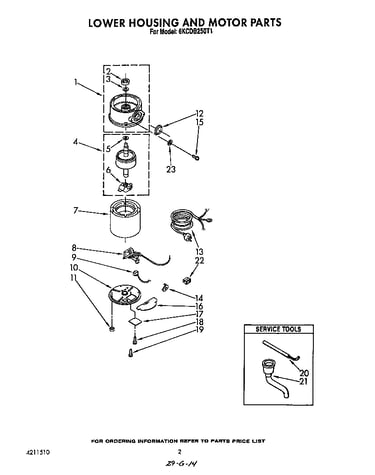

Lower housing and motor diagram

Terminal cover

Part #4211328

The manufacturer no longer makes this part, and there's no substitute part

Protect, Overload 4211450
#9

Lower housing and motor diagram

Protect, overload

Part #4211450

The manufacturer no longer makes this part, and there's no substitute part

Mounting Gasket 4211307
#8

Upper housing and flange diagram

Mounting gasket

Part #4211307

The manufacturer no longer makes this part, and there's no substitute part

Washer (2) 4211519
#23

Lower housing and motor diagram

Washer (2)

Part #4211519

The manufacturer no longer makes this part, and there's no substitute part

Tailpipe Gasket 4211453
#12

Lower housing and motor diagram

Tailpipe gasket

Part #4211453

The manufacturer no longer makes this part, and there's no substitute part

Clip 4211460
#14

Lower housing and motor diagram

Clip

Part #4211460

The manufacturer no longer makes this part, and there's no substitute part

End Bell Assembly, Upper 4211313
#1

Lower housing and motor diagram

End bell assembly, upper

Part #4211313

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly, Start 4211520
#8

Lower housing and motor diagram

Switch assembly, start

Part #4211520

The manufacturer no longer makes this part, and there's no substitute part

Adapter, Sink 4211396
#21

Lower housing and motor diagram

Adapter, sink

Part #4211396

The manufacturer no longer makes this part, and there's no substitute part
