LG
Gas Range

Model # LRG3095SB/00 Official LG gas range

Here are the diagrams and repair parts for Official LG LRG3095SB-00 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

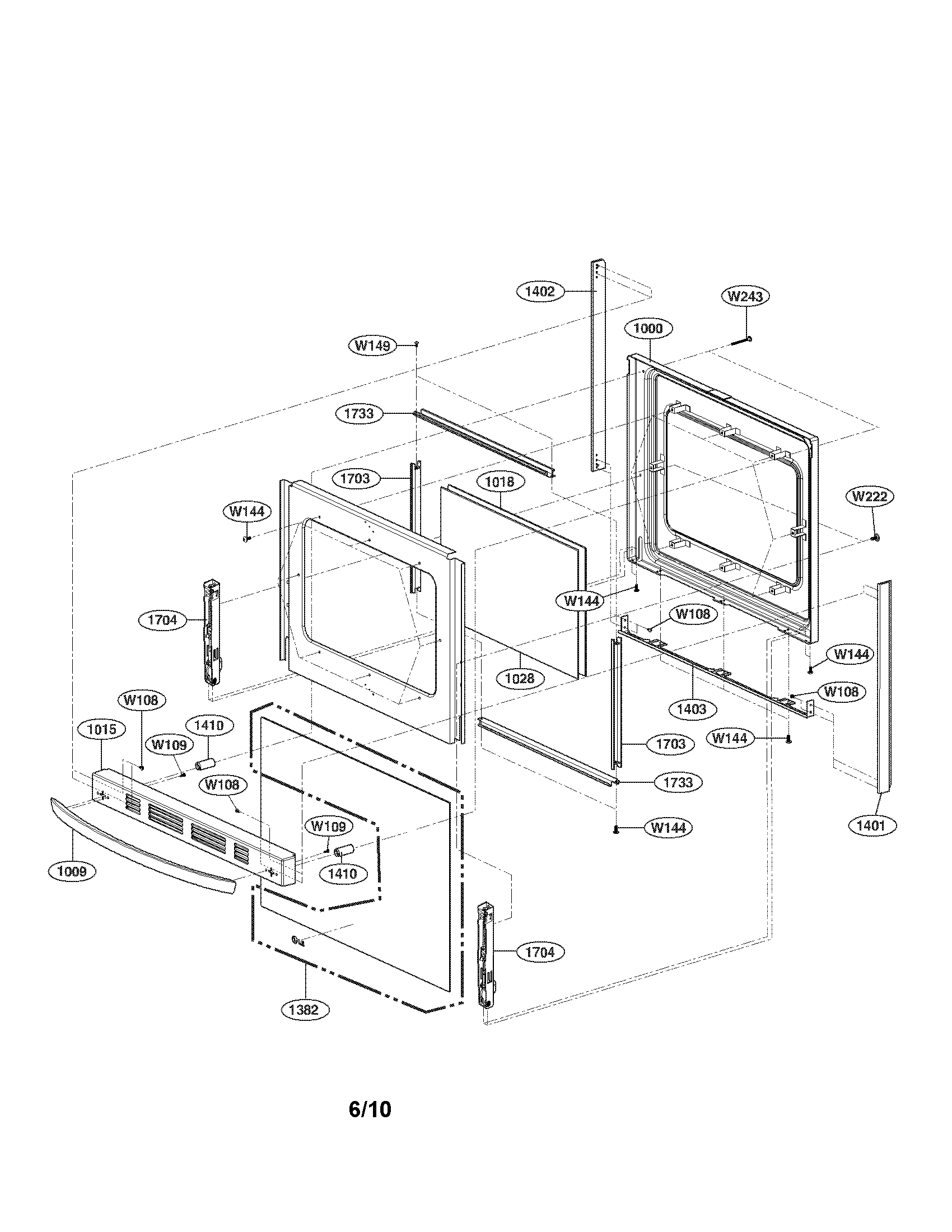

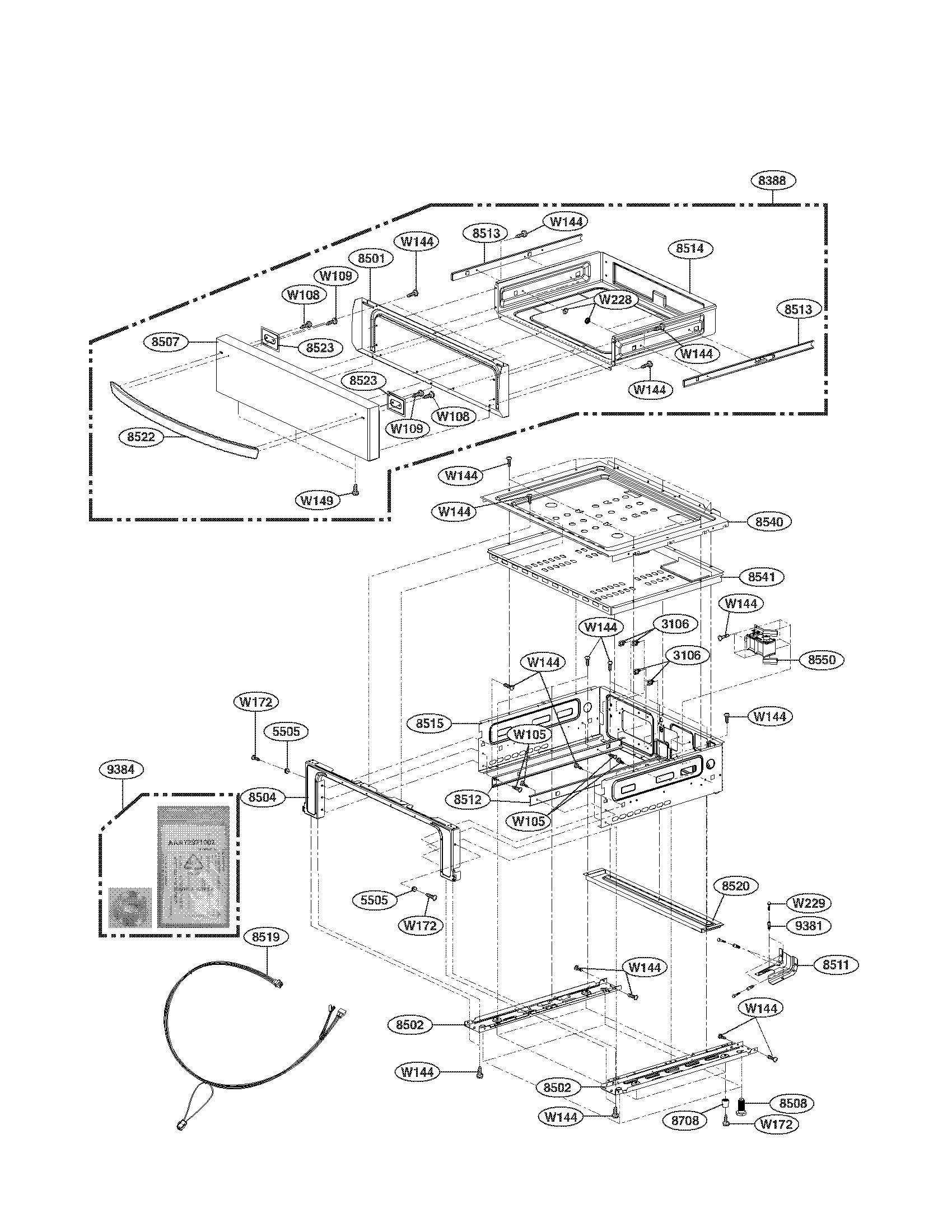

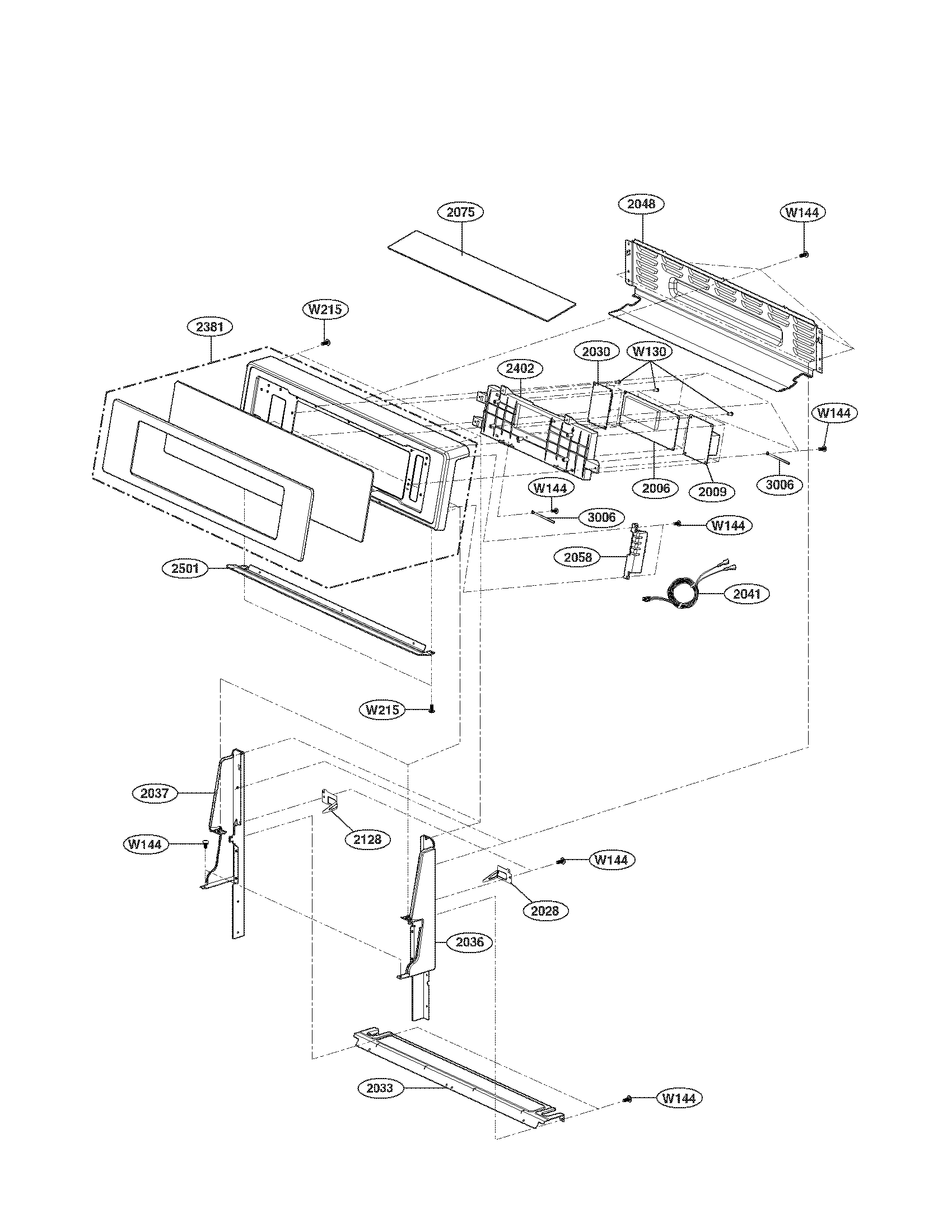

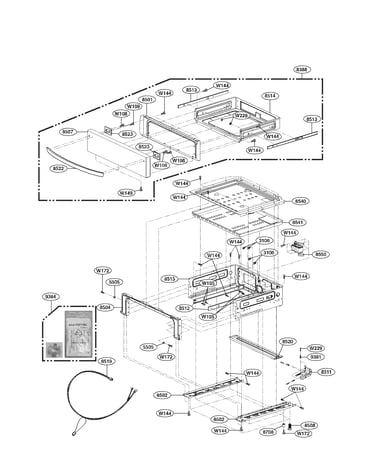

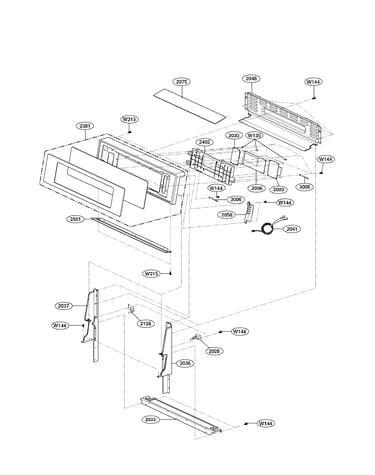

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Lg Range Oven Burner Igniter (replaces Mee63084901) MEE61841401
#5900

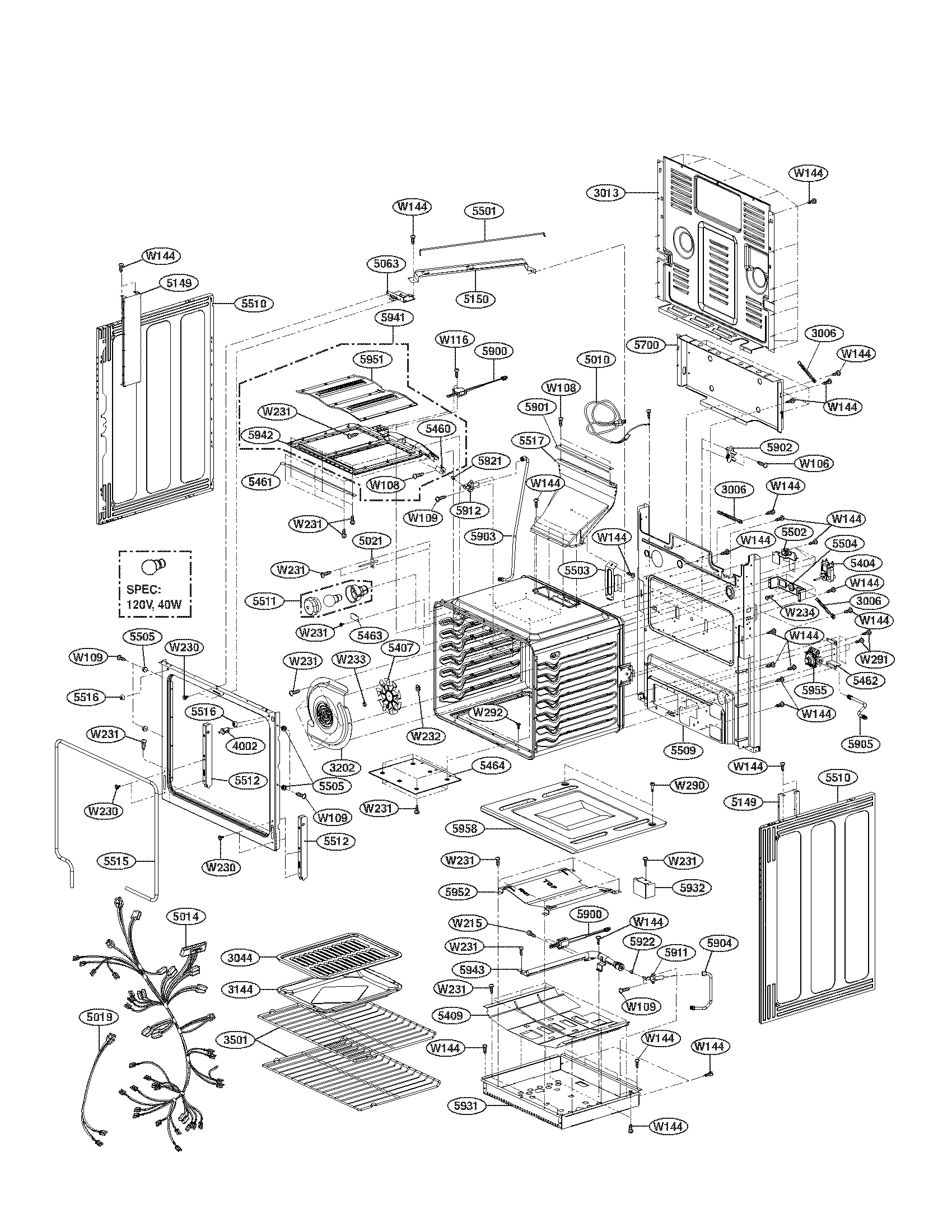

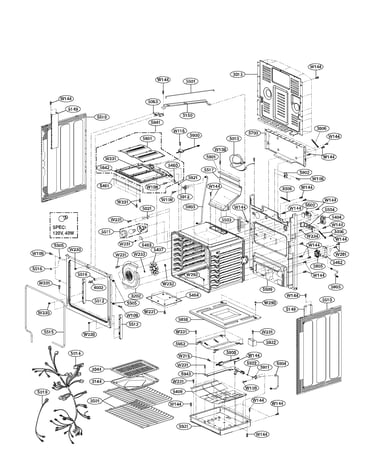

Cavity parts diagram

Lg range oven burner igniter (replaces mee63084901)

Part #MEE61841401

BEST SELLER
$147.20 |
8% OFF Phone Price : $159.20
In Stock
Range Nut 1NHB0500032
#W233

Cavity parts diagram

Range nut

Part #1NHB0500032

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Range Knob Assembly AEZ72909005
#2442

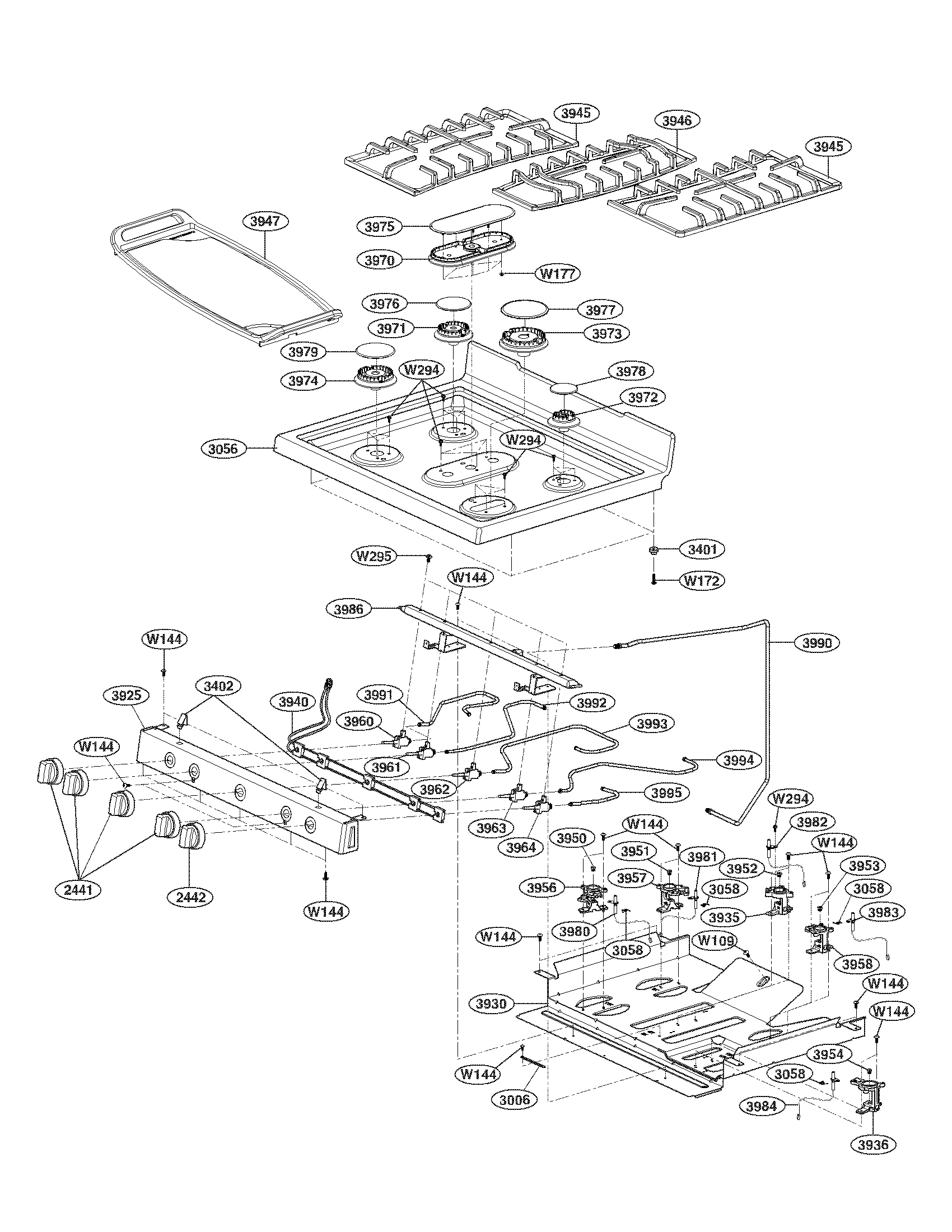

Cooktop parts diagram

Range knob assembly

Part #AEZ72909005

Replaced by #AEZ73453509

?
Manufacturer substitution
This part replaces AEZ72909005. Substitute parts can look different from the original.
BEST SELLER
$40.87 |
13% OFF Phone Price : $46.87
In Stock
Range Broil Burner Assembly ABF72909202
#5941

Cavity parts diagram

Range broil burner assembly

Part #ABF72909202

Replaced by #ABF72909012

?
Manufacturer substitution
This part replaces ABF72909202. Substitute parts can look different from the original.
BEST SELLER
$94.94 |
6% OFF Phone Price : $100.94
In Stock
Heater Cover MCK61936601
#5951

Cavity parts diagram

Heater cover

Part #MCK61936601

Replaced by #ABF72909012

?
Manufacturer substitution
This part replaces MCK61936601. Substitute parts can look different from the original.
BEST SELLER
$94.94 |
6% OFF Phone Price : $100.94
In Stock
Burner Assembly ABF72909001
#5943

Cavity parts diagram

Burner assembly

Part #ABF72909001

Replaced by #ABF72909012

?
Manufacturer substitution
This part replaces ABF72909001. Substitute parts can look different from the original.
BEST SELLER
$94.94 |
6% OFF Phone Price : $100.94
In Stock
Range Tact Switch EBF60663401
#4002

Cavity parts diagram

Range tact switch

Part #EBF60663401

Replaced by #EBF60663403

?
Manufacturer substitution
This part replaces EBF60663401. Substitute parts can look different from the original.
This item is not returnable
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Range Oven Rack MHL39256101
#3501

Cavity parts diagram

Range oven rack

Part #MHL39256101

Replaced by #MHL39256107

?
Manufacturer substitution
This part replaces MHL39256101. Substitute parts can look different from the original.
$32.63 |
16% OFF Phone Price : $38.63
In Stock
Range Igniter Switch And Harness Assembly EBF60662901
#3940

Cooktop parts diagram

Range igniter switch and harness assembly

Part #EBF60662901

Replaced by #EBF60662911

?
Manufacturer substitution
This part replaces EBF60662901. Substitute parts can look different from the original.
$44.19 |
12% OFF Phone Price : $50.19
In Stock
Range Oven Cooling Fan Motor EAU60722701
#5404

Cavity parts diagram

Range oven cooling fan motor

Part #EAU60722701

Replaced by #EAU61865301

?
Manufacturer substitution
This part replaces EAU60722701. Substitute parts can look different from the original.
$90.04 |
6% OFF Phone Price : $96.04
In Stock
