Frigidaire
Washer

Model # FWXB23RGS0 Official Frigidaire washer - p5995323259

Here are the diagrams and repair parts for Official Frigidaire FWXB23RGS0 washer - p5995323259, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Washer Belt 131686100
#28

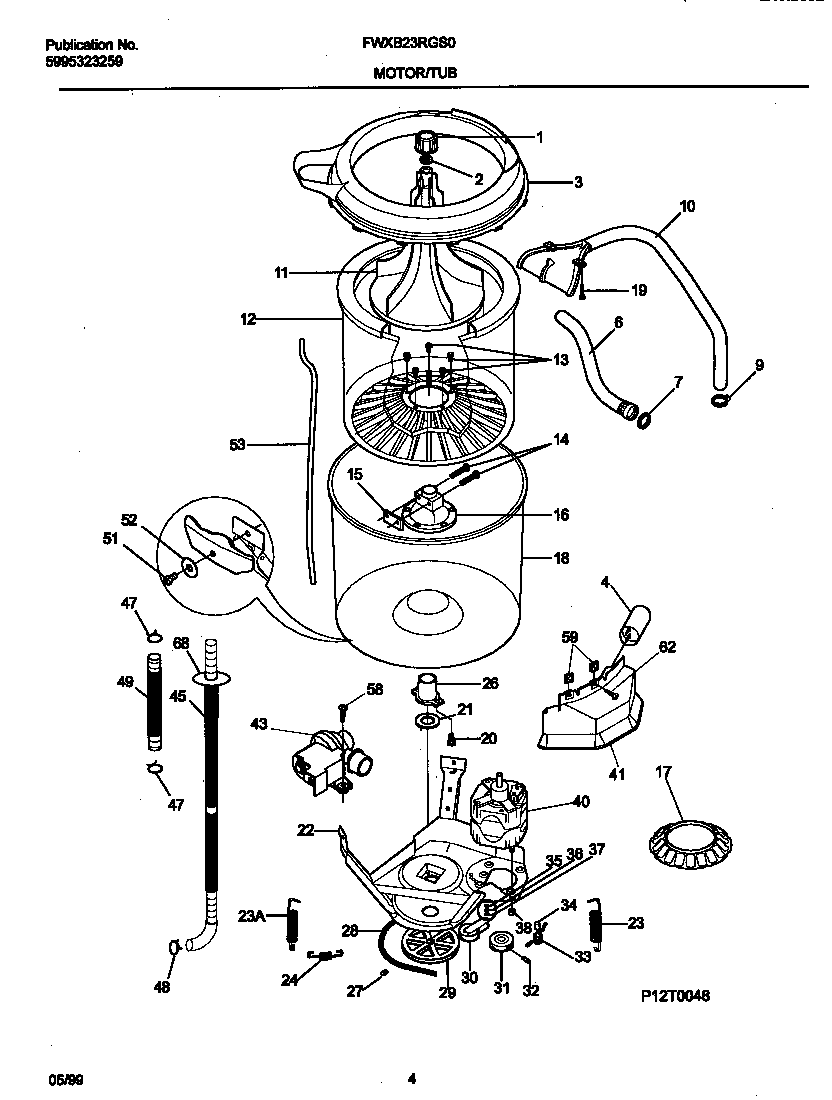

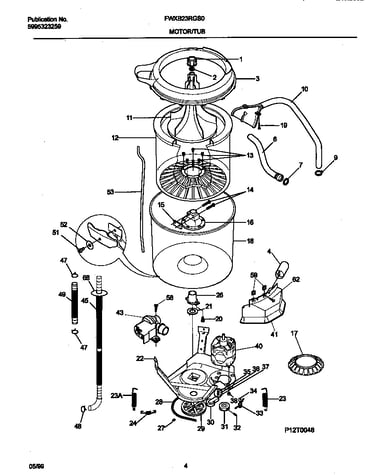

P12t0048 wshr mtr,hose diagram

Washer belt

Part #131686100

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Laundry Center Washer Trunnion (replaces 131154501) 131545101
#16

P12t0048 wshr mtr,hose diagram

Electrolux laundry center washer trunnion (replaces 131154501)

Part #131545101

BEST SELLER
$102.42 |
10% OFF Phone Price : $114.42
In Stock
Laundry Center Clamp 5303304824
#9

P12t0048 wshr mtr,hose diagram

Laundry center clamp

Part #5303304824

Replaced by #5304488479

?
Manufacturer substitution
This part replaces 5303304824. Substitute parts can look different from the original.
BEST SELLER
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Lock Plate 5308001923
#15

P12t0048 wshr mtr,hose diagram

Lock plate

Part #5308001923

Replaced by #137107000

?
Manufacturer substitution
This part replaces 5308001923. Substitute parts can look different from the original.
BEST SELLER
$28.29 |
17% OFF Phone Price : $34.29
In Stock
Screw 131258400
Screw

Part #131258400

Replaced by #131302800

?
Manufacturer substitution
This part replaces 131258400. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Gearcase Mec 5308057580
#3

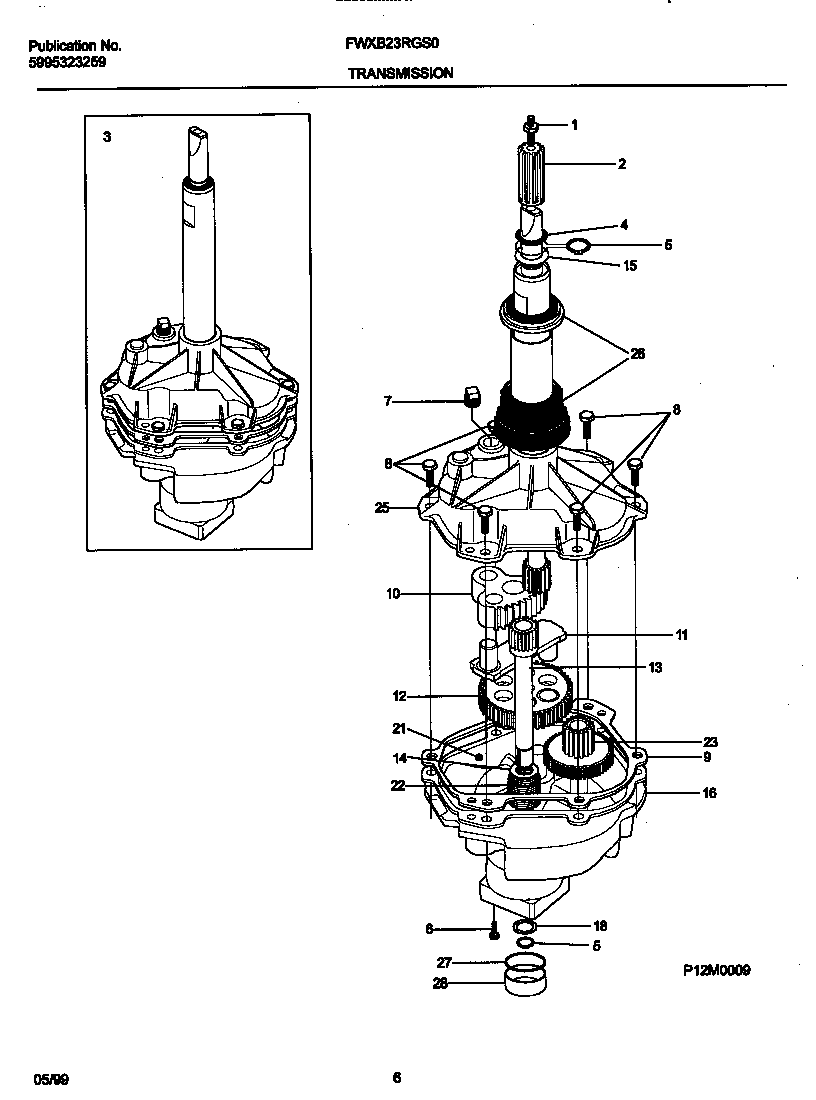

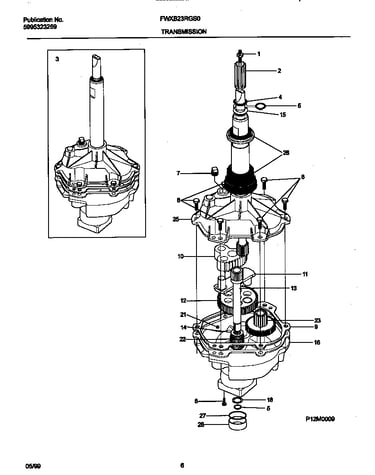

P12m0009 transmission diagram

Gearcase mec

Part #5308057580

Replaced by #134735700

?
Manufacturer substitution
This part replaces 5308057580. Substitute parts can look different from the original.
$549.71 |
$12.00 OFF Phone Price : $561.71
In Stock
Water Valve 131389300
#33

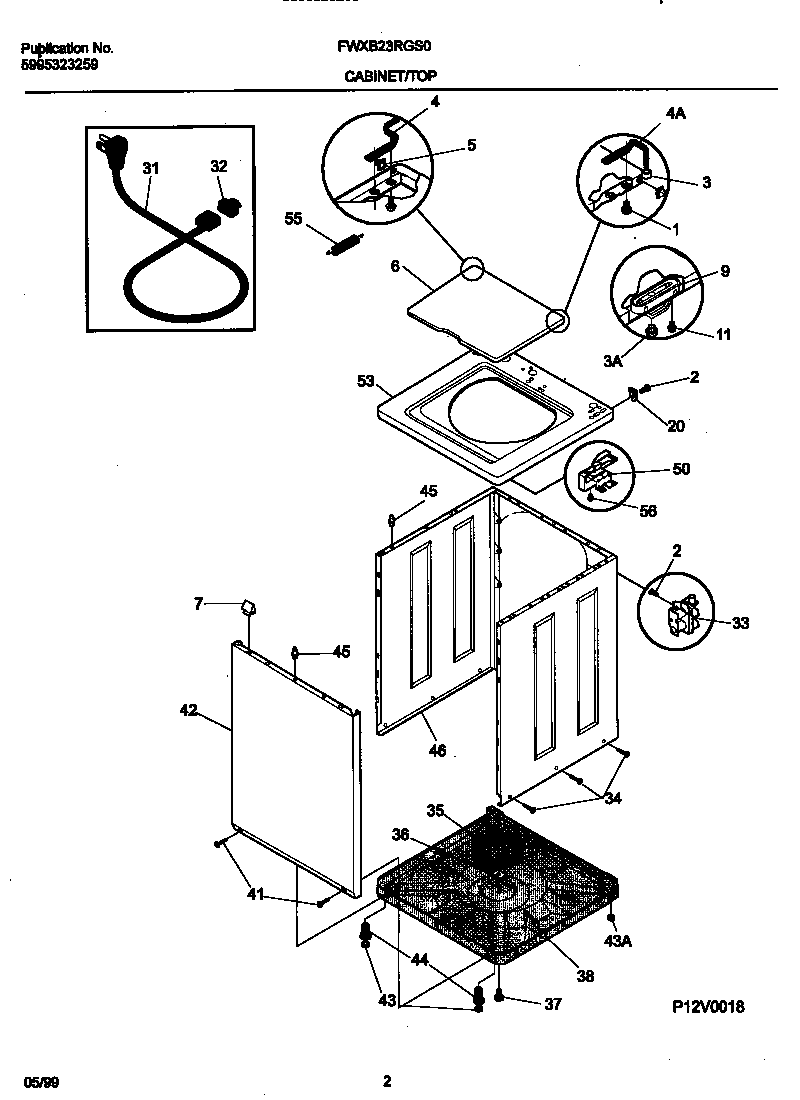

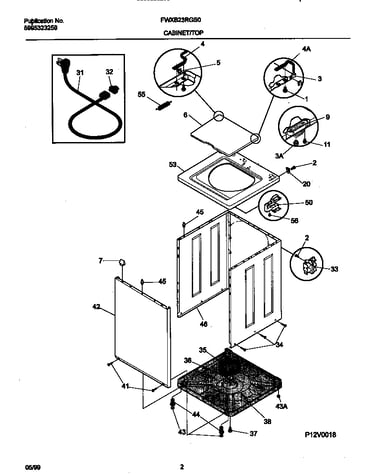

P12v0018 wshr cab,top diagram

Water valve

Part #131389300

Replaced by #134190200

?
Manufacturer substitution
This part replaces 131389300. Substitute parts can look different from the original.
$125.33 |
9% OFF Phone Price : $137.33
In Stock
Kelvinator Washer Start Capacitor 131212301
#4

P12t0048 wshr mtr,hose diagram

Kelvinator washer start capacitor

Part #131212301

This item is not returnable
$11.19 |
15% OFF Phone Price : $13.19
In Stock
Kelvinator Washer Screw 131205300
#19

P12t0048 wshr mtr,hose diagram

Kelvinator washer screw

Part #131205300

$15.69 |
11% OFF Phone Price : $17.69
In Stock
Washer Agitator (replaces 5303271755, 5304405894) 3204401
#11

P12t0048 wshr mtr,hose diagram

Washer agitator (replaces 5303271755, 5304405894)

Part #3204401

$99.83 |
11% OFF Phone Price : $111.83
In Stock
