Model # 247297780 Official Craftsman 8-hp tiller
Here are the diagrams and repair parts for Official Craftsman 247297780 8-hp tiller, as well as links to manuals and error code tables, if available.
By Schematic
By Part

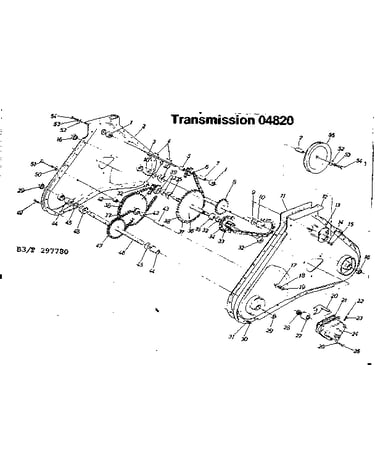

SELECT DIAGRAM
Browse Parts for
247297780 8-HP Tiller
Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)
Part #710-0599
This item is not returnable
$4.91 |Â
17% OFFÂ Phone Price : $5.91
In Stock
Sears lawn tractor screw
Part #710-0627
This item is not returnable
$6.47 |Â
13% OFFÂ Phone Price : $7.47
Back Order
Lock washer
Part #736-0119
Replaced by #936-0119
?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |Â
14% OFFÂ Phone Price : $7.05
In Stock
#45

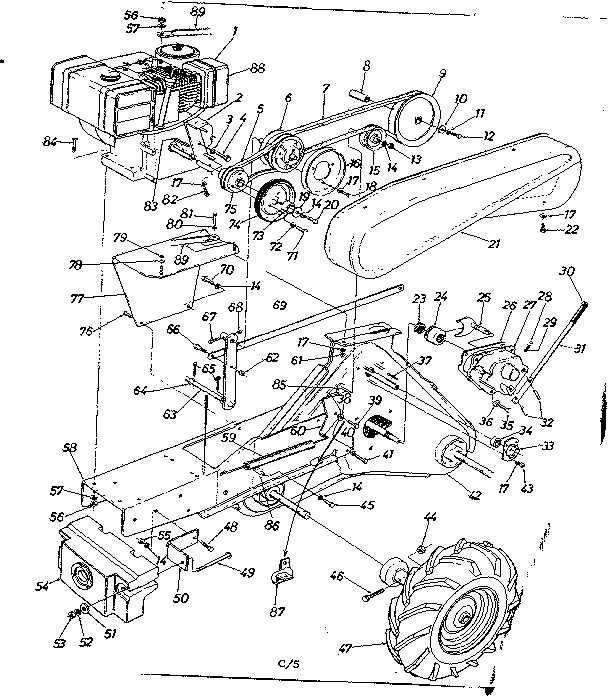

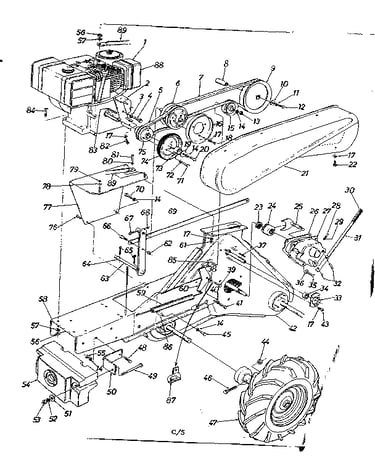

Engine diagram
Lawn & garden equipment screw, 3/8-16 x 1-3/4-in
Part #710-0347
This item is not returnable
$7.69 |Â
12% OFFÂ Phone Price : $8.69
Back Order
Sears lawn tractor lock nut (replaces 912-0214)
Part #712-0214
$9.37
In Stock
#84
Engine diagram
Bolt
Part #710-0380
Replaced by #710-3180
?
Manufacturer substitution
This part replaces 710-0380. Substitute parts can look different from the original.
This item is not returnable
$6.93 |Â
13% OFFÂ Phone Price : $7.93
In Stock
#74
Engine diagram
Friction wheel
Part #05080
Replaced by #05080AP
?
Manufacturer substitution
This part replaces 05080. Substitute parts can look different from the original.
$32.85 |Â
15% OFFÂ Phone Price : $38.85
In Stock
#39

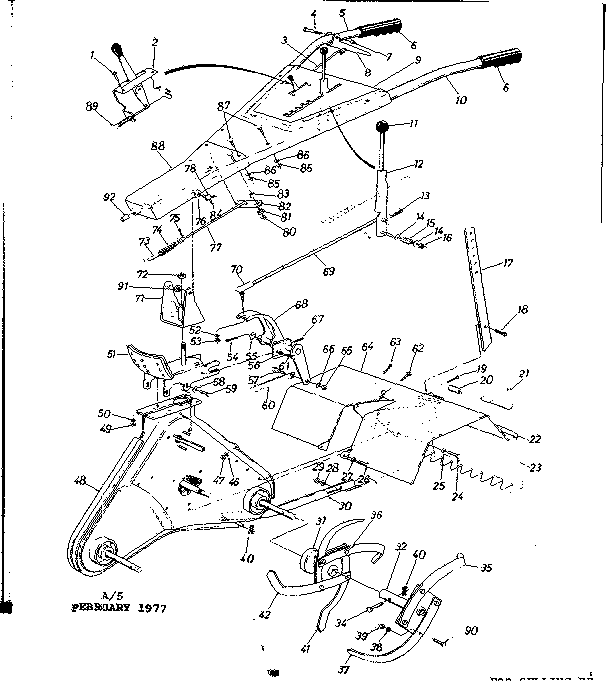

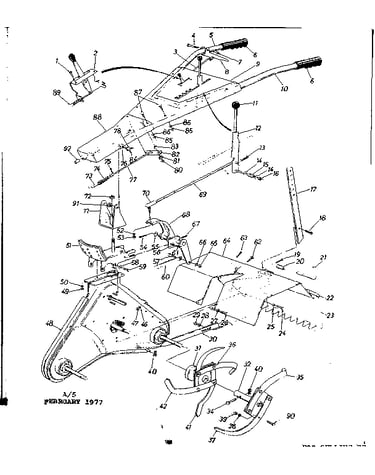

Handle and chain case assembly diagram
Unknown brand name #689 lawn & garden equipment nut
Part #712-0241
This item is not returnable
$7.63
In Stock
Hex nut
Part #712-0116
$7.83
In Stock
#68
Engine diagram
Ryobi lawn & garden equipment nut
Part #712-0324
This item is not returnable
$4.72 |Â
17% OFFÂ Phone Price : $5.72
In Stock
Most common symptoms to help you fix your tillers
Choose a symptom to see related tiller repairs.
Main causes: clutch cable problems, faulty transmission…
Main causes: damaged tines, broken clevis pins, worn drive belt, faulty transmission, clutch cable problems, improper de…
Main causes: worn or broken drive belts, bad transmission, clutch cable problems…
Main causes: leaky engine head gasket, damaged sump gasket, damaged oil drain plug seal, loose or cracked fuel line, lea…
Main causes: broken shaft clevis pins, transmission failure…
Main causes: dirty carburetor, engine needs tune up, stale gas…
Main causes: carburetor failure, bad gasoline, dirty spark plug, broken recoil starter…
Most common repair guides to help fix your tillers
These step-by-step repair guides will help you safely fix what’s broken on your tiller.
How to replace a tiller recoil starter
The recoil starter spins the engine when you pull the starter rope, and the rope retracts when released. If the recoil s…
Repair difficulty
Time required
 15 minutes or less
Effective articles & videos to help repair your tillers
Use the advice and tips in these articles and videos to get the most out of your tiller.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
This chart will help you find the right carburetor for your Craftsman snowblower, tiller or log splitter.…
