Model # MDE7658AYW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MDE7658AYW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

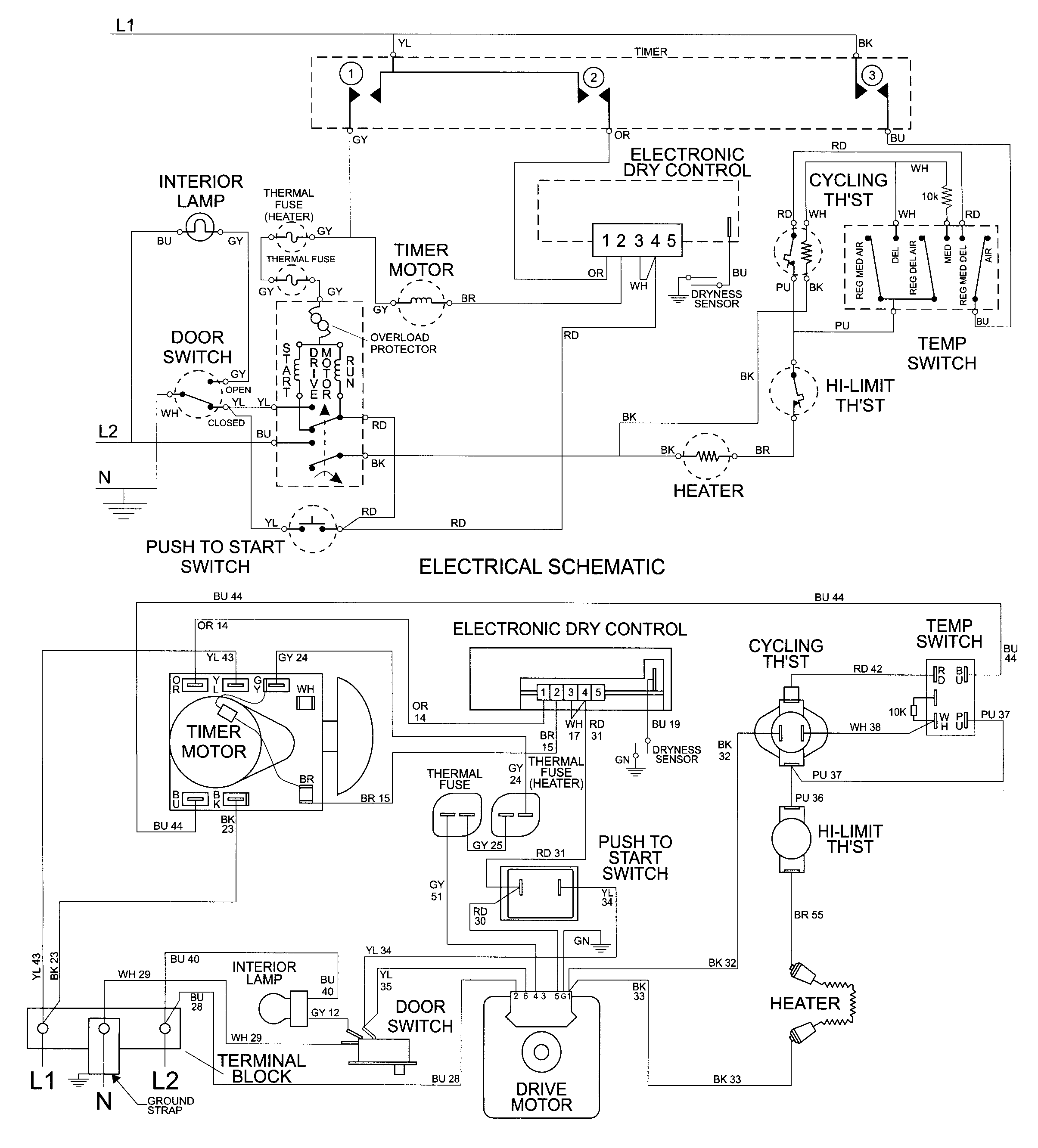

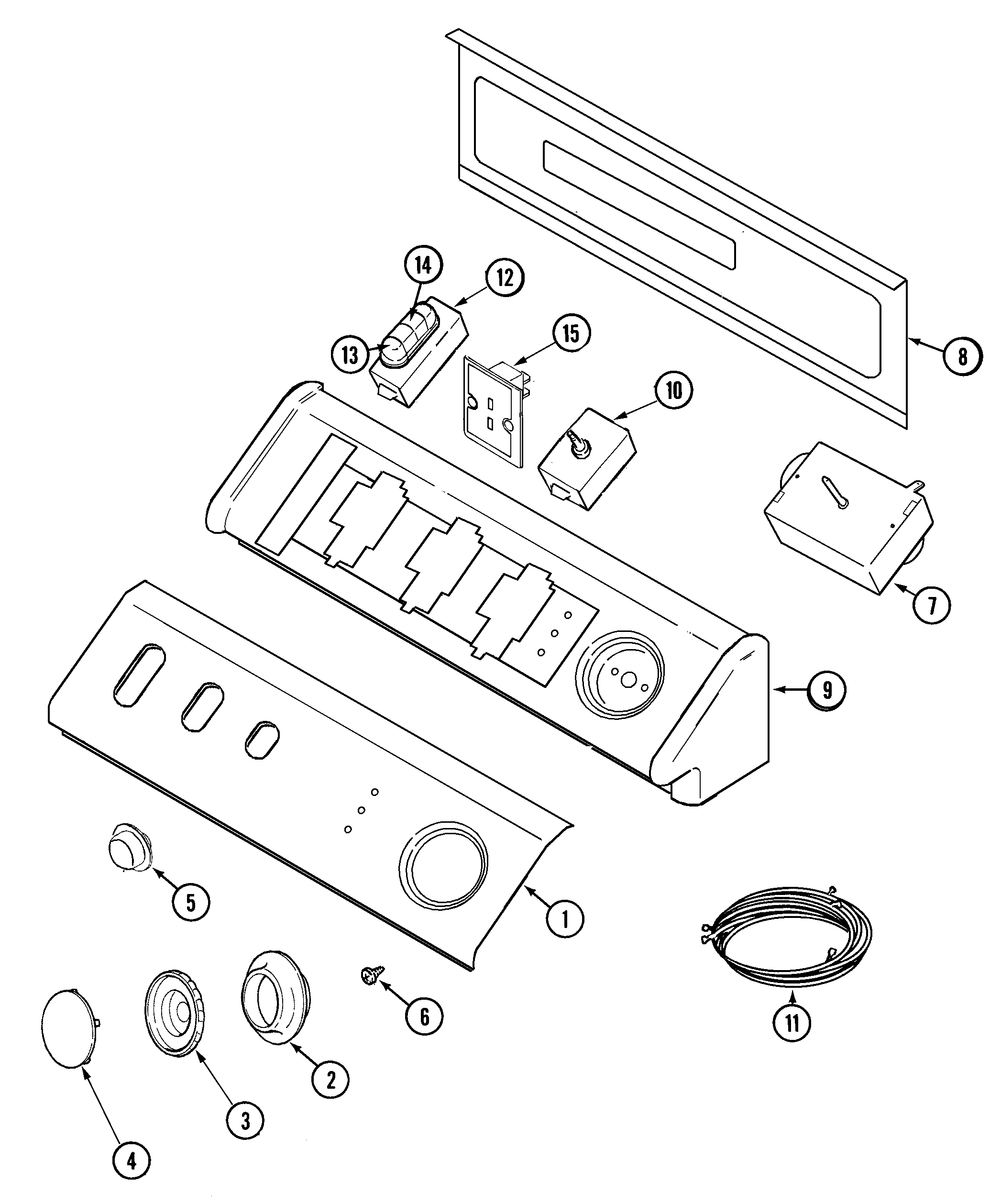

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Roller W/bea 303373
#24

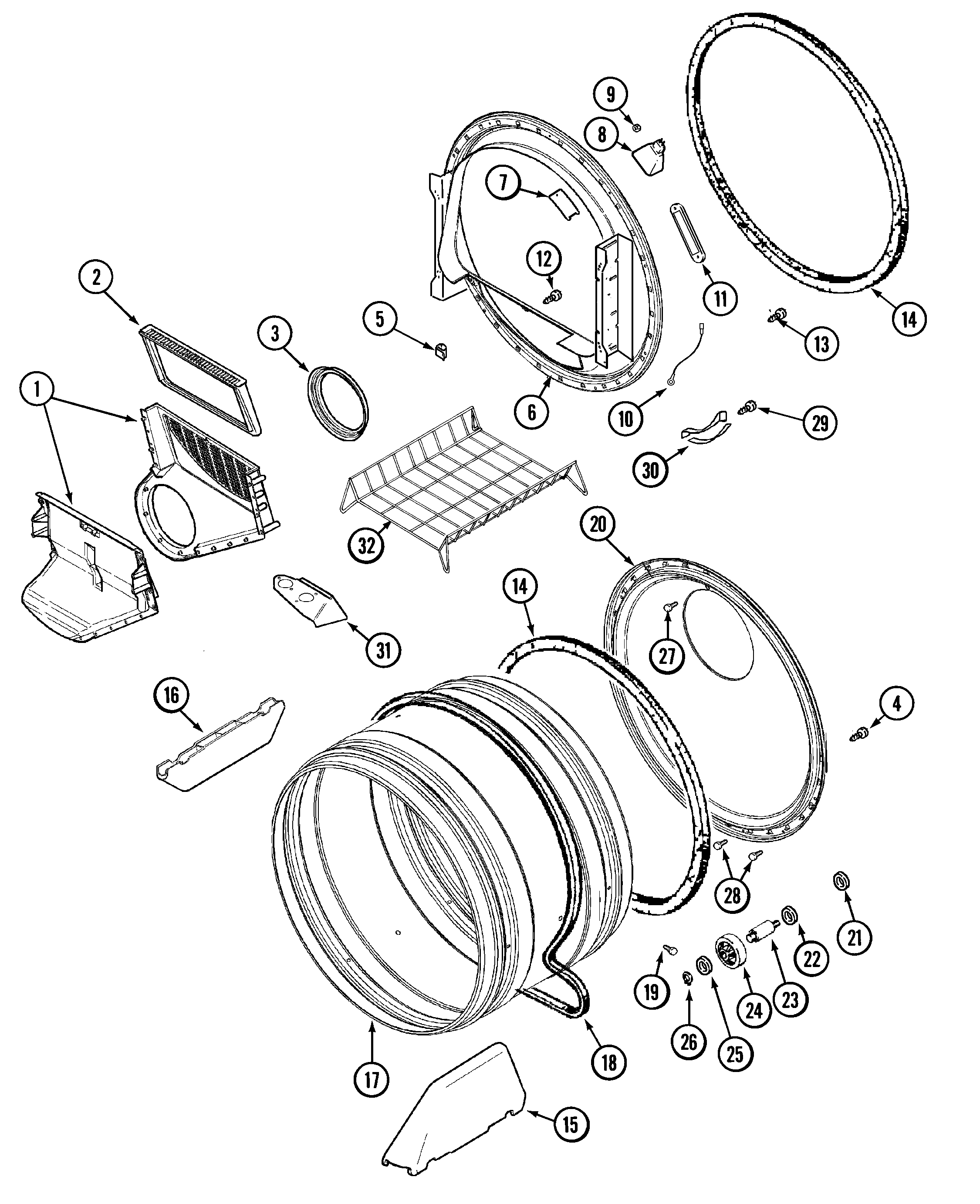

Tumbler diagram

Roller w/bea

Part #303373

Replaced by #12001541

?
Manufacturer substitution
This part replaces 303373. Substitute parts can look different from the original.
BEST SELLER
$27.69 |
18% OFF Phone Price : $33.69
In Stock
Belt, Tumble 33001777
#18

Tumbler diagram

Belt, tumble

Part #33001777

Replaced by #WP33002535

?
Manufacturer substitution
This part replaces 33001777. Substitute parts can look different from the original.
BEST SELLER
$25.83 |
19% OFF Phone Price : $31.83
In Stock
Idler Pulley 33001783
#21

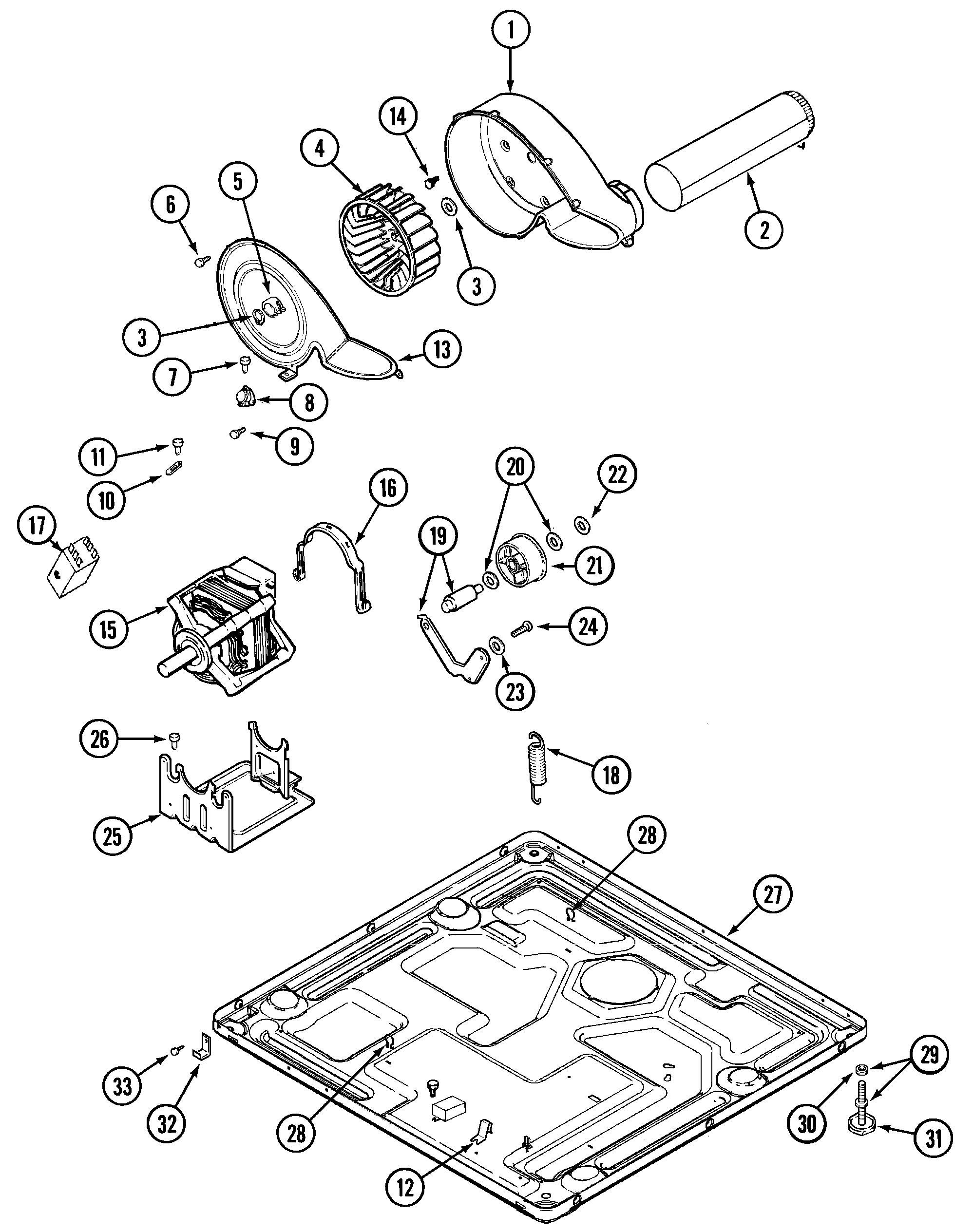

Motor drive diagram

Idler pulley

Part #33001783

Replaced by #WP6-3700340

?
Manufacturer substitution
This part replaces 33001783. Substitute parts can look different from the original.
BEST SELLER
$17.67 |
10% OFF Phone Price : $19.67
In Stock
Dryer Blower Wheel 33001790
#4

Motor drive diagram

Dryer blower wheel

Part #33001790

BEST SELLER
$43.99 |
12% OFF Phone Price : $49.99
In Stock
Dryer Drum Bearing Kit (replaces 312940, 312941) 306508
#30

Tumbler diagram

Dryer drum bearing kit (replaces 312940, 312941)

Part #306508

BEST SELLER
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Idler Arm 33001840
#19

Motor drive diagram

Idler arm

Part #33001840

Replaced by #WP6-3705180

?
Manufacturer substitution
This part replaces 33001840. Substitute parts can look different from the original.
BEST SELLER
$37.97 |
14% OFF Phone Price : $43.97
In Stock
Blower Wheel Clamp 312967
#5

Motor drive diagram

Blower wheel clamp

Part #312967

Replaced by #WP312967

?
Manufacturer substitution
This part replaces 312967. Substitute parts can look different from the original.
BEST SELLER
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Switch Motor 33001854
#17

Motor drive diagram

Switch motor

Part #33001854

Replaced by #W10410997

?
Manufacturer substitution
This part replaces 33001854. Substitute parts can look different from the original.
BEST SELLER
$113.69 |
10% OFF Phone Price : $125.69
In Stock
Dryer Motor Assembly 33002478
#15

Motor drive diagram

Dryer motor assembly

Part #33002478

Replaced by #W10410997

?
Manufacturer substitution
This part replaces 33002478. Substitute parts can look different from the original.
BEST SELLER
$113.69 |
10% OFF Phone Price : $125.69
In Stock
Washer Screw 211294
Washer screw

Part #211294

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 211294. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
