Frigidaire
Countertop Microwave

Model # MC1330E2 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire MC1330E2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

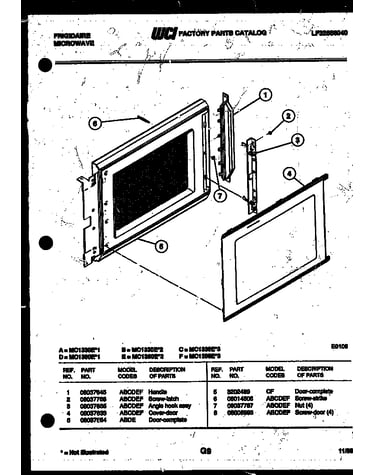

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Light Bulb/l 08037649
#4

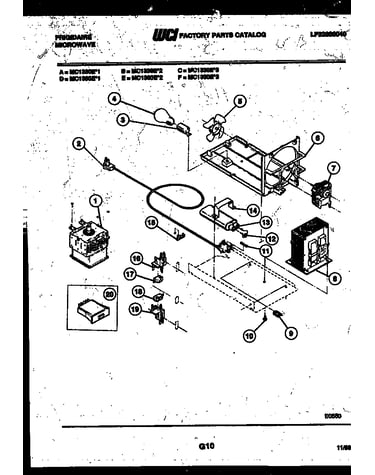

Power control diagram

Light bulb/l

Part #08037649

Replaced by #316538904

?
Manufacturer substitution
This part replaces 08037649. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Duct 08037634
#22

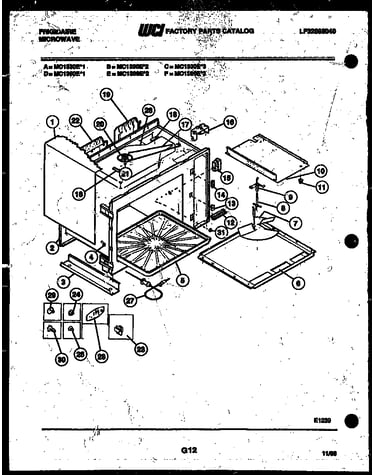

Body parts diagram

Duct

Part #08037634

This item is not returnable
$4.49
In Stock
Label 3018849
#30B

Body parts diagram

Label

Part #3018849

Replaced by #5303018849

?
Manufacturer substitution
This part replaces 3018849. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Screw 08014502

#NI

All parts diagram

Screw

Part #08014502

Replaced by #5308014502

?
Manufacturer substitution
This part replaces 08014502. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Shield - Oven Light 08037621
#26A

Body parts diagram

Shield - oven light

Part #08037621

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 08037697
#1

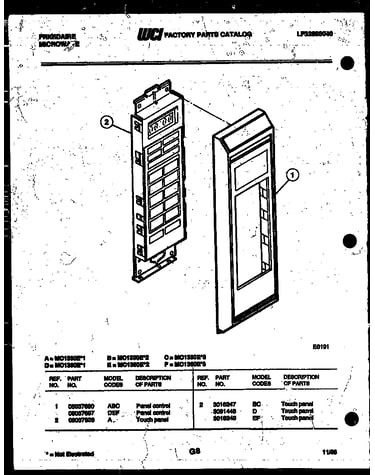

Control panel diagram

Control panel

Part #08037697

The manufacturer no longer makes this part, and there's no substitute part

Main Harness 3017070

#NI

All parts diagram

Main harness

Part #3017070

The manufacturer no longer makes this part, and there's no substitute part

Grommet - Door 08037644
#13

Body parts diagram

Grommet - door

Part #08037644

The manufacturer no longer makes this part, and there's no substitute part

Glass Tray 08037673
#5

Body parts diagram

Glass tray

Part #08037673

The manufacturer no longer makes this part, and there's no substitute part

Fuse (20 Amp) 08037623
#11

Power control diagram

Fuse (20 amp)

Part #08037623

The manufacturer no longer makes this part, and there's no substitute part
