Kenmore
Top-Mount Refrigerator

Model # 25370889401 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25370889401 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

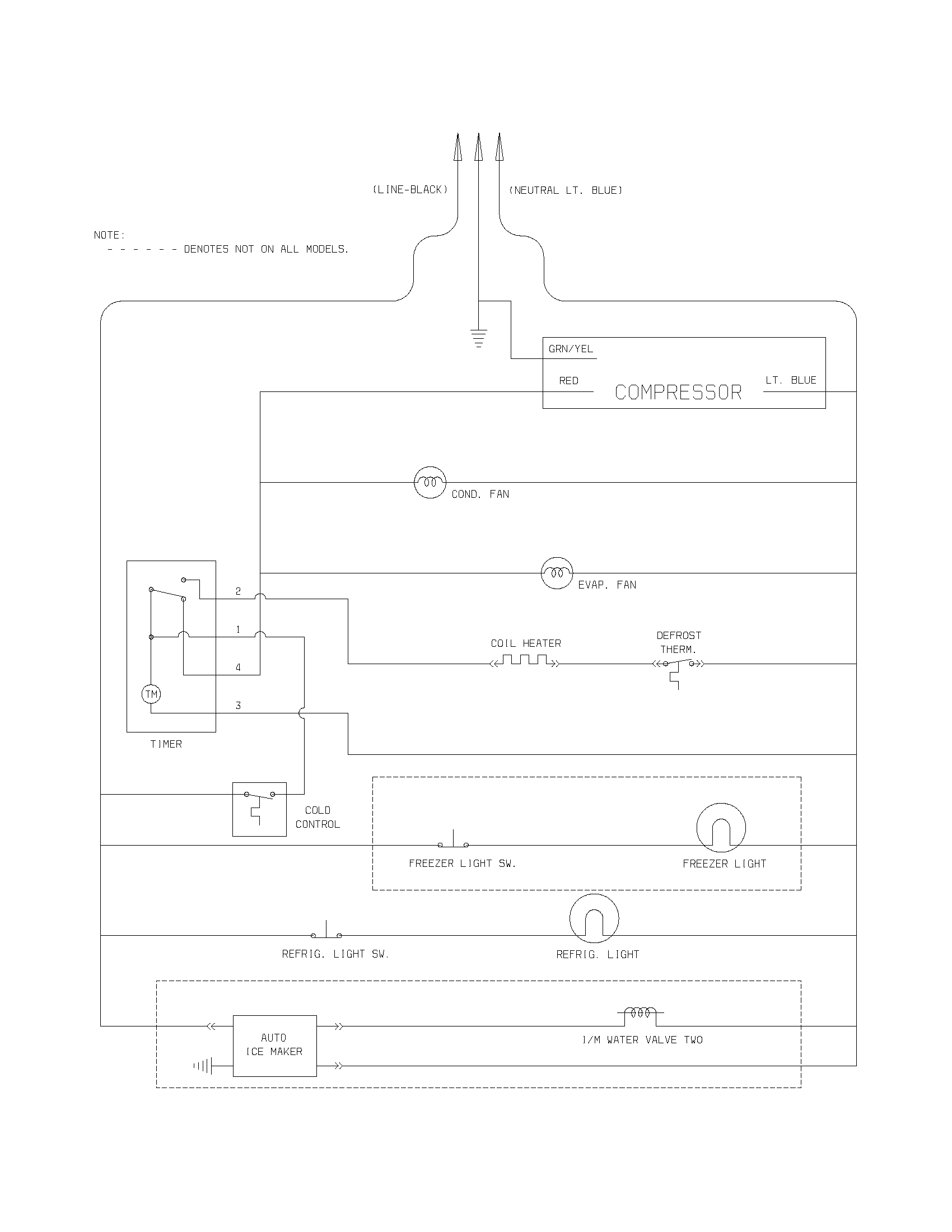

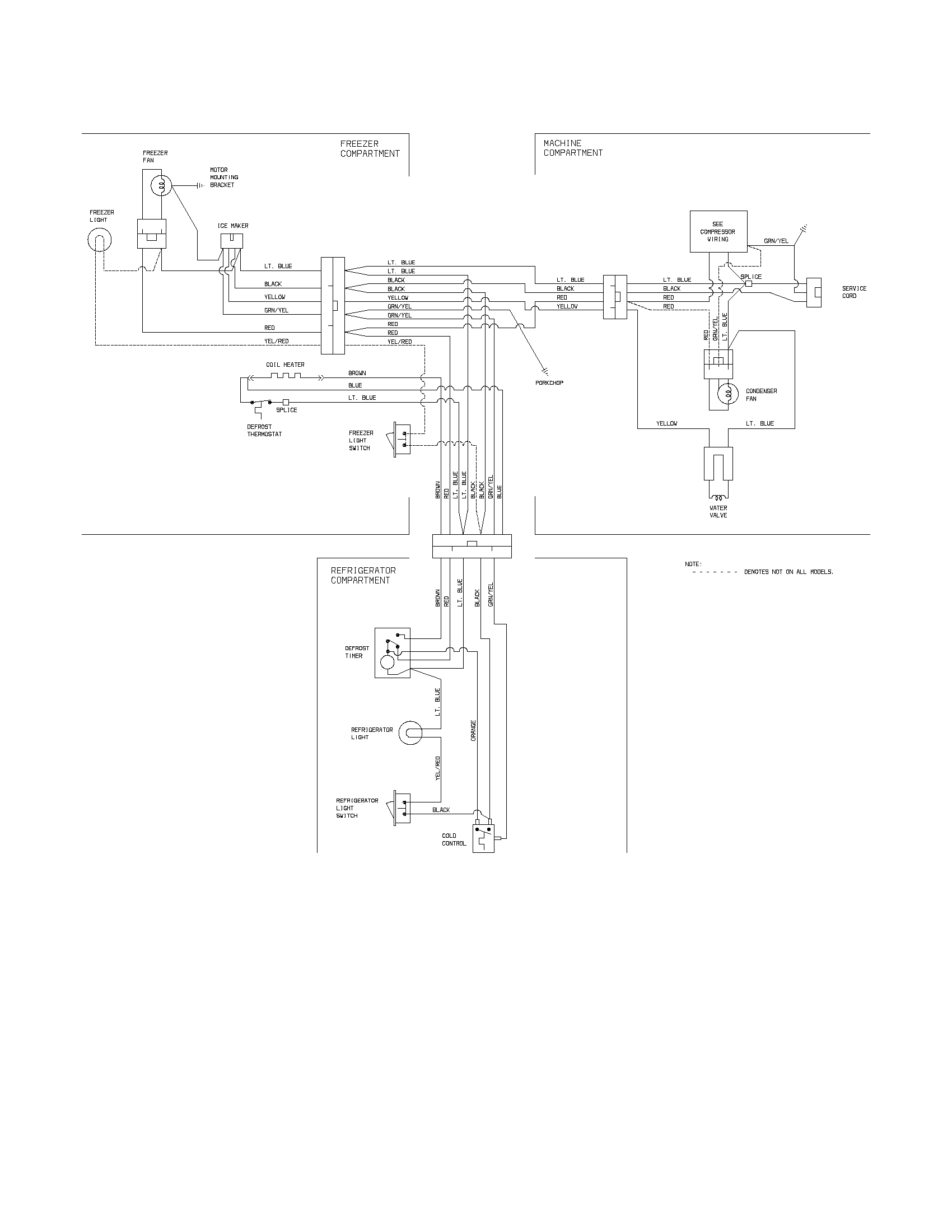

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Ice Maker Mold 5303320545
#17

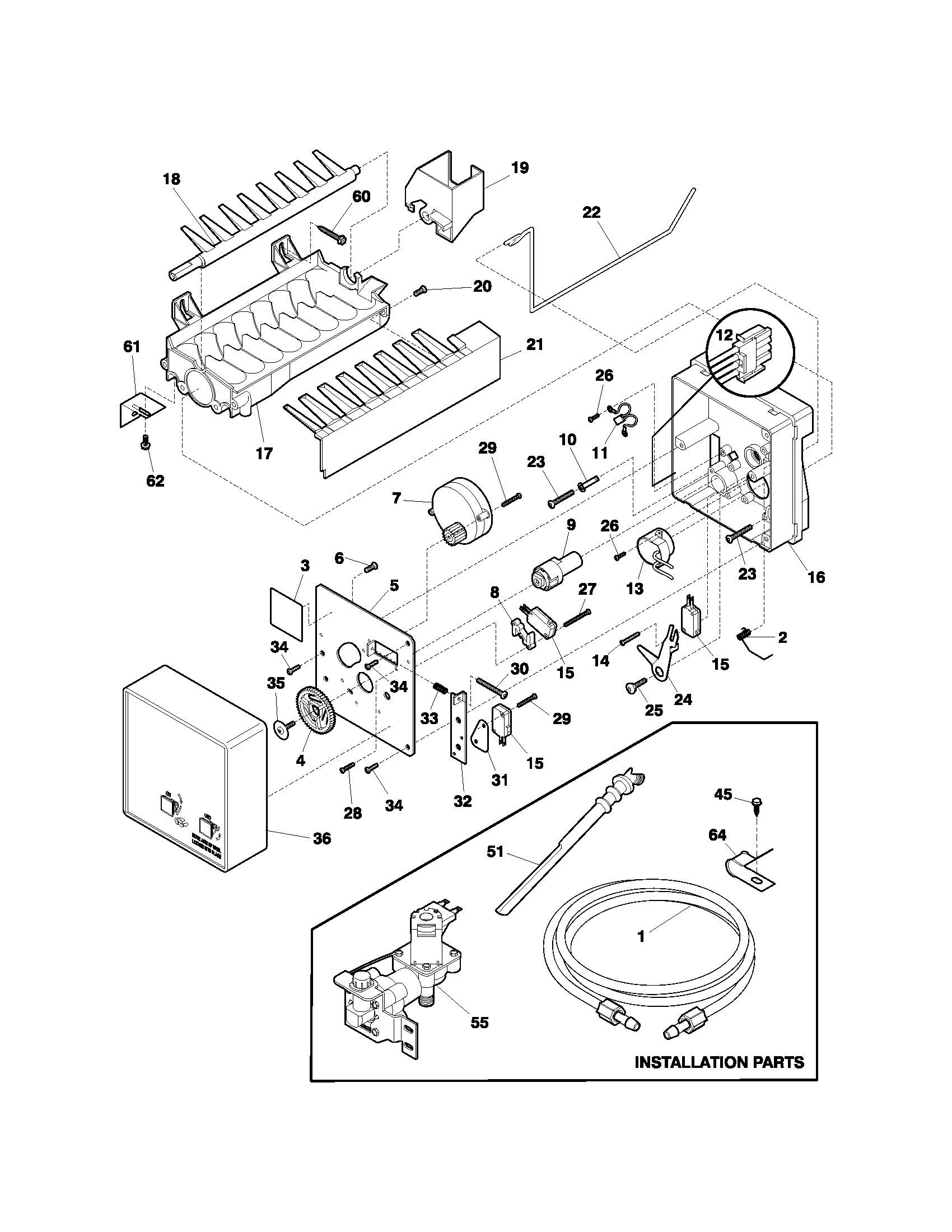

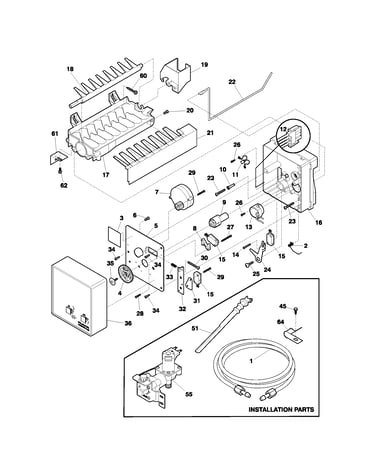

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

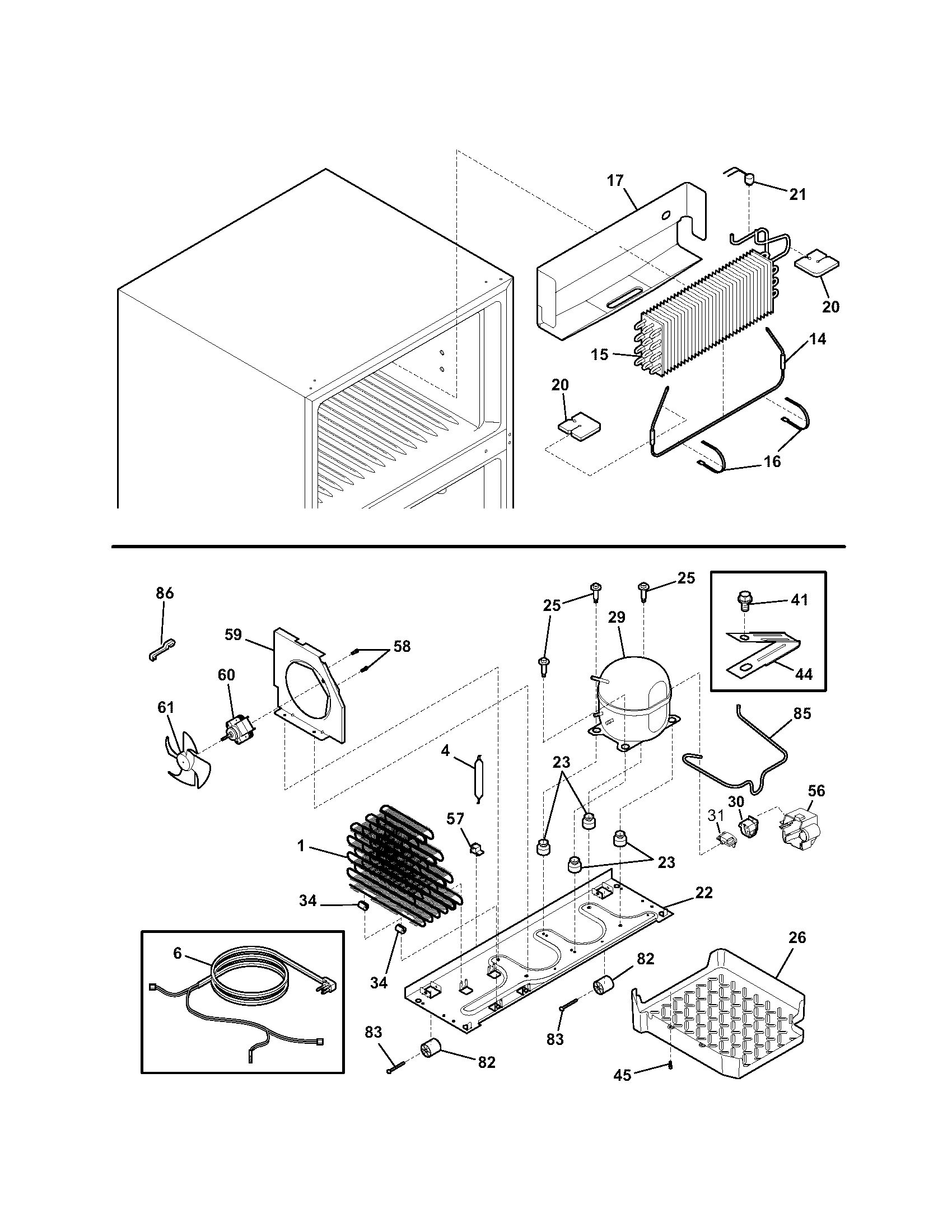

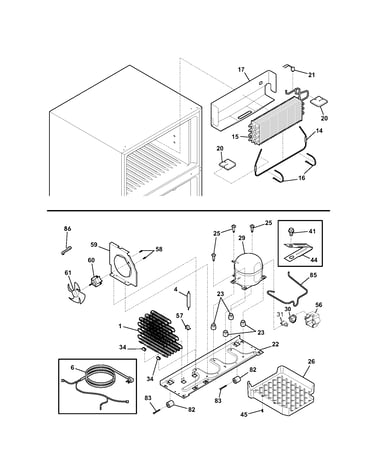

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Galaxy Refrigerator Door Shelf Rail 240534701
#4B

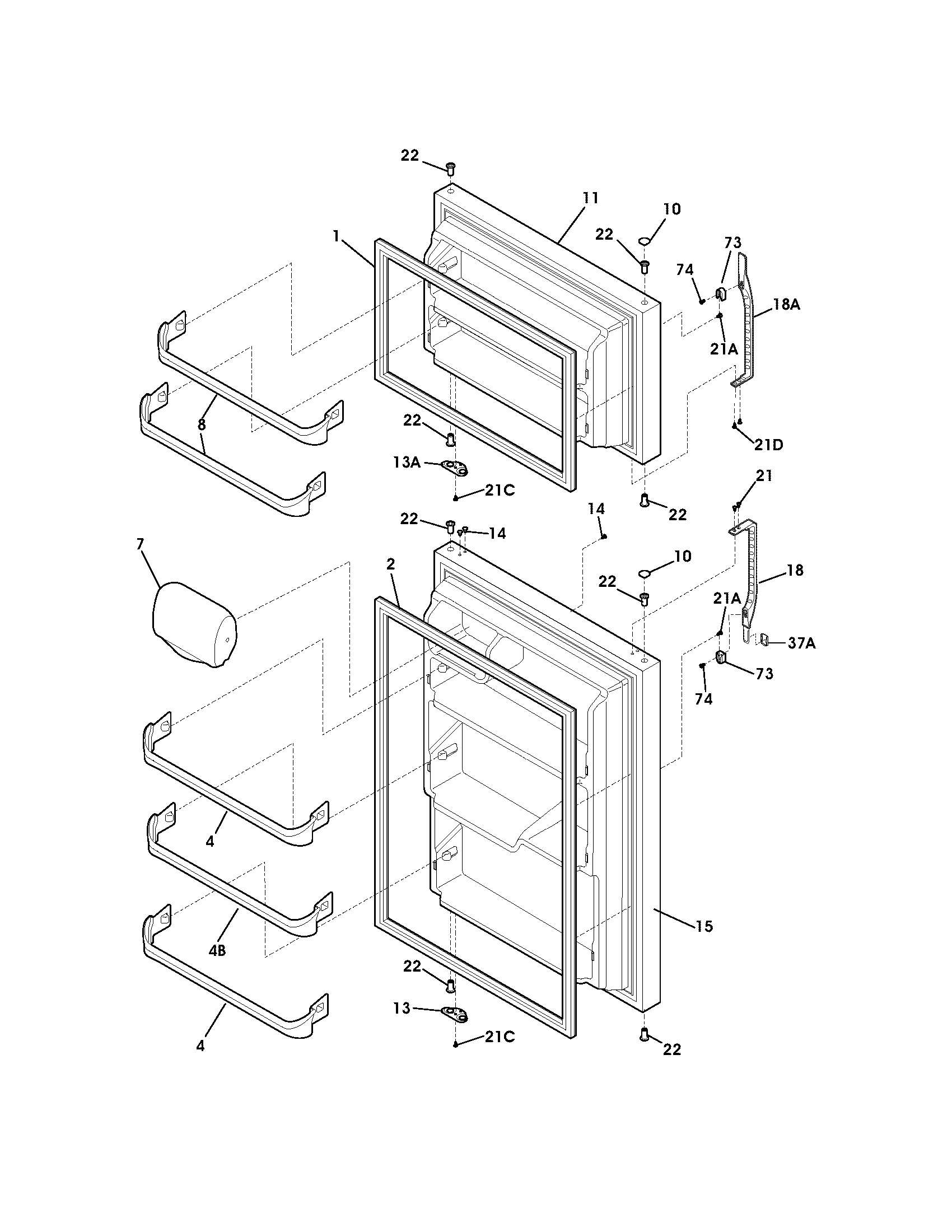

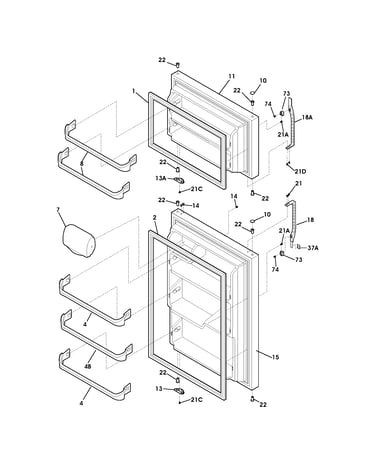

Door diagram

Galaxy refrigerator door shelf rail

Part #240534701

BEST SELLER
$44.63 |
12% OFF Phone Price : $50.63
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

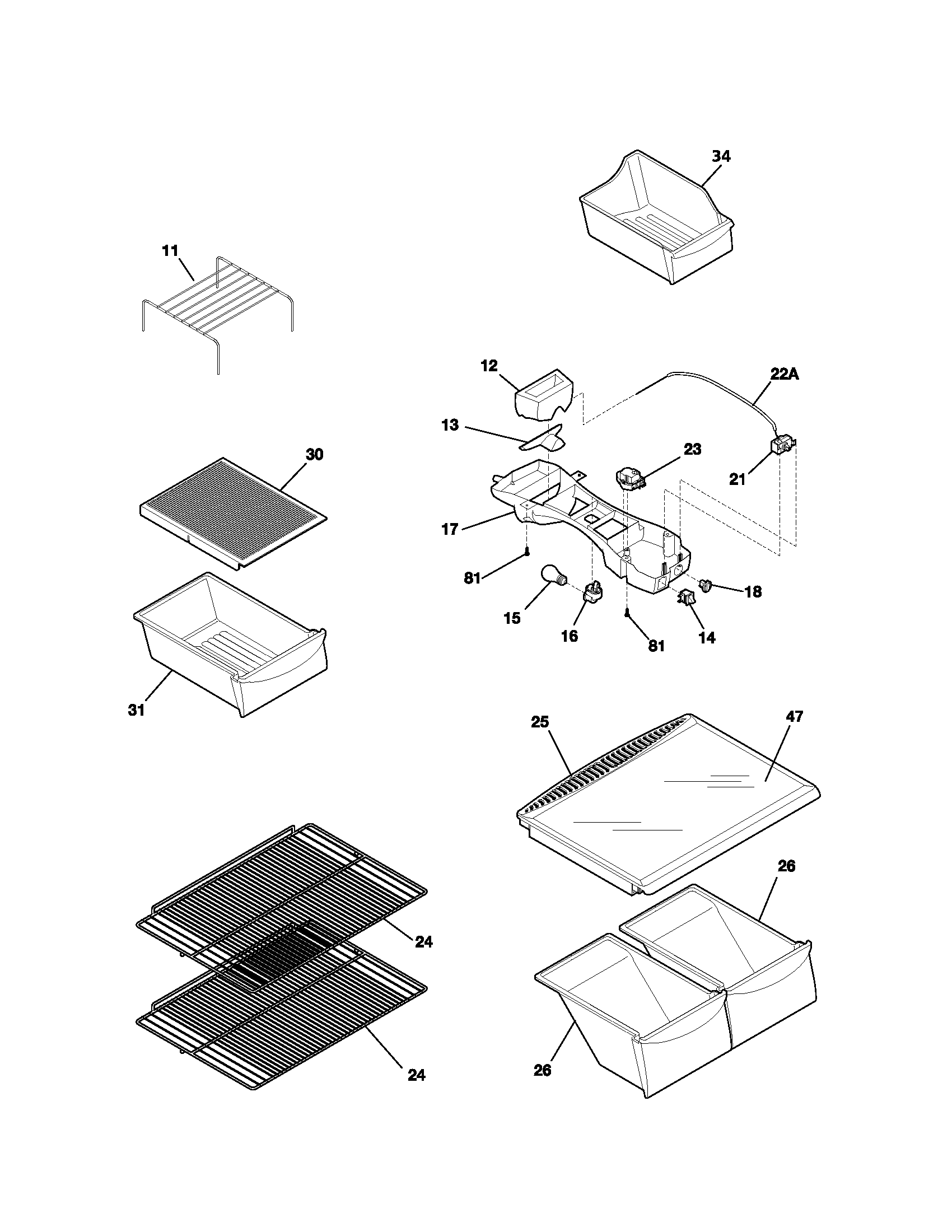

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Refrigerator Evaporator Motor 240369702
#13

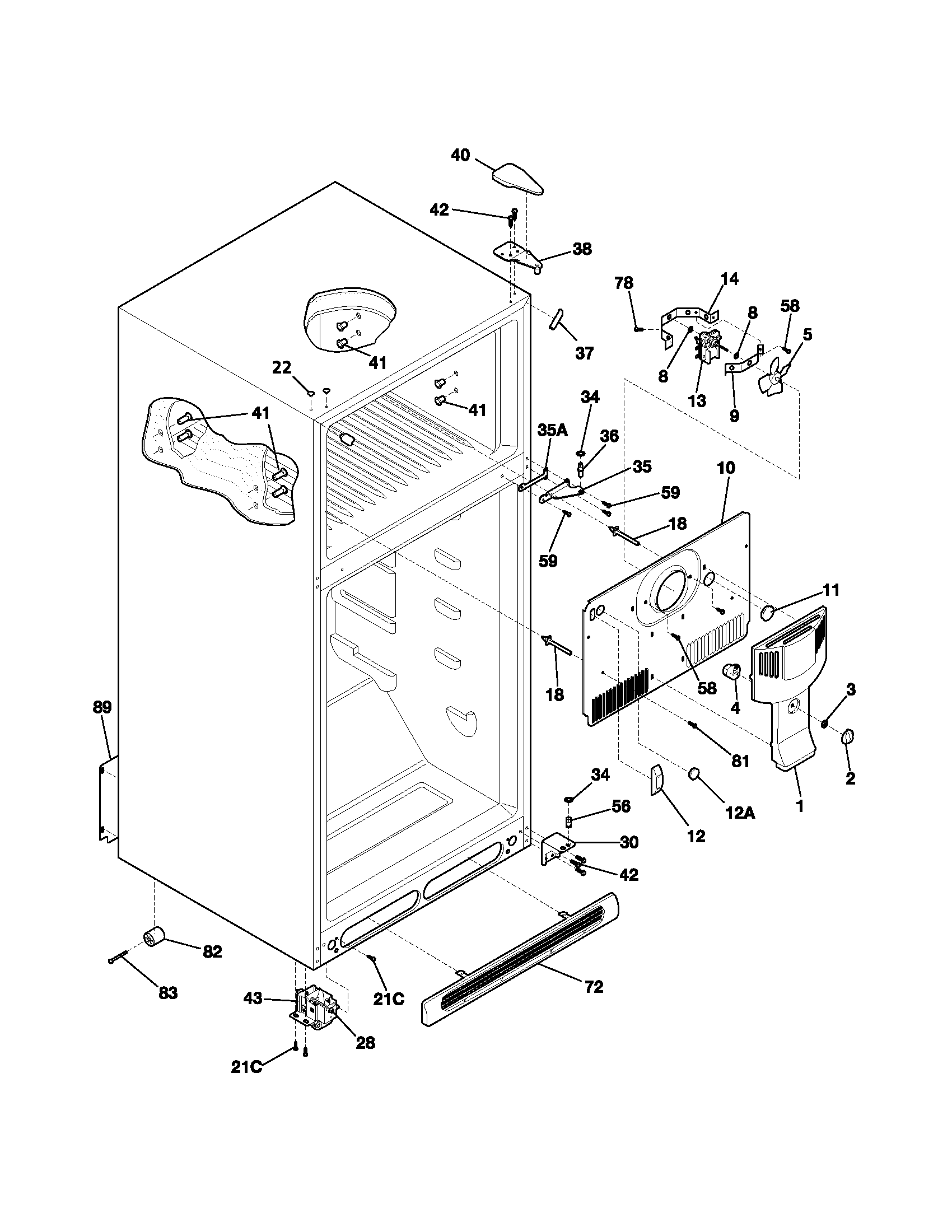

Cabinet diagram

Refrigerator evaporator motor

Part #240369702

Replaced by #5303918549

?
Manufacturer substitution
This part replaces 240369702. Substitute parts can look different from the original.
BEST SELLER
$71.31 |
8% OFF Phone Price : $77.31
In Stock
Refrigerator Temperature Control Thermostat 5304421256
#21

Shelves diagram

Refrigerator temperature control thermostat

Part #5304421256

Replaced by #241537103

?
Manufacturer substitution
This part replaces 5304421256. Substitute parts can look different from the original.
BEST SELLER
$81.31 |
7% OFF Phone Price : $87.31
In Stock
Water Inlet Valve 240519601
#55

Ice maker diagram

Water inlet valve

Part #240519601

Replaced by #242252603

?
Manufacturer substitution
This part replaces 240519601. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Evaporator (replaces 5303918250, 5303918431) 5303918274
#15

System diagram

Refrigerator evaporator (replaces 5303918250, 5303918431)

Part #5303918274

BEST SELLER
$300.95 |
$12.00 OFF Phone Price : $312.95
In Stock
Refrigerator Deli Drawer 240530801
#31

Shelves diagram

Refrigerator deli drawer

Part #240530801

Replaced by #240530811

?
Manufacturer substitution
This part replaces 240530801. Substitute parts can look different from the original.
BEST SELLER
$146.88 |
8% OFF Phone Price : $158.88
In Stock
