Model # DX4500EA0WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DX4500EA0WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

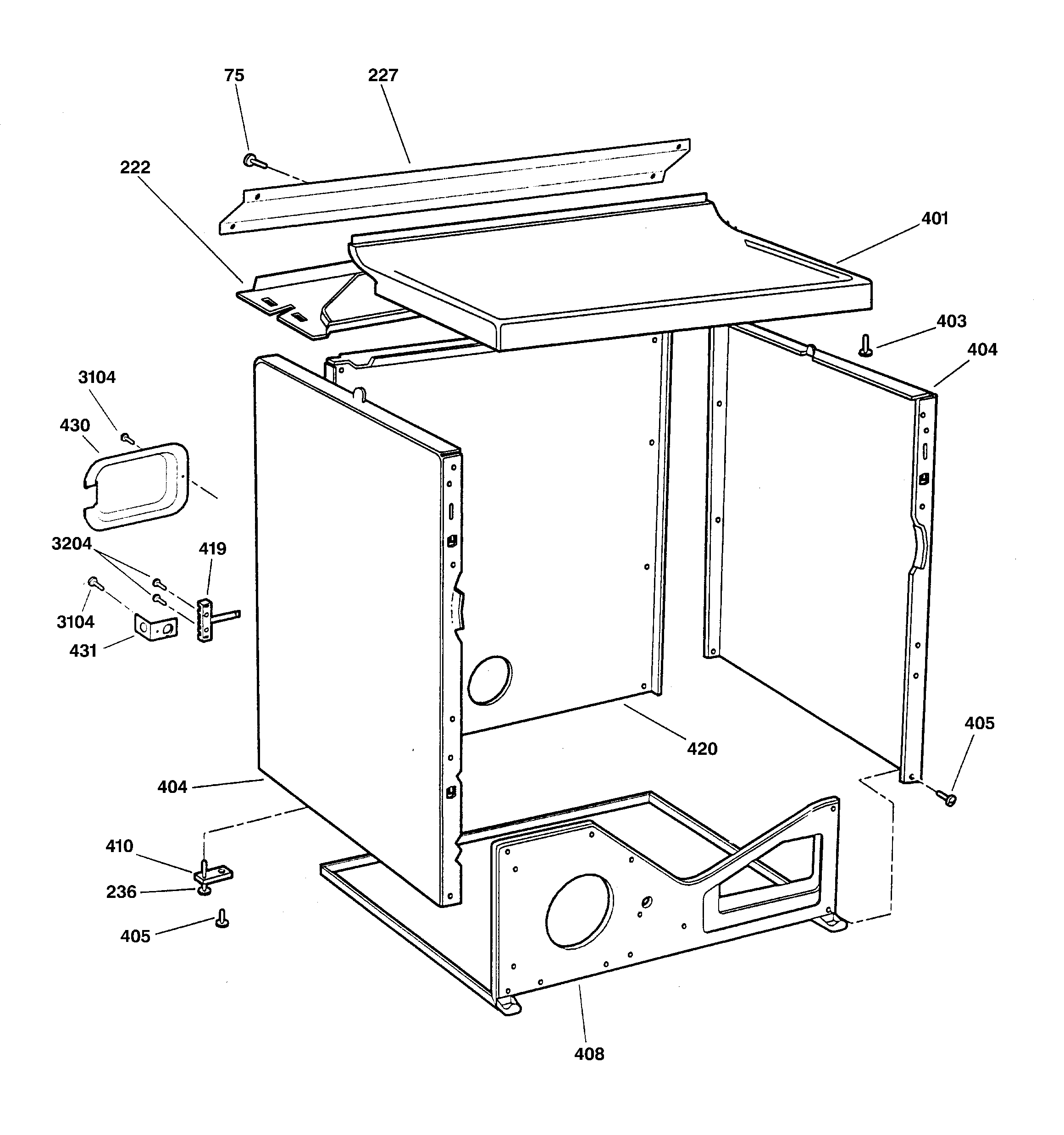

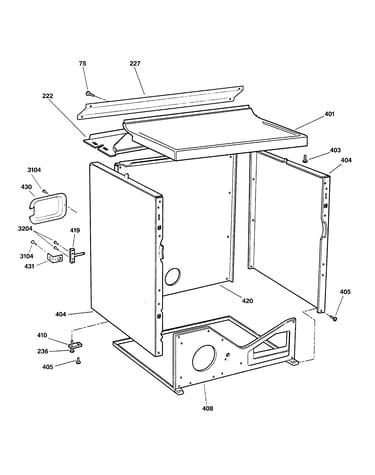

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Drum Bearing WE03M0020
#313

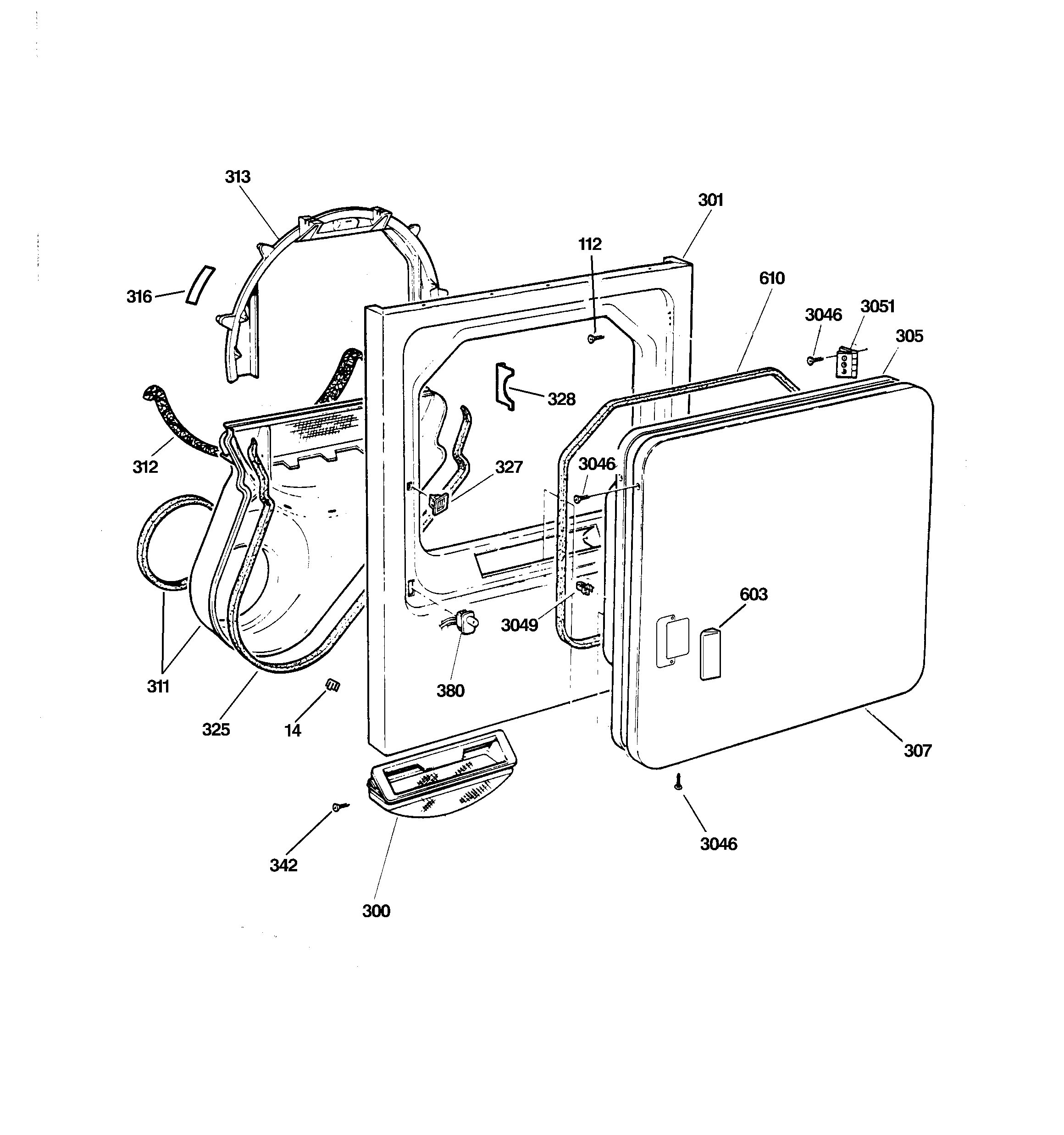

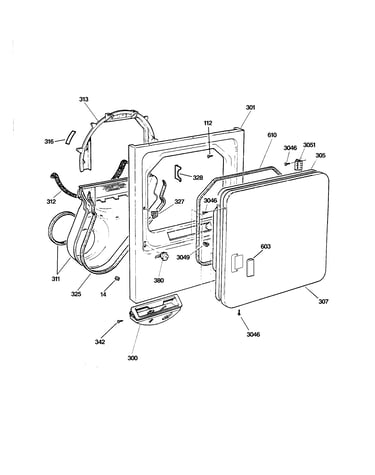

Front panel & door diagram

Drum bearing

Part #WE03M0020

Replaced by #WE3M26

?
Manufacturer substitution
This part replaces WE03M0020. Substitute parts can look different from the original.
BEST SELLER
$31.04 |
16% OFF Phone Price : $37.04
In Stock
Air Duct WE14M0076
#311

Front panel & door diagram

Air duct

Part #WE14M0076

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M0076. Substitute parts can look different from the original.
BEST SELLER
$85.99 |
7% OFF Phone Price : $91.99
In Stock
Dryer High-limit Thermostat (replaces We03m0026, We3m20, We4m457) WE4M137
#507

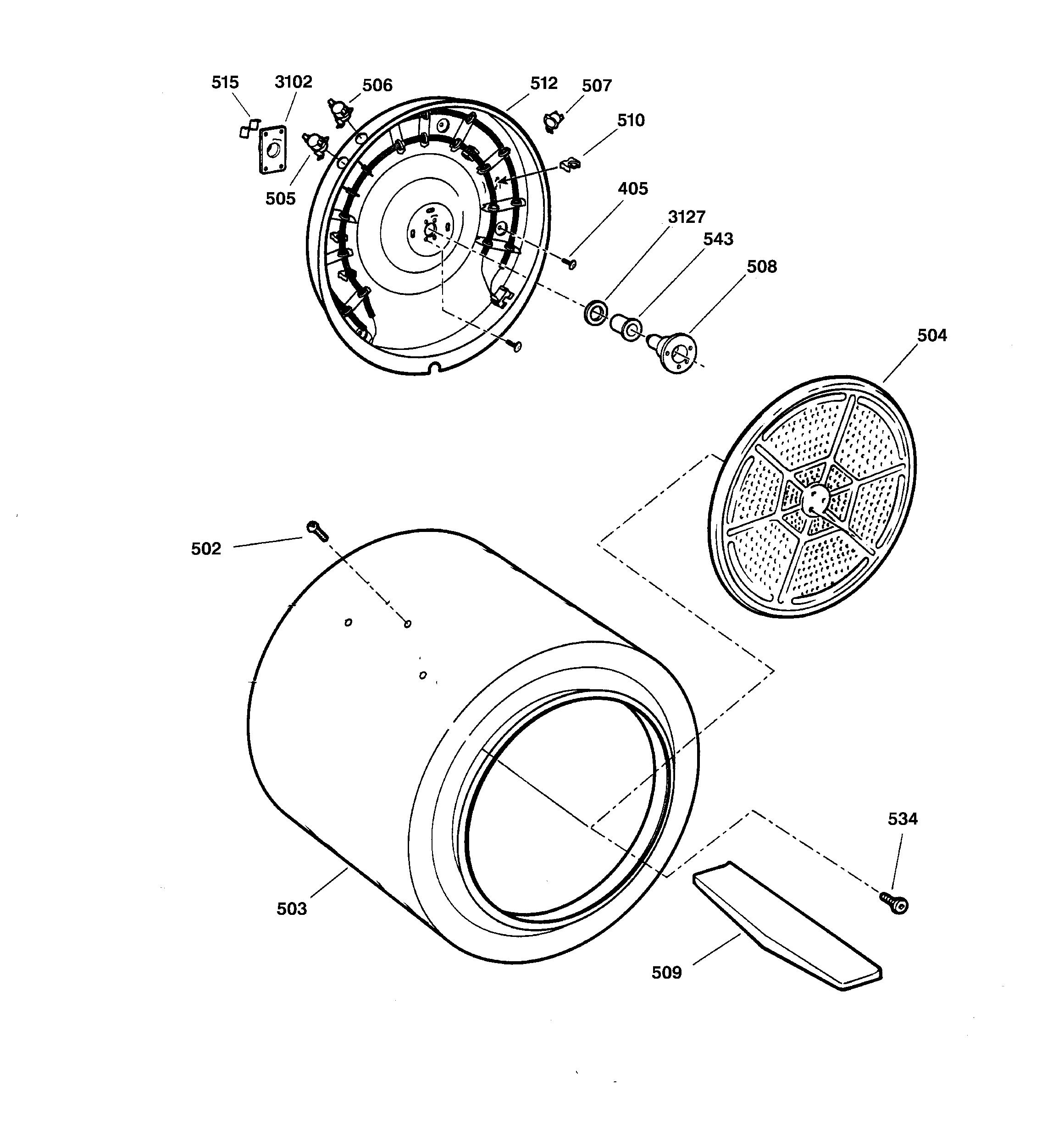

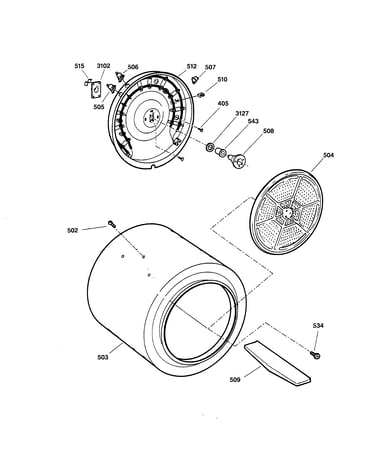

Drum diagram

Dryer high-limit thermostat (replaces we03m0026, we3m20, we4m457)

Part #WE4M137

BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Shft-brkt As WE03X0039
#508

Drum diagram

Shft-brkt as

Part #WE03X0039

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03X0039. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Washer WE02X0195
#3127

Drum diagram

Washer

Part #WE02X0195

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE02X0195. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Sleeve Bearing WE03M0015
#543

Drum diagram

Sleeve bearing

Part #WE03M0015

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE03M0015. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Bearing Retainer WE01M0300
#3102

Drum diagram

Bearing retainer

Part #WE01M0300

Replaced by #WE1M300

?
Manufacturer substitution
This part replaces WE01M0300. Substitute parts can look different from the original.
BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Thermostat Center WE4M0181
#506

Drum diagram

Thermostat center

Part #WE4M0181

Replaced by #WE4M181

?
Manufacturer substitution
This part replaces WE4M0181. Substitute parts can look different from the original.
BEST SELLER
$31.33
In Stock
Interlock Switch WD21X0557
#803

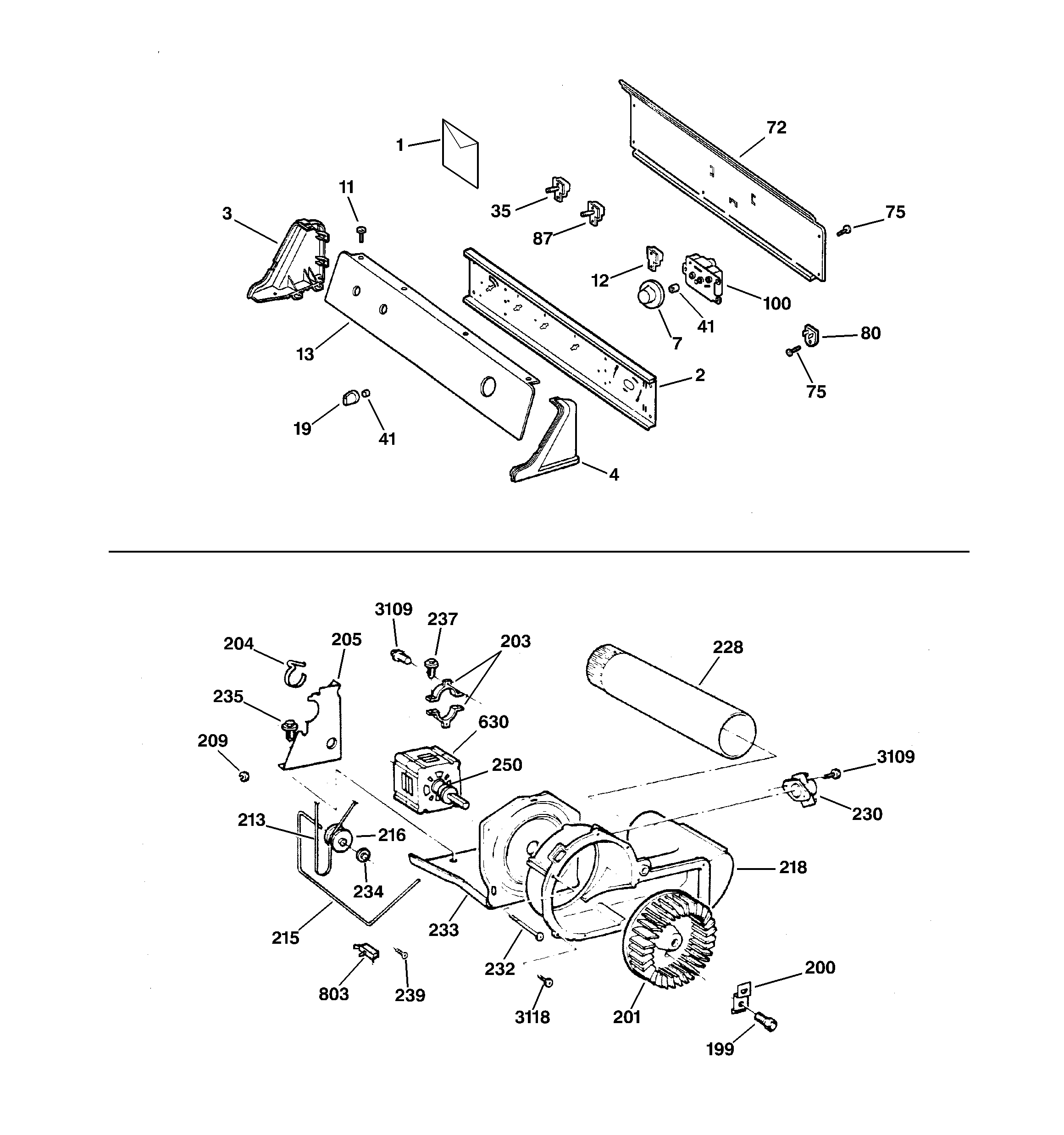

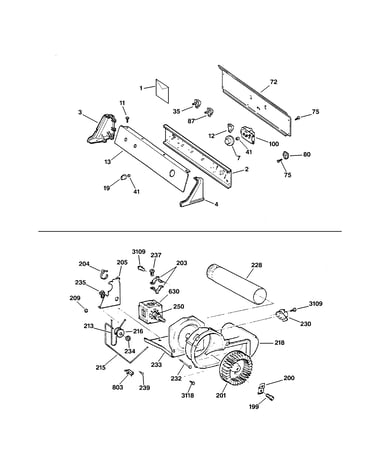

Backsplash, blower & motor diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Gasket WE01M0376
#325

Front panel & door diagram

Gasket

Part #WE01M0376

Replaced by #WE1M825

?
Manufacturer substitution
This part replaces WE01M0376. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.96 |
13% OFF Phone Price : $7.96
In Stock
