Model # UN50ES6100FXZA-CS01 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN50ES6100FXZA-CS01 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Television Printed Circuit Board Optical Connector 3707-001106
#NI

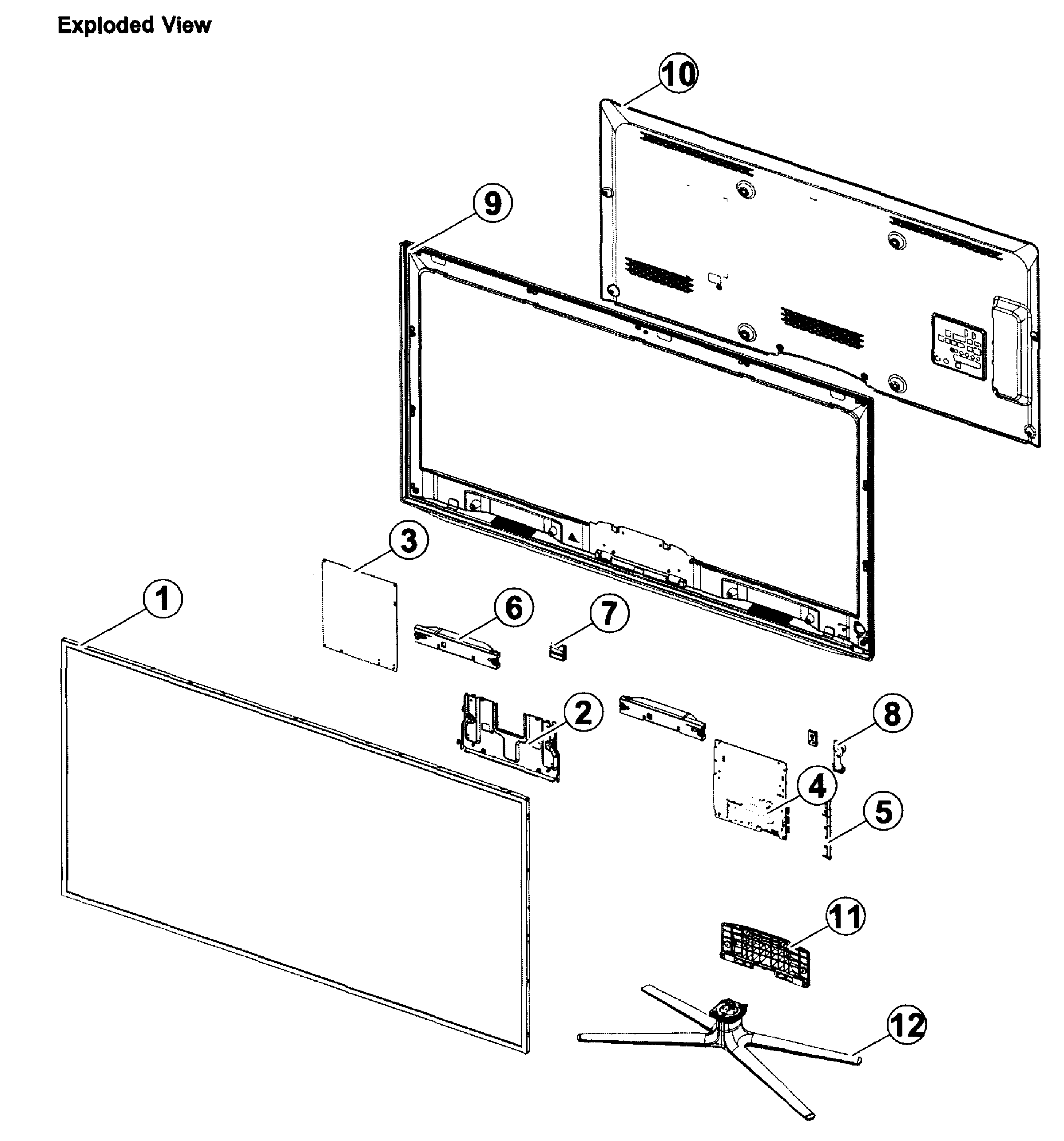

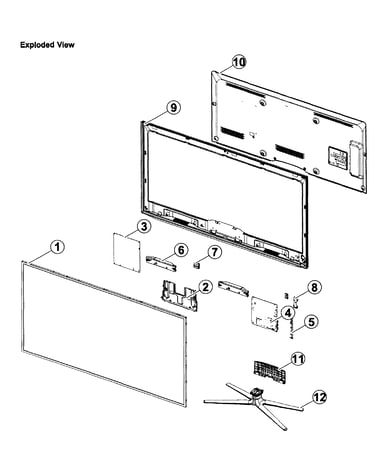

Cabinet parts diagram

Television printed circuit board optical connector

Part #3707-001106

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 6003-001782
#NI

Cabinet parts diagram

Television screw

Part #6003-001782

The manufacturer no longer makes this part, and there's no substitute part

Lcd Panel BN07-01170A
#1

Cabinet parts diagram

Lcd panel

Part #BN07-01170A

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Guide BN96-16722R
#11

Cabinet parts diagram

Television stand guide

Part #BN96-16722R

The manufacturer no longer makes this part, and there's no substitute part

Thread-cutting Screw 6002-001294
#NI

Cabinet parts diagram

Thread-cutting screw

Part #6002-001294

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord 3903-000599
#NI

Cabinet parts diagram

Television power cord

Part #3903-000599

The manufacturer no longer makes this part, and there's no substitute part

Header-4p, 3711-008131
#NI

Cabinet parts diagram

Header-4p,

Part #3711-008131

The manufacturer no longer makes this part, and there's no substitute part

Jack Usb 3722-003225
#NI

Cabinet parts diagram

Jack usb

Part #3722-003225

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 6003-000115
#NI

Cabinet parts diagram

Television screw

Part #6003-000115

The manufacturer no longer makes this part, and there's no substitute part

Connector 3711-007571
#NI

Cabinet parts diagram

Connector

Part #3711-007571

The manufacturer no longer makes this part, and there's no substitute part
