Poulan
Gas Walk-Behind Mower

Model # 96122000500 Official Poulan rotary mower - 96122000500

Here are the diagrams and repair parts for Official Poulan 96122000500 rotary mower - 96122000500, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Lawn Mower Drive Control Cable 194653
#1

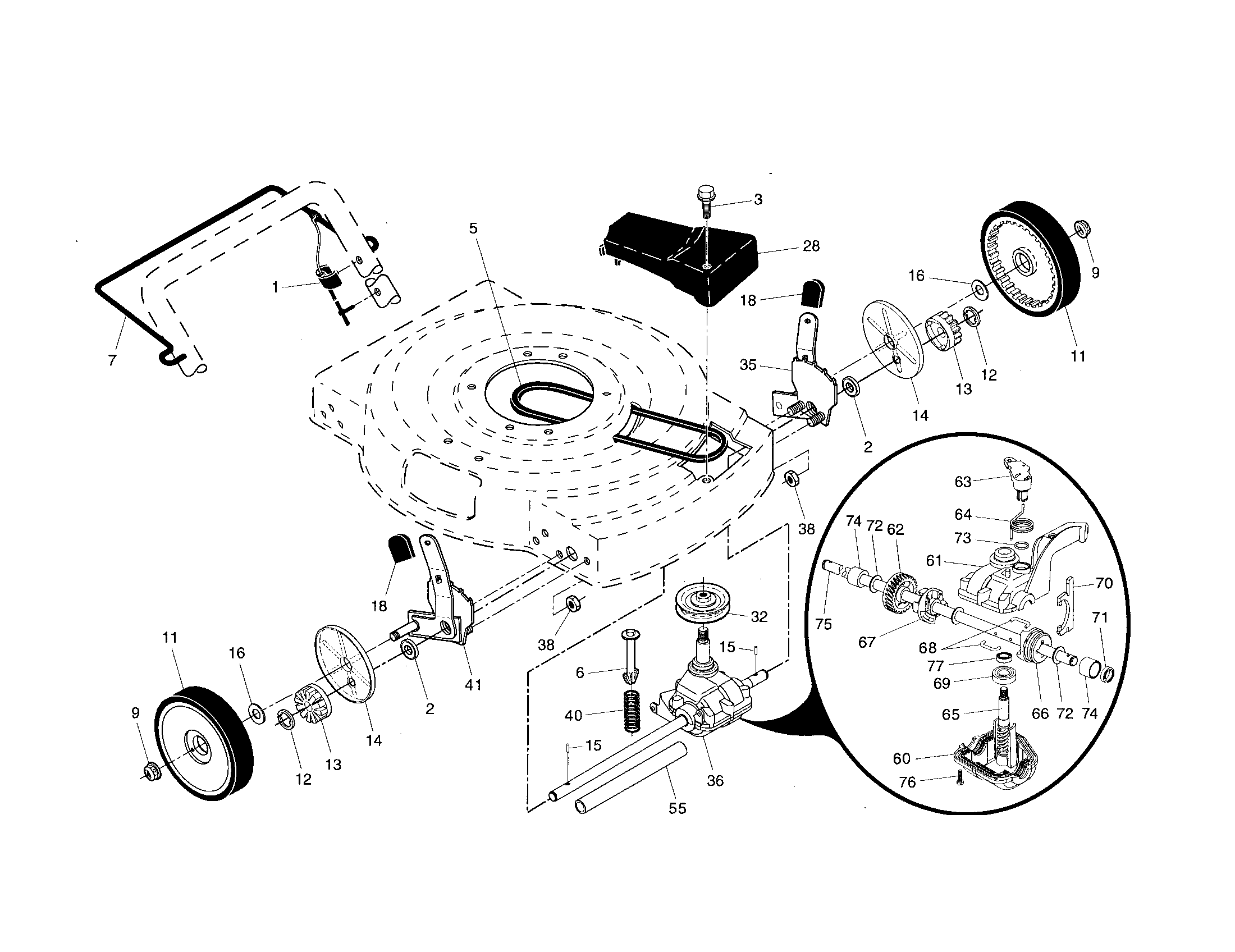

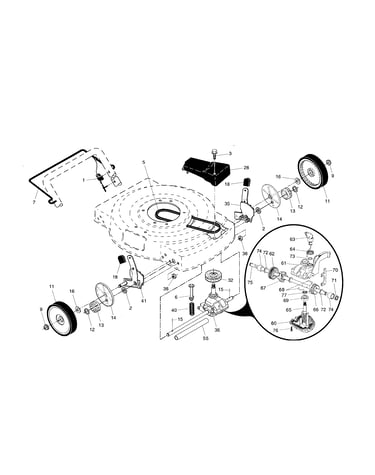

Wheels/gear case/drive control diagram

Lawn mower drive control cable

Part #194653

Replaced by #532194653

?
Manufacturer substitution
This part replaces 194653. Substitute parts can look different from the original.
BEST SELLER
$33.14 |
15% OFF Phone Price : $39.14
In Stock
Drive Pawl 191017
#15

Wheels/gear case/drive control diagram

Drive pawl

Part #191017

Replaced by #532404845

?
Manufacturer substitution
This part replaces 191017. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Nut 132004
#18

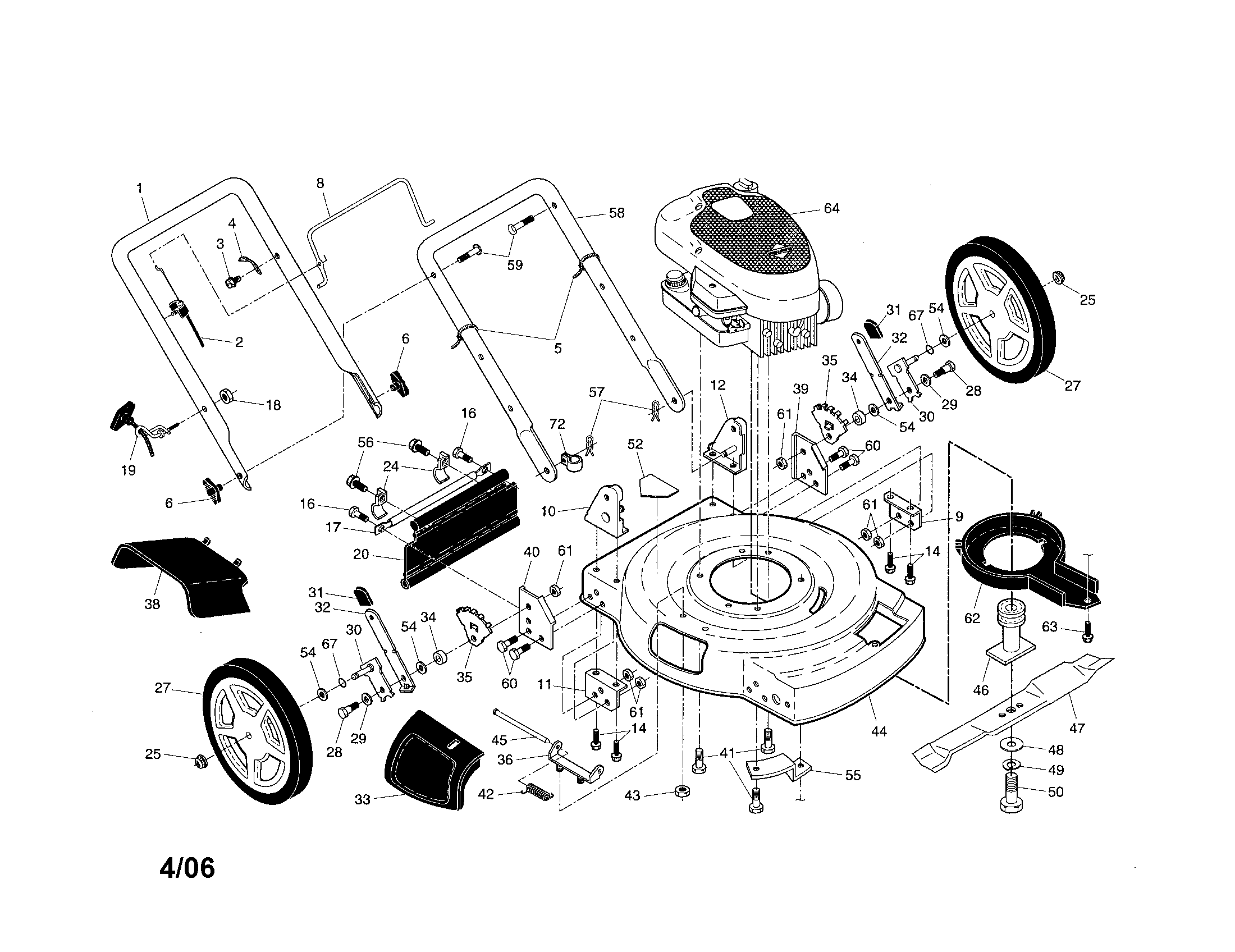

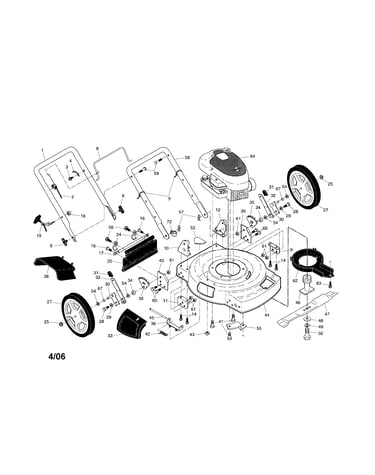

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Lock Nut 73800400
Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn Mower Engine Control Cable 183567
#2

Engine/housing/handle diagram

Lawn mower engine control cable

Part #183567

Replaced by #532183567

?
Manufacturer substitution
This part replaces 183567. Substitute parts can look different from the original.
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Guide.rope.s 194788
#19

Engine/housing/handle diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Torsion Spring 152124
#42

Engine/housing/handle diagram

Torsion spring

Part #152124

Replaced by #532152124

?
Manufacturer substitution
This part replaces 152124. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Discharge Guard 151889
#33

Engine/housing/handle diagram

Discharge guard

Part #151889

Replaced by #582979401

?
Manufacturer substitution
This part replaces 151889. Substitute parts can look different from the original.
This item is not returnable
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#12

Wheels/gear case/drive control diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Belt 146527
#5

Wheels/gear case/drive control diagram

Belt

Part #146527

Replaced by #532157769

?
Manufacturer substitution
This part replaces 146527. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$25.69
In Stock
