Eureka
Upright Vacuum

Model # 4680AT-3 Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4680AT-3 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

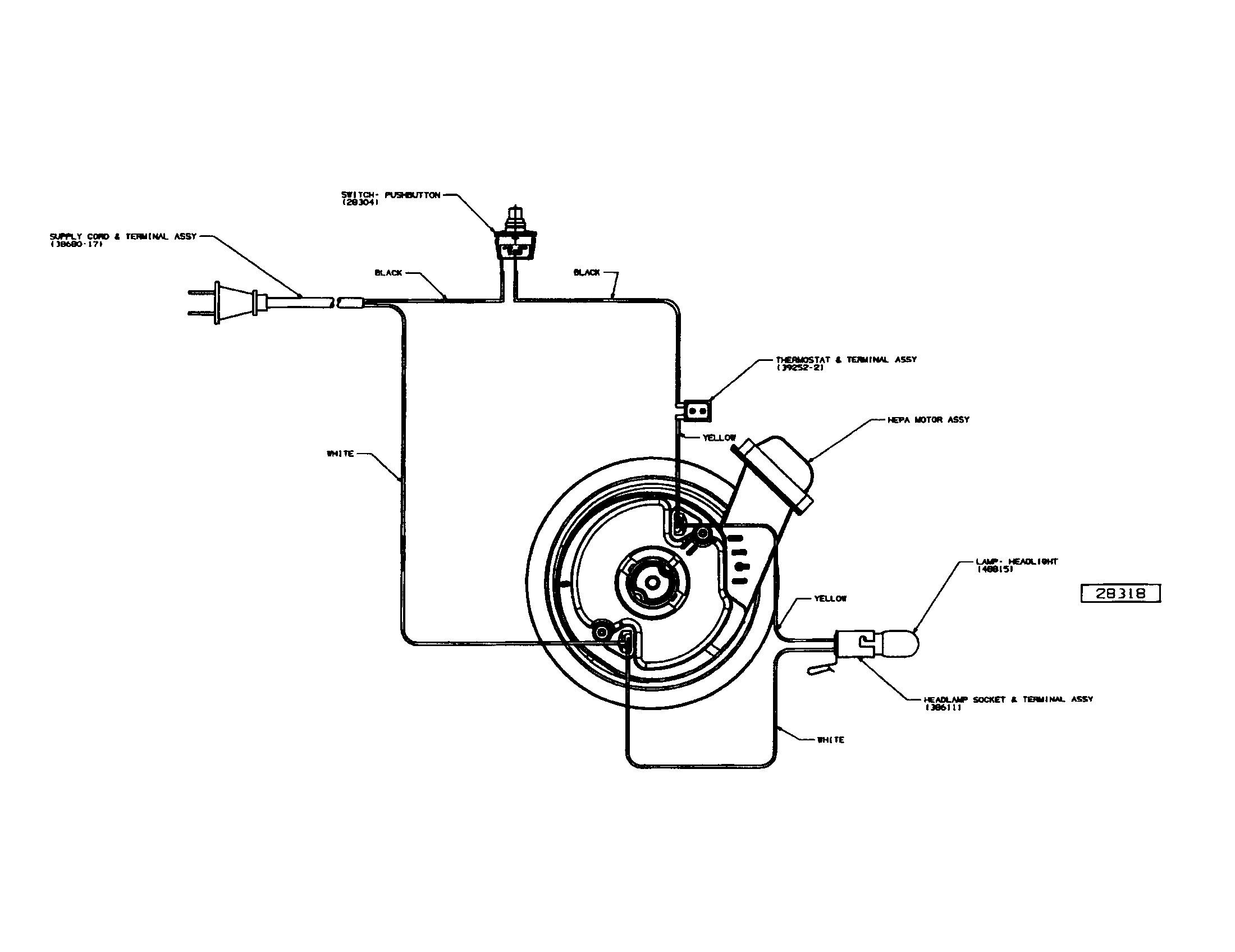

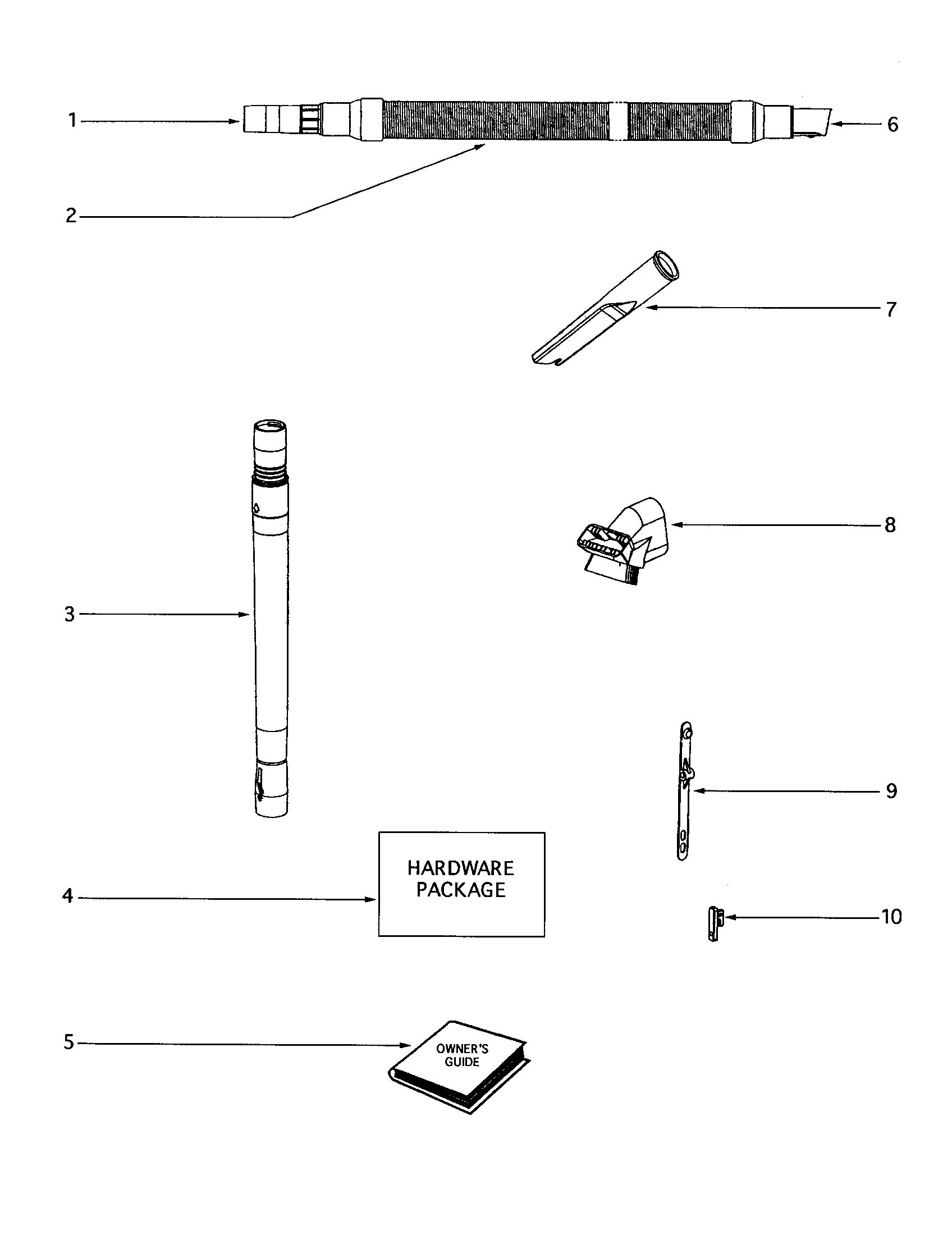

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |

Adapter 39346-119N
#12

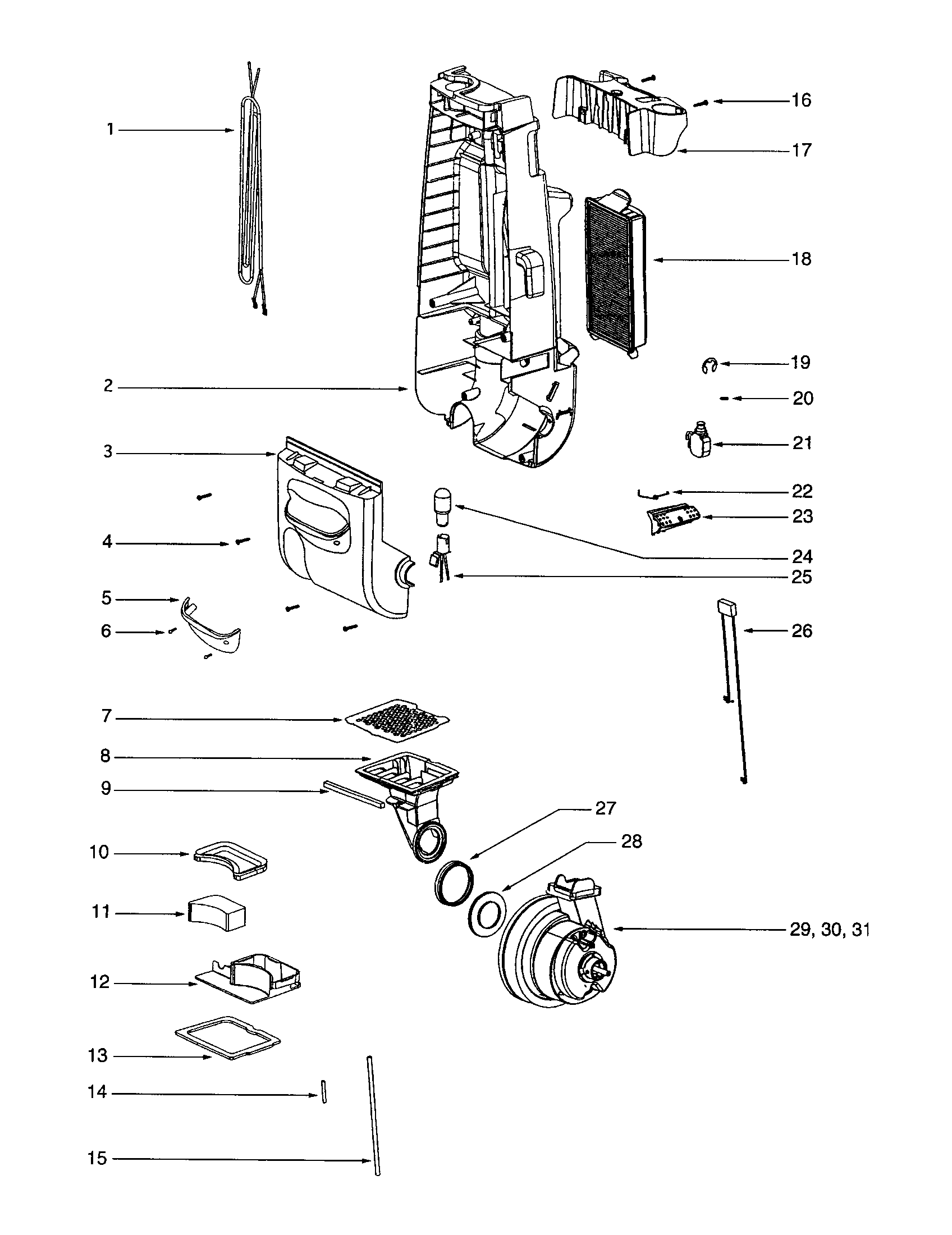

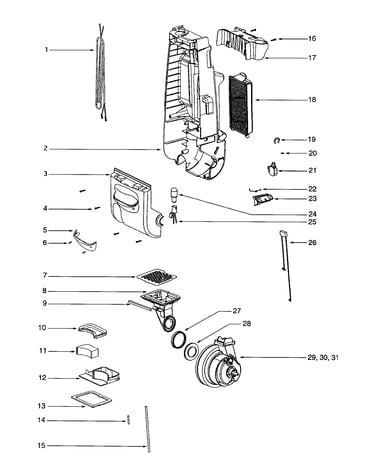

Housing diagram

Adapter

Part #39346-119N

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#5

Housing diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Latch 39347-288N
#3

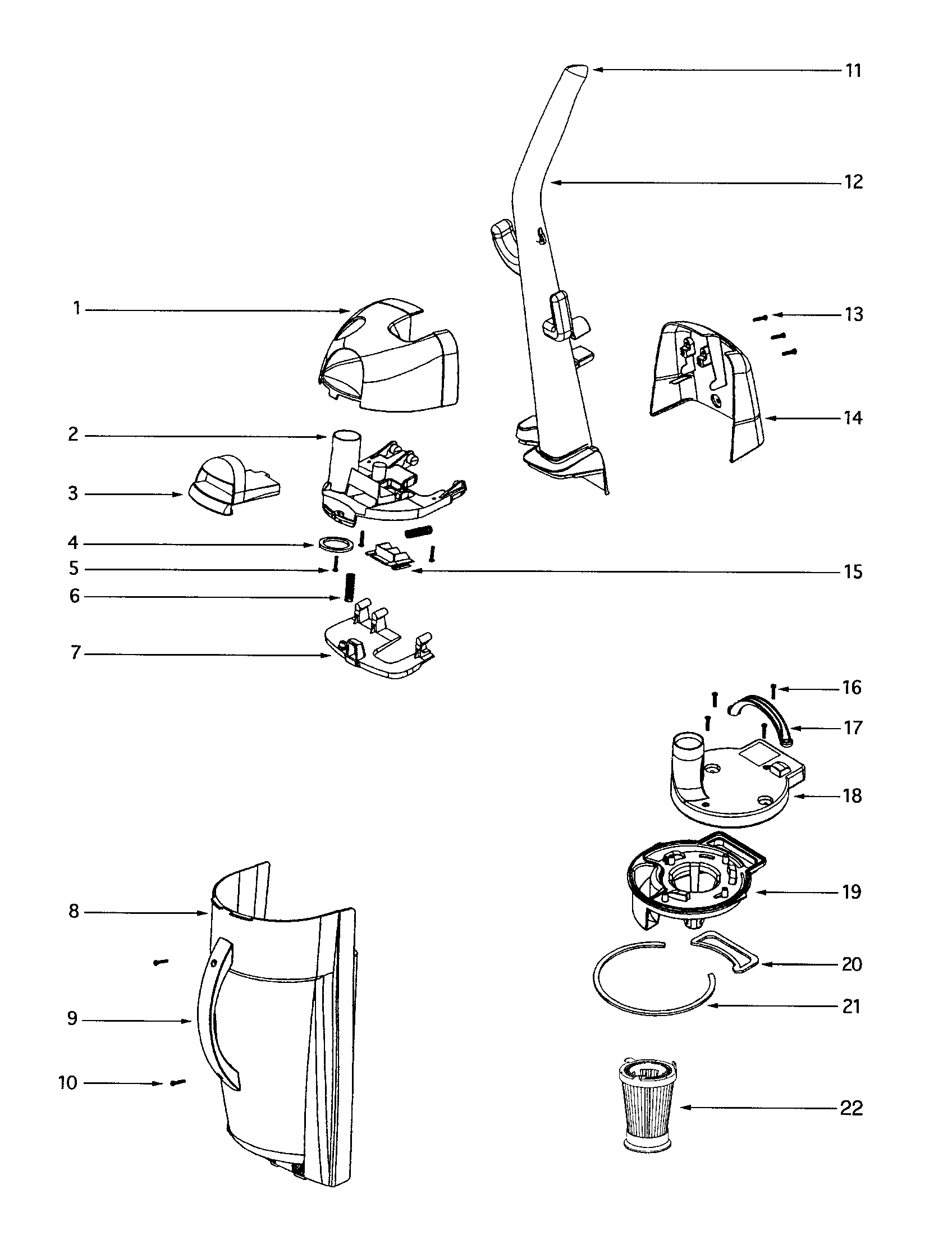

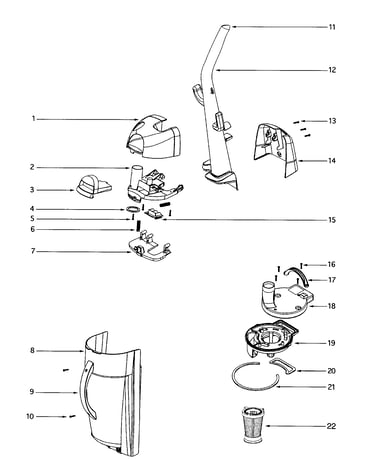

Cyclone diagram

Latch

Part #39347-288N

The manufacturer no longer makes this part, and there's no substitute part

Hood 61364-18
#2

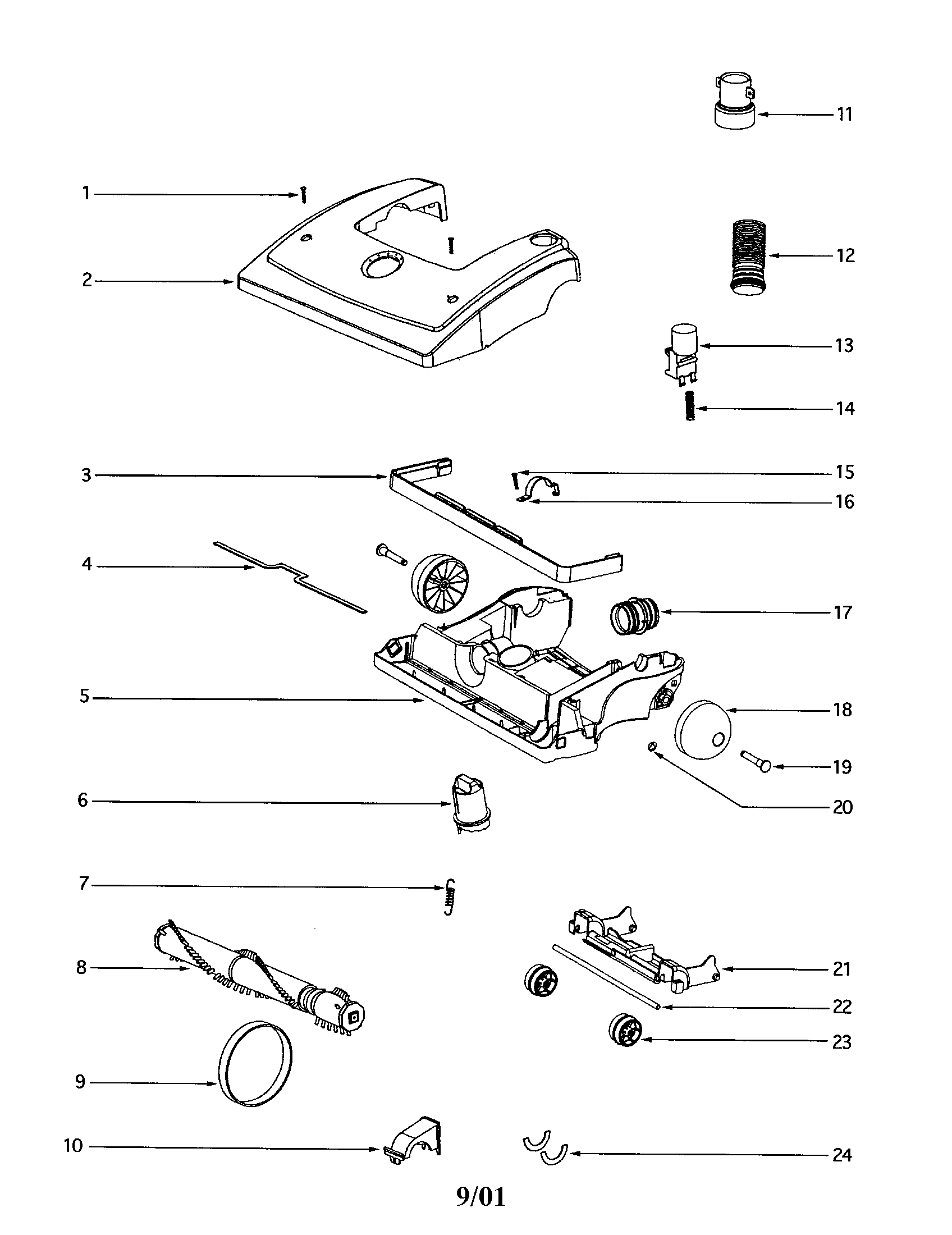

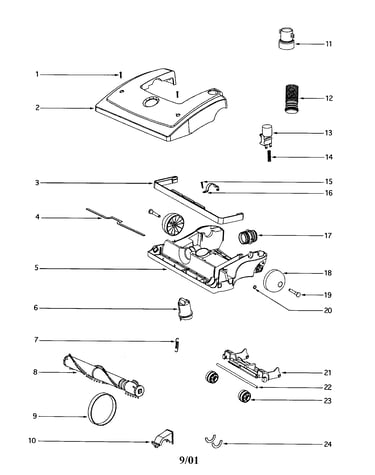

Base diagram

Hood

Part #61364-18

The manufacturer no longer makes this part, and there's no substitute part

Cover 70857-119N
#15

Cyclone diagram

Cover

Part #70857-119N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 70644
#4

Cyclone diagram

Gasket

Part #70644

The manufacturer no longer makes this part, and there's no substitute part

Bracket 28462-119N
#7

Cyclone diagram

Bracket

Part #28462-119N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 39350
#20

Cyclone diagram

Gasket

Part #39350

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 61432-1
#3

Housing diagram

Motor cover

Part #61432-1

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle Bracket 14993C-119N
#21

Base diagram

Vacuum wheel axle bracket

Part #14993C-119N

The manufacturer no longer makes this part, and there's no substitute part
