Model # 315111970 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 315111970 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
6 Charger 999555-007
#4

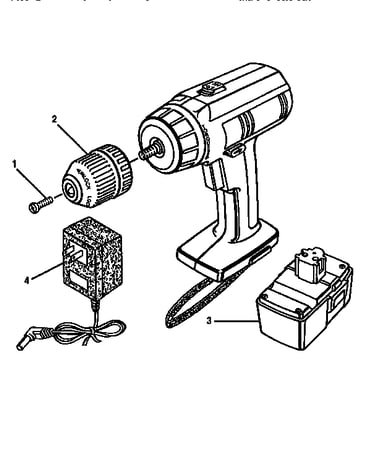

Unit parts diagram

6 charger

Part #999555-007

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 975180-000
#1

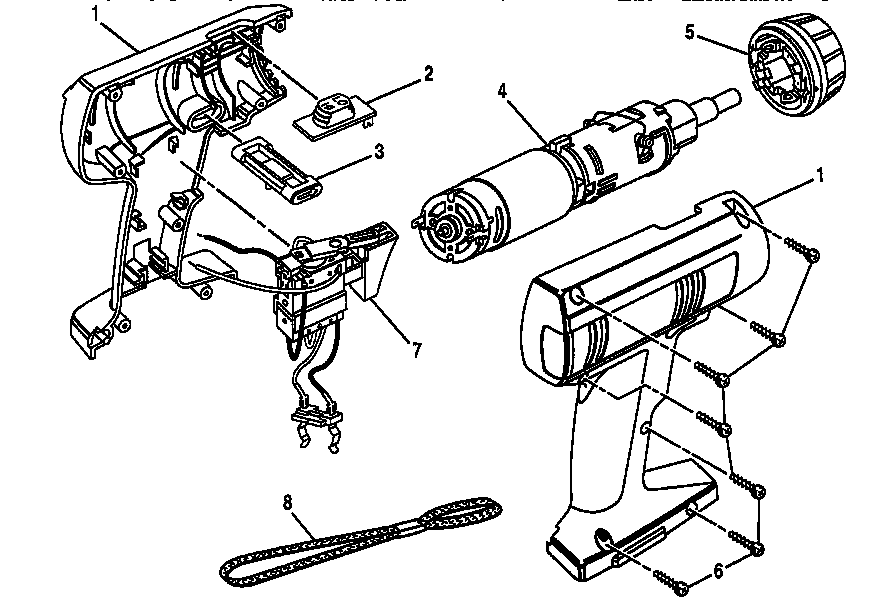

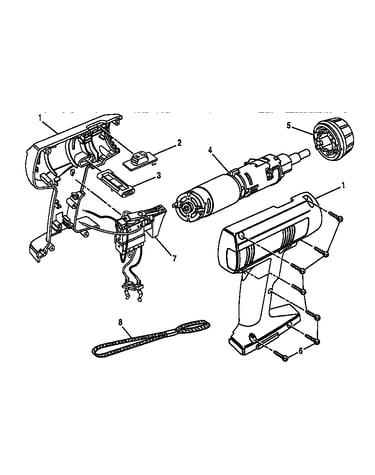

Housing assembly diagram

Housing assembly

Part #975180-000

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 975085-001
#3

Unit parts diagram

Battery pack

Part #975085-001

The manufacturer no longer makes this part, and there's no substitute part

Switch 975022-000
#3

Housing assembly diagram

Switch

Part #975022-000

The manufacturer no longer makes this part, and there's no substitute part

Case 974970-001
#5

Unit parts diagram

Case

Part #974970-001

The manufacturer no longer makes this part, and there's no substitute part

Button 975021-000
#2

Housing assembly diagram

Button

Part #975021-000

The manufacturer no longer makes this part, and there's no substitute part

Motor 975017-000
#4

Housing assembly diagram

Motor

Part #975017-000

The manufacturer no longer makes this part, and there's no substitute part

Strap 975019-000
#8

Housing assembly diagram

Strap

Part #975019-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 973571-000
#6

Housing assembly diagram

Screw

Part #973571-000

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#1

Unit parts diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part
