Miter Saw

Model # 113235440 Official Craftsman 10" miter saw

Here are the diagrams and repair parts for Official Craftsman 113235440 10" miter saw, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
113235440 Power Tools
Screw 808277-11
#17

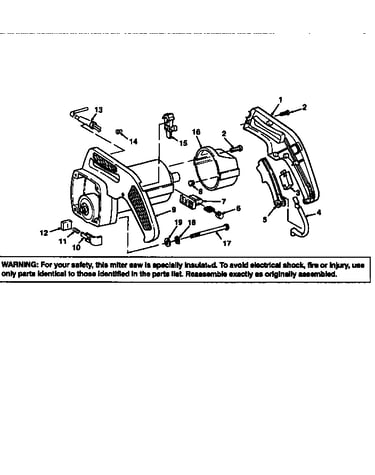

Motor assembly diagram

Screw

Part #808277-11

The manufacturer no longer makes this part, and there's no substitute part

Washer Thrst 803899-5
#6

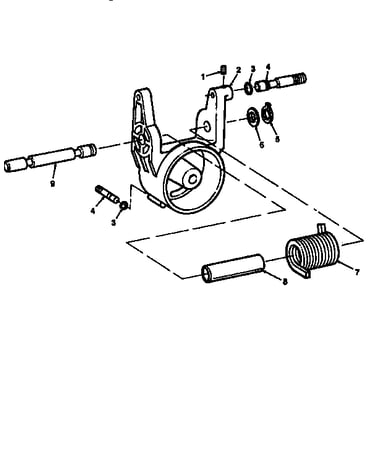

Pivot assembly diagram

Washer thrst

Part #803899-5

The manufacturer no longer makes this part, and there's no substitute part

Arbor Lock Spring 823322
#11

Motor assembly diagram

Arbor lock spring

Part #823322

The manufacturer no longer makes this part, and there's no substitute part

Spacer Spring 823298
#8

Pivot assembly diagram

Spacer spring

Part #823298

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Trigger Switch 823286
#3

Motor assembly diagram

Miter saw trigger switch

Part #823286

The manufacturer no longer makes this part, and there's no substitute part

Screw Set Hx 803309-2
#1

Pivot assembly diagram

Screw set hx

Part #803309-2

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Bevel Lock Handle Assembly 820714-3
#23

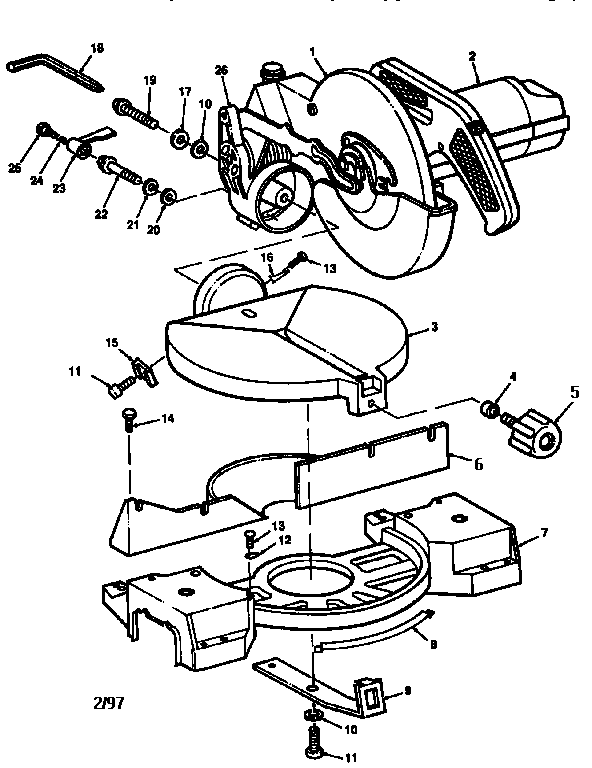

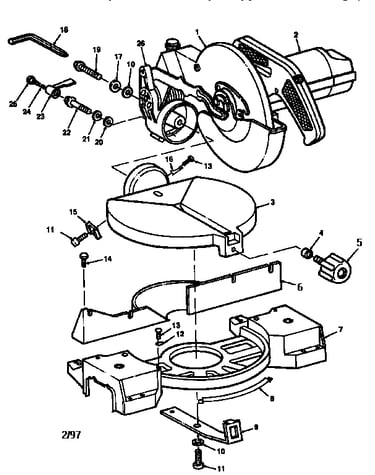

Figure 1 diagram

Miter saw bevel lock handle assembly

Part #820714-3

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Dust Bag 816811
#20

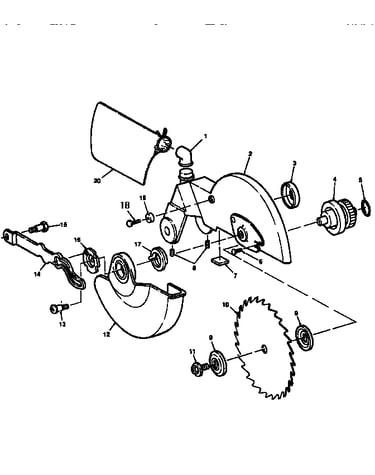

Figure 4 diagram

Miter saw dust bag

Part #816811

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw STD610805
#2

Motor assembly diagram

Machine screw

Part #STD610805

This item is not returnable
$2.16
In Stock
Special Bolt 825503
#22

Figure 1 diagram

Special bolt

Part #825503

The manufacturer no longer makes this part, and there's no substitute part
