Model # 36-240 Official Delta miter saw

Here are the diagrams and repair parts for Official Delta 36-240 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

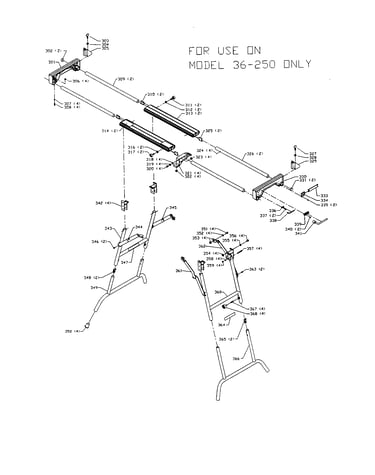

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |
Spring 1346306
#112

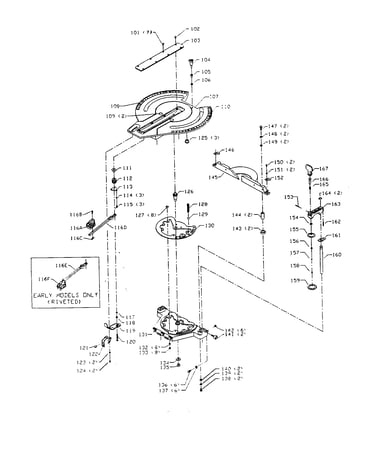

Miter scale diagram

Spring

Part #1346306

The manufacturer no longer makes this part, and there's no substitute part

Wire Brush 1348268
#75

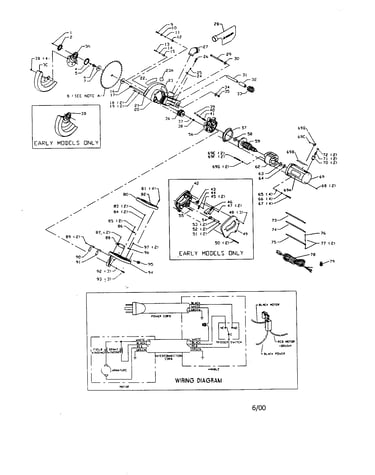

Miter saw diagram

Wire brush

Part #1348268

The manufacturer no longer makes this part, and there's no substitute part

Handle 1346351
#116A

Miter scale diagram

Handle

Part #1346351

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Block 1349622
#69D

Miter saw diagram

Porter cable block

Part #1349622

The manufacturer no longer makes this part, and there's no substitute part

Pin 1344906
#228B

Bearing diagram

Pin

Part #1344906

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Washer 1343267
#64

Miter saw diagram

Porter cable washer

Part #1343267

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Spring Pin 1246023
#153

Miter scale diagram

Porter cable spring pin

Part #1246023

The manufacturer no longer makes this part, and there's no substitute part

Armature 1347588
#59

Miter saw diagram

Armature

Part #1347588

The manufacturer no longer makes this part, and there's no substitute part

Bearing 1344003
#38

Miter saw diagram

Bearing

Part #1344003

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Motor Brush 1348266
#71

Miter saw diagram

Miter saw motor brush

Part #1348266

The manufacturer no longer makes this part, and there's no substitute part
