Model # S3612--- Official Hoover canister vacuum

Here are the diagrams and repair parts for Official Hoover S3612- canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

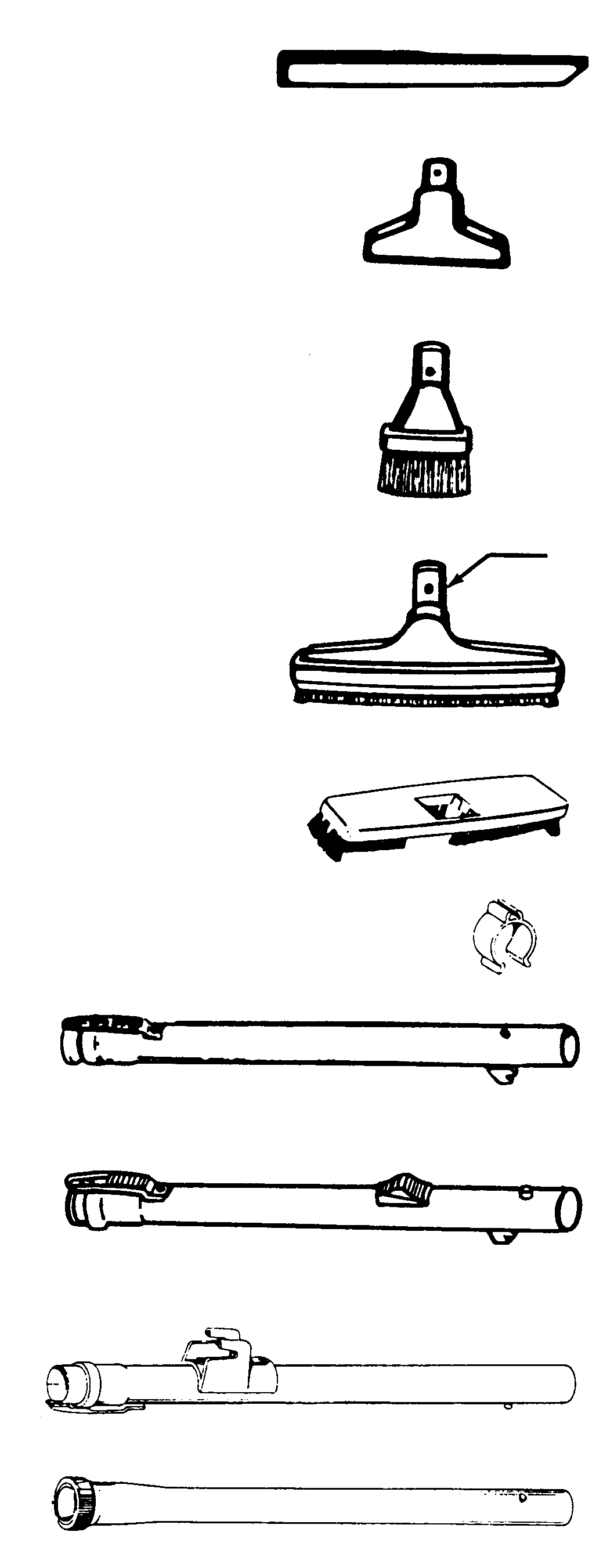

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |

Screw 21429406
#10

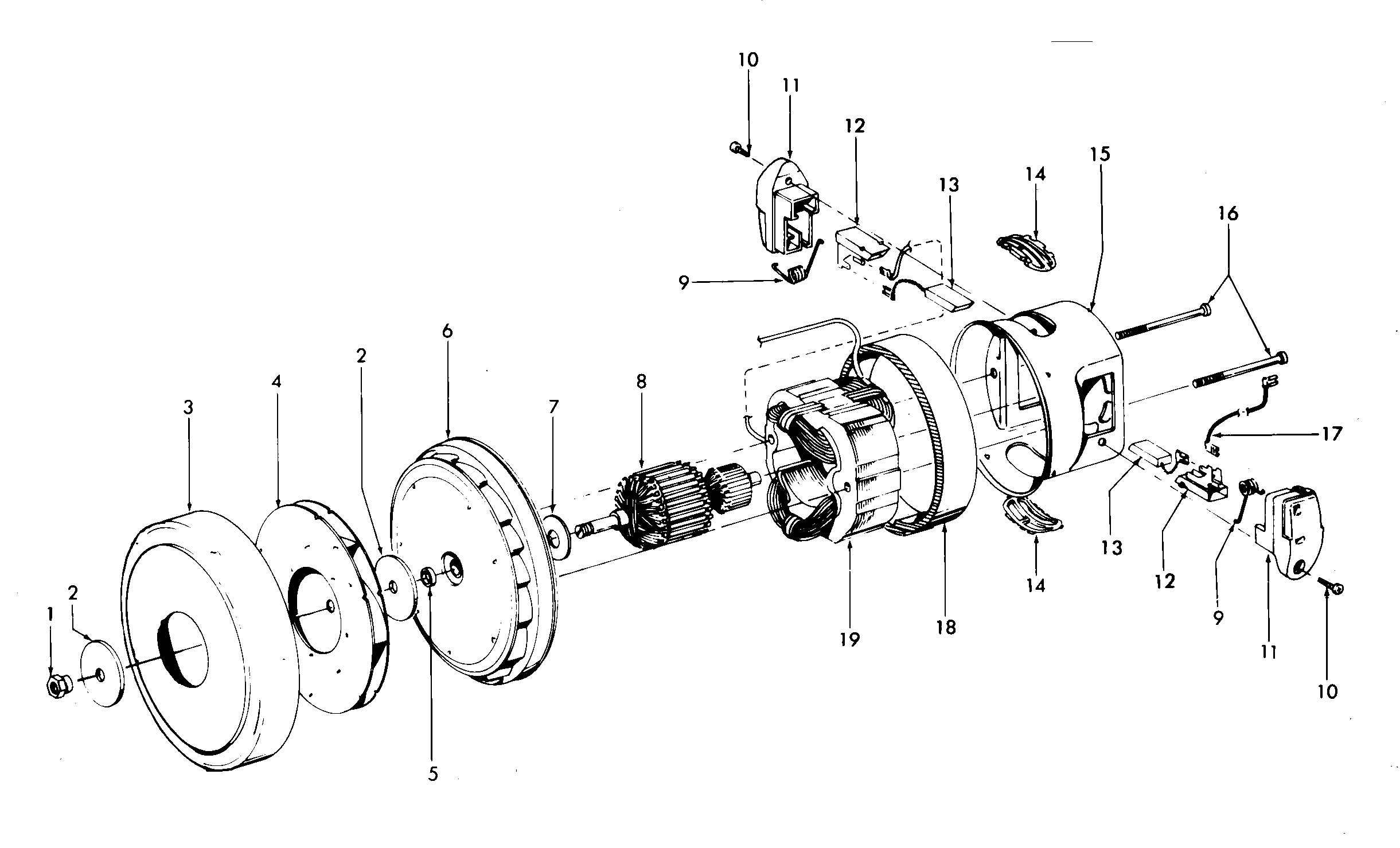

Motor assembly diagram

Screw

Part #21429406

The manufacturer no longer makes this part, and there's no substitute part

Detent Spring 35276008
#12

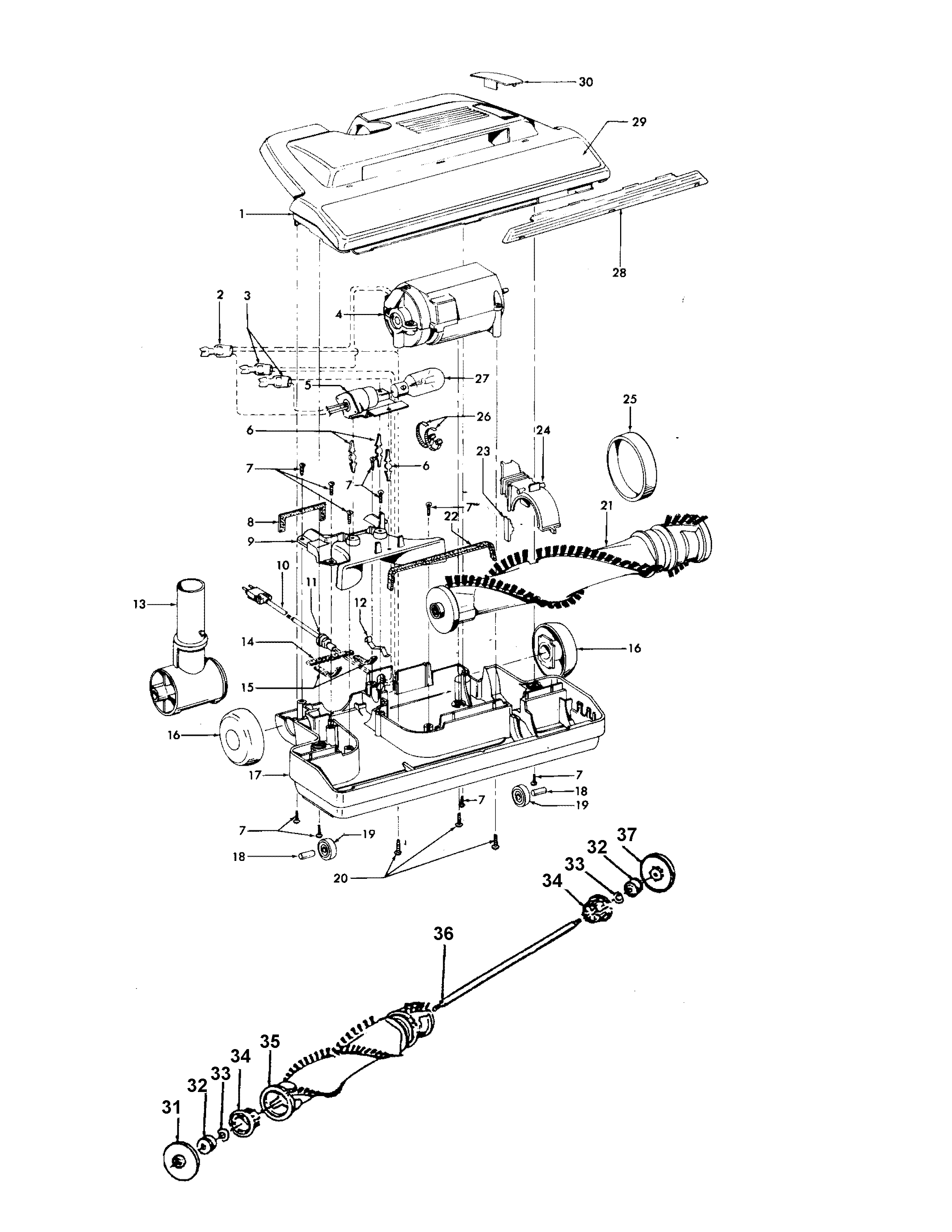

Powerednozzle, agitator diagram

Detent spring

Part #35276008

The manufacturer no longer makes this part, and there's no substitute part

Connector 46325032
#13

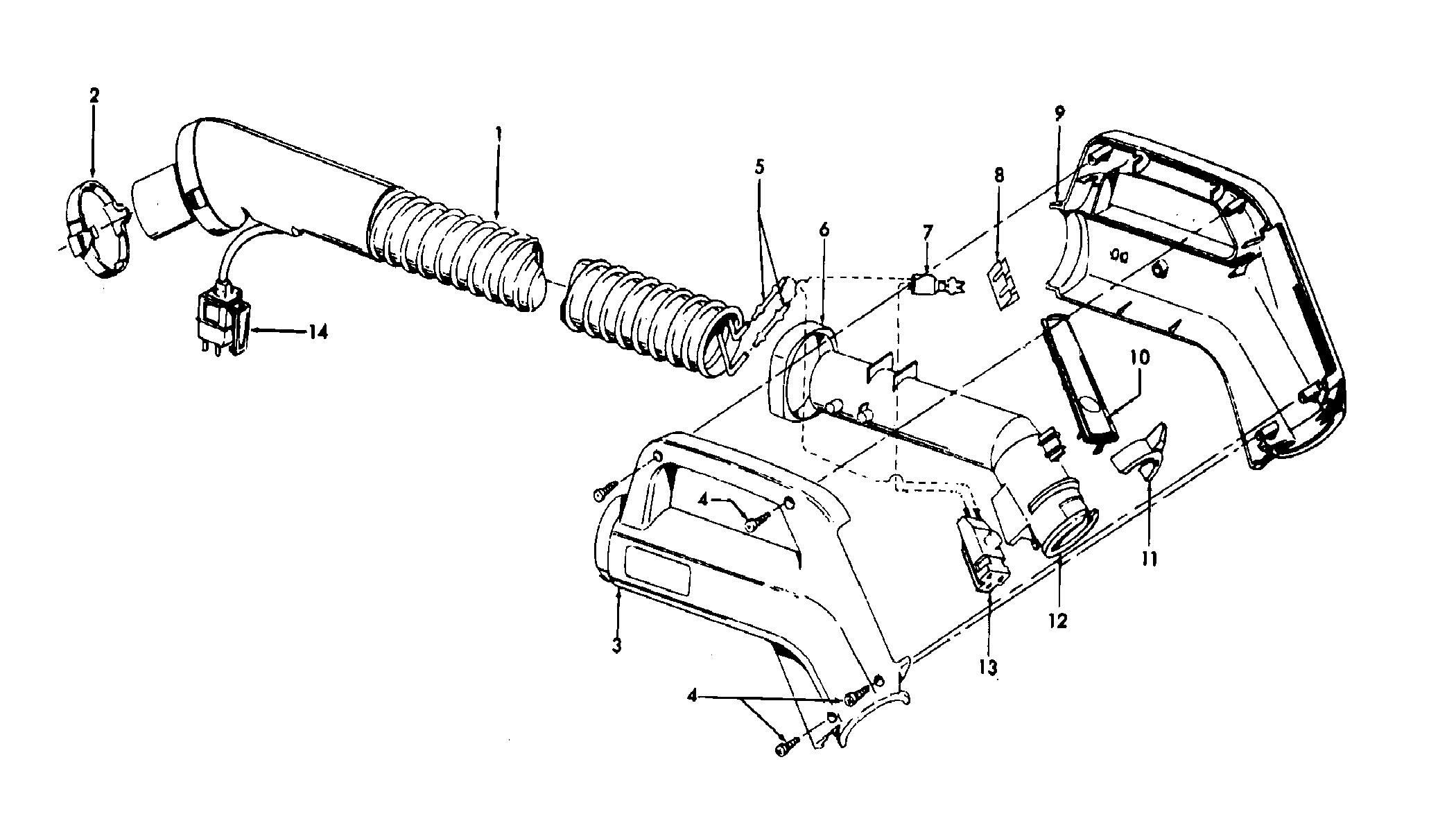

Hose diagram

Connector

Part #46325032

The manufacturer no longer makes this part, and there's no substitute part

Seal-12 Pk 34122014
#15

Powerednozzle, agitator diagram

Seal-12 pk

Part #34122014

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 37196065
#3

Motor assembly diagram

Fan cover

Part #37196065

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Wheel 32761001
#19

Powerednozzle, agitator diagram

Kenmore vacuum wheel

Part #32761001

The manufacturer no longer makes this part, and there's no substitute part

Cord 46321009
#10

Powerednozzle, agitator diagram

Cord

Part #46321009

The manufacturer no longer makes this part, and there's no substitute part

Speed Clip 21378159
#42

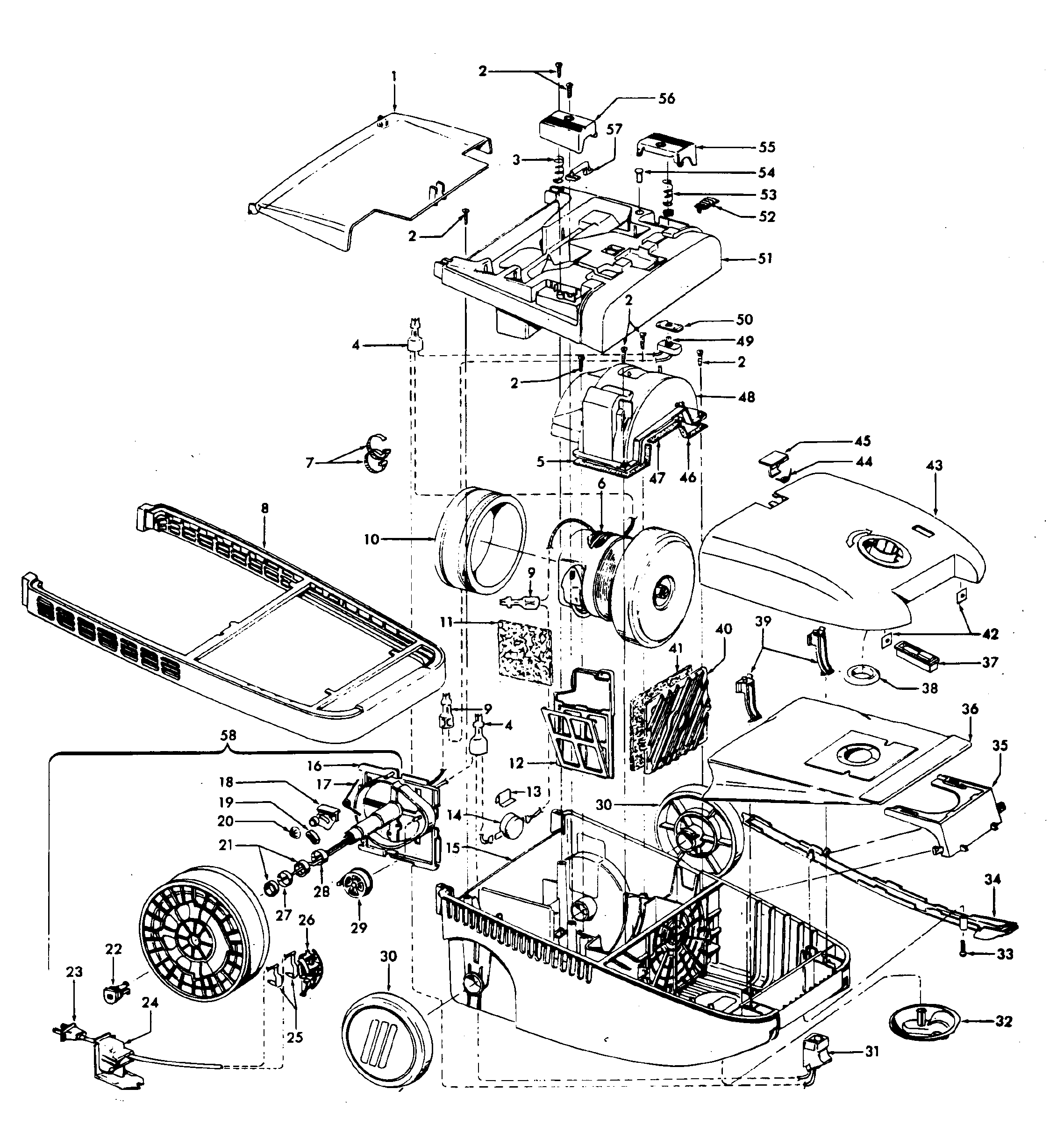

Cordreel, mainhousing diagram

Speed clip

Part #21378159

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch Pedal (gloss Black) 38422184
#55B

Cordreel, mainhousing diagram

Vacuum on/off switch pedal (gloss black)

Part #38422184

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Head Suction Tube 38646081
#12

Hose diagram

Vacuum power head suction tube

Part #38646081

The manufacturer no longer makes this part, and there's no substitute part
