Model # 1106814210 Official Kenmore coin-operated washer
Here are the diagrams and repair parts for Official Kenmore 1106814210 coin-operated washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
1106814210 Coin-Operated Washer
#115

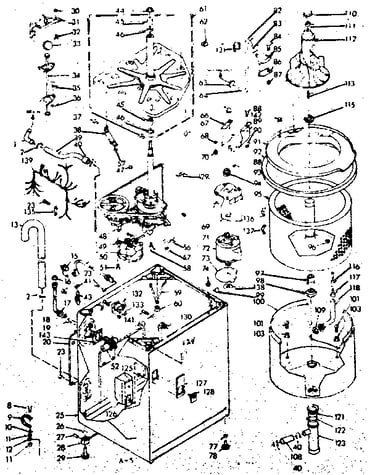

Machine sub-assembly diagram
Washer spanner nut
Part #21366
Replaced by #WP21366
?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
#141
Machine sub-assembly diagram
Tap screw
Part #90767
Replaced by #WP90767
?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#17
Machine sub-assembly diagram
Washer fill hose
Part #89503
Replaced by #WP89503
?
Manufacturer substitution
This part replaces 89503. Substitute parts can look different from the original.
$14.49 |
12% OFF Phone Price : $16.49
In Stock
#21

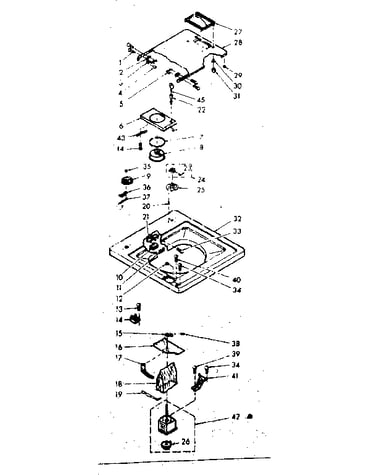

Top and control diagram
Lever
Part #21018
Replaced by #WP691581
?
Manufacturer substitution
This part replaces 21018. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
#2

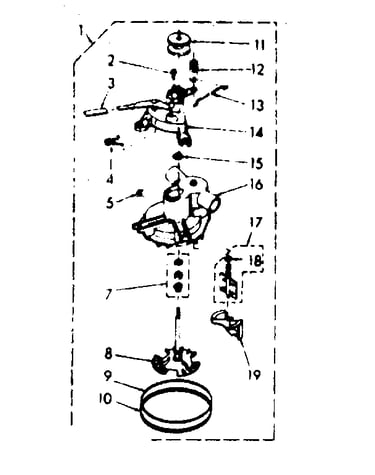

Pump assembly diagram
Screw
Part #97787
Replaced by #WPW10109200
?
Manufacturer substitution
This part replaces 97787. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#29
Top and control diagram
Bumper
Part #93770
Replaced by #WP9724509
?
Manufacturer substitution
This part replaces 93770. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#37
Machine sub-assembly diagram
Screw
Part #98062
Replaced by #WP3400516
?
Manufacturer substitution
This part replaces 98062. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#12
Top and control diagram
Washer lid hinge bearing
Part #21258
Replaced by #WP21258
?
Manufacturer substitution
This part replaces 21258. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#22
Gearcase/transmission diagram
Shaft seal
Part #91939
Replaced by #WP91939
?
Manufacturer substitution
This part replaces 91939. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
#16
Machine sub-assembly diagram
Filter washer
Part #21092
Replaced by #285452A
?
Manufacturer substitution
This part replaces 21092. Substitute parts can look different from the original.
This item is not returnable
$5.66 |
15% OFF Phone Price : $6.66
In Stock
