Craftsman
Walk-Behind Mower

Model # 131881700 Official Craftsman 42" power-propelled heavy-duty lawn mower

Here are the diagrams and repair parts for Official Craftsman 131881700 42" power-propelled heavy-duty lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

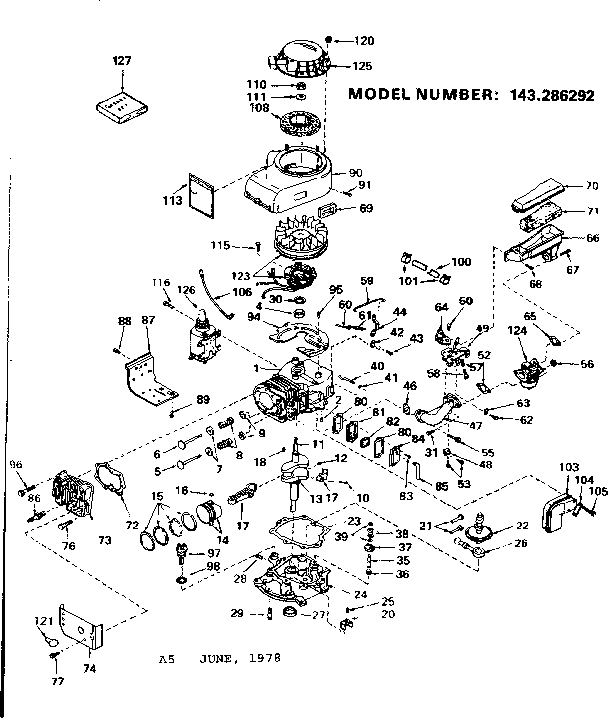

  View engine

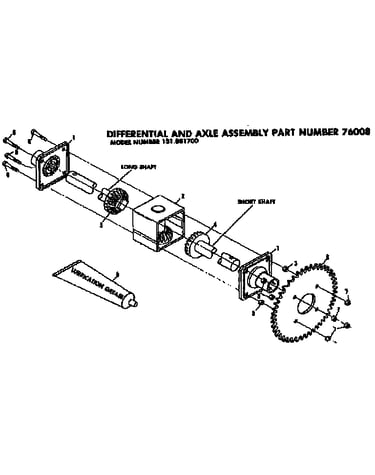

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 388 parts  |
Washer 61537
#49

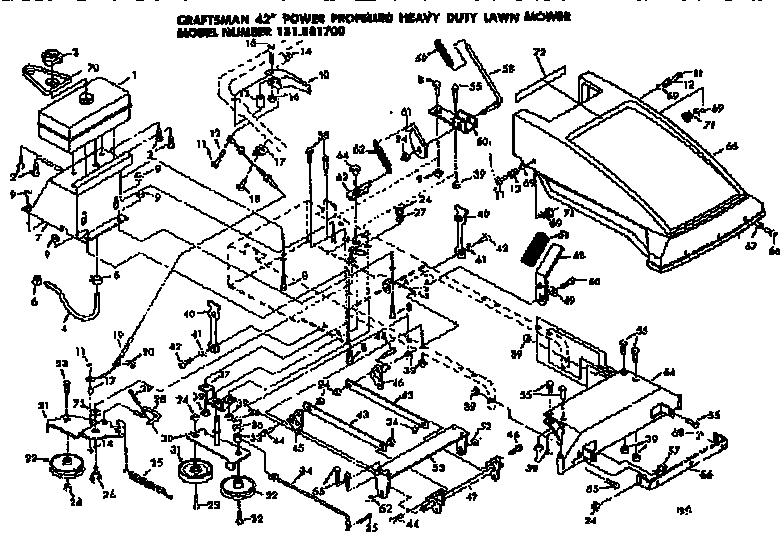

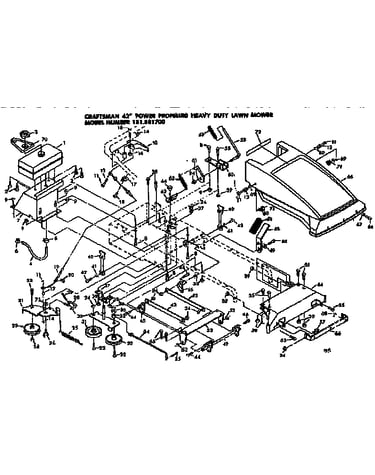

Shroud and fuel tank assembly diagram

Washer

Part #61537

Replaced by #596134901

?
Manufacturer substitution
This part replaces 61537. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn & Garden Equipment Washer 52784
#41

Shroud and fuel tank assembly diagram

Lawn & garden equipment washer

Part #52784

Replaced by #819061216

?
Manufacturer substitution
This part replaces 52784. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Push Nut 76257
#26

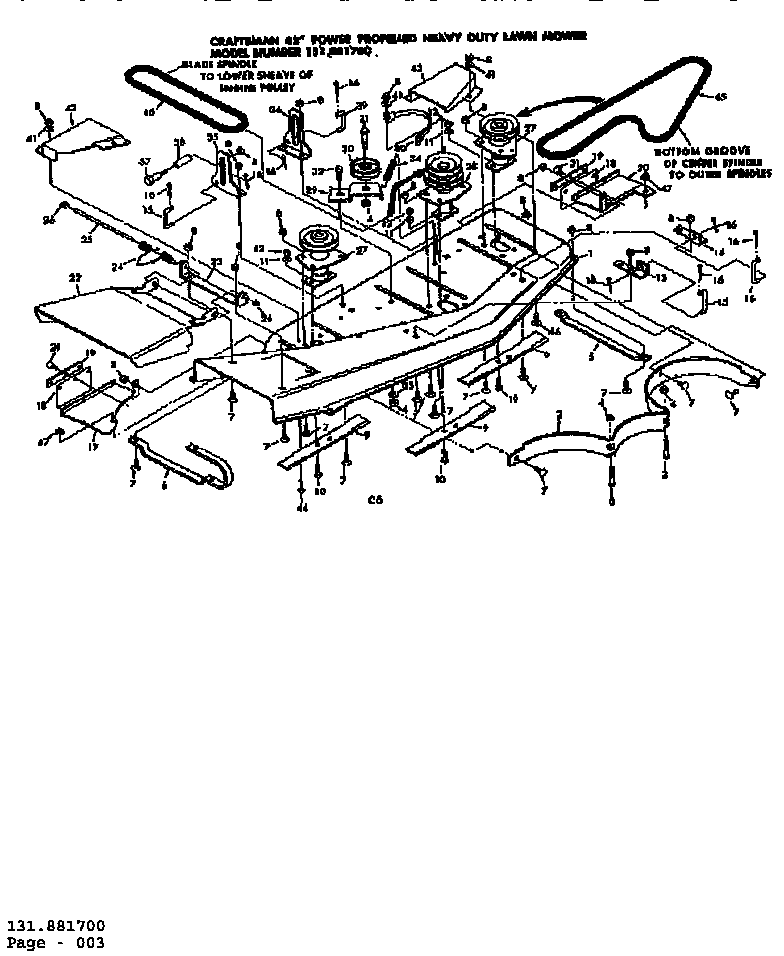

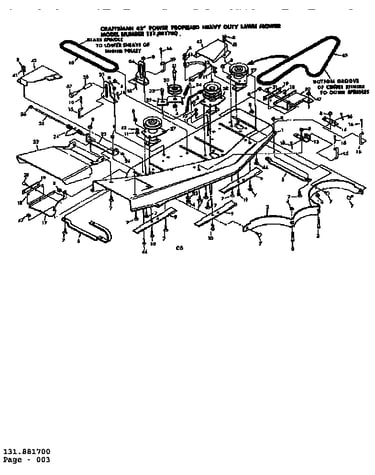

Blade spindle assembly diagram

Push nut

Part #76257

Replaced by #532110452

?
Manufacturer substitution
This part replaces 76257. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Bolt 59476
#7

Blade spindle assembly diagram

Bolt

Part #59476

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 69180
#14

Shroud and fuel tank assembly diagram

Lock nut

Part #69180

Replaced by #532069180

?
Manufacturer substitution
This part replaces 69180. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
V-belt 76274
#46

Blade spindle assembly diagram

V-belt

Part #76274

Replaced by #532138399

?
Manufacturer substitution
This part replaces 76274. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$44.99 |
12% OFF Phone Price : $50.99
In Stock
Bolt 58714
#3

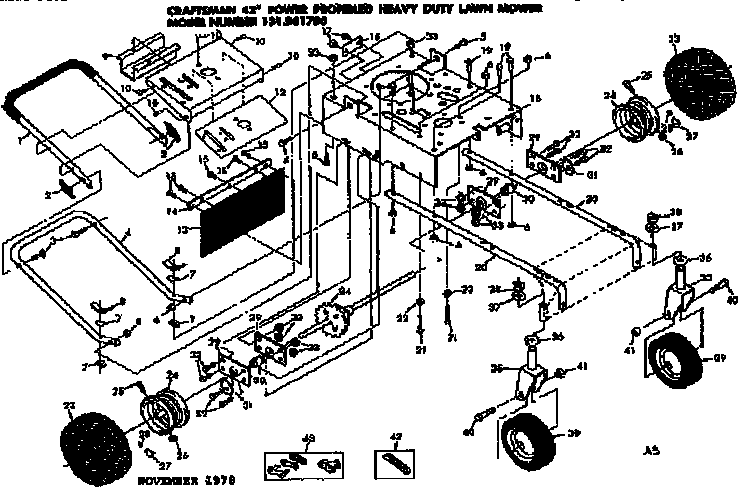

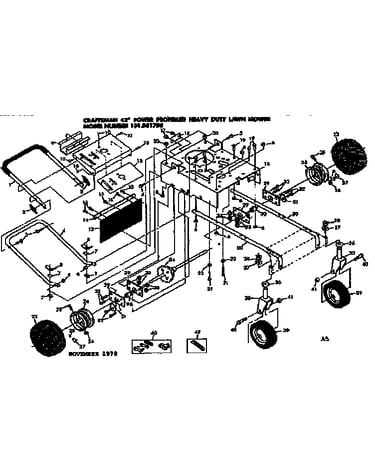

Decal control panel diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Wing Nut 76293
#8

Decal control panel diagram

Wing nut

Part #76293

Replaced by #532183724

?
Manufacturer substitution
This part replaces 76293. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Handle Knob 58715
#2

Decal control panel diagram

Handle knob

Part #58715

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58715. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Screw 78158
#39

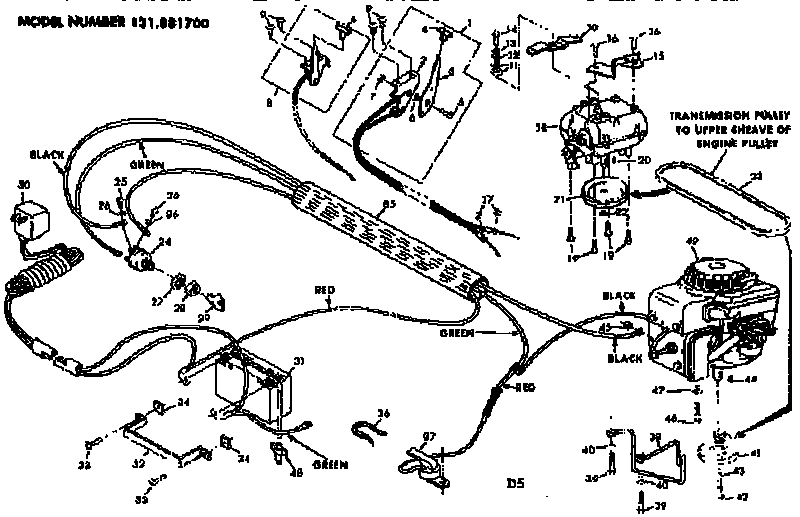

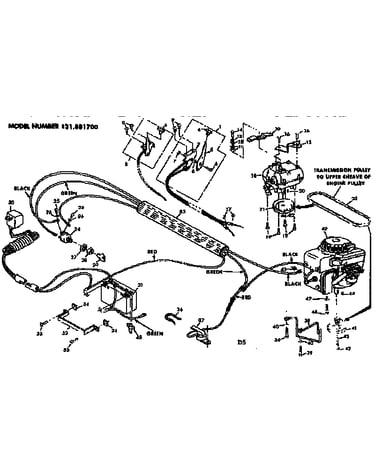

Wire harness diagram

Screw

Part #78158

Replaced by #817580520

?
Manufacturer substitution
This part replaces 78158. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
