Model # 867745980 Official Kenmore oil-fired horizontal furnace
Here are the diagrams and repair parts for Official Kenmore 867745980 oil-fired horizontal furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867745980 Oil-Fired Horizontal Furnace
#20B

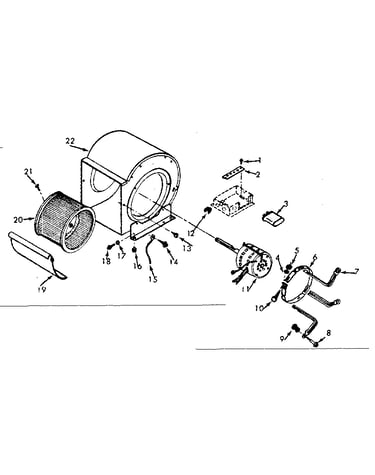

Blower assembly diagram
Furnace blower fan wheel
Part #601210
$217.38
In Stock
#16

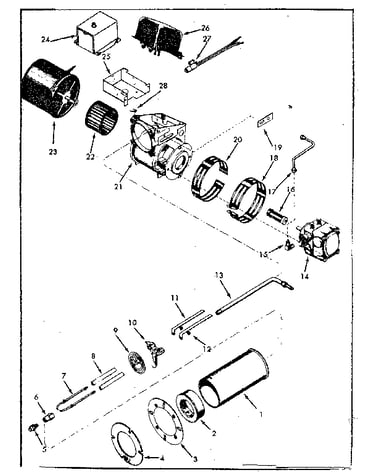

Burner assembly diagram
Coupling
Part #610466
$31.62
In Stock
#11
Blower assembly diagram
Motor
Part #604005
$928.46
In Stock
#20A
Blower assembly diagram
Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)
Part #600587
$130.20 |
8% OFF Phone Price : $142.20
In Stock
#NI
All parts diagram
Transformer
Part #608260
Replaced by #8A94-51
?
Manufacturer substitution
This part replaces 608260. Substitute parts can look different from the original.
$30.49
In Stock
#8
Blower assembly diagram
Screw
Part #609206
Replaced by #1050254
?
Manufacturer substitution
This part replaces 609206. Substitute parts can look different from the original.
$125.18
In Stock
#49

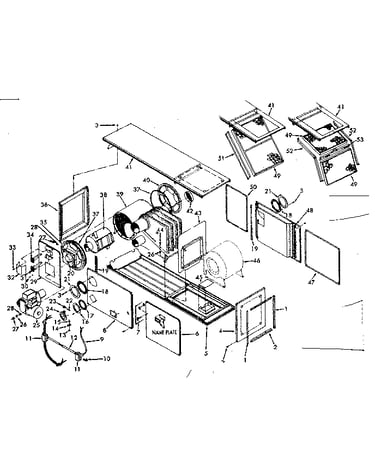

Functional replacement parts diagram
Air filter
Part #64502
The manufacturer no longer makes this part, and there's no substitute part
#7
Burner assembly diagram
Stem
Part #638038
The manufacturer no longer makes this part, and there's no substitute part
#9
Blower assembly diagram
Grommet
Part #609194
Replaced by #1149537
?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
$34.96
In Stock
#NI
All parts diagram
Wire label
Part #606611
The manufacturer no longer makes this part, and there's no substitute part
