Frigidaire Range Coil Surface Element, 8-in (re...
Part #316442301

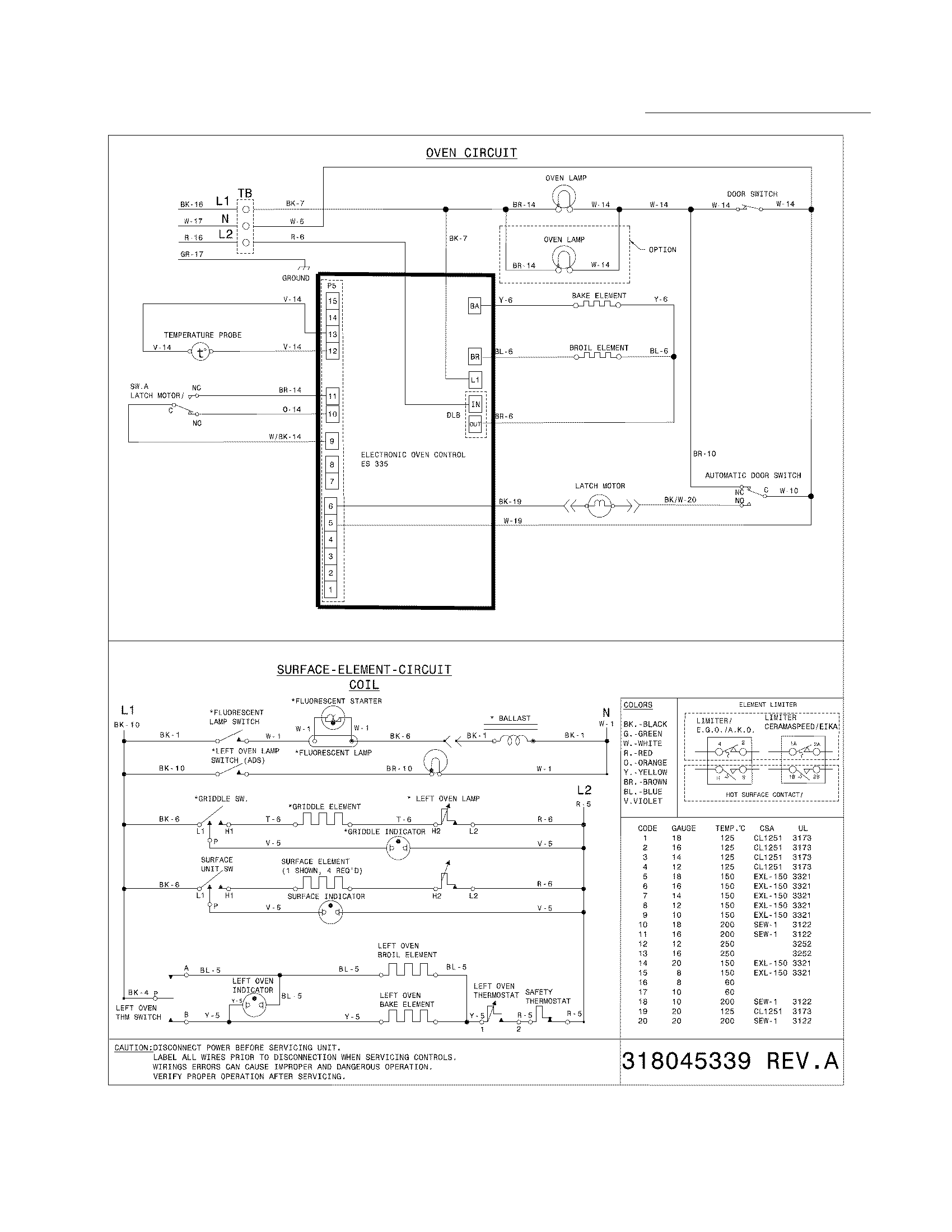

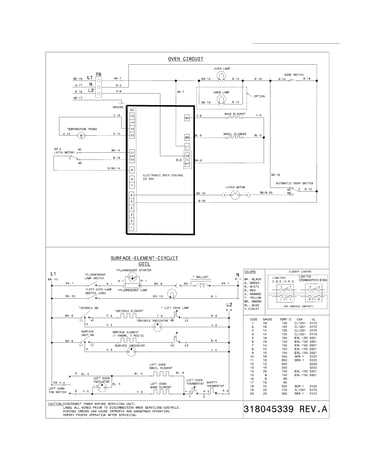

Here are the diagrams and repair parts for Official Frigidaire FFEF4015LWC electric range, as well as links to manuals and error code tables, if available.

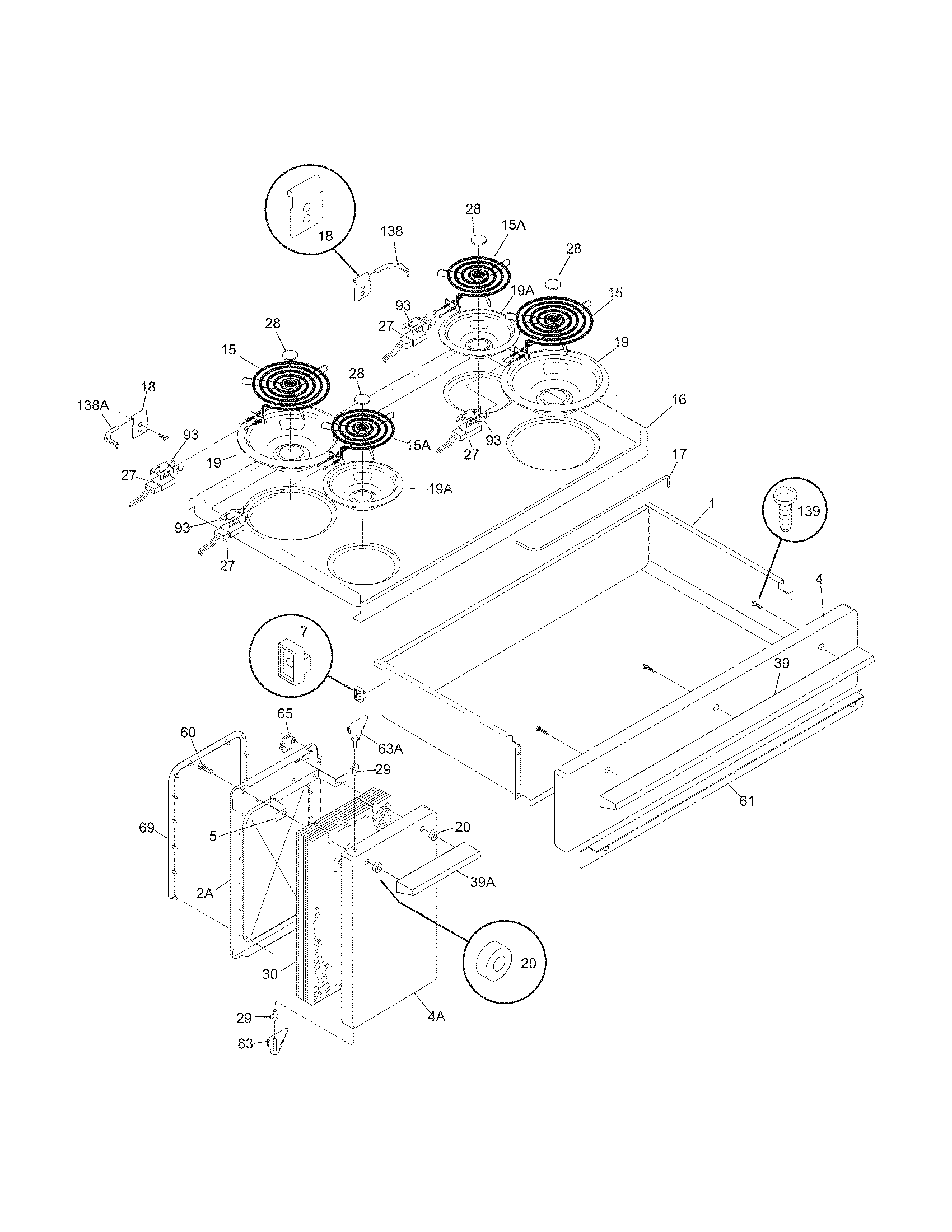

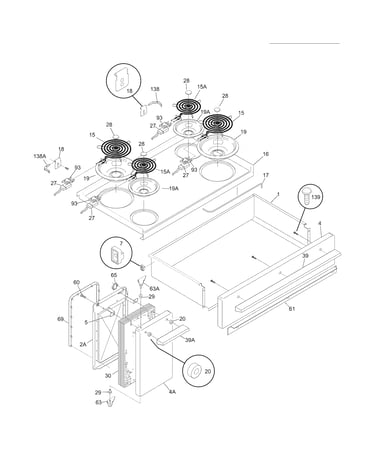

Top/drawer/small door diagram
Part #316442301

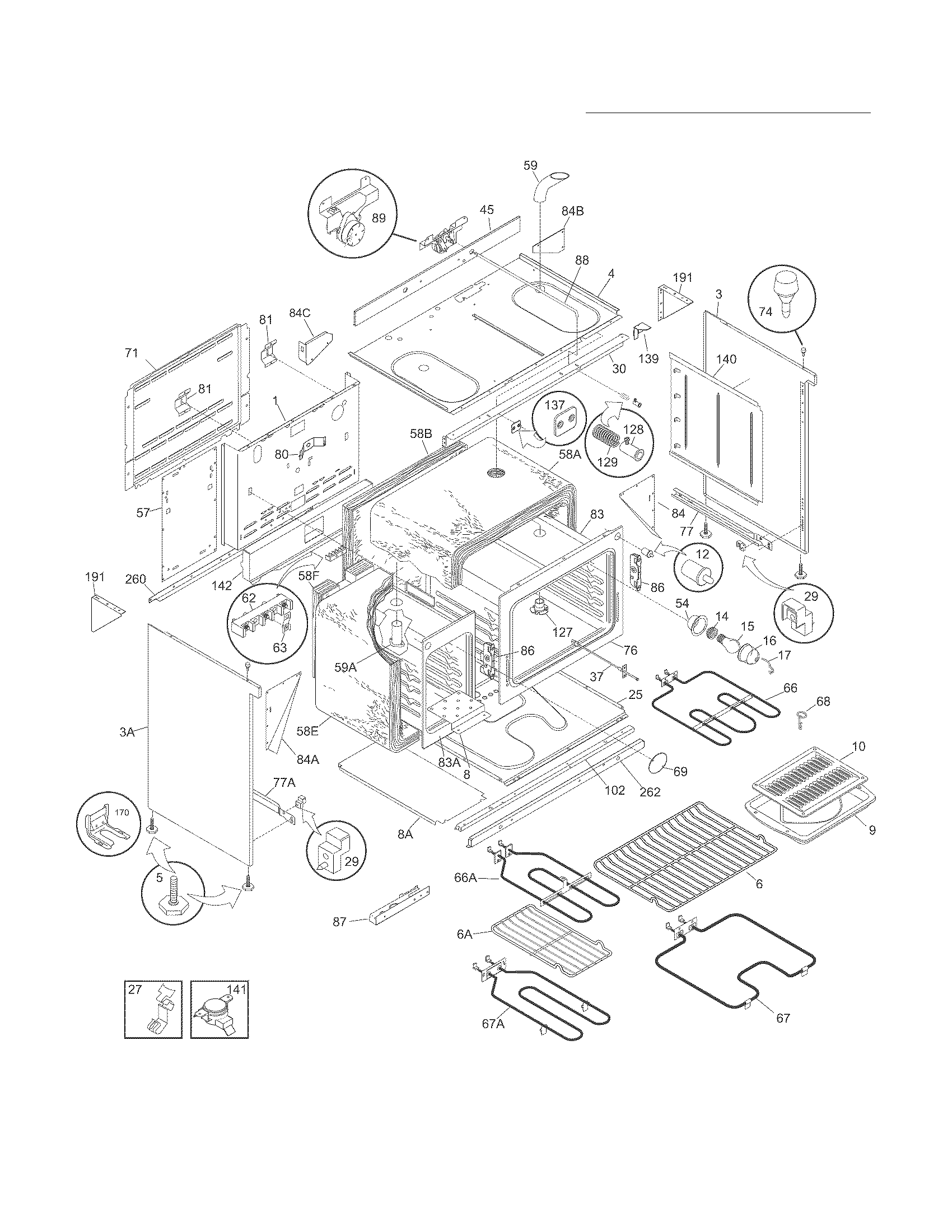

Body diagram
Part #318562500
Replaced by #5304525427
Body diagram
Part #318255006
Body diagram
Part #318406100
Replaced by #5304524341

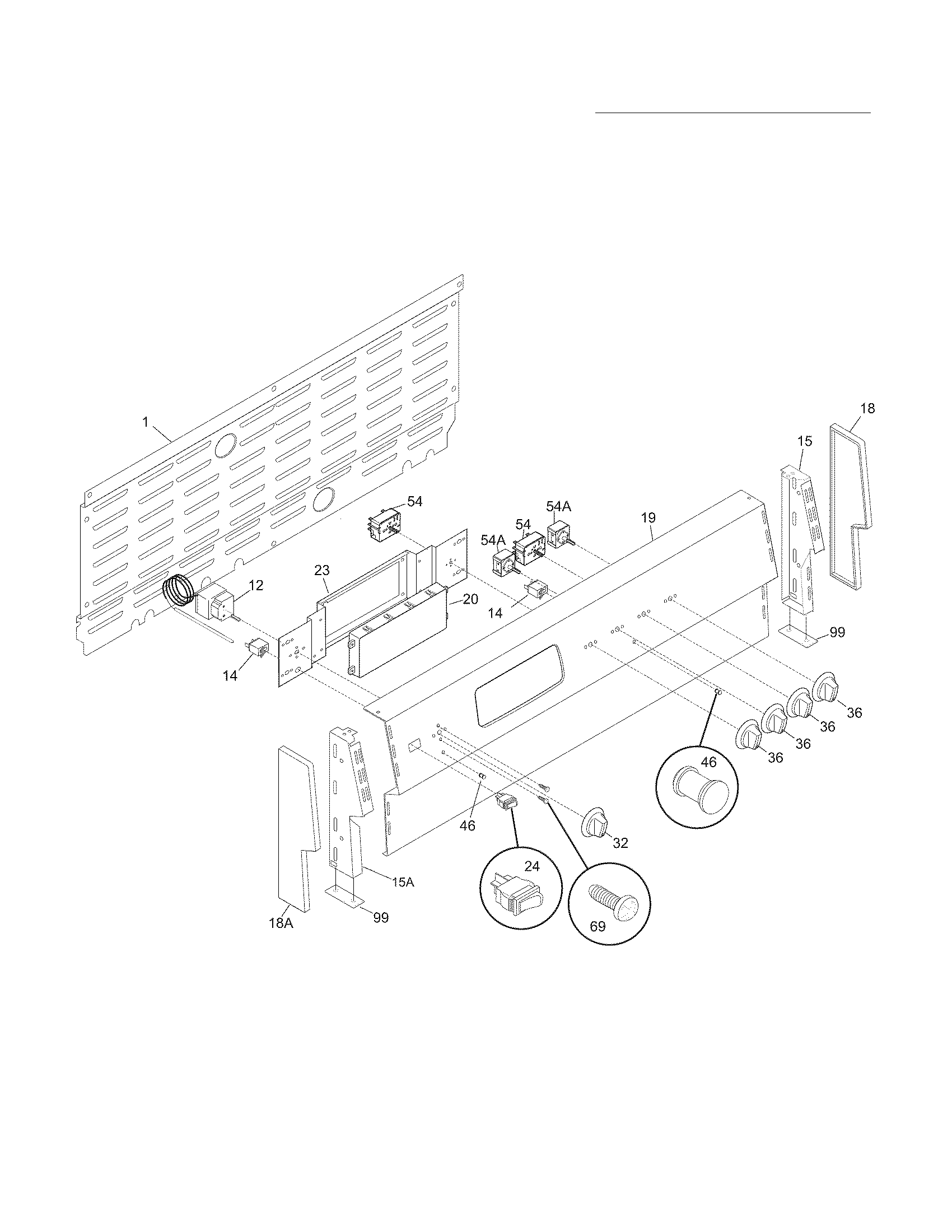

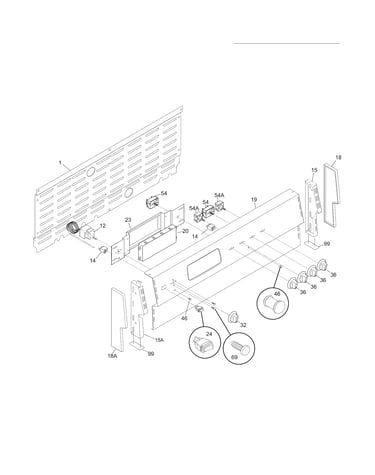

Backguard diagram
Part #5303323134
Replaced by #5303288565
Body diagram
Part #318394803
Backguard diagram
Part #318293820

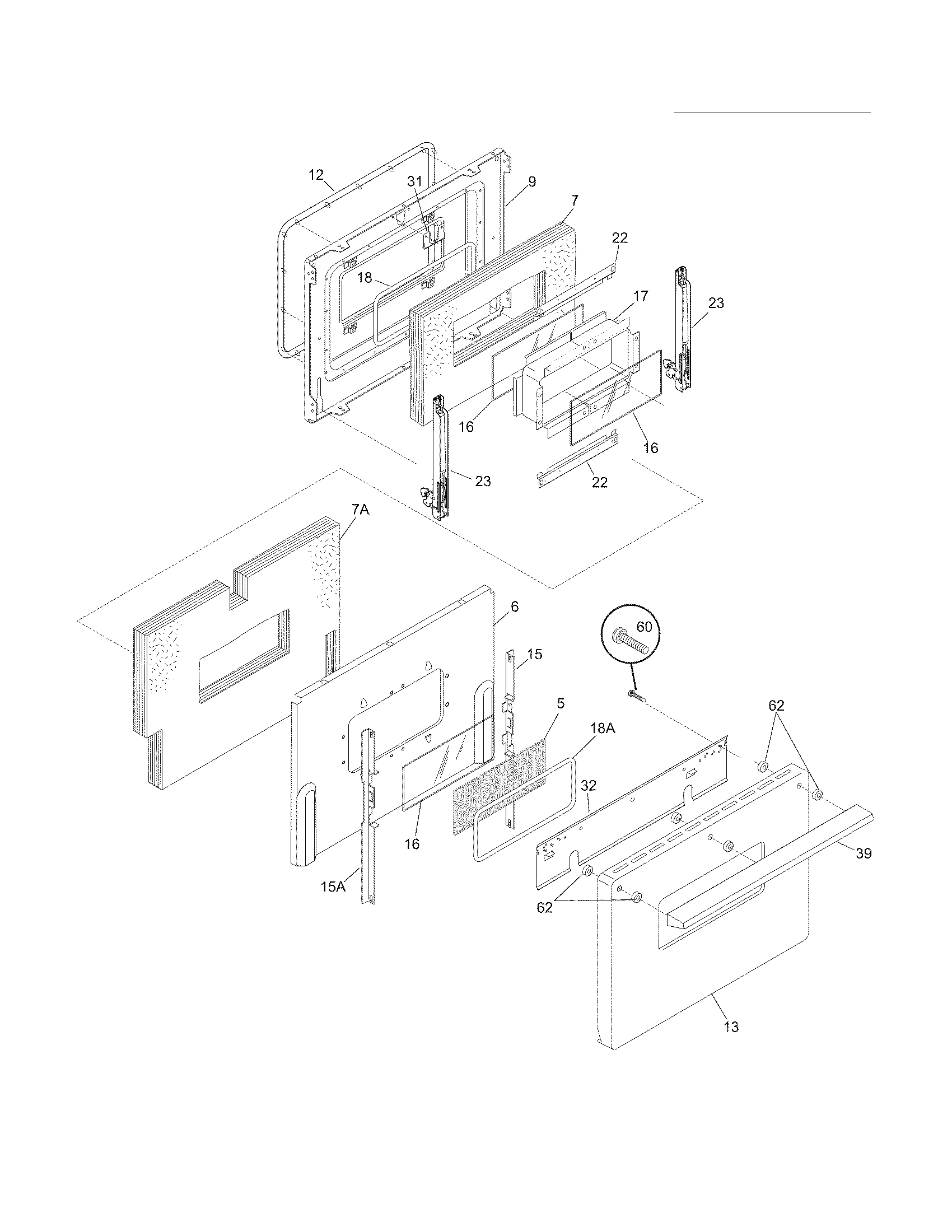

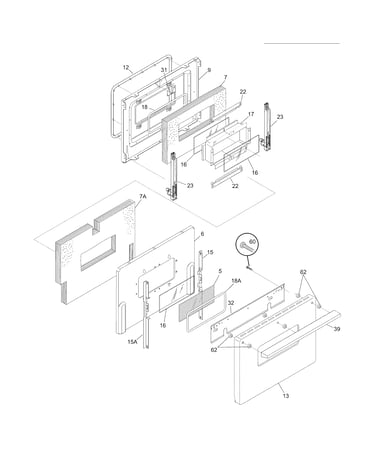

Oven door diagram
Part #318053103
Body diagram
Part #318255201
Top/drawer/small door diagram
Part #5303017715
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
