Model # LT700LXW1 Official White-Westinghouse tumble action washer - lw31289030

Here are the diagrams and repair parts for Official White-Westinghouse LT700LXW1 tumble action washer - lw31289030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

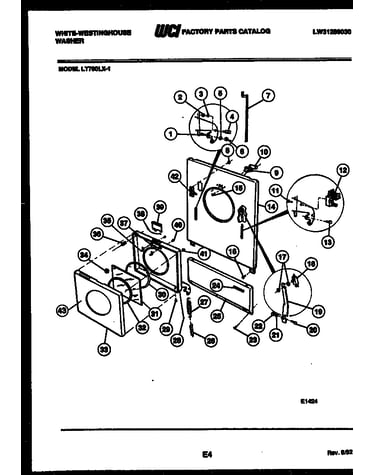

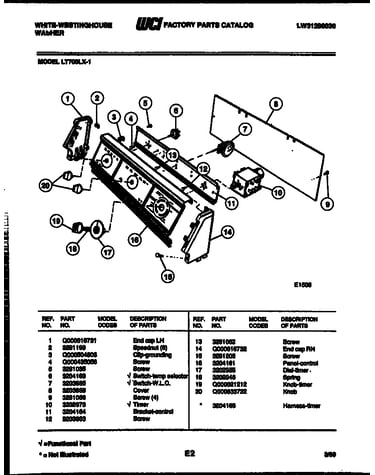

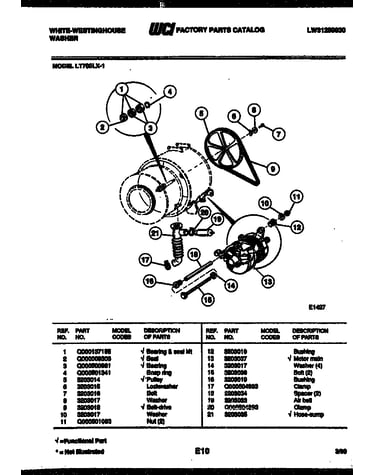

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 198 parts  |
Washer Q000412501
#11

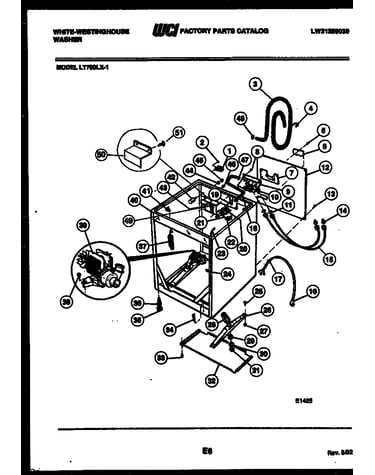

Cabinet parts diagram

Washer

Part #Q000412501

Replaced by #5303161296

?
Manufacturer substitution
This part replaces Q000412501. Substitute parts can look different from the original.
This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Washer Retainer Clip 3203010
#8

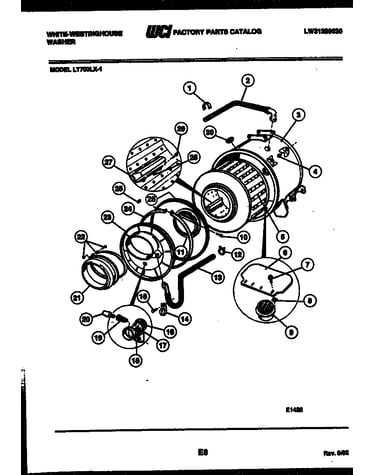

Tub and component parts diagram

Washer retainer clip

Part #3203010

$14.69
In Stock
Screw Q000414002
#17

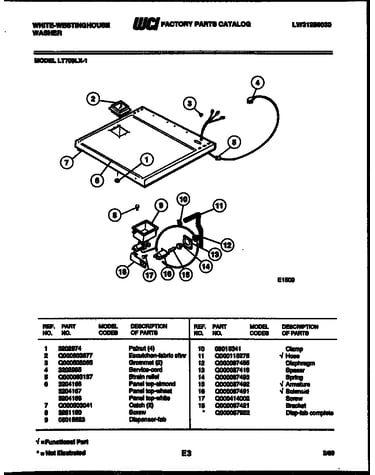

Top parts diagram

Screw

Part #Q000414002

This item is not returnable
$4.99
In Stock
Speed Nut 3261100
#28

Tub and component parts diagram

Speed nut

Part #3261100

This item is not returnable
$2.26
In Stock
Cover 3202982
#6

Cabinet parts diagram

Cover

Part #3202982

This item is not returnable
$2.99
In Stock
Nut Q000500831
Nut

Part #Q000500831

Replaced by #5308001876

?
Manufacturer substitution
This part replaces Q000500831. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Ring Q000172101
#4

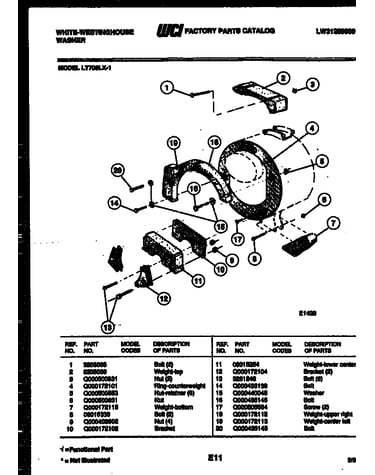

Counterweights diagram

Ring

Part #Q000172101

Replaced by #08015249

?
Manufacturer substitution
This part replaces Q000172101. Substitute parts can look different from the original.
$46.99
In Stock
Washer Q000019801
#14

Cabinet parts diagram

Washer

Part #Q000019801

Replaced by #5300019801

?
Manufacturer substitution
This part replaces Q000019801. Substitute parts can look different from the original.
This item is not returnable
$2.49
In Stock
Clamp Q000504893
Clamp

Part #Q000504893

Replaced by #5303161404

?
Manufacturer substitution
This part replaces Q000504893. Substitute parts can look different from the original.
This item is not returnable
$2.91
In Stock
Clamp Q000504894
#12

Tub and component parts diagram

Clamp

Part #Q000504894

Replaced by #08015373

?
Manufacturer substitution
This part replaces Q000504894. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
