Model # CAH4205AWW Official Crosley washer

Here are the diagrams and repair parts for Official Crosley CAH4205AWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

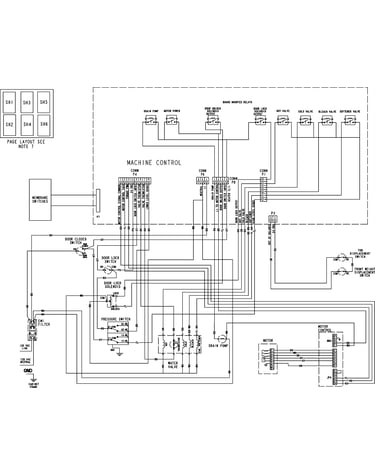

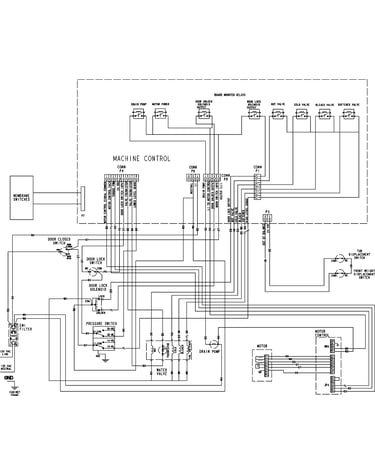

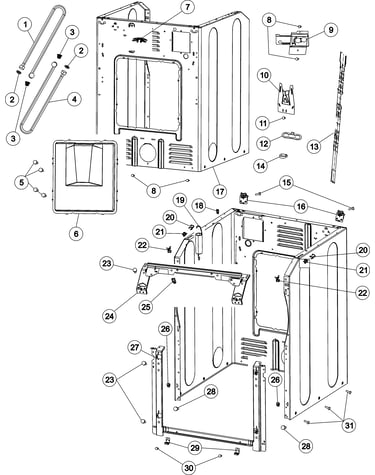

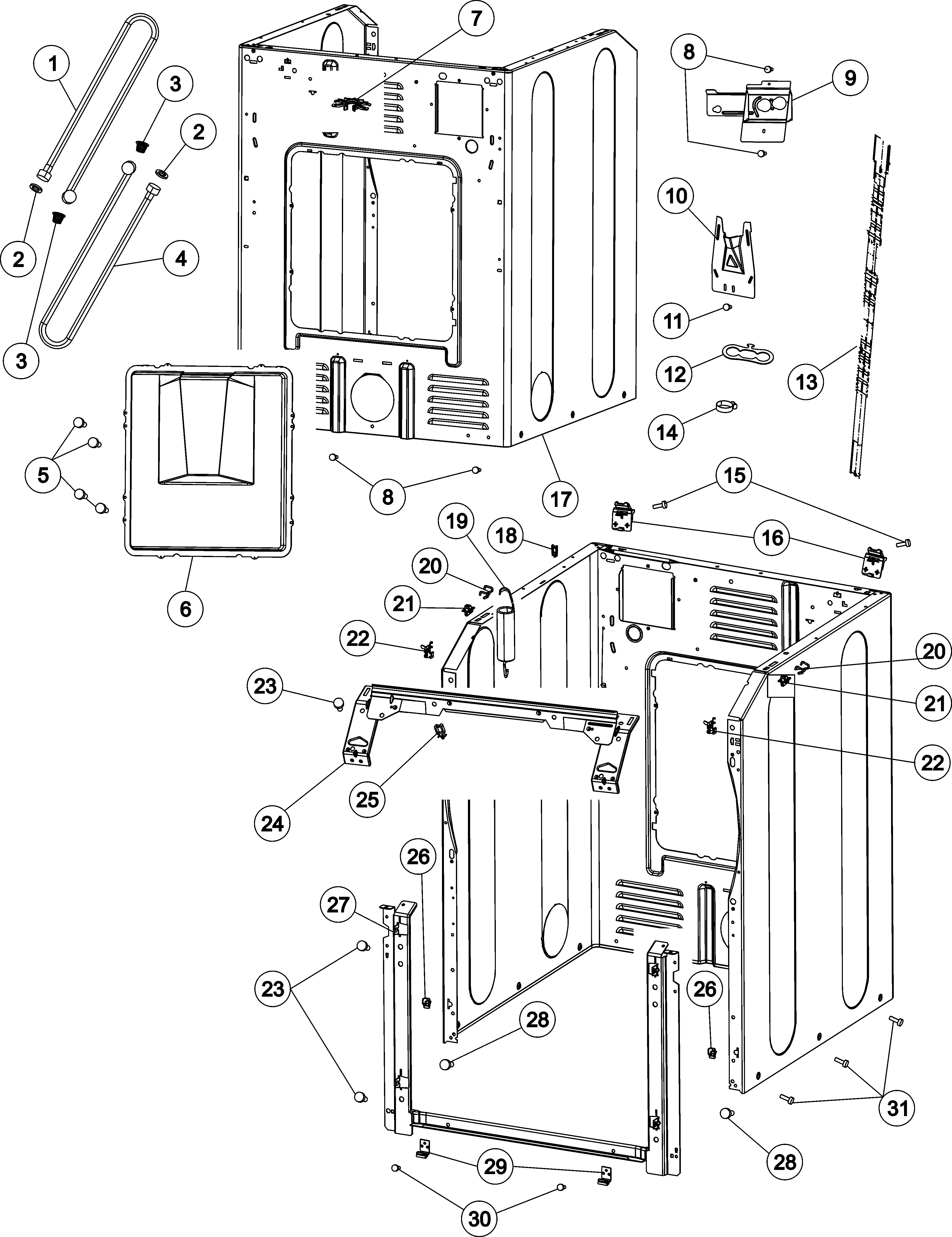

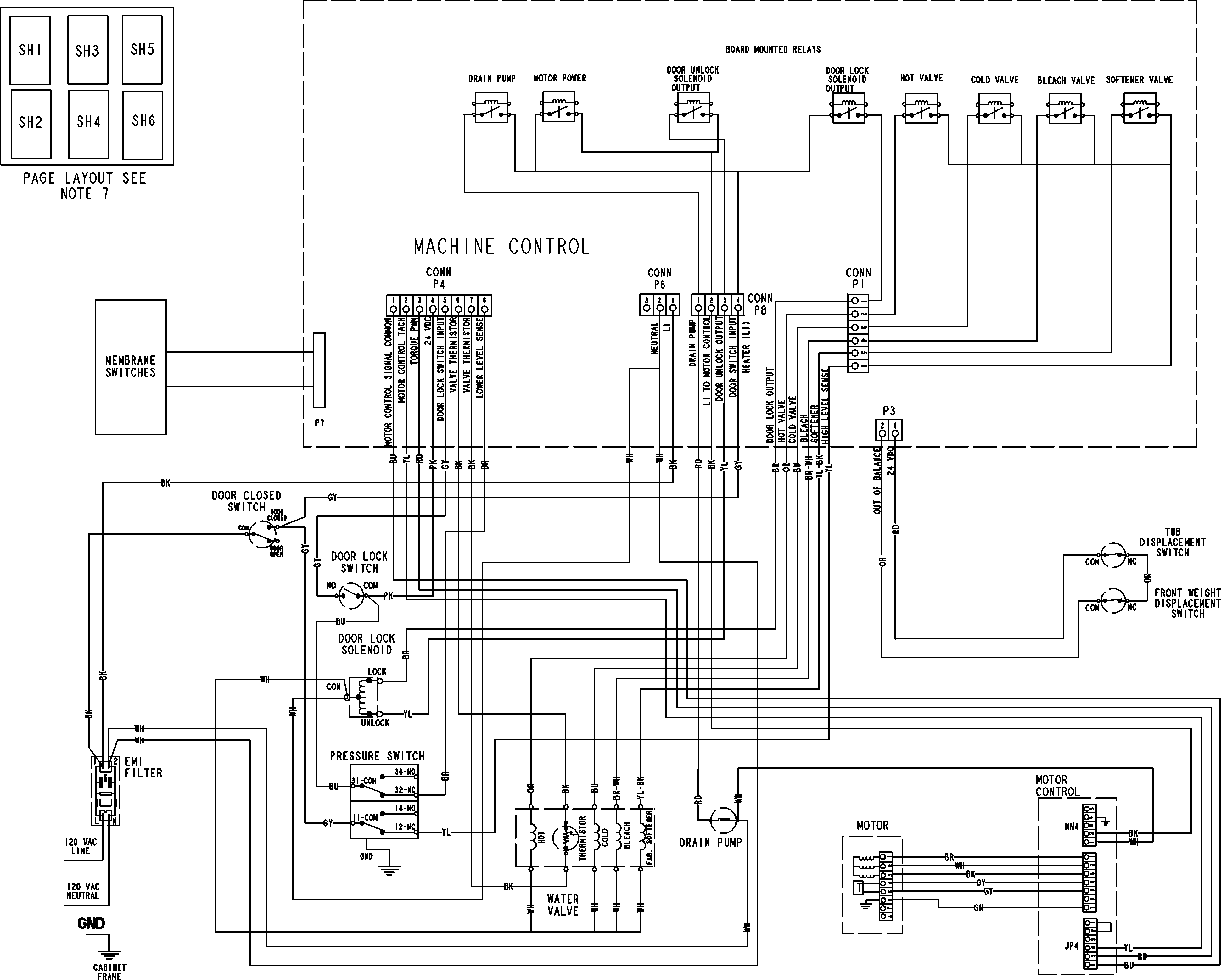

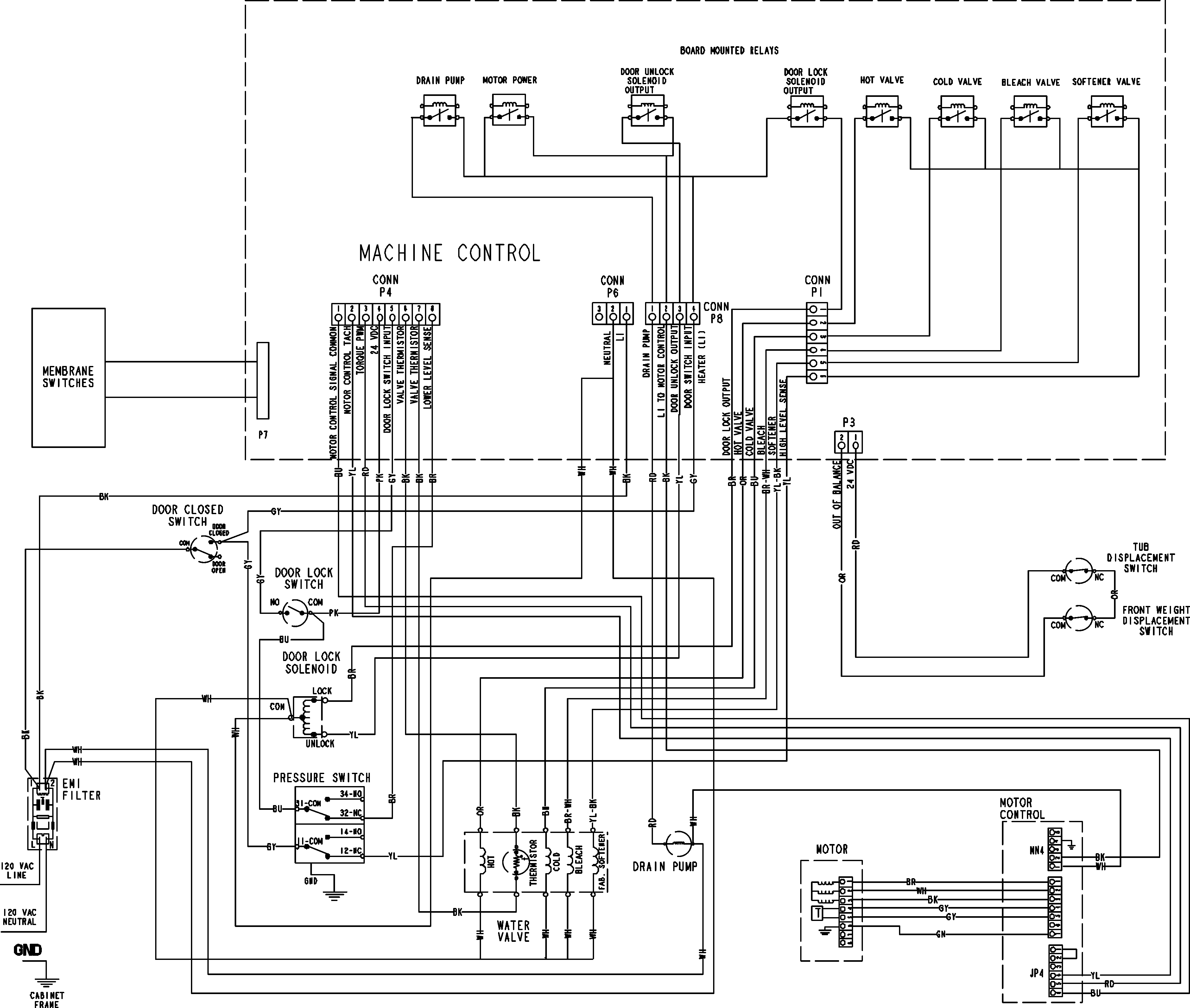

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Hose Clamp 22003073
#2

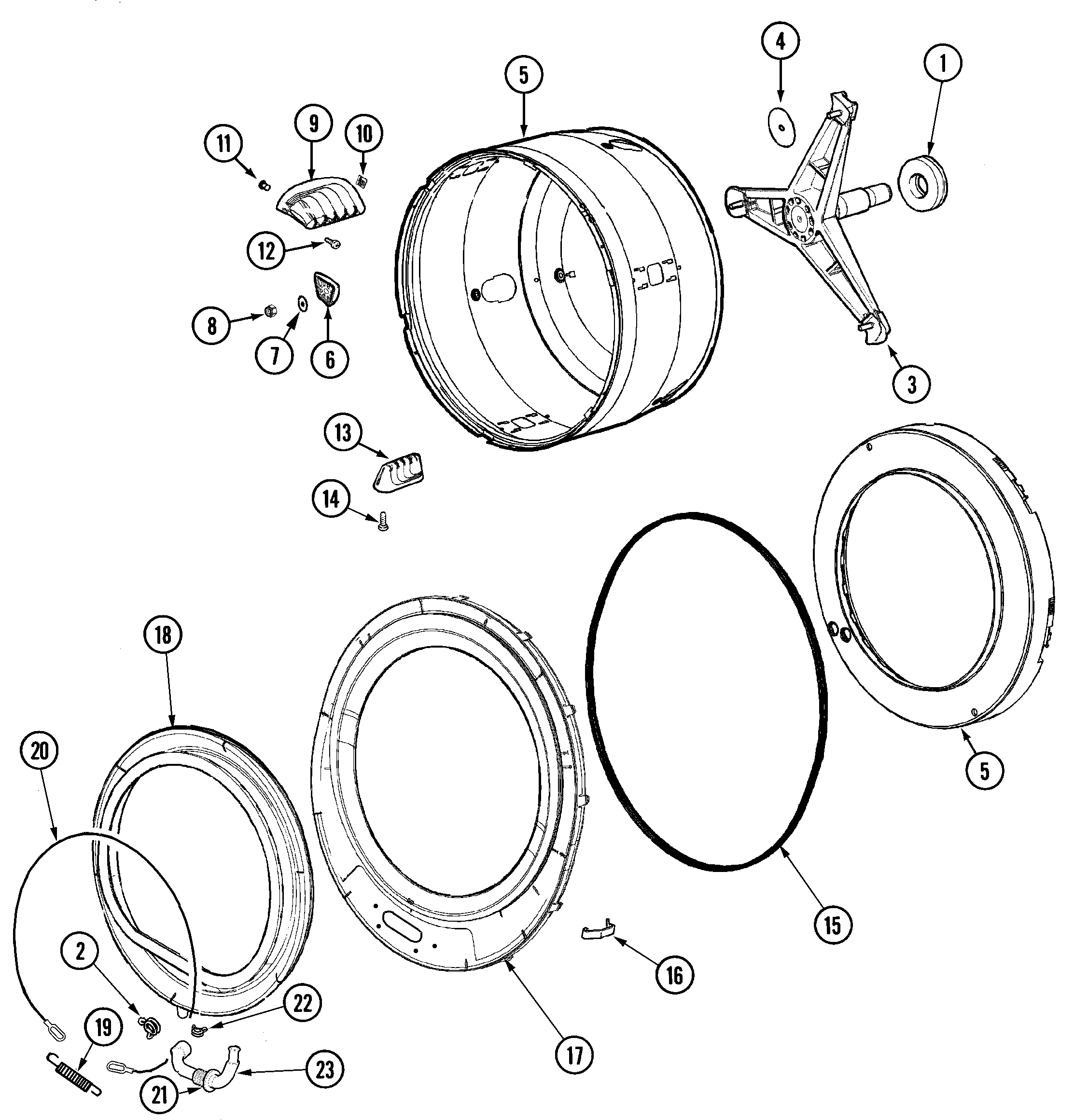

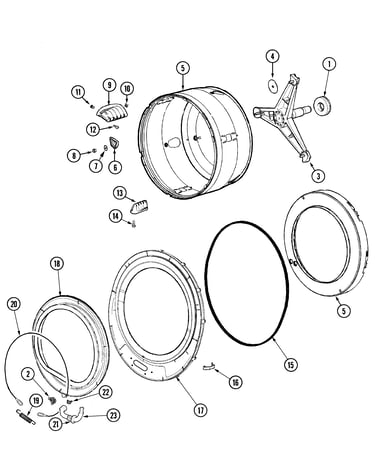

Spinner assy & outer tub cover diagram

Hose clamp

Part #22003073

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22003073. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Drain Hose Clamp 22003072
#22

Spinner assy & outer tub cover diagram

Dishwasher drain hose clamp

Part #22003072

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 22003072. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 202515
#7

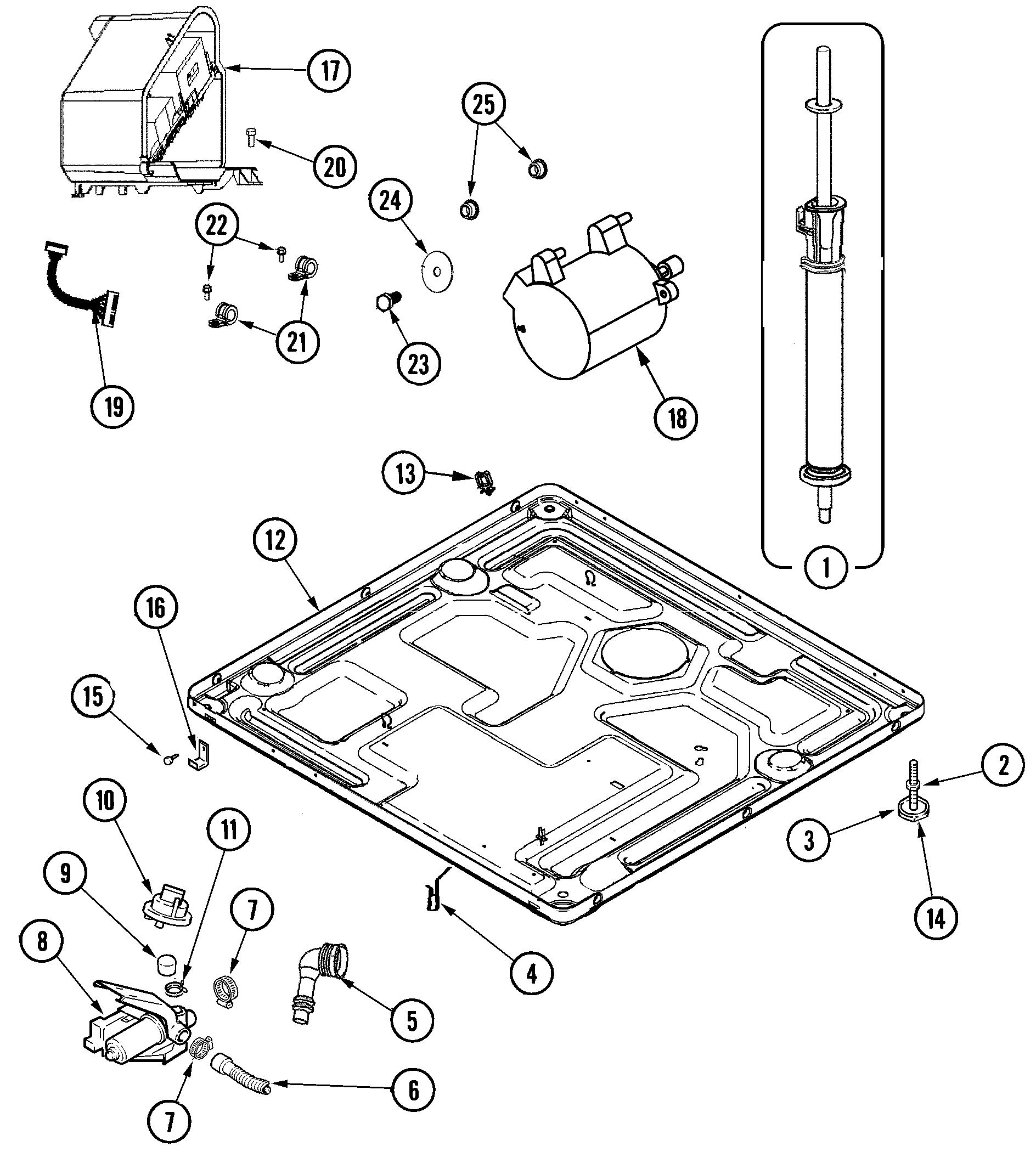

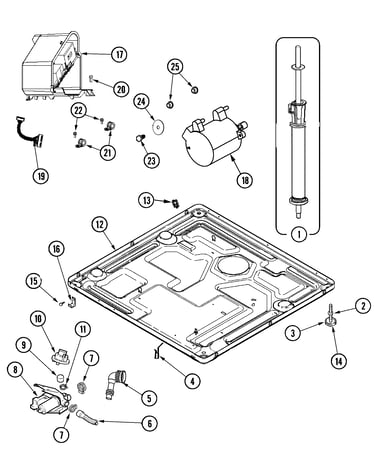

Base with motor diagram

Hose clamp

Part #202515

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 202515. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Screw 22001995
Washer screw

Part #22001995

Replaced by #W11573574

?
Manufacturer substitution
This part replaces 22001995. Substitute parts can look different from the original.
BEST SELLER
$11.78
In Stock
Washer Drain Pump 25001052
#8

Base with motor diagram

Washer drain pump

Part #25001052

Replaced by #WP25001052

?
Manufacturer substitution
This part replaces 25001052. Substitute parts can look different from the original.
BEST SELLER
$136.63 |
8% OFF Phone Price : $148.63
In Stock
Screw, Switc 22002517
#11

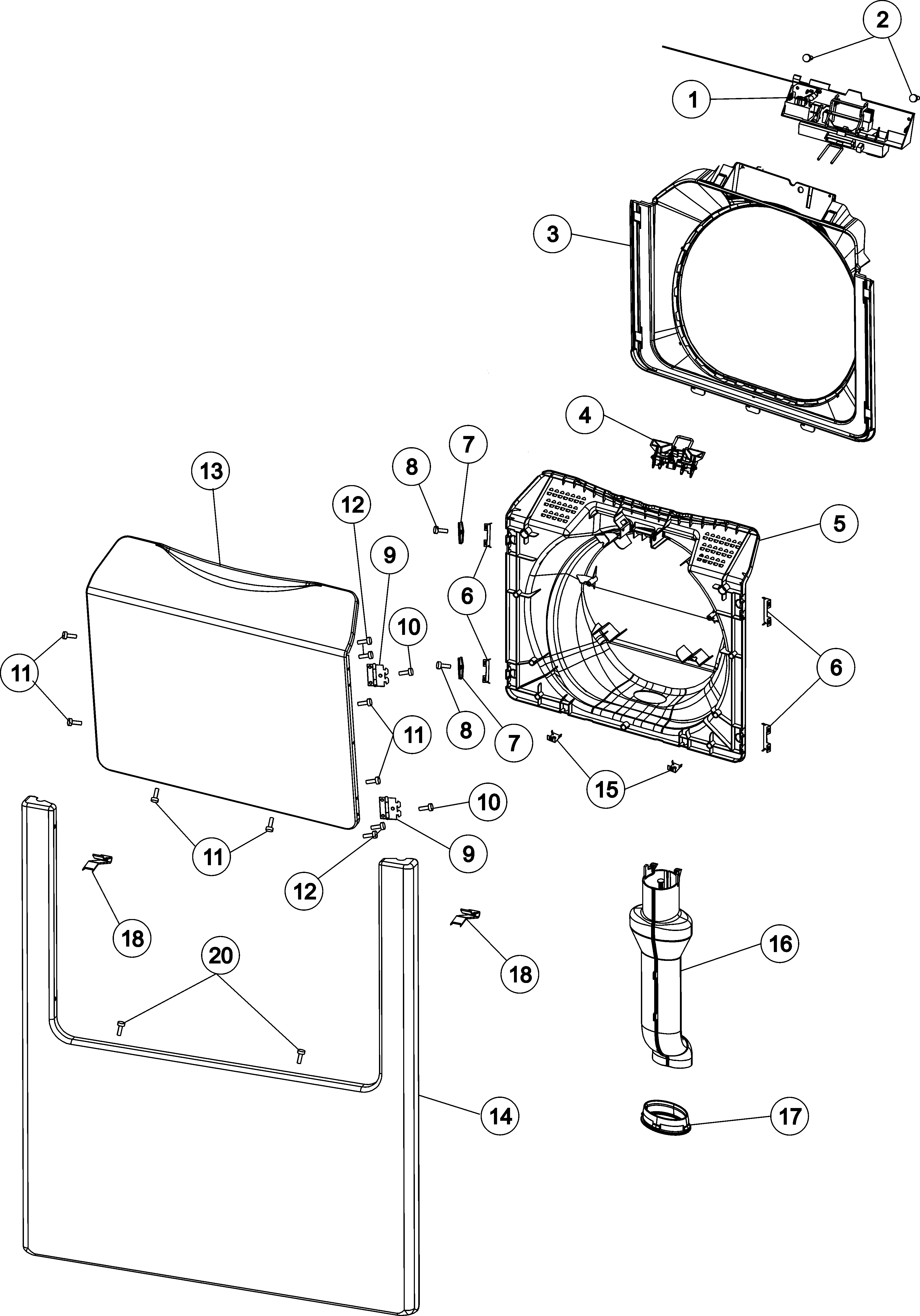

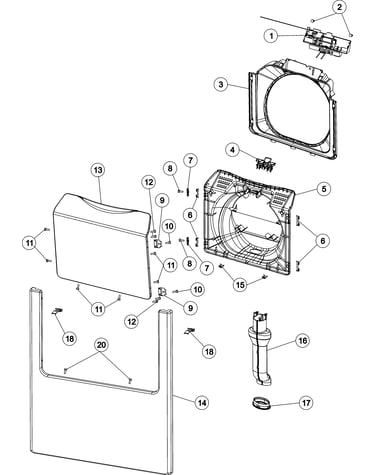

Front panel, door & shroud diagram

Screw, switc

Part #22002517

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 22002517. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Washer Water Inlet Valve With Thermistor 22003834
#18

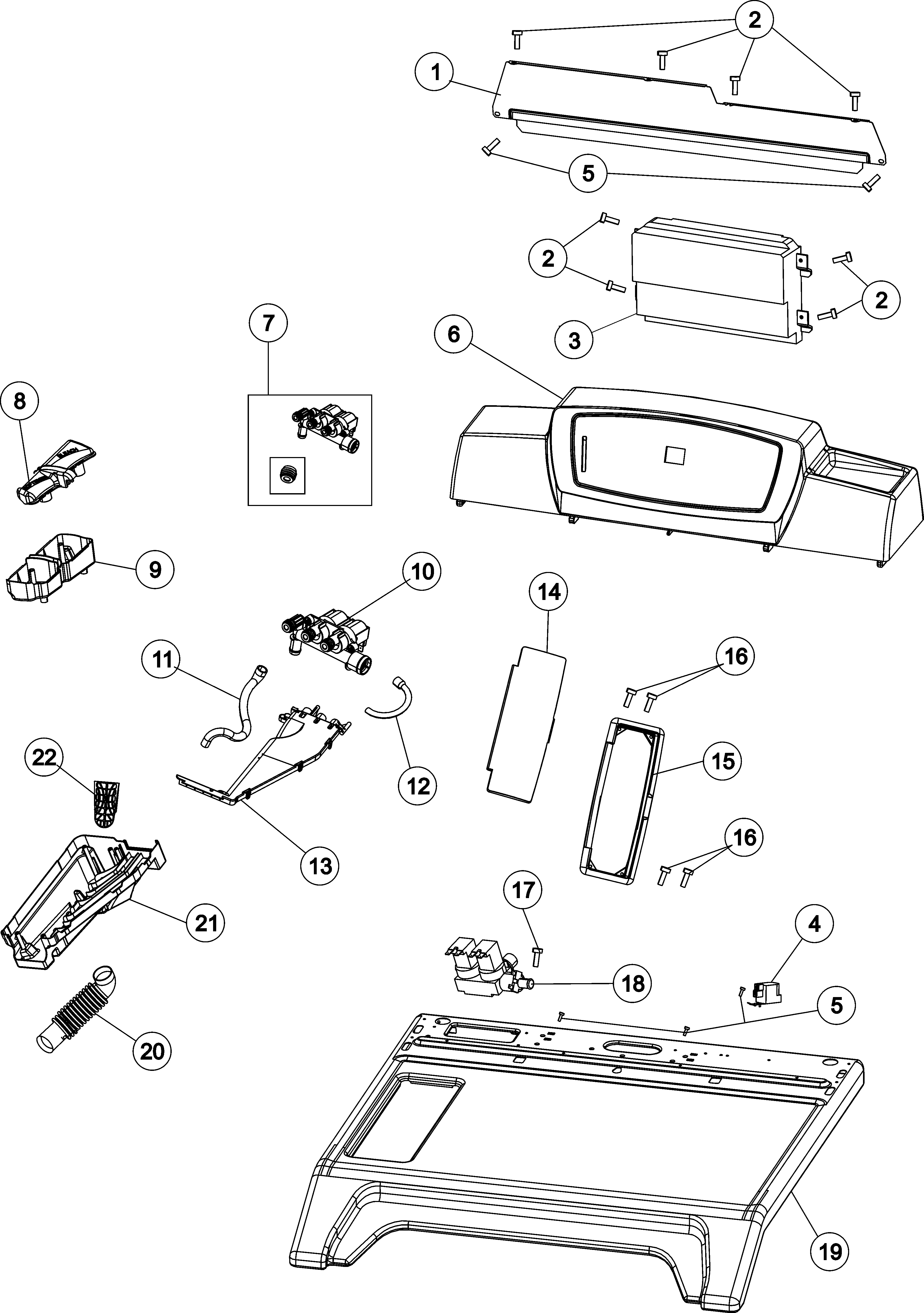

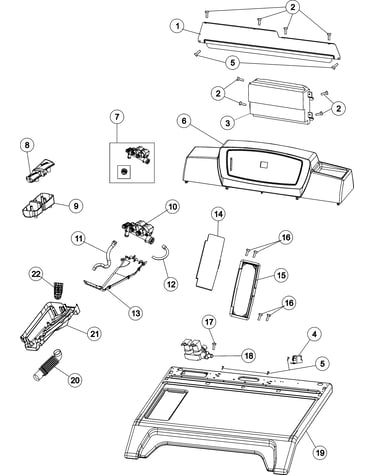

Control panel & top diagram

Washer water inlet valve with thermistor

Part #22003834

Replaced by #WP22003834

?
Manufacturer substitution
This part replaces 22003834. Substitute parts can look different from the original.
$106.91 |
10% OFF Phone Price : $118.91
In Stock
Sump Clamp 22002053
#22

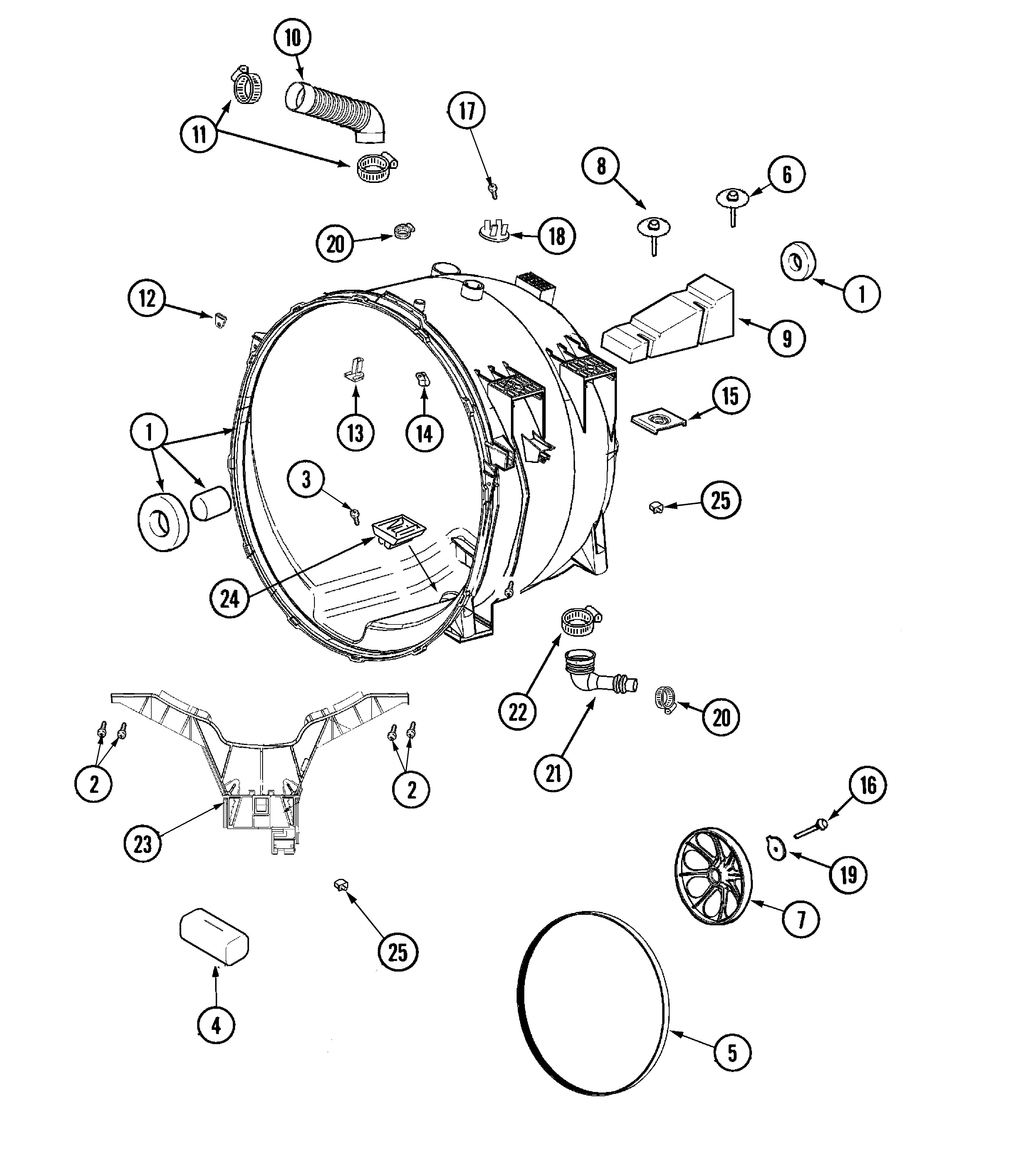

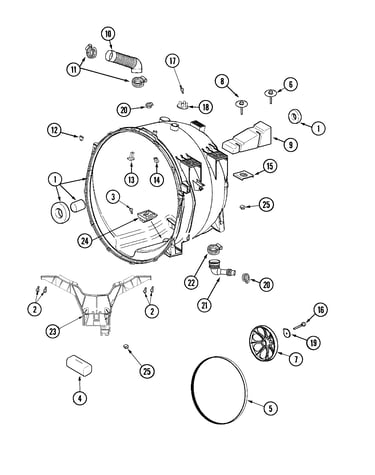

Outer tub diagram
