Hotpoint
Upright Freezer

Model # HUF13STRCWW Official Hotpoint upright freezer

Here are the diagrams and repair parts for Official Hotpoint HUF13STRCWW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Cplg1/4-5/32 WR97X10033
#7001

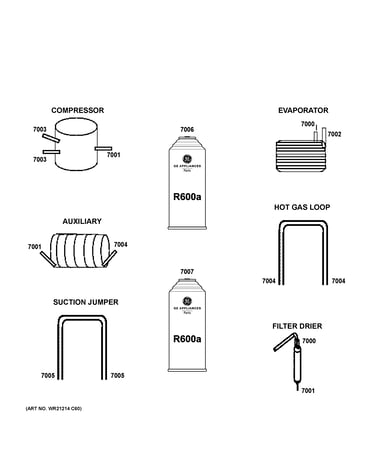

Lokring connectors diagram

Cplg1/4-5/32

Part #WR97X10033

$31.76
In Stock
Br .335-1/4 WR97X10076
#7003

Lokring connectors diagram

Br .335-1/4

Part #WR97X10076

$35.09 |
15% OFF Phone Price : $41.09
In Stock
Main Control Board WR55X39814
#6

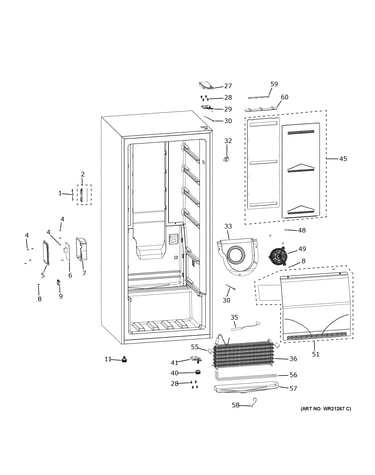

Cabinet diagram

Main control board

Part #WR55X39814

$181.02
In Stock
Door Bin WR71X40605
#61

Door diagram

Door bin

Part #WR71X40605

$75.84
In Stock
Evaporator WR87X39857
#36

Cabinet diagram

Evaporator

Part #WR87X39857

$197.62
In Stock
Drain Pan WR02X39848
#15

Machine compartment diagram

Drain pan

Part #WR02X39848

$42.24
In Stock
Wire Shelf - Bottom WR71X39864
#47

Shelves & drawers diagram

Wire shelf - bottom

Part #WR71X39864

$103.60
In Stock
Compressor Electrials Cover WR13X39858
#39

Machine compartment diagram

Compressor electrials cover

Part #WR13X39858

$24.51
In Stock
Door WR78X39876
#63

Door diagram

Door

Part #WR78X39876

$277.96
In Stock
Leveling Leg - Right WR01X39860
#40

Cabinet diagram

Leveling leg - right

Part #WR01X39860

$11.40
In Stock
