Electrolux
Electric Wall Oven

Model # EW30EW6CGS9 Official Electrolux wall oven

Here are the diagrams and repair parts for Official Electrolux EW30EW6CGS9 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

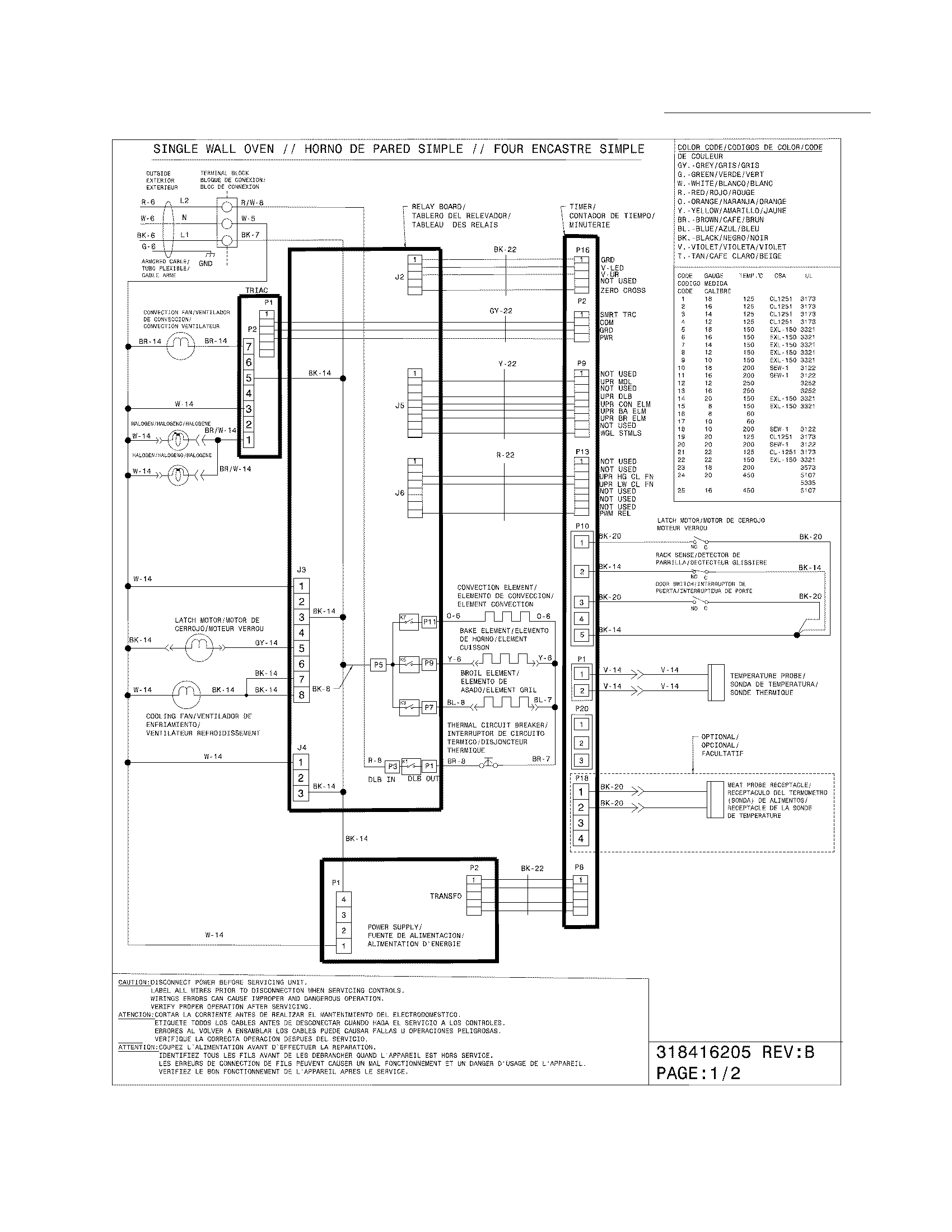

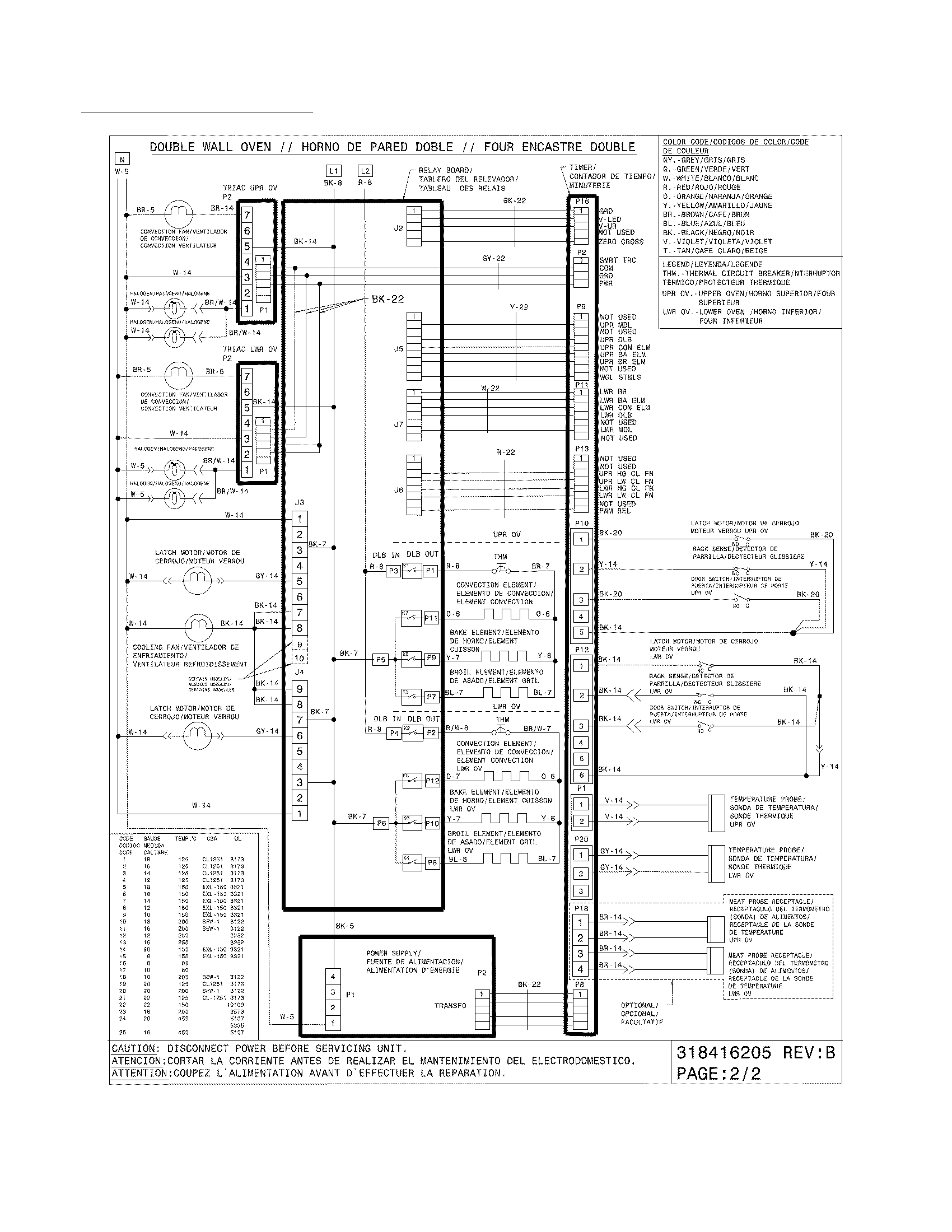

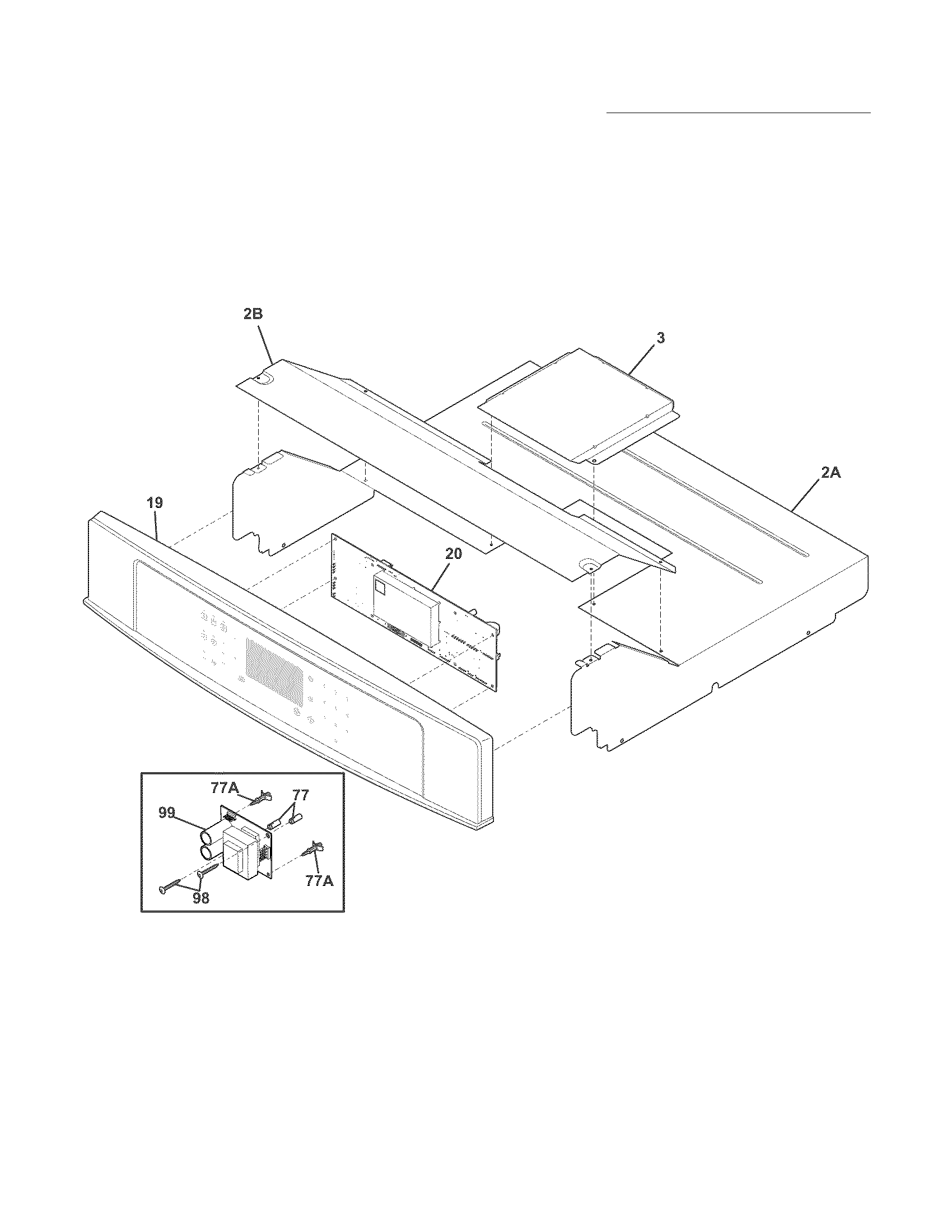

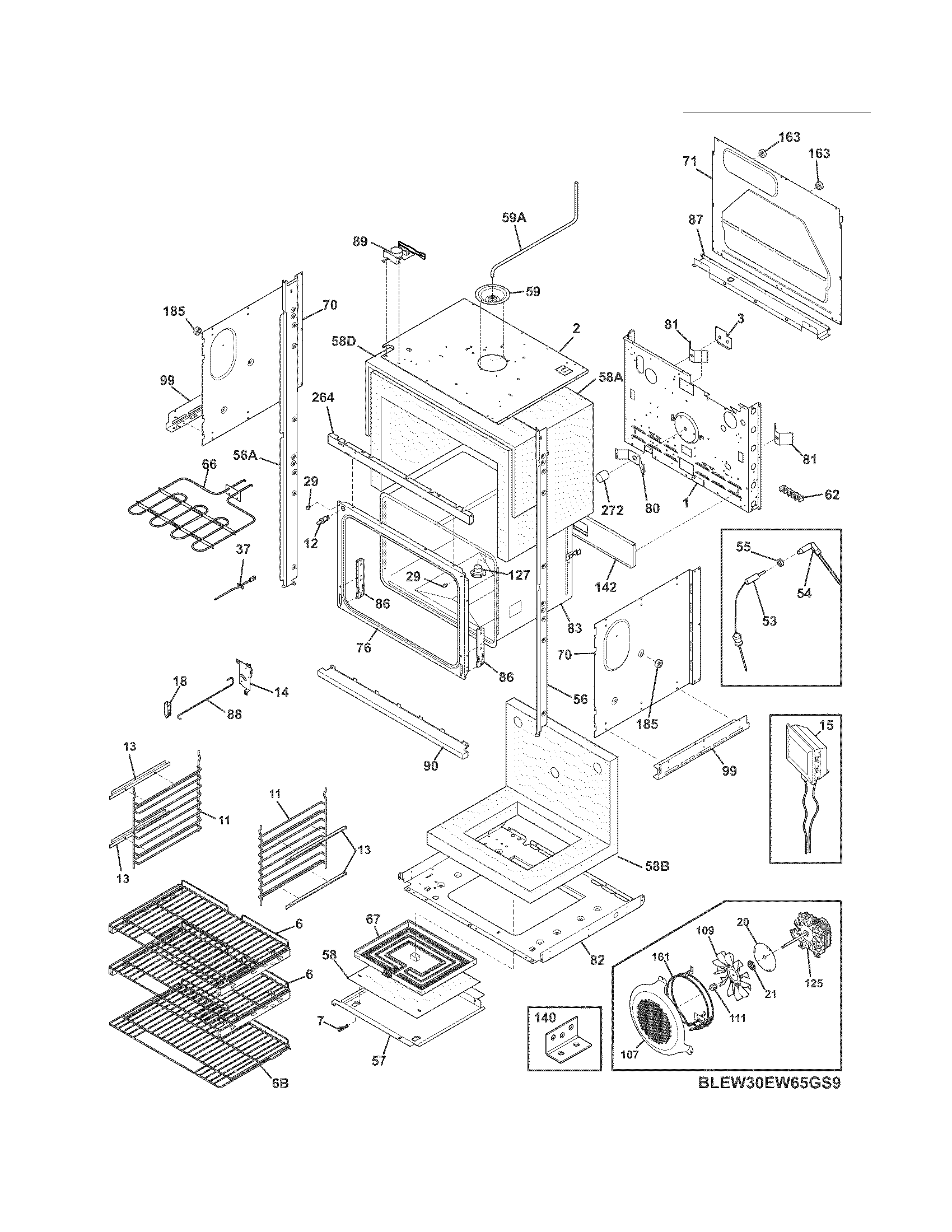

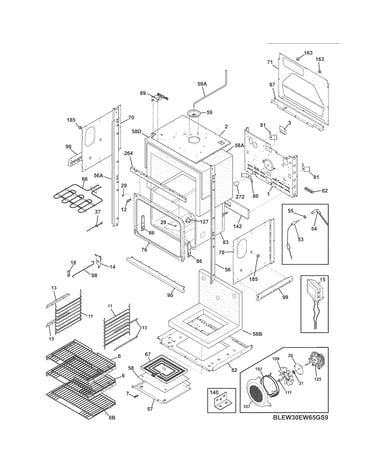

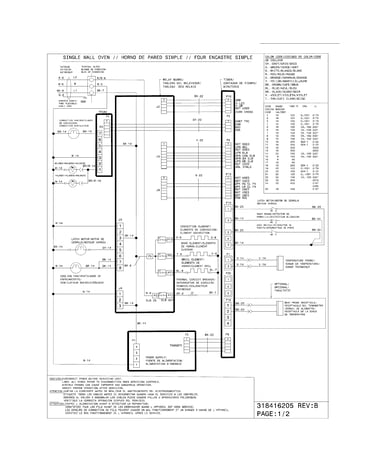

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Range Oven Temperature Sensor 318562500
Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Oven Element 318601601
Oven element

Part #318601601

Replaced by #318601604

?
Manufacturer substitution
This part replaces 318601601. Substitute parts can look different from the original.
BEST SELLER
$197.10 |
6% OFF Phone Price : $209.10
In Stock
Range Oven Door Inner Glass 316117500
#8

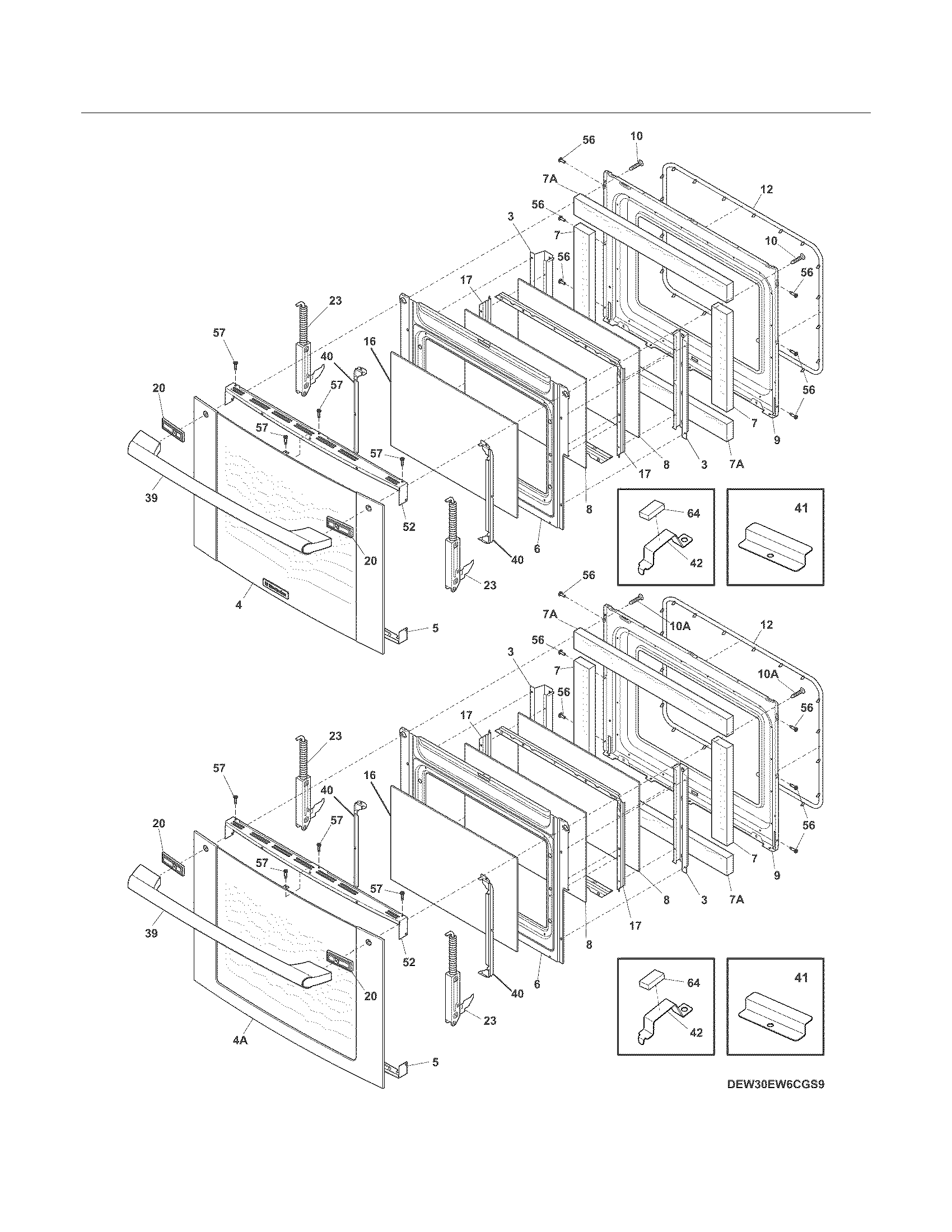

Doors diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Screw 5304476994
Screw

Part #5304476994

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5304476994. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Range Oven Meat Probe Sensor 318601302
Range oven meat probe sensor

Part #318601302

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 318601302. Substitute parts can look different from the original.
$89.51 |
6% OFF Phone Price : $95.51
In Stock
Range Door Light Switch 318394802
Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Wall Oven Thermal Fuse 318944000
#119

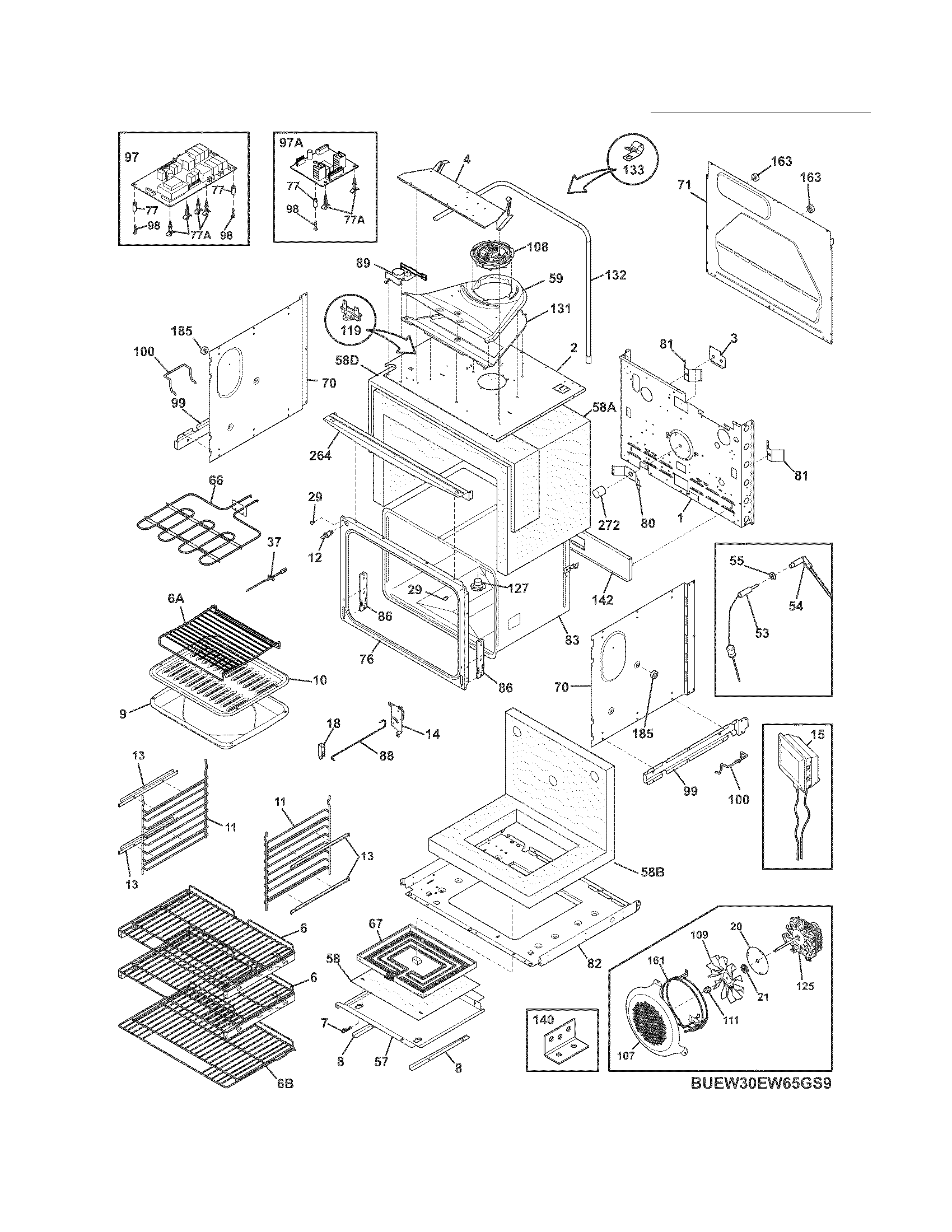

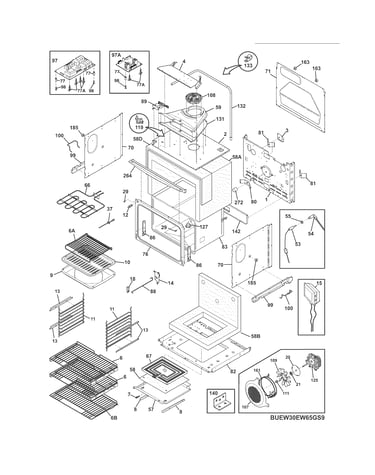

Upper oven diagram
