Model # 53691200 Official Craftsman 18" power reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 53691200 18" power reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

Car Bolt 455999
#31

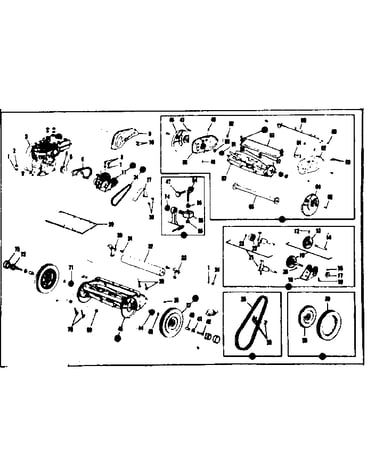

Chassis assembly diagram

Car bolt

Part #455999

The manufacturer no longer makes this part, and there's no substitute part

Screw 999602
#48

Chassis assembly diagram

Screw

Part #999602

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 122052
#35

Chassis assembly diagram

Cap screw

Part #122052

The manufacturer no longer makes this part, and there's no substitute part

Tie Piece 39204
#3

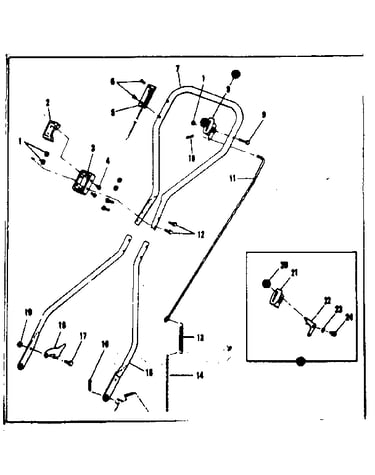

Handle assembly diagram

Tie piece

Part #39204

The manufacturer no longer makes this part, and there's no substitute part

Frm/reel Ay 42199
#45

Chassis assembly diagram

Frm/reel ay

Part #42199

The manufacturer no longer makes this part, and there's no substitute part

Shaft Pulley 22262
#15

Chassis assembly diagram

Shaft pulley

Part #22262

The manufacturer no longer makes this part, and there's no substitute part

Thrttle Cont 39197
#5

Handle assembly diagram

Thrttle cont

Part #39197

The manufacturer no longer makes this part, and there's no substitute part

Rtnr Brkt Lh 39201
#33

Chassis assembly diagram

Rtnr brkt lh

Part #39201

The manufacturer no longer makes this part, and there's no substitute part

Bolt Shoulde 35266
#17

Handle assembly diagram

Bolt shoulde

Part #35266

The manufacturer no longer makes this part, and there's no substitute part

Left Hand 22894
#44

Chassis assembly diagram

Left hand

Part #22894

The manufacturer no longer makes this part, and there's no substitute part
