Maytag
Electric Range

Model # MES5752BAB15 Official Maytag 30" electric slide-in range

Here are the diagrams and repair parts for Official Maytag MES5752BAB15 30" electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Light Bulb, A-15, 40-watt STD398091
#24

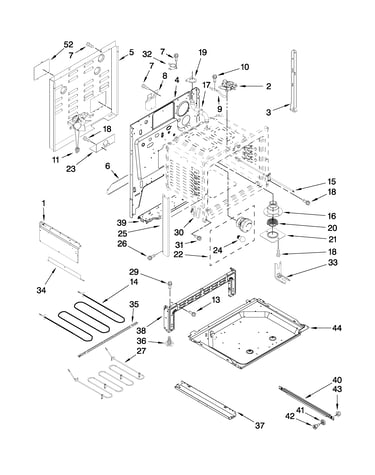

Chassis parts diagram

Light bulb, a-15, 40-watt

Part #STD398091

The manufacturer no longer makes this part, and there's no substitute part

Sensor 7430P042-60
#15

Chassis parts diagram

Sensor

Part #7430P042-60

Replaced by #12001656

?
Manufacturer substitution
This part replaces 7430P042-60. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Polish 3191048
#NI

Optional parts (not included) diagram

Polish

Part #3191048

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 3191048. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Switch 7403P373-60
#4A

Control panel parts diagram

Switch

Part #7403P373-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P373-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Switch 7403P372-60
#4

Control panel parts diagram

Switch

Part #7403P372-60

Replaced by #WP7403P239-60

?
Manufacturer substitution
This part replaces 7403P372-60. Substitute parts can look different from the original.
BEST SELLER
$47.96 |
11% OFF Phone Price : $53.96
In Stock
Bake Element 7406P439-60
#27

Chassis parts diagram

Bake element

Part #7406P439-60

Replaced by #WPW10310274

?
Manufacturer substitution
This part replaces 7406P439-60. Substitute parts can look different from the original.
BEST SELLER
$64.47 |
9% OFF Phone Price : $70.47
In Stock
Element 7406P365-60
#5

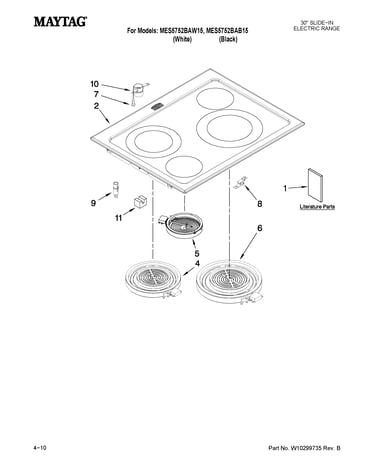

Cooktop parts diagram

Element

Part #7406P365-60

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 7406P365-60. Substitute parts can look different from the original.
BEST SELLER
$148.63 |
7% OFF Phone Price : $160.63
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Oven Door Gasket W10162384
#18

Door parts diagram

Range oven door gasket

Part #W10162384

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces W10162384. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
