Model # LT-46164 Official Mitsubishi lcd television

Here are the diagrams and repair parts for Official Mitsubishi LT-46164 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

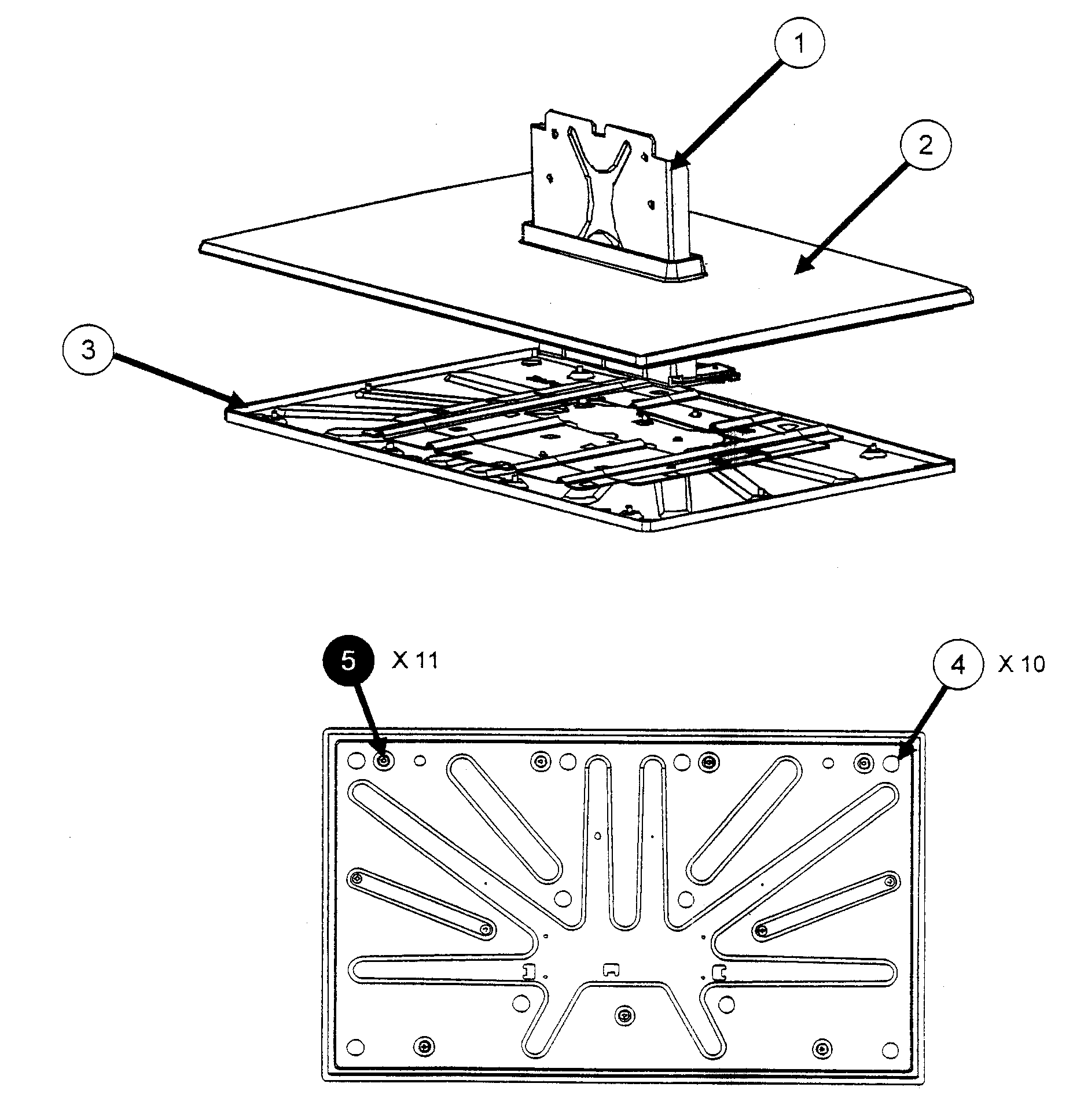

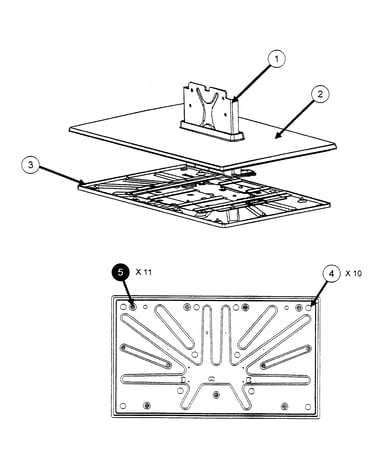

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Inlet Assembly 939C112002
#NI

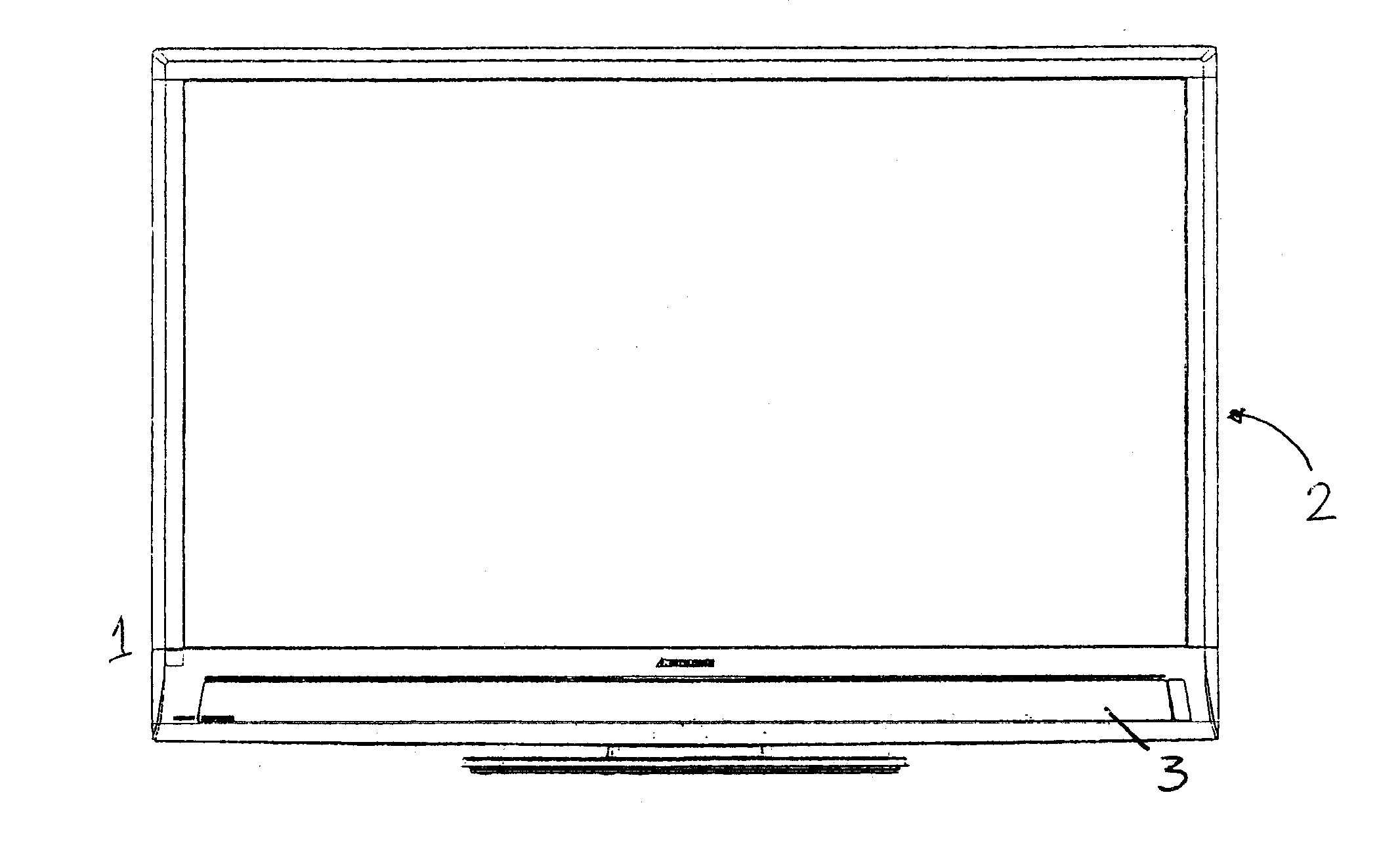

Cabinet parts diagram

Inlet assembly

Part #939C112002

The manufacturer no longer makes this part, and there's no substitute part

Spkr Box F 752A016020
#NI

Cabinet parts diagram

Spkr box f

Part #752A016020

The manufacturer no longer makes this part, and there's no substitute part

Resistor Cement 109P273010
#NI

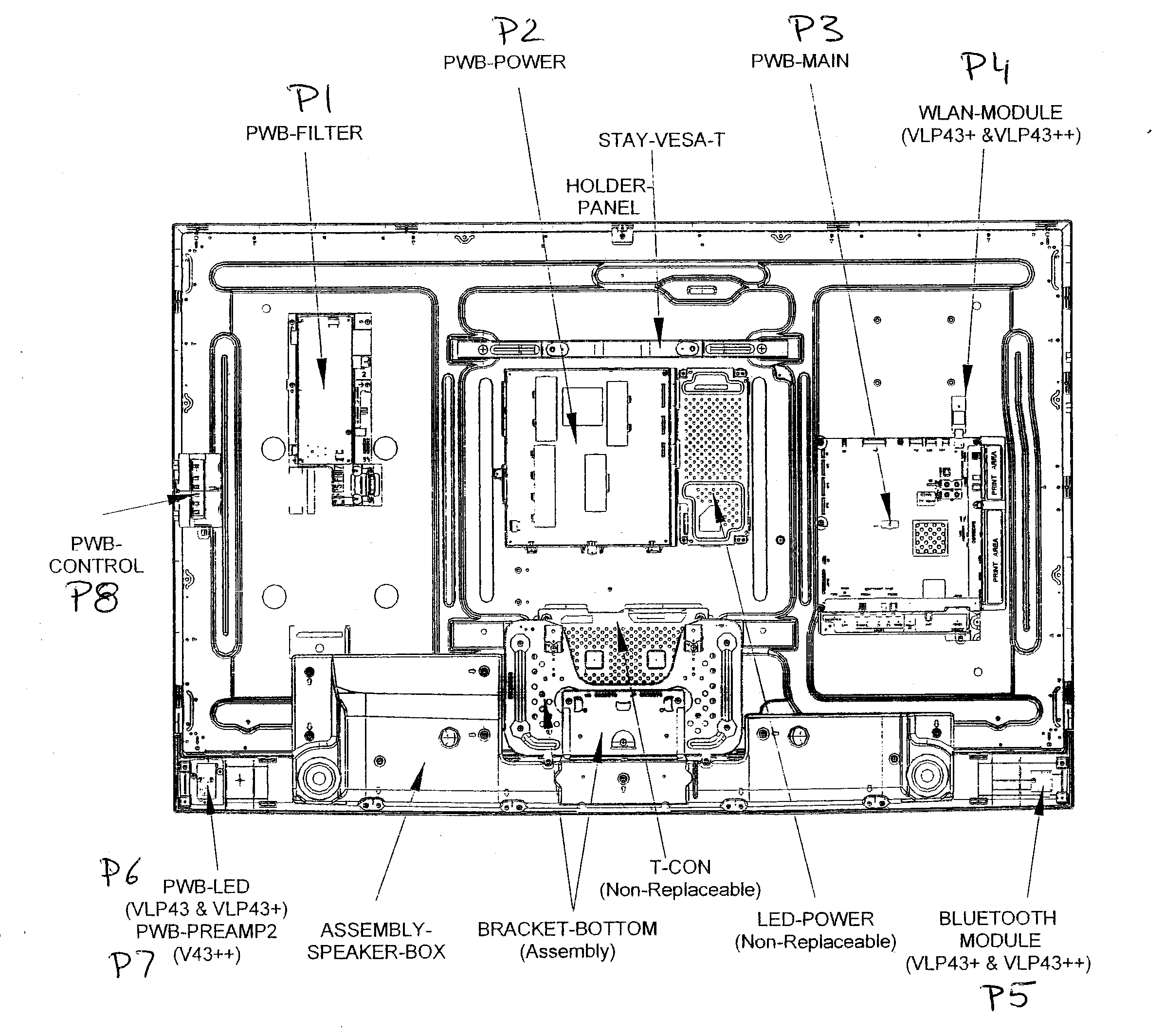

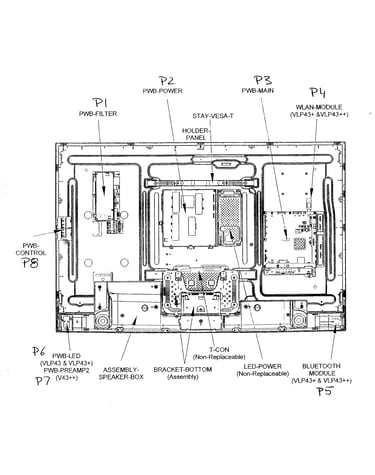

Lcd panel diagram

Resistor cement

Part #109P273010

The manufacturer no longer makes this part, and there's no substitute part

Ic Mic2005 271P349010
#NI

Lcd panel diagram

Ic mic2005

Part #271P349010

The manufacturer no longer makes this part, and there's no substitute part

Ic K4s6416 276P827010
#NI

Lcd panel diagram

Ic k4s6416

Part #276P827010

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Cover 750A791010
#2

Cabinet parts diagram

Mitsubishi cover

Part #750A791010

The manufacturer no longer makes this part, and there's no substitute part

Holder Pan 599D333010
#HI

Lcd panel diagram

Holder pan

Part #599D333010

The manufacturer no longer makes this part, and there's no substitute part

Photo Coup 268P132010
#NI

Lcd panel diagram

Photo coup

Part #268P132010

The manufacturer no longer makes this part, and there's no substitute part

Pcb Filter 934C387001
#P1

Lcd panel diagram

Pcb filter

Part #934C387001

The manufacturer no longer makes this part, and there's no substitute part

Plate-ir 761C861010
#NI

Cabinet parts diagram

Plate-ir

Part #761C861010

The manufacturer no longer makes this part, and there's no substitute part
