Model # H60-75216H Official Tecumseh 4-cycle engine

Here are the diagrams and repair parts for Official Tecumseh H60-75216H 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

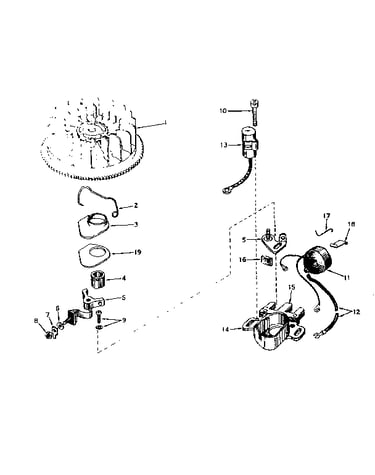

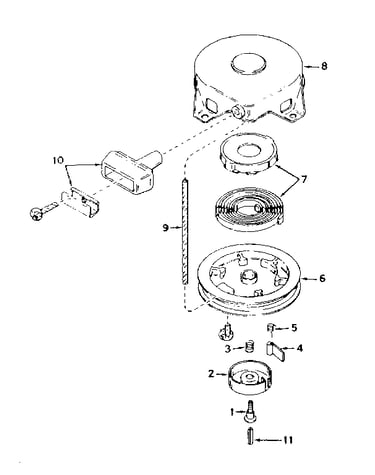

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |

Gasket 27110
#21

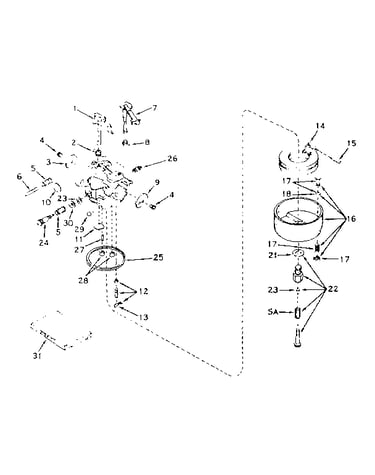

Carburetor no. 630992b diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

/fuel Bowl 631025
#16

Carburetor no. 630992b diagram

/fuel bowl

Part #631025

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor no. 630992b diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#95

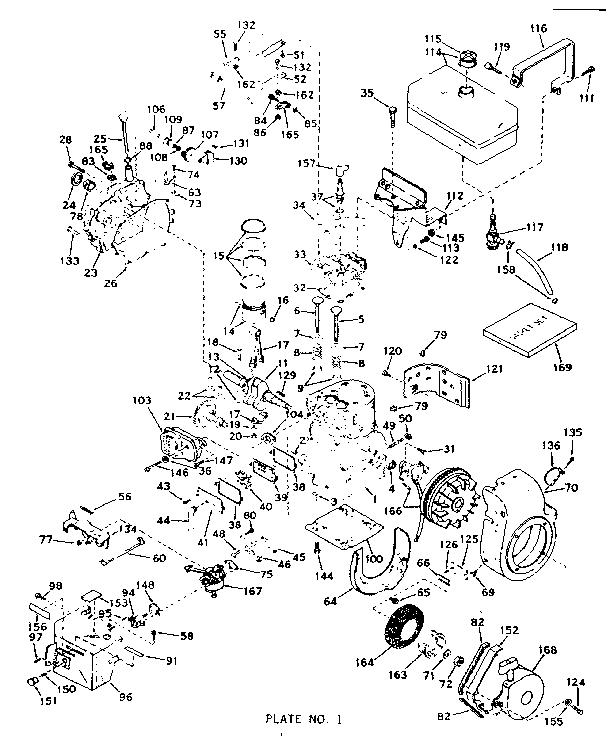

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27930
#104

Basic engine diagram

Gasket

Part #27930

The manufacturer no longer makes this part, and there's no substitute part

Cap 30969
#50

Basic engine diagram

Cap

Part #30969

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8

Carburetor no. 630992b diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Plug 631027
#11

Carburetor no. 630992b diagram

Plug

Part #631027

The manufacturer no longer makes this part, and there's no substitute part

Gasket Set 31382A
#169

Basic engine diagram

Gasket set

Part #31382A

The manufacturer no longer makes this part, and there's no substitute part

Washer 30590A
#87

Basic engine diagram

Washer

Part #30590A

The manufacturer no longer makes this part, and there's no substitute part
