Model # 627804X6C Official Murray snow thrower

Here are the diagrams and repair parts for Official Murray 627804X6C snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

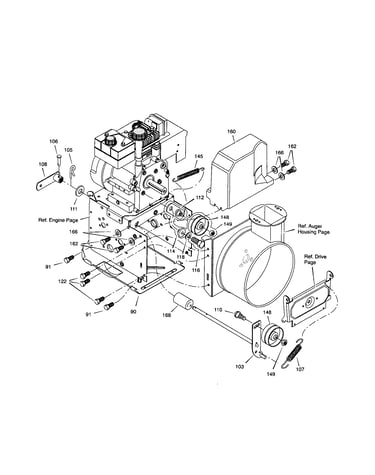

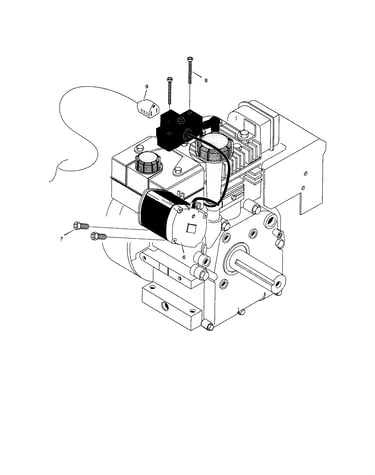

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
Snowblower Drive Belt 579932
#16

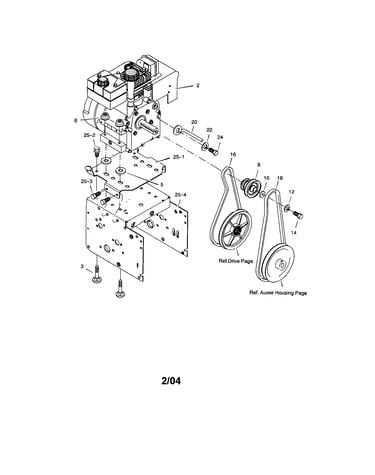

Engine diagram

Snowblower drive belt

Part #579932

Replaced by #1733324SM

?
Manufacturer substitution
This part replaces 579932. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$26.25 |
19% OFF Phone Price : $32.25
In Stock
Snowblower Gas Belt 585416
#18

Engine diagram

Snowblower gas belt

Part #585416

Replaced by #585416MA

?
Manufacturer substitution
This part replaces 585416. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$29.80 |
17% OFF Phone Price : $35.80
In Stock
Disc Wheel 53830
#212

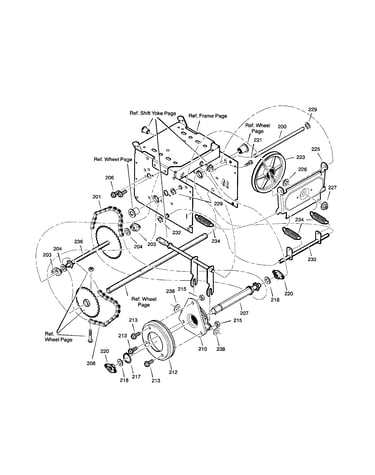

Drive diagram

Disc wheel

Part #53830

Replaced by #1501435MA

?
Manufacturer substitution
This part replaces 53830. Substitute parts can look different from the original.
BEST SELLER
$27.05 |
18% OFF Phone Price : $33.05
In Stock
Snowblower Chute Retainer Ring, Inner 337227
#610

Discharge chute diagram

Snowblower chute retainer ring, inner

Part #337227

Replaced by #337227MA

?
Manufacturer substitution
This part replaces 337227. Substitute parts can look different from the original.
BEST SELLER
$25.11 |
19% OFF Phone Price : $31.11
In Stock
Snowblower Shear Bolt 9524
#522

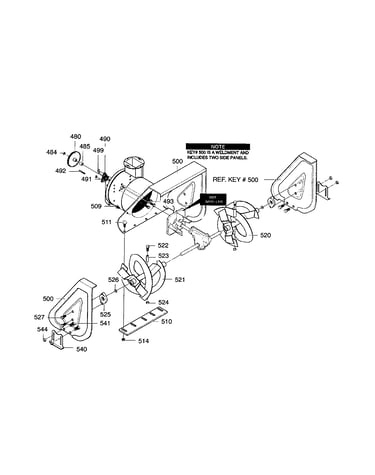

Auger housing diagram

Snowblower shear bolt

Part #9524

Replaced by #703057

?
Manufacturer substitution
This part replaces 9524. Substitute parts can look different from the original.
BEST SELLER
$8.16 |
11% OFF Phone Price : $9.16
In Stock
1/4-20 Hex N 780029
1/4-20 hex n

Part #780029

Replaced by #703232

?
Manufacturer substitution
This part replaces 780029. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Extension Spring 165X112
#234

Drive diagram

Extension spring

Part #165X112

Replaced by #1736469YP

?
Manufacturer substitution
This part replaces 165X112. Substitute parts can look different from the original.
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Height Adjustment Skid 762377E701
#540

Auger housing diagram

Height adjustment skid

Part #762377E701

Replaced by #1740912BMYP

?
Manufacturer substitution
This part replaces 762377E701. Substitute parts can look different from the original.
$20.58 |
23% OFF Phone Price : $26.58
In Stock
Boot Spring 308146
#765

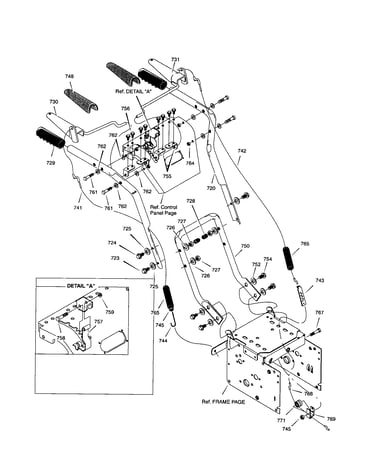

Handle diagram

Boot spring

Part #308146

Replaced by #308146MA

?
Manufacturer substitution
This part replaces 308146. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
1/4" Spacer 3943
#523

Auger housing diagram

1/4" spacer

Part #3943

Replaced by #703058

?
Manufacturer substitution
This part replaces 3943. Substitute parts can look different from the original.
$12.09 |
14% OFF Phone Price : $14.09
In Stock
