Gas Walk-Behind Mower

Model # 12A-377B062 Official MTD gas lawn mower

Here are the diagrams and repair parts for Official MTD 12A-377B062 gas lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

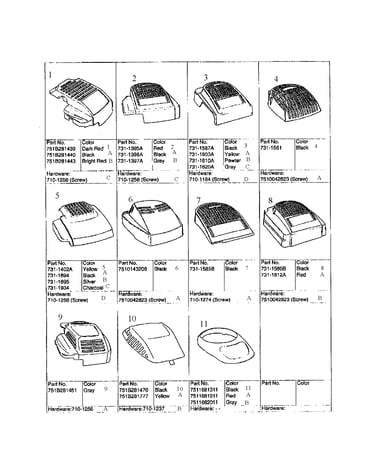

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 212 parts  |

Bell Support 736-0524A
Bell support

Part #736-0524A

Replaced by #736-0524B-1

?
Manufacturer substitution
This part replaces 736-0524A. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$6.58
13% OFF Phone Price : $7.58
In Stock
Ball Bearing 741-0600
#7

Complete transmission/housing diagram

Ball bearing

Part #741-0600

Replaced by #941-0600

?
Manufacturer substitution
This part replaces 741-0600. Substitute parts can look different from the original.
BEST SELLER
$28.71
17% OFF Phone Price : $34.71
In Stock
Lawn Tractor Screw, 1/4-20 X 5/8-in (replaces 910-1652) 710-1652
Lawn tractor screw, 1/4-20 x 5/8-in (replaces 910-1652)

Part #710-1652

This item is not returnable
$5.44
16% OFF Phone Price : $6.44
In Stock
Yard Machines Lawn & Garden Equipment Wing Nut (replaces 01002925, 920-0279) 720-0279
Yard machines lawn & garden equipment wing nut (replaces 01002925, 920-0279)

Part #720-0279

This item is not returnable
$6.87
13% OFF Phone Price : $7.87
In Stock
Sears Lawn & Garden Equipment Plastic Plug 721-0325
#25

Complete transmission/housing diagram

Sears lawn & garden equipment plastic plug

Part #721-0325

This item is not returnable
$6.75
13% OFF Phone Price : $7.75
In Stock
Yard Machines Lawn & Garden Equipment Guide Bolt 710-1205
Yard machines lawn & garden equipment guide bolt

Part #710-1205

This item is not returnable
$5.01
17% OFF Phone Price : $6.01
In Stock
Drive Cable 746-0711A
#128

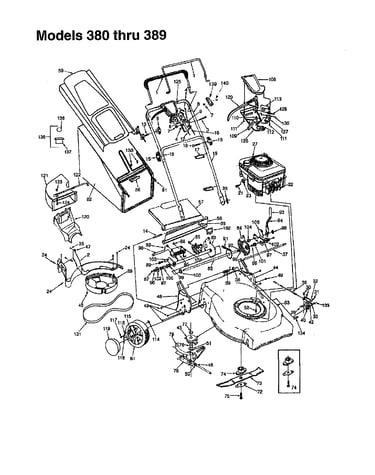

Deck/bag/wheels(models 380 thru 389) diagram

Drive cable

Part #746-0711A

Replaced by #946-0711B

?
Manufacturer substitution
This part replaces 746-0711A. Substitute parts can look different from the original.
$32.85
15% OFF Phone Price : $38.85
In Stock
Toro Lawn & Garden Equipment Hex Screw 710-1026
#129

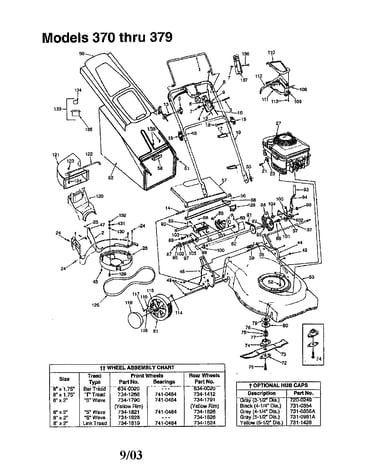

Deck/bag/wheel(models 370 thru 379) diagram

Toro lawn & garden equipment hex screw

Part #710-1026

This item is not returnable
$10.46
16% OFF Phone Price : $12.46
In Stock
Lawn & Garden Equipment Hex Bolt (replaces 01000943, 910-1257) 710-1257
Lawn & garden equipment hex bolt (replaces 01000943, 910-1257)

Part #710-1257

This item is not returnable
$9.85
9% OFF Phone Price : $10.85
In Stock
Sears Lawn & Garden Equipment Cotter Pin (replaces 914-0474) 714-0474
Sears lawn & garden equipment cotter pin (replaces 914-0474)

Part #714-0474

In Stock
